GV-AS400 Controller
Click Image to Enlarge and View More Pictures
Model No. :
GV-AS400-CONTROLLER
Regular price:
$899.99
Your Price:
$749.99
Product Description
AS400 KEY FEATURES

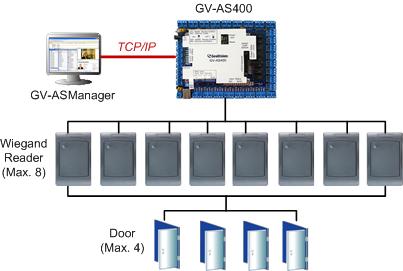

- Support 8 Wiegand card readers of 26 to 64 bits
- Support 8 GV-Readers and GeoFinger readers through RS-485 connection
- Built-in 16 digital inputs and 16 relay outputs
- I/O capability expandable to 64 digital inputs and 64 relay outputs with GV-IO Box connected
- Suitable for door, parking and elevator access control
AS400 SPECIFICATIONS
| CPU | 8 bit RISC Microprocessor |
| Number of User Cards | 40,000 cards |
| Event Buffer | 65,536 events and log data |
| Power | AC 100~250 V , 50~60Hz |
| Reader Port | 8 Wiegand interfaces 1 RS-485 interface only for GV-Readers and GeoFingerReaders (max. 8 GV-Readers) |
| Wiegand Interface | 26~64 Bit format |
| 12V DC power supply, 200mA | |
| Communication | TCP/IP |
| Input | 16 inputs, dry contact, NO / NC |
| Output | 8 relay outputs 8 photo relay outputs |
| Operating Temperature | 0~65°C / 32 ~ 149°F |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
| Dimension (W x H x D) | 210 x 170 x 30 mm / 8.27 x 6.69 x 1.18 in |
| Weight | 400 g / 14.11 Ib |
| Certification | CE, FCC, RoHS |
| Optional Products | |
| GV-ASKeypad | 2 Lines x 16 English Characters |
| 4 x 4 Key | |
| GV-IO Box | 4 / 8 / 16 ports |
| Cabinet | The cabinet dimension is 383.5 (W) x 443.5 (H) x 112.2 (D)(mm) & 300 (W) x 420 (H) x 86 (D)(mm) |
Related Products
Lines of Resolution: A Security Cameras performance and picture clarity is based on the number of Horizontal Lines of Resolution that the CCD Chip in the camera provides. The higher the number of lines of resolution, the better the video quality. We offer some of the highest resolution Security Cameras and Security Camera Systems in the industry.
|
Performance |
Color |
B/W |
|
Standard |
330 Lines |
380 Lines |
|
Medium |
420 Lines |
470 Lines |
|
High |
480 Lines |
580 Lines |
|
Super High |
540 Lines |
600 Lines |
