Datasheet

INTRODUCTION

The GV-Dispatch Server is a computer with Dispatch software that works with GV-Center V2 servers and the GV-Systems. The GV-Dispatch Server connects 25,000 GV-Systems to 50 GV-Center V2 Pro servers and distributes the workload between online and offline GV-Center V2 servers. It utilizes load-balancing technique that distributes requests from event-triggered GV-Systems evenly across a GV-Center V2 network. If one GV-Center V2 server starts to get swamped, the GV-Dispatch Server forwards requests to another GV-Center V2 server with more capacity. When one GV-Center V2 server fails to work, another can take over in the processing activity.

BENEFITS OF USING GV-CENTER V2 PRO

• Important for large GV-Center V2 server farm: It is difficult to predict the number of requests from multiple GV-Systems to a server
• Suitable for businesses or franchise stores: usually accompanied with a large cluster of networked GV-Systems in use and an enormous amount of surveillance service required
• Streamlines networking processes: no single server will be overwhelmed from GV-Systems to GV-Center V2 servers

GV-DISPATCH SERVER FEATURES

• Create, edit groups of GV-Center V2 servers and subscribers
• Up to 50 GV-Center V2 servers and 25,000 GV-System subscribers manageable
• Network Load Balancing: Distribute GV-System requests to GV-Center V2 servers by Group or by least connections available
• Direct GV-Center V2 servers to GV-Dispatch server available
• View real-time GV-Center V2 events and attached videos
• Check, control GV-Center V2 online/offline status
• View subscriber's address book and single-view Camera/Audio Control Panel
• Control PTZ, play videos, and two-way audio via Camera/Audio Control Panel
• Automatic connection recovery

SEARCH/PLAYBACK

• Keep tracks of GV-Center V2 event logs and Dispatch logs
• Recycle feature: Delete old files for non-stop recording
• Search GV-Center V2 events by types, GV-Center V2 ID, event date, and time
• Remote playback events with video attachments
• Flag bookmarks for the highlight of important events

LOG BROWSER

• Display GV-Dispatch Servers status for system service, GV-Center V2 login/logout history, connection, control, and Dispatch status
• Backup event lists and video files
• Log Filter as a search engine

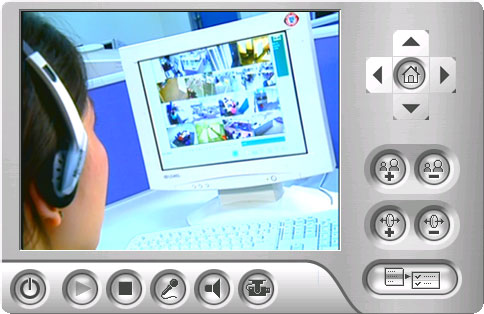

CAMERA/AUDIO CONTROL PANEL

GV-DISPATCH SERVER MODULE QUICK INFO

MINIMUM SYSTEM REQUIREMENTS

Note : To run a GV-Dispatch Server, the GV-Dispatch Server USB key pro is required in order to connect to the System required above.
