GV-DSP LPR V2

Introduction

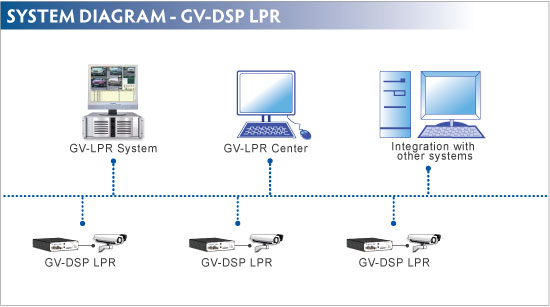

The GV-DSP LPR is a Linux-based system built in a small box without a fan and hard drive. Integrating with a web server, the GV-DSP LPR can deliver live images and host its own web site, as well as sending recognition results and captured images to the GV-LPR System and GV-LPR Center. The GV-DSP LPR is beneficial for license plate recognition over long distance and in an outdoor environment.

FEATURES

Non-PC based solution for 1 port traffic or mobile license plate recognition
Wide operating temperature range
Web-based configuration for image, security settings and firmware upgrade
Recognition triggered by video motion detection or sensor inputs

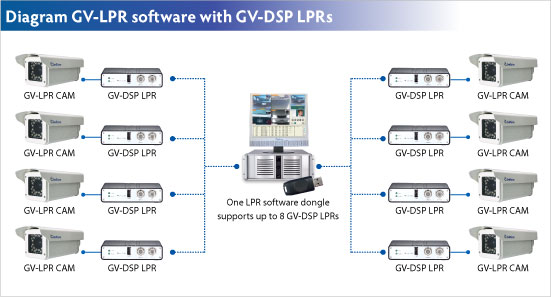

Compatible with GV-LPR System and GV-LPR Center
Digital watermark
UMTS
Recognition results, images and live videos compatible with other system through OCX SDK

Specifications

Video Input/Output		1 Video In, 1 TV Out
Video Compression		JPEG
Live Resolutions	NTSC	360x240, 720x480
	PAL	720x576, 360x288
Live Frame Rate	CIF	10 fps (NTSC), 10fps (PAL)
	D1	5 fps (NTSC), 5 fps (PAL)
Image Setting		Brightness, Contrast, Saturation, Hue
Alarm and Event Management		Events triggered by motion detection or sensor inputs Central monitoring by LPR Center Relay outputs triggered by sensor inputs or remotely by LPR Center
Connectors		Video Input/TV Output: BNC ports Audio Input: Mini stereo jacks Ethernet: 10/100Base-T USB: 2.0 (only for UMTS) Mini SD Card Slot: standard Mini SD cards I/O Port: 2 Digital Inputs, 2 Relay Outputs, 1 Weigand
Security		IP address filtering
Installation		Web-based configuration
Management Maintenance		Firmware upgrade through Web Browser
Protocol		HTTP, TCP, UDP, DHCP, NTP, DDNS
Storage		Mini SD Card
Operation Temperature		-20 ~ 60°C (-4 ~ 140°F)
Dimensions (W x D x H)		123 x 106 x 25 (mm) / 4.84 x 4.17 x 0.98 (in)
Weight		0.345 (kg) / 0.76 (lb)
Country Support		Australia, Austria, Belgium, Brazil, Chile, China, Columbia, Cyprus, Czech Republic, Germany, Guernsey, Hungary, Ireland, Israel, Italy, Mexico, Norway, Poland, Portugal, South Africa, Spain, Taiwan, UAE, UK, USA
Accessory		GV-Relay V2
Note: The RS-485 and Weigand interfaces are NOT functional now.
