Introduction

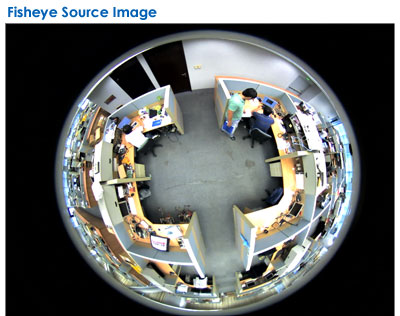

The GV-FE420 / GV-FE421 is a fisheye camera that allows you to monitor all angles of a location using just one camera. The distorted hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection.

Without installing any software, you can watch live view and utilize functions such as motion detection, privacy mask, and alert notification through the Web interface using an IE browser. In addition, the GV-FE420 / GV-FE421 seamlessly integrates with the GV-System, providing advanced monitoring and video management features.

The GV-Fisheye IP Camera is designed to be mounted on the ceiling, wall or ground. There are two ways to mount the GV-FE420 / GV-FE421 on the ceiling, Hard Ceiling Mount and In-Ceiling Mount. In-Ceiling Mount allows the GV-FE420 / GV-FE421 to be mounted into the ceiling, revealing a small portion of the camera.

Key Features

• 4M progressive scan CMOS
• H.264 and MJPEG
• Day / Night function

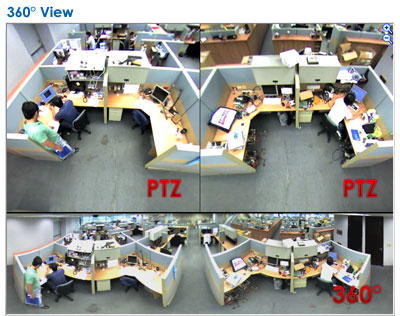

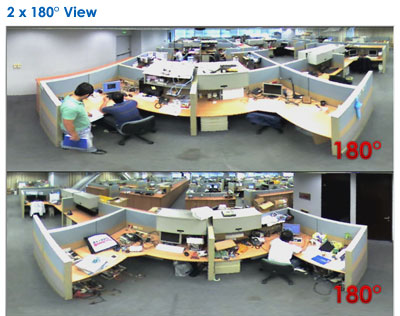

• Provides 360 and 180 degrees panorama view
• No mechanical moving parts
• Built-in Web server for monitoring through IE browser
• Virtual PTZ function
• Auto Pan function
• Different angle of view accessible by multiple users at the same time
• Playback from any view angle and zoom level
• Privacy mask
• Visual automation
• Tampering alarm
• Built-in microphone and speaker
• One sensor input and alarm output
• DC 12V / AC 24V / PoE
• Micro SD
• 16 languages on web interface

Specifications

Note:
1. Specifications are subject to change without notice.
2. Wall mount and ground mount are not supported in all firmware versions.
