Datasheet

INTRODUCTION

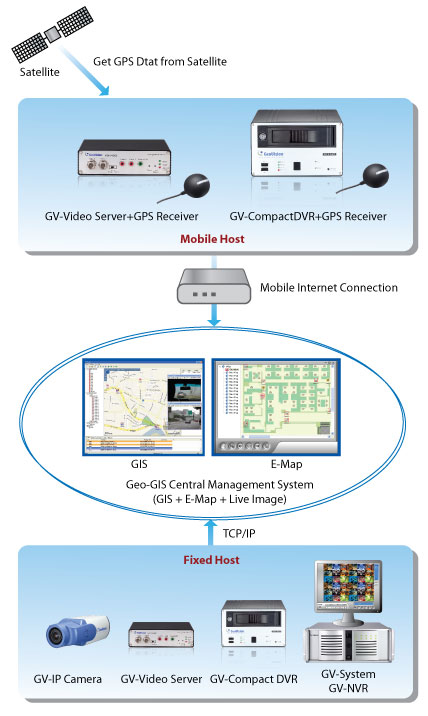

The GV-GIS is a GIS (Geographic Information System) based central management system for GeoVision devices. The vehicle tracking and remote location verification from the GV-GIS is made possible by the GPS receiver attached to GV-Video Server and GV-Compact DVR to constantly obtain the GPS data (vehicle coordinates and speed) from the satellite, and through mobile internet connection (e.g. UMTS, EV-DO, EDGE, GPRS, GSM, etc) to transmit the GPS data to the GV-GIS. Besides real-time vehicle tracking, you can also monitor the location of cameras and the status of I/O devices from the DVR and NVR, without GPS functions for city surveillance.

Features

• GIS central management system
• 500 vehicles tracking at one time
• Real-time vehicle GPS coordinates
• Real-time vehicle video image
• Google Maps, Microsoft Virtual Earth and user-defined maps support
• GPS Tracks playback
• Detour Detection
• Idle Speed Detection
• Over Speed Detection
• E-Map Support
• Motion and Input-triggered alert for fixed hosts
• Customized landmark (interested points) setting
• Integration with GV-I/O Box, GV-Video Server, GV-Compact DVR, GV-IP Camera, GV-System and GV-NVR
• GIS Web Interface for remote monitoring and tracking

Minimum System Requirements

Standard Version

		10 Mobile-Host Map Views	10 Mobile-Host Map Views with up to 10 Megapixel Live Views
OS	32 bit	Windows XP, Windows Vista , Windows 7, Windows Server 2008
	64 bit	Windows 7, Windows Server 2008
CPU		Pentium 4, 3.0 GHz with HT	Core2 Quad 8300, 2.5 GHz
Memory		2 X 512 MB Dual Channels	2 X 1 GB Dual Channels
Hard Disk		The hard disk space required to install GV-GIS (Standard Version) must be at least 1 GB.
VGA		NVIDIA GeForce 8600GT or ATI Radeon X1650
Direct X		9.0c
Browser		Internet Explorer 7.x
Software		.Net Framework 3.5
Hardware		External or Internal GV-GIS Dongle

Advanced Version (Up to 500 Mobile Hosts)

		16 Mobile-Host Map Views	16 Mobile-Host Map Views with up to 16 Megapixel Live Views
OS	32 bit	Windows XP, Windows Vista , Windows 7, Windows Server 2008
	64 bit	Windows 7, Windows Server 2008
CPU		Pentium 4, 3.0 GHz with HT	Core I5-750, 2.67 GHz
Memory		2 X 1 GB Dual Channels	2 X 1 GB Dual Channels
Hard Disk		The hard disk space required to install GV-GIS (Advanced Version) must be at least 1 GB.
VGA		NVIDIA GeForce 8600GT or ATI Radeon X1650
Direct X		9.0c
Browser		Internet Explorer 7.x
Software		.Net Framework 3.5
Hardware		External or Internal GV-GIS Dongle

Notes:

• DirectX and .Net Framework can be found in the Software DVD.
• The minimum system requirements are collected by using the GV-IPCam 1.3M for test, and may vary based on connected IP device models.

Specifications

Feature	Amount	Device
Mobile Host	Up to 500 hosts (depending on the Dongle in use)	GV-Video Server, GV-Compact DVR
Fixed Host	Unlimited	GV-DVR / NVRGV-Video Server / GV-Compact DVR / GV-IP Cam / GV-Speed Dome / GV-Smart Box / GV-I/O Box 8/16 Ports (Ethernet Module) / GV-LPR / GV-DSP LPR / 3rd-party IP devices
I/O Module	9 units	GV-I/O GV-I/O Box (4/8/16 Ports)
Live View	16 views	Mobile Hosts + Fixed Hosts
Map View	16 views	Mobile Hosts
Marker	Unlimited
ViewLog	1	Remote ViewLog program required to be installed
Instant Playback	1
