The GV-NVR System Lite is a light-weight and an ultra-slim GV-NVR System, with which you can record video files directly to the internal hard drive. The GV-NVR System Lite supports up to 8 GV IP cameras and/or third-party IP cameras for networking surveillance, with plug-and-play function for GV IP cameras to connect to the unit automatically. The GV-NVR System Lite is an ideal NVR system for small business or retail stores.

Its six USB 2.0 ports enable to connect with multiple peripheral devices, such as USB HDD, USB DVD player and etc. Its Gigabit Ethernet function enables high-speed Internet access for seamless Web browsing. Moreover, our VESA mounting solution allows you to mount the ultra-slim unit on the back of a computer monitor.

You can use up to 8 Supported Network IP Cameras with the GV-NVR Lite Network Video Recorder. The GV-NVR Lite is a Windows Based Complete Surveillance Network Video Recorder with the latest functionality. It is so compact and "lite" that you can even mount it directly to the back of your PC Monitor (see image below). Simply plug in your IP Cameras, power up the DVR, and your cameras will IMMEDIATELY APPEAR on the live screen. You will then adjust your settings such as motion vs. 24/7 recording, email and cell phone alerts, and much, much more. GeoVision is well known for their high quality cameras and video recorders.

The GeoVision Lite NVR featurss Internet and Cell Phone Viewing. Whether you have an Android, iPhone, iPad, Blackberry or many others, this NVR has you covered. Don't be fooled by its size. This Network Digital Video Recorder has a large range of integrated features. Enjoy features such as motion detection and alarm, cell phone and email alerts, digital zoom, pan tilt zoom camera control, and more. The GV-NVR has a built in hard drive for live video storage and review.

The GV-NVR a great way combine IP Cameras on one interface without having to do a lot of work. The software is already built into the NVR so there is literally nothing for you to do.

Check out our video below. It will show you how easy it is to set up your IP cameras in just a few minutes - even for a novice. You will also see a video screen shot to see the user friendly interface.

It is so light weight that you can mount the NVR Lite to your PC directly to save space. It also has an energy-efficient Intel processer, which lowers GV-NVR System Lite's energy consumption by up to 50% in comparison to traditional desktop PC.

Datasheet

The Supported IP Camera Combinations:

The GV-NVR Lite V1.5 supports connections to GV IP cameras and third-party IP cameras. You can adopt one of the following combinations:

• Connect up to 8 GV IP cameras (excluding GV Fisheye Cameras). See Section A
• Connect up to 8 third-party cameras (of 640 x 480 resolution, H.264). See Section C
• Connect up to 6 third-party cameras (of 1280 x 720 resolution, H.264). See Section C
• Connect up to a total of 8 cameras from GV IP cameras (excluding GV Fisheye cameras) and third-party IP cameras (of 640x 480 resolution, H.264). See Section A and C
• Connect up to a total of 4 cameras from GV IP cameras and third-party IP cameras (of 1280 x 720 resolution, H.264). See Section A and C
• Connect one GV Fisheye camera and up to 3 other GV IP cameras. See Section A and B
• Connect one GV Fisheye camera and up to 3 third-party IP cameras (of 640 x 480 resolution, H.264). See Section B and C
• Connect one GV Fisheye camera with up to 3 third-party IP cameras (of 1280 x 720 resolution, H.264). See Section B and C

The number of supported channels is based on the following resolution and codec type:

Section A		Dual Stream Resolution		Max. Frame Rate
		Stream 1 (H.264)	Stream 2 (MPEG4)
GV IP Camera (excluding GV Fisheye)	GV-PTZ010D-N / GV-SD010 / GV-SD010S NTSC	704 x 480	352 x 240	30 fps
	GV-PTZ010D-P / GV-SD010 / GV-SD010S PAL	704 x 576	352 x 288	25 fps
	GV-BX110D / GV-BX120D / GV-BX130D / GV-BL110D / GV-BL120D / GV-BL130D / GV-CB120 / GV-FD120D / GV-MFD110D / GV-MFD120 / GV-MFD130 / GV-PT110D / GV-VD120D	1280 x 1024	320 x 256	15 fps
	GV-BX220D / GV-BL220D / GV-VD220D / GV-FD220D / GV-CB220 / GV-MFD220	1920 x 1080	448 x 252	10 fps
	GV-BX320D / GV-BL320D / GV-VD320D / GV-FD320D / GV-MFD320	2048 x 1536	320 x 240	6 fps
	GV-BX520D / GV-MFD520	2560 x 1920	320 x 240	2 fps
Section B		Single Stream Resolution (H.264)		Max. Frame Rate
GV Fisheye	GV-FE110/111	1280 x 1024 (4:3)		5 fps
	GV-FE420/421	2048 x 1944 (4:3)		2 fps
	GV-FE520/521	2560 x 1920 (4:3)		2 fps
Section C		Single Stream Resolution (H.264)		Max. Frame Rate
Third-Party Camera		640 x 480		30 fps
		1280 x 720		15 fps

Note:

1. For GV IP cameras (excluding GV Fisheye), stream 1 is used for recording and single view, and stream 2 for live viewing in multi divisions.
2. The default resolution for stream 1 is set at its maximum. Several resolution, aspect ratio and codec options are available for each IP camera, except GV-Fisheye cameras.
3. When connecting GV-FE420 / GV-FE421 / GV-FE520 / GV-FE521, it is required to set the screen resolution to 1280 x 1024 or lower to get better CPU performance.
4. For third-party cameras, be sure the resolution and codec are configured as specified above to achieve the best performance and maximum frame rate.

Supported GV-NVR Lite Dongle

A GV-NVR Lite Dongle is required to connect to third-party IP cameras. Dongle options: 1, 2, 4, 6 and 8 IP channels

• Support up to 8 channels of megapixel GV IP cameras *
• Support third-party IP cameras *
• Support GPU Decoding
• Compact and slim
• H.264 / MJPEG / MPEG4 supported
• Dual video streams
• Automatic connection to GV IP Cameras
• Video analysis (Advanced Motion Detection, Privacy Mask, Scene Change Detection and Counter)
• All-in-one solution (Live View, Playback, Recording, Backup, CMS)

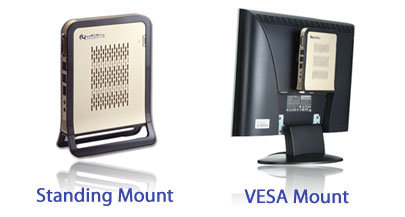

• Standing mount and VESA mount options
• Pre-installation recovery from the hidden partition
• Direct recording to the internal hard drive
• Low power consumption

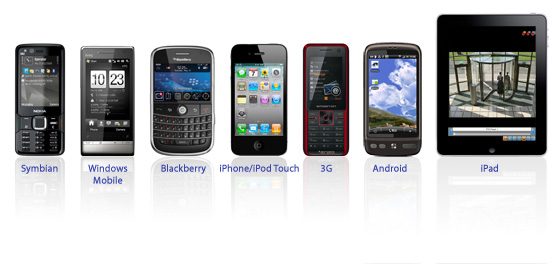

• Smart phones access supported (Symbian, Windows Mobile, iPhone, BlackBerry, Android, 3G)
• Fast reboot time (3 minutes) and recovery time (6~8 minutes)
• Multiple (16) languages supported

* Note: The feature is only available in GV-NVR System Lite with 2 GB RAM. The previous system with 1 GB RAM only supports up to 4 channels and does not support third-party IP cameras.

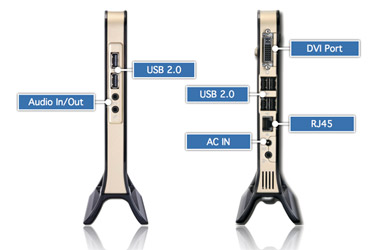

A compact yet feature-rich solution, GV-NVR System Lite is equipped with a variety of input and output terminals to provide flexible connection options. The built-in Gigabit Ethernet port enables connection to IP cameras, hubs and routers. Other input and output terminals include D-sub, speaker, microphone and six USB ports.

GV-NVR Lite utilizes an energy-efficient Intel processer, which lowers GV-NVR System Lite's energy consumption by up to 50% in comparison to traditional desktop PC.

• Retail Store
• Small Business
• Home Security
• Entrance and Reception Counter
• CMS (Central Monitoring Station)
  • GV-Control Center
  • GV-Center V2
  • GV-Dispatch Server
  • GV-Vital Sign Monitor
  • GV-GIS
• Smartphones


System
CPU	Intel Processor
RAM	2 GB
Storage	500 GB
OS	Microsoft Windows XP Embedded
DirectX	9.0c
Power	Output: 40W, 19V, 2.1A Input: 100~240V, 50~60Hz
Video
Video Input	4 /6 /8 channels
Compression	MJPEG / MEPG4 / H.264
Live Resolution	CIF for 4 screen divisions
Recording Mode	Round the Clock / Motion Detection / Sensor Detection / Pre & Post Recording / Schedule Recording
Instant Playback	10 sec. / 30 sec. / 1 min. / 5 min.
Pre Recording	1 ~ 90 sec. (1 fps)
Water Marking	Support
Audio
Audio Input	8 channels
Compression	AAC (16 kHz / 16 bit)
Connector
Ethernet	RJ-45, 10 / 100 / 1000 Mbps
DVI Output	DVI-D Output
USB 2.0	Right Side	2 ports
	Left Side	4 ports
Searching and Playback
Search Method	Date / Time
Date / Time / Event Search	Selectable on the tree list and calendar
Log Search	Through the log data to find the video event / time
Backup Type	DVD+R (DL) / DVD-R (DL) / DVD+R / DVD+RW / DVD-R / DVD-RW / CD-R / CD-RW (For backup function, you need to connect an external USB DVD/CD burner.)
Remote Client Software
Monitoring Environment	WebCam / Twin Server / Center V2 / VSM / Control Center / Remote Playback Server / Remote View / IP Multicast / GView / MSView / SSView / Remote View / 3GPP / AView / iView / iView HD
WebCam Live View	Max. 8 channels transmission
Remote Search	WebCam's Remote Playback / Remote Playback Server
System Monitoring and Recovery
Power Restoration	Power restored after AC power loss
Monitoring	Software Watchdog
Recovery	Automatic system rebuild from internal hard disk.
Sensor and Alarm
Sensor and Alarm	GV-IO Box 16 ports (Optional)	16 inputs, 16 outputs
	GV-IO Box 8 ports (Optional)	8 inputs, 8 outputs
	GV-IO Box 4 ports (Optional)	4 inputs, 4 outputs
Motion Detection	8 channels
Networking
Type	TCP/ IP, LAN, WAN, Internet, ISDN
Environment
Operating Temp	0 °C ~ 35 °C / 32 °F ~ 95 °F
Humidity	0% ~ 80% RH (non-condensing)
Physical
Color	Champagne gold
Dimensions (W x H x D)	153.5 x 20 x 172.5 mm / 6.04 x 0.79 x 6.79 in
Weight	650 g / 1.44 lbs
Language
Type	English / Czech / Danish / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese (Brazil) / Russian / Serbian / Spanish / Simplified Chinese / Traditional Chinese

Note: Specifications are subject to change without notice.
