B-Stock Products

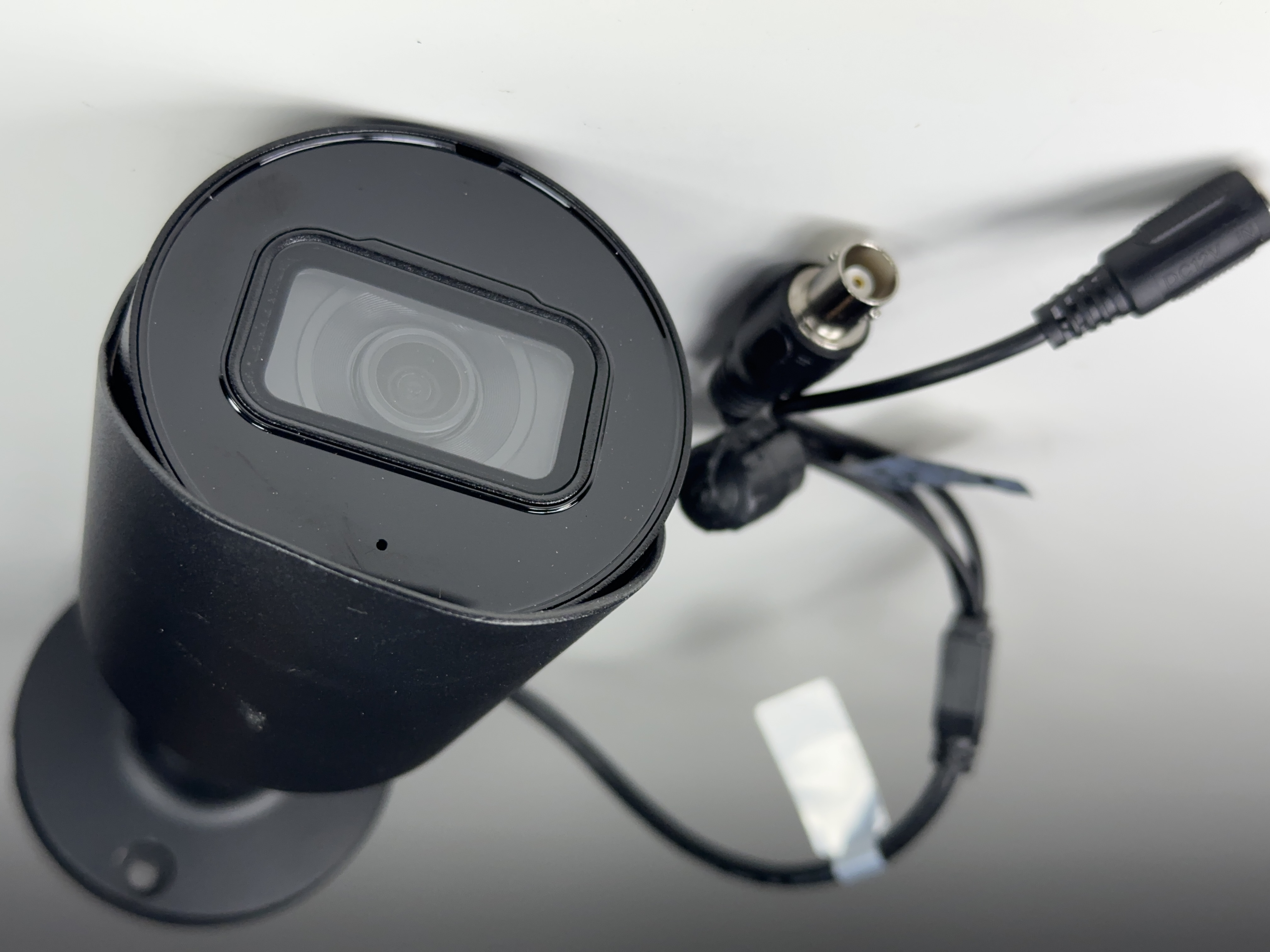

B-Stock products offer outstanding value and performance. These items were previously returned by customers and cannot be sold as new. Although many of these cameras appear like new as depicted in their respective images, some have been briefly mounted or may show signs of light use. Please note that original packaging is not always included. Every B-Stock product is inspected, tested, and factory restored to meet the same performance and reliability standards as a brand-new model. Our B-Stock products are backed by a 90-day limited warranty.

Looking for a complete coax system?

Check out our Black Line Series
HD over Coax Security Camera Systems.

SHOP NOW

Looking for a digital video recorder for this camera?

Check out our compatible
Black Line Series
Digital Video Recorders.

SHOP NOW

Technical Specification
Camera
Image Sensor	1/2.7" CMOS
Effective Pixels	1920(H)×1080(V), 2MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination	0.02Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio	More than 65dB
IR Distance	Up to 30m (98feet)
IR On/Off Control	Auto / Manual
IR LEDs	1
Lens
Lens Type	Fixed focal
Iris Type	Fixed Iris
Mount Type	M12
Focal Length	2.8mm
Max Aperture	F1.9
Angle of View	D x H x V 119° x 101° x 54°
Focus Control	N/A
Close Focus Distance	2.8 mm: 0.5 m (1.7 ft)
DORI Distance
Note: The DORI distance is a "general proximity" of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
	DORI Definition	Distance
Detect	25px/m (8px/ft)	38.6 m (126.6 ft)
Observe	63px/m (19px/ft)	15.4 m (50.5 ft)
Recognize	125px/m (38px/ft)	7.7 m (25.3 ft)
Identify	250ppm (76px/ft)	3.9 m (12.8 ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation	Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°
Video
Resolution	1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480)
Frame Rate	CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 1080P@25/30fps; 720P@25/30fps; TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H
Video Output	1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night	Auto (ICR)
OSD Menu	Multi-language
BLC Mode	BLC / HLC / DWDR
WDR	DWDR
Gain Control	Auto / Manual
Noise Reduction	2D NR
White Balance	Auto / Manual
Smart IR	Auto / Manual
Certifications
Certifications	CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface	One channel built-in mic
Eelectrical
Power Supply	12V DC ±30%
Power Consumption	Max 3.3W (12V DC, IR on)
Environmental
Operating Conditions	-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH * Start up should be done at above -40°C (-40°F)
Storage Conditions	-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal Resistance	IP67
Construction
Casing	Metal throughout the whole casing
Dimensions	174.5 mm × 72.3 mm × 70.6 mm ( 6.87" × 2.85" × 2.78" )
Net Weight	0.36kg (0.79lb)
Gross Weight	0.46kg (1.01lb)

SECURITY CAMERA FEATURES

HD Over Coax Security Camera (2MP - 1920×1080)
4-1 Camera (CVI, TVI, AHD, Analog)
2.8mm Lens (110° Wide Angle View)
Up to 100ft Infrared Night Vision
Built-in Microphone
Weatherproof - Indoor/Outdoor (IP67)
12 Volt DC
Measurement: 6.87" L x 2.85" W x 2.78" H

Approximate Distances:
Identify (Up to 13ft)
Recognize (Up to 25ft)
Detect (Up to 127ft)
