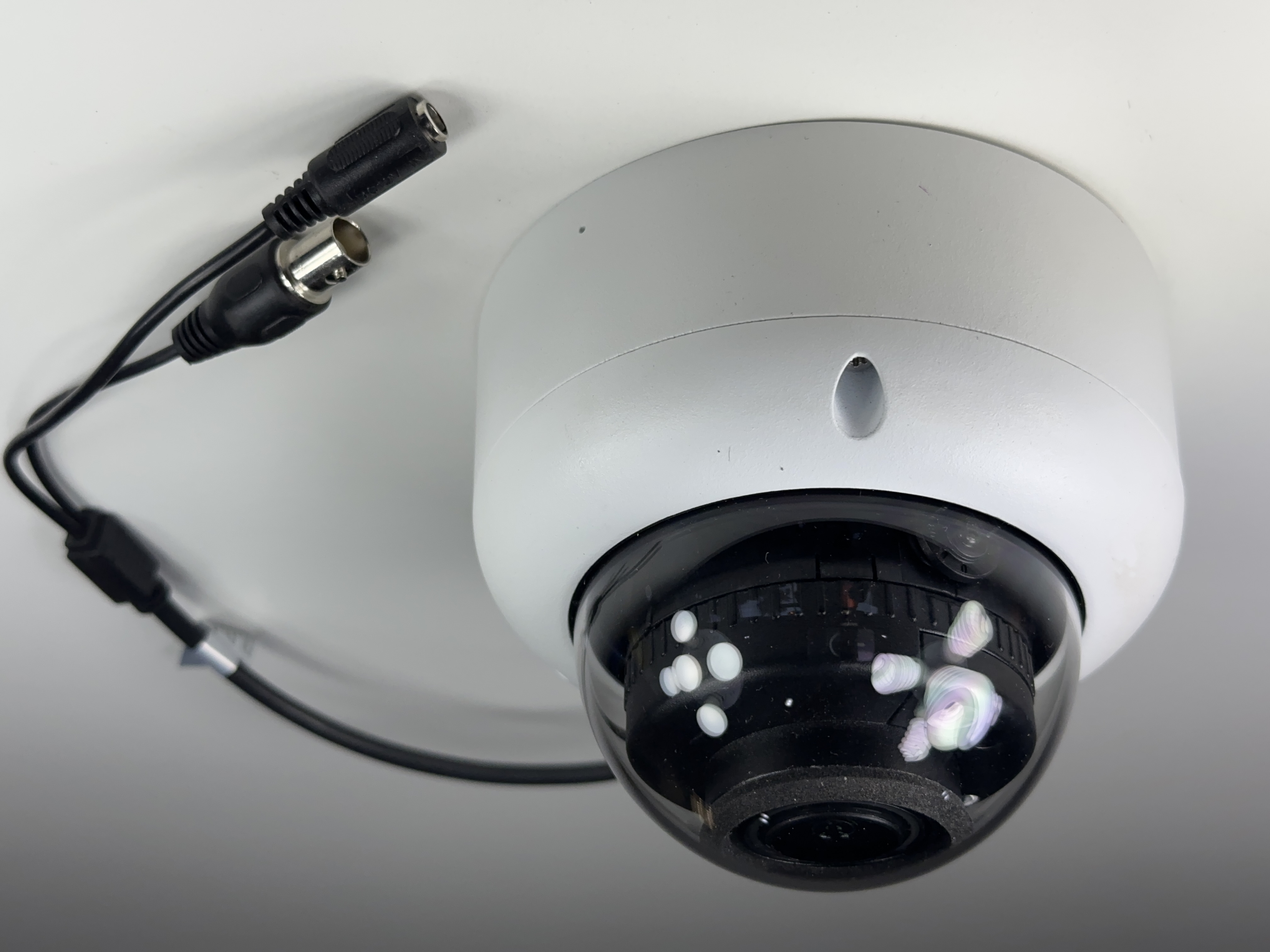

(CSP-CVIAD8-S) Black LIne - HD over Coax 4K Infrared Vandal Dome with Adjustable Lens / BS824

$199.99 after 20% promo after 20% promo $159.99
(You save $40.00)
Model: BS824
(CSP-CVIAD8-S) Black LIne - HD over Coax 4K Infrared Vandal Dome with Adjustable Lens / BS824
superior products 3 year warranty
live usa technical support
30 day money back guarantee
free shipping on all orders over $100
(888) 653-2288


B-Stock Products

B-Stock products offer outstanding value and performance. These items were previously returned by customers and cannot be sold as new. Although many of these cameras appear like new as depicted in their respective images, some have been briefly mounted or may show signs of light use. Please note that original packaging is not always included. Every B-Stock product is inspected, tested, and factory restored to meet the same performance and reliability standards as a brand-new model. Our B-Stock products are backed by a 90-day limited warranty.



Looking for a complete coax system?

Check out our Black Line Series
HD over Coax Security Camera Systems.

SHOP NOW

Shop Black Line Digital Video Recorders

Looking for a digital video recorder for this camera?

Check out our compatible
Black Line Series
Digital Video Recorders.

SHOP NOW



Technical Specification
Camera
Pixel 8 MP
Image Sensor 4K CMOS
Max. Resolution 3840 (H) × 2160 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Min. Illumination 0.01 lux@F1.5 (Color, 30 IRE)
0.001 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)
Illumination Distance 60 m (196.85 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 3 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–80°
Rotation: 0°–355°"
Lens
Lens Type Motorized Vari-focal
Auto Focus Yes
Lens Mount φ14
Focal Length 2.7mm–13.5mm
Max. Aperture F1.5
Field of View Horizontal: 114°–32°
Vertical: 58°–17°
Diagonal: 138°–35°
Iris Control Fixed
Close Focus Distance 0.8m
DORI Distance Lens Detect Observe Recognize Identify
W 85.3 m
(279.86 ft)
34.1 m
(111.88 ft)
17.1 m
(56.10 ft)
8.5 m
(27.89 ft)
T 280.0 m
(918.64 ft)
112.0 m
(367.45 ft)
56.0 m
(183.73 ft)
28.0 m
(91.87 ft)
Video
Video Frame Rate CVI:
PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30
fps
TVI:
PAL: 4K@15 fps
NTSC: 4K@15 fps
AHD:
PAL: 4K@15 fps
NTSC: 4K@15 fps
CVBS:
PAL: 960H
NTSC: 960H
Resolution 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night Auto(ICR)/Color/B/W
BLC BLC; HLC; WDR; HLC-Pro
WDR 120 dB
White Balance Auto; Area white balance
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection Yes
Illumination Mode Smart IR
Defog Electronic defog
Digital Zoom
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Certification
Certifications CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in MIC (-A)
Power
Power Supply 12 VDC ± 30% (It is recommended to use a power
adapter to supply the power for one camera)
Power Consumption Max 7.92W (12 VDC, IR on)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity <95% (RH), non-condensing
Storage Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Protection IP67; IK10
Structure
Casing Material Metal
Product Dimensions Φ126.0 mm × 100.0 mm (Φ4.96" × 3.94")
Net Weight 0.64 kg (1.42 lb)
Gross Weight 0.84 kg (1.85 lb)
Installation Wall mount; ceiling mount; vertical pole mount
CAMERA FEATURES
  • 8 Megapixel HD-CVI Camera (3840x2160)
  • 2.7-13.5mm Motorized Adjustable Lens
  • Up to 200ft Infrared Night Vision
  • Starlight - low light performance
  • Built-in Microphone
  • Weatherproof, Vandalproof (IP67, IK10)
  • Wide Dynamic Range (120dB)
  • 12 Volt DC
  • Measurement: 3.94" H x 4.96" D
Approximate Distances:
Identify (Up to 27-91ft)
Recognize (Up to 56-183ft)
Detect (Up to 279-918ft)
