B-Stock Products

B-Stock products offer outstanding value and performance. These items were previously returned by customers and cannot be sold as new. Although many of these cameras appear like new as depicted in their respective images, some have been briefly mounted or may show signs of light use. Please note that original packaging is not always included. Every B-Stock product is inspected, tested, and factory restored to meet the same performance and reliability standards as a brand-new model. Our B-Stock products are backed by a 90-day limited warranty.

Looking for a complete coax system?

Check out our Black Line Series
HD over Coax Security Camera Systems.

SHOP NOW

Looking for a digital video recorder for this camera?

Check out our compatible
Black Line Series
Digital Video Recorders.

SHOP NOW

Technical Specification
Camera
Pixel	8 MP
Image Sensor	4K CMOS
Max. Resolution	3840 (H) × 2160 (V)
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s
Min. Illumination	0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>65 dB
Illumination Distance	30 m (98.43 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	1 (IR light)
Pan/Tilt/Rotation Range	Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens
Lens Type	Fixed focal
Mount Type	M12
Focal Length	2.8 mm; 3.6 mm
Max. Aperture	F2.0
Angle of View	2.8 mm: H: 106°; V: 56°; D: 125° 3.6 mm: H: 88°; V: 46°; D: 105°
Iris Type	Fixed
Close Focus Distance	2.8 mm: 1.3 m (4.27 ft) 3.6 mm: 1.9 m (6.23 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	2.8 mm	88 m (288.71 ft)	35.2 m (115.49 ft)	17.6 m (57.74 ft)	8.8 m (28.87 ft)
	3.6 mm	106.7 m (350.07 ft)	42.7 m (140.09 ft)	21.3 m (69.88 ft)	10.7 m (35.10 ft)
Video
Video Frame Rate	CVI: PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 fps TVI: PAL: 4K@15 fps NTSC: 4K@15 fps AHD: PAL: 4K@15 fps NTSC: 4K@15 fps CVBS: PAL: 960H NTSC: 960H
Resolution	4K (3840 x 2160); 5M (2880 x 1620); 4M (2560 x 1440); 1080p (1920 x 1080); 960H (960 x 576/960 x 480)
Day/Night	Auto(ICR)/Color/B/W
BLC	BLC; HLC; WDR; HLC-Pro
WDR	120 dB
White Balance	Auto;Area white balance
Gain Control	Auto/Manual
Noise Reduction	3D NR
Smart Illumination	Smart IR
Defog	Electronic defog
Mirror	Yes
Privacy Masking	Yes
Privacy Masking	Off/On (8 areas, rectangle)
Certifications
Certifications	CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
Port
Video Port	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input	No
Power
Power Supply	12 VDC ±30%
Power Consumption	Max 4.7 W (12 VDC, IR on)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	>95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection Grade	IP67
Structure
Casing Material	Metal
Dimensions	Φ94.0 mm×85.7 mm (Φ3.70"×3.37")
Packaging Dimensions	121 mm × 118 mm × 109 mm (4.76" × 4.65" × 4.29")
Net Weight	0.33 kg (0.73 lb)
Gross Weight	0.47 kg (1.04 lb)
Installation	Wall mount; ceiling mount; vertical pole mount

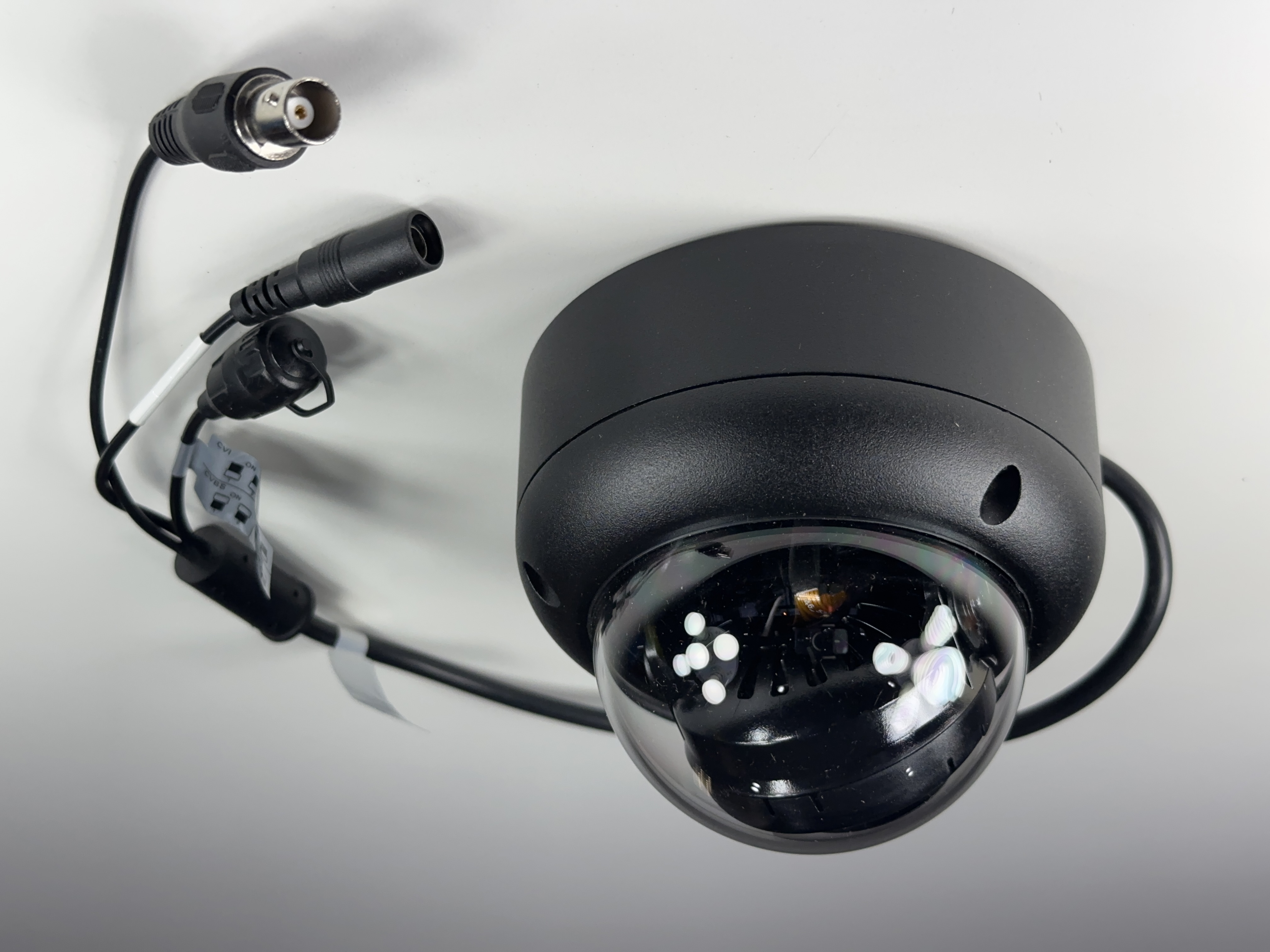

4K Security Camera - 8 Megapixel HD-CVI Camera (3840×2160)
2.8mm Lens (110° Wide Angle View)
Up to 130ft Infrared Night Vision
Starlight - low light performance
Weatherproof, Vandalproof (IP67, IK10)
Wide Dynamic Range (120dB)
12 Volt DC
Measurement: 3.51" H x 4.41" D

Approximate Distances:
Identify (Up to 28ft)
Recognize (Up to 57ft)
Detect (Up to 288ft)
