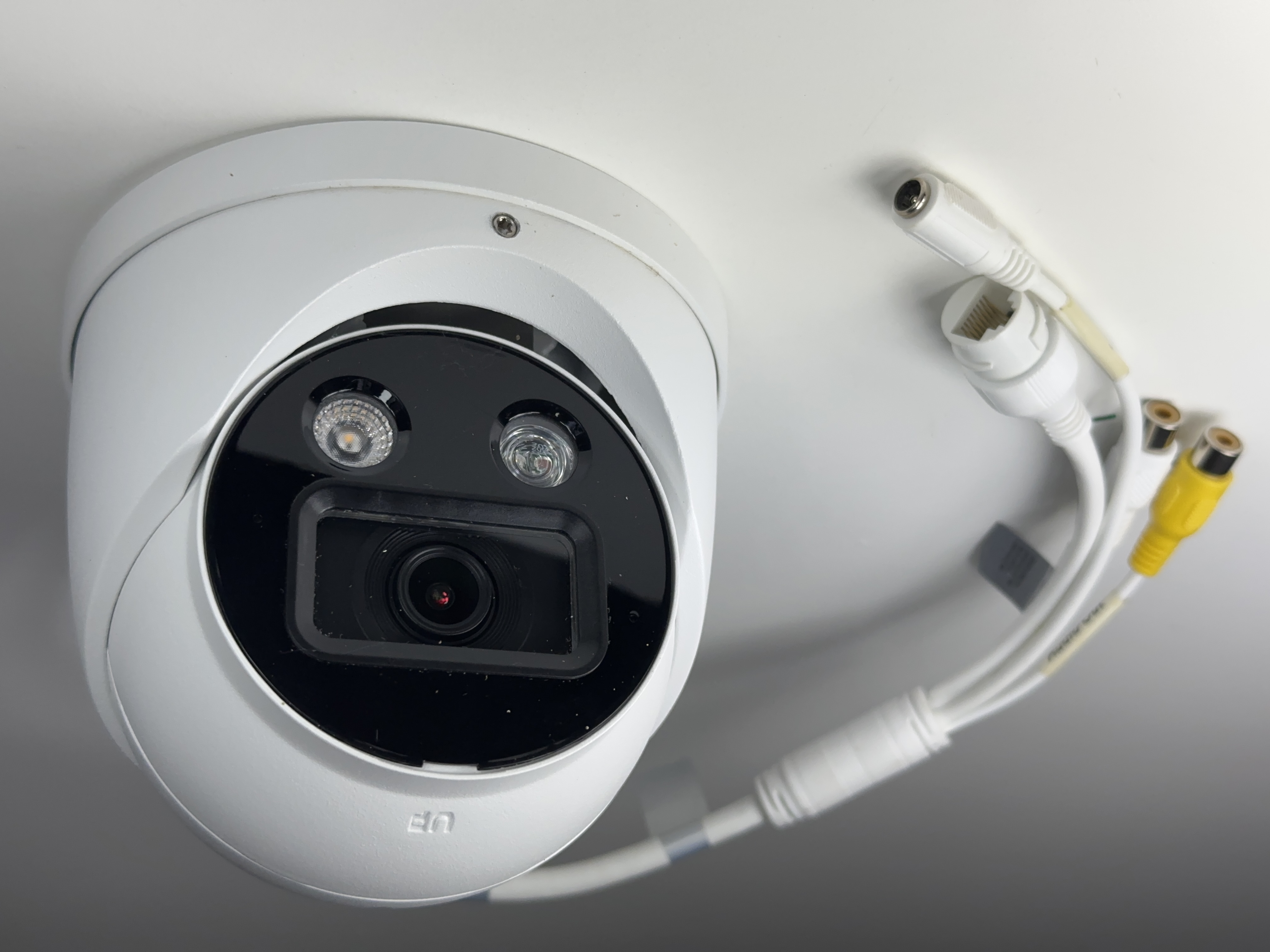

(CSP-TAD8-A) Blue Line - 4K Active Deterrence Turret Dome IP Camera / BS869

3840 (H) × 2160 (V)

Auto/Manual 1/3 s–1/100,000 s

0.004 lux@F1.0 (Color, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)

Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (warm light)

1 (IR LED)
1 (Warm Light LED)

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

91.0 m (298.56 ft)

36.4 m (119.42 ft)

18.2 m (59.71 ft)

9.1 m (29.86 ft)

Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)

Less false alarm, longer detection distance

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

AI SSA

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Main stream: 3840 × 2160@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

PCM; G.711a; G.711Mu; G.726; G.723

Built-in Mic

Yes, Built-in speaker

Built-in speaker

Yes, built-in speaker

Cyber Security

ONVIF (Profile S;Profile G;Profile T); CGI

FTP; SFTP; Micro SD card (Support max. 256 G); NAS

CE-LVD: EN 62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

12 VDC/PoE (802.3af)

Basic: 5.2 W (12 VDC); 5.5 W (PoE)

Max. (pulling stream+warning light+speaker+warm light on): 9.2W (DC12 V) 10.2 W (POE)

110.9 mm × Φ122.0 mm (4.37" × Φ4.80")

745 g (1.64 lb)
