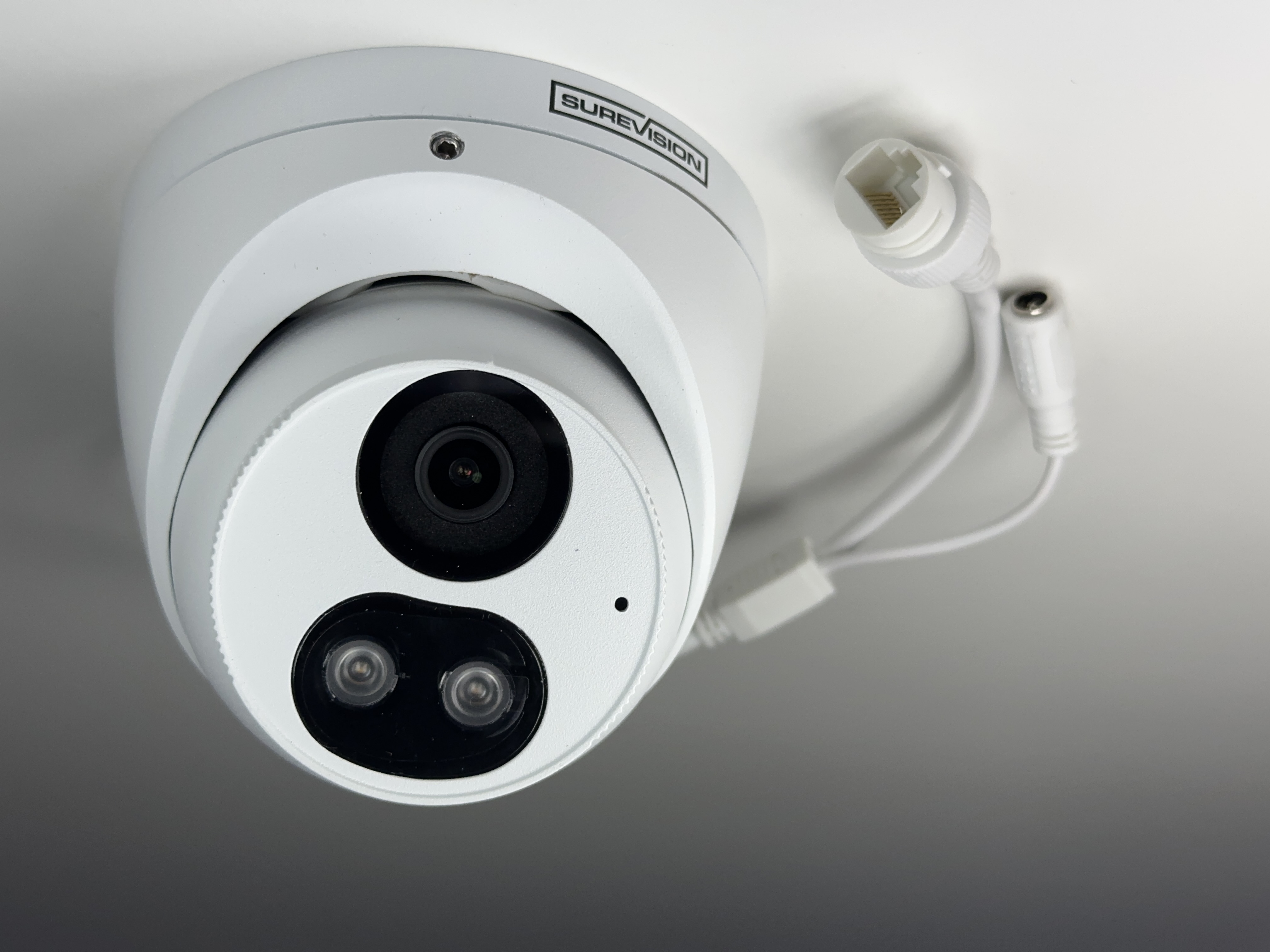

(SV-TA8-N) Green Line - 4K Active Deterrence Turret Dome IP Camera / BS856

$274.99 after 20% promo after 20% promo $219.99
(You save $55.00)
Model: BS856
(SV-TA8-N) Green Line - 4K Active Deterrence Turret Dome IP Camera / BS856
superior products 3 year warranty
live usa technical support
30 day money back guarantee
free shipping on all orders over $100
Ask a question
Call Us Now
(888) 653-2288

SureVision Camera Features Video

SureVision NVR Features Video


B-Stock Products

B-Stock products offer outstanding value and performance. These items were previously returned by customers and cannot be sold as new. Although many of these cameras appear like new as depicted in their respective images, some have been briefly mounted or may show signs of light use. Please note that original packaging is not always included. Every B-Stock product is inspected, tested, and factory restored to meet the same performance and reliability standards as a brand-new model. Our B-Stock products are backed by a 90-day limited warranty.



Shop Green Line Series Cameras

Looking for a complete IP camera system?

Check out our Green Line Series
IP Security Camera Systems.

SHOP NOW

Shop Green Line Network Video Recorders

Looking for a network video recorder for this camera?

Check out our compatible
Green Line Network
Video Recorders.

SHOP NOW

TECHNICAL SPECIFICATIONS
Camera
Sensor 1/2.8", 8.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
WDR 120dB
S/N >56dB
Lens
Lens 2.8mm@F1.6 4.0mm@F1.6
Angle of View (H) 106.7° 87.5°
Angle of View (V) 57.1° 46.3°
Angle of View (O) 115.7° 92.4°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 86.0 34.8 17.4 8.7
4.0 124.1 49.7 24.8 12.4
Illuminator
IR Range Up to 30m (98 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; 640*360,Max 30fps; D1 (720*576), Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
ROI Up to 8 areas
Video Stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping Supported
HLC Supported
BLC Supported
Defog Digital Defog
Intelligent
Smart intrusion prevention Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection
Face capture Support
Statistical Analysis People counting, support tripwire people counting and area people counting
Events
Basic Detection Motion detection, tampering alarm, audio detection
General Function Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication
Audio
Audio Compression G.711
Audio Bitrate 64 Kbps
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/O N/A
Alarm I/O N/A
RS485 N/A
Built-in Mic Supported
Built-in Speaker Supported
WIFI N/A
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certifications
EMC FCC CFR 47 Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013
Safety IEC 62368-1
EN 62368-1
UL 62368-1
Environment CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 10.5W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (L × W × H) Φ111 x 95mm (Φ4.4” x 3.7”)
Weight 0.48kg (1.058lb)
Material Metal + Plastic
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Reset Button N/A
Protection Ingression protection: IP67
CAMERA FEATURES
  • 4K IP Camera (3840 x 2160)
  • 2.8mm Lens (110° Wide Angle View)
  • Up to 100ft Infrared Night Vision
  • Built-in Microphone and Speaker
  • Starlight - low light performance
  • H.265 Video Compression
  • Weatherproof - Indoor/Outdoor (IP67)
  • Wide Dynamic Range - WDR (120dB)
  • Power Over Ethernet - PoE
  • Measurement: 3.7" H x 4.6" D

Approximate Distances:
Identify (Up to 28ft)
Recognize (Up to 57ft)
Detect (Up to 285ft)
