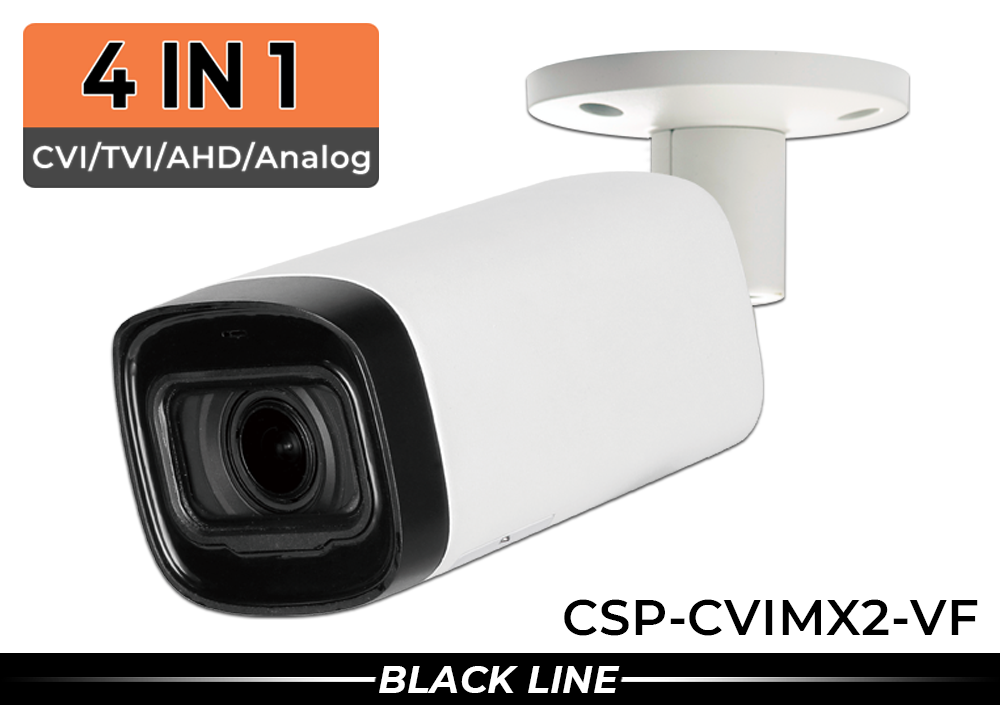

(Supports Analog & HD Over Coax Analog, CVI, TVI and AHD) Infrared Bullet Security Camera with 1000 Lines of Resolution, Adjustable Lens and up to 100 Foot Night Vision

Model: CSP-CVIMX2-VF
(Supports Analog & HD Over Coax Analog, CVI, TVI and AHD) Infrared Bullet Security Camera with 1000 Lines of Resolution, Adjustable Lens and up to 100 Foot Night Vision

Select your options:

$289.99 $159.99
(You save $130.00)
superior products 3 year warranty
live usa technical support
30 day money back guarantee
free shipping on all orders over $100

This infrared bullet camera offers 4-1 switchable technology and is compatible with both older analog systems and HD over Coax. This camera comes equipped with a varifocal lens and night vision up to 100ft. The manual adjustable lens offers you the flexibility to focus on objects that are either close up or further away. This camera is fully weatherproof for indoor and outdoor use. Superior performance along with enhanced versatility make this camera the perfect choice for so many applications.











Technical Specification
Camera
Image Sensor 1/2.7" CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination 0.04Lux/F1.8, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 30m (98feet)
IR On/Off Control Auto / Manual
IR LEDs 2
Lens
Lens Type Vari-focal lens / Fixed iris
Mount Type Board-in
Focal Length 2.7-12mm
Max Aperture F1.8
Angle of View H: 106° ~33° V: 56° ~19°
Focus Control Manual
Close Focus Distance 500mm
19.7"
DORI Distance

Note: The DORI distance is a “general proximity" of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

  DORI Definition Distance
  Wide Tele
Observe 63px/m (19px/ft) 18m(60ft) 53m(173ft)
Recognize 125px/m (38px/ft) 9m(30ft) 26m(87ft)
Identify 250px/m (76px/ft) 5m(15ft) 13m(43ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°
Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
Interface
Audio Interface N/A
Eelectrical
Power Supply 12V DC ±30%
Power Consumption Max 4.6W (12V DC, IR on)
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 90% RH
* Start up should be done at above -30° C (-22° F)
Storage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 90% RH
Ingress Protection & Vandal Resistance IP67
Construction
Casing Aluminium
Dimensions 209.8mm×90.4mm×90.4mm (8.26"×3.56"×3.56")
Net Weight 0.59kg (1.30lb)
Gross Weight 0.75kg (1.65lb)
CAMERA FEATURES
  • 2 Megapixel HD-CVI Camera (1920×1080)
  • 4-1 Camera (CVI, TVI, AHD, Analog)
  • 2.7-12mm Manual Adjustable Lens
  • Up to 100ft Infrared Night Vision
  • Weatherproof, Vandalproof (IP67)
  • 12 Volt DC
  • Measurement: 8.26" L x 3.56" W x 3.56" H
Approximate Distances:
Identify (Up to 15-43ft)
Recognize (Up to 30-87ft)
Detect (Up to 148-433ft)
