SureVision 8MP 4K Vandal Proof Dome Security Camera System – 120dB True WDR

The SureVision 8MP 4K Vandal Proof Dome Security Camera System delivers true professional-grade performance in a compact, discreet design. Featuring a wide 110° viewing angle, powerful infrared night vision up to 100ft, and True 120dB Wide Dynamic Range (WDR), these cameras provide exceptional clarity in both bright and challenging lighting conditions. Many customers prefer dome cameras for their low-profile appearance and durable vandal-resistant housing that helps protect against tampering.

Unlike many entry-level systems sold online, this is a professional-grade infrared dome camera built with superior optics, advanced image processing, and rugged commercial construction. The result is sharper detail, improved contrast in high-glare environments, and stable long-term performance. When paired with our industry-leading digital video recorders, this system becomes a complete, high-performance video monitoring solution for demanding residential and commercial installations.

Ultra HD Clarity with True 120dB WDR

8MP 4K Ultra HD Resolution: High quality imaging with outstanding detail and identification capability.
True 120dB Wide Dynamic Range (WDR): Superior performance in high-contrast scenes such as entrances, storefronts, and areas with strong backlighting.
110° Wide Viewing Angle: Expansive coverage with fewer blind spots.
Low-Light Monitoring: High-sensitivity sensor produces brighter, clearer images in darker environments.
100ft Infrared Night Vision: Reliable visibility in complete darkness.
IR-Cut Filter with Auto Switch (ICR): Accurate daytime color reproduction and optimized nighttime clarity.
3D Noise Reduction: Cleaner, sharper images with reduced grain in low-light conditions.
Built-In Microphone: High quality audio transmission over coaxial cable.

Flexible Compatibility & Stable Performance

Supports TVI / CVI / AHD / CVBS: Broad compatibility with modern HD analog DVR recorders.
Stable Wired Connection: No WiFi interference, bandwidth congestion, or signal dropouts.
Continuous or Motion-Based Recording: Flexible recording modes to match your security needs.
Engineered for 24/7 Operation: Designed for consistent, long-term performance.

Vandal Proof & Weather Resistant Design

Vandal-Resistant Metal Dome Housing: Designed to deter tampering and withstand impact.
IP67 Waterproof & Dustproof: Reliable indoor and outdoor performance in harsh conditions.
Commercial-Grade Construction: Built with higher-quality internal components for durability and stability.

Ideal for Commercial & Residential Installations

Perfect for retail stores, offices, restaurants, schools, warehouses, apartment buildings, and homes, this SureVision 8MP 4K vandal proof dome camera system delivers discreet aesthetics, advanced imaging with true 120dB WDR, and dependable long-term reliability. When combined with our advanced DVR technology, it provides a complete professional surveillance solution built for real-world performance.

This complete high definition security camera system comes with everything needed for complete installation. It includes a 3 Year Warranty, Free USA Technical and Support and 100% Money Back Guarantee.

Installation of our HD over Coax camera systems is simple and easy. A simple step-by-step guide is included with every system. We also include live USA based Technical Support available Monday through Friday. We are happy to answer any questions and assist you at (888) 653-2288.

This Complete HD Security Camera System Includes:

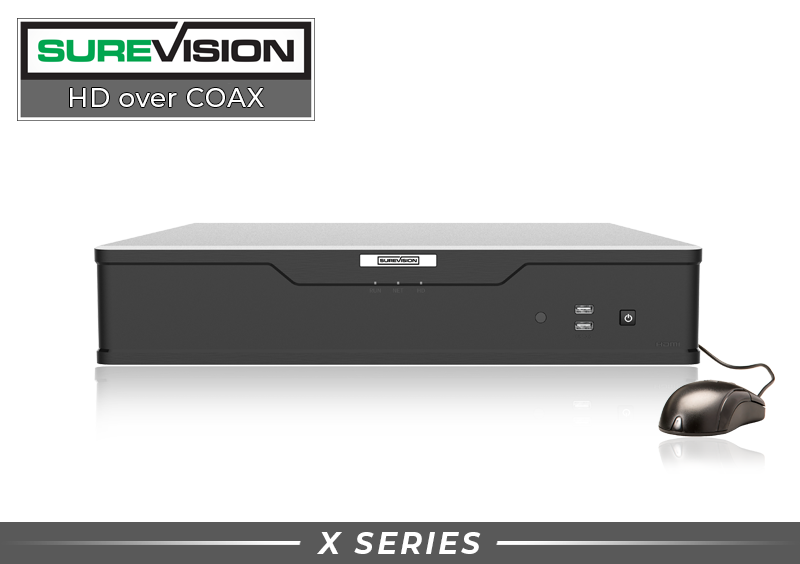

(1) 32 Channel High Definition Digital Video Recorder
(1) 6 Terabyte Surveillance Grade Hard Drive (installed)
(32) 8MP 4K HD Infrared Indoor/Outdoor Wide Angle Dome Security Cameras with up to 100 Foot Night Vision and built in Microphone
(32) 100 Foot Premade Power/Video Cable or Spool(s) (Optional)
(2) 18 Port Multiple Output Power Supplies
(1) High Definition 22inch LCD Monitor Included
DVD Instruction Manual and Quick Start Guide
Free Remote Viewing Software and Apps
Video Surveillance Warning Stickers and Sign

Camera Specifications:

Technical Specification
Camera
Max Resolution	8 MP
Sensor Size	1/2.7" CMOS
Min. Illumination	0.005 lux (F1.6, AGC ON) 0 lux (IR ON)
Lens
Focus	2.8 mm
Lens Mount	M12
Angle of View (H)	109.1°
Angle of View (V)	61.0°
Angle of View (D)	126.7°
Illuminator
Illuminator Number	One IR illuminator
Illumination Distance	30m
Lifetime	≥ 60000 hours
Video
Resolution	4K: 3840(H) × 2160(V) 5MP@20fps: 2592(H) × 1944(V) 4MP: 2560(H) × 1440(V)
Frame Rate	CVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC
Shutter Time	PAL: 1/25s-1/50000s NTSC: 1/30s-1/50000s
Exposure Mode	Four modes: Global (default), BLC, HLC, WDR
Day/Night	Three modes: Auto (default), Day, Night
Digital Noise Reduction	2D/3D
White Balance	Two modes: Auto (default), Manual
WDR	120 dB WDR
Smart IR	Support
Flip	Supports 180° horizontal flip, 180° vertical flip
Digital Defog	N/A
Audio
Built-in Mic	Support
Camera Audio	CVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps
Interface
Power Interface	5.5 mm Power Interface
Video Output	BNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Humidity	≤ 95% RH (non-condensing)
Surge Protection	4kV for power & 4kV for video output interfaces
General
Power	DC 12 V ± 25%
Power Consumption	MAX 3.7W
Mount	Wall Mount, Pole Mount, Corner Mount, Pendant Mount
Dimensions	Φ109mm × 83mm (diameter × height)
Material	Metal
Weight	395g (0.87lb)
OSD Menu Language	11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (47 CFR part15 B)
Safety	CE-LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529); IK10 (IEC 62262)

NVR Specifications:

Technical Specification
Video/Audio Input
IP Video Input	4-ch
Analog Video Input	32-ch, BNC
Max IP Video Input	36-ch
Supported Analog Camera Types	Support AHD input: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps Support TVI input: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps Support CVI input: 8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps Support CVBS input
BNC Audio Input	32-ch, channel audio
RCA Audio Input	1-ch
Video/Audio Output
HDMI Output	HDMI1: 1920 × 1080/60Hz, 1920 × 1080/50Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI2: 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1920 × 1080/50Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output	1920 × 1080/60Hz, 1920 × 1080/50Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
BNC Video Output	1-ch
RCA Audio Output	1-ch
Live View Display	HDMI/VGA: 1/4/6/8/9/16/25/36
Playback Screen	1/4/9/16
Encoding/Decoding
Recording Resolution	8MP Lite / 5MP Lite / 4MP Lite / 1080P / 720P / D1
Recording Frame Rate	Main stream: 8MP Lite@8fps, 5MP Lite@12fps, 4MP Lite@15fps, 1080P@15fps, 720P@30fps Sub stream: D1@8/12/15/15/30fps
Audio Sample Rate	8 kHz, 16 bit per channel
Audio Bit Rate	64 Kbps per channel
Decoding Capability	Analog: 32 × 8MP Lite@8, 32 × 5MP Lite@12, 32 × 4MP Lite@15, 32 × 1080P@25, 32 × 720P@30 IP: 2 × 8MP@30, 4 × 4MP@30, 8 × 1080P@30, 16 × 720P@30, 36 × D1
Num of Concurrent Playback (Local)	16-ch
Coaxial Cable
Audio over Coaxial Cable	32-ch, One-way Audio (TVI & Uniview CVI protocol cameras)
Two-way Audio
Two-way Audio	1-ch, RCA (using audio input and output)
Analog Snapshot
FTP/Schedule/Event Snapshot	Schedule/FTP/Event snapshot: 32-ch snapshot, up to 704 × 576 resolution
Network
Incoming Bandwidth	160Mbps (Up to 224Mbps after analog channel conversion)
Outgoing Bandwidth	160Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, IPv6
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Smart
Analog Smart by XVR	Ultra Motion Detection (UMD), SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Face Detection
IP Smart by IPC	Face Detection, Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area)
VCA Search	Face Search, Behavior Search
Smart Functions by XVR	16-ch (UMD), 8-ch (SIP), 2-ch (Face Detection)
Smart Functions by IP Camera	8-ch (SIP)
Alarm
General Alarm	Motion
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA	4 SATA interfaces
Capacity	Up to 16 TB for each HDD
External Interface
Network Interface	2 RJ45 10/100/1000M self-adaptive Ethernet interfaces
USB	Front panel: 2 × USB2.0, Rear panel: 1 × USB3.0
RS485	1
RS422	1
RS232	1
eSATA	1
Alarm In	16-ch
Alarm Out	6-ch
Power Supply	AC 100–240V
Working Environment
Working Temperature	-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 45W
Dimensions
Weight (without HDD)	≤ 6.0 kg (13.23 lb)
Height	2U
Dimensions	442.0mm × 435.9mm × 88.6mm (17.4" × 17.2" × 3.5")
Certification
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2
FCC	Part 15 Subpart B

DVR FEATURES

4K Ultra High Definition
32 BNC Camera Inputs
Supports CVI/TVI/AHD/Analog Cameras up to 8MP
Remote Viewing – No Monthly Fees
H.265 High Video Compression
2 HDMI, VGA & BNC Display Output
4 Hard Drive Bays

4K CAMERA FEATURES

4 K 8 Megapixel HD-CVI Camera (3840x2160)
Built-in Microphone
2.8mm Lens (110° Wide Angle View)
Up to 100ft Infrared Night Vision
Enhanced Low Light Performance
Wide Dynamic Range (120dB)
Weatherproof, Vandalproof (IP67, IK10)
12 Volt DC
Measurement: 4.29" D x 3.27" H
