SureVision 8MP 4K HD Over Coax Security Camera System with Low-Light Turret Cameras

The SureVision 8MP 4K HD over Coax Security Camera System delivers professional-grade performance using dependable analog coaxial cabling. Built with our high-quality low-light sensitivity turret-style CCTV cameras, these commercial-grade, professional-level cameras provide sharper clarity, stronger low-light performance with brighter, more colorful images in darker environments such as at night, powerful infrared night vision up to 130ft in total darkness, and better long-term durability than many entry-level analog camera systems.

Our professional-grade cameras are built with superior optics and solid metal construction, resulting in more stable video, clearer detail, and dependable performance year after year. This is the same level of reliability and quality our customers have come to expect from SureVision.

Designed for businesses and homes that prefer the simplicity and stability of wired systems, this 4K analog CCTV system supports traditional coax cable while delivering modern 8MP resolution and advanced imaging features.

Ultra HD Clarity with Advanced Imaging

8MP 4K Ultra HD Resolution: 3840 × 2160 video for sharp identification and evidence capture.
Low-Light Sensitivity Technology: Brighter, more colorful images in darker environments such as at night.
120dB True WDR: Balanced video in high-contrast lighting such as entrances and parking lots.
40m Infrared Night Vision: Reliable visibility in complete darkness.
Audio Over Coax: Built-in microphone transmits audio through standard coax cable.

Stable Wired Performance You Can Trust

HD Over Coax Technology: Uses existing coax cabling for simple upgrades.
Supports TVI, CVI, AHD & CVBS: Compatible with modern CCTV DVR recorders.
Consistent Signal Stability: Reliable wired connection with no WiFi interference.
Continuous or Motion-Based Recording: Flexible recording options for every application.

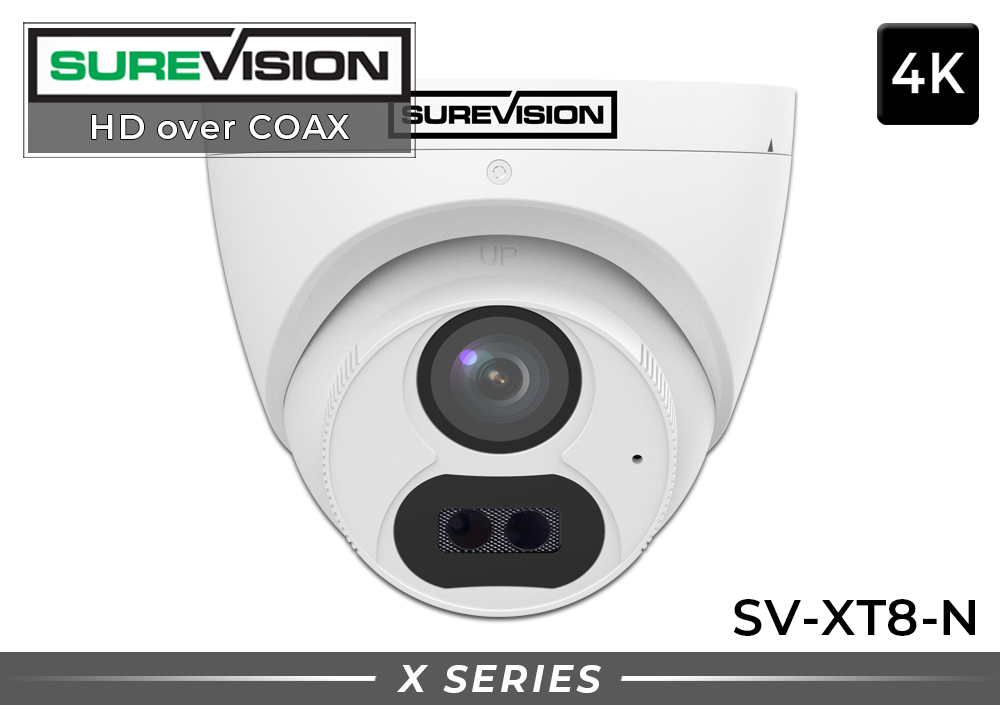

Durable Turret Design for Indoor & Outdoor Use

IP67 Weatherproof Metal Housing: Built for long-term outdoor reliability.
Turret-Style Design: Clean appearance with flexible mounting adjustment.
Commercial-Grade Components: Designed for continuous 24/7 operation.

Remote Viewing & Smart Playback

Live & Recorded Video Access
View from Smartphone, Tablet, or Computer
Secure DVR Remote Connectivity
No Monthly Subscription Fees

Built to Last

Professional-Grade Optics & Construction
Stable Wired Analog Platform
Trusted SureVision Quality

Ideal for Businesses & Residential CCTV Installations

Perfect for retail stores, offices, warehouses, schools, apartment buildings, and residential properties, this SureVision 4K HD over Coax security camera system delivers dependable wired performance, professional image clarity, and long-term reliability without the complexity of network-based systems.

This complete high definition security camera system comes with everything needed for complete installation. It includes a 3 Year Warranty, Free USA Technical and Support and 100% Money Back Guarantee.

Installation of our HD over Coax camera systems is simple and easy. A simple step-by-step guide is included with every system. We also include live USA based Technical Support available Monday through Friday. We are happy to answer any questions and assist you at (888) 653-2288.

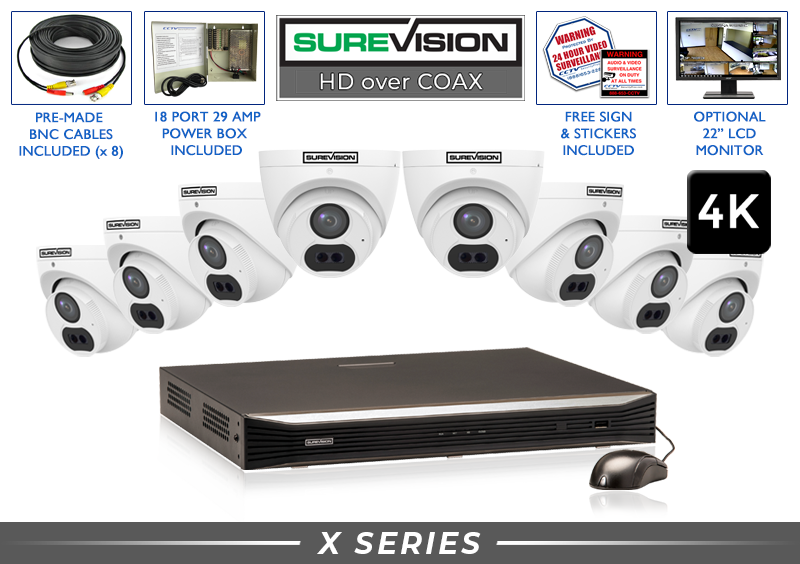

This Complete HD Security Camera System Includes:

(1) 16 Channel SureVision High Definition Digital Video Recorder
(1) 2 Terabyte Surveillance Grade Hard Dive (installed)
(8) 8MP HD Infrared Indoor/Outdoor Wide Angle Dome Security Cameras with up to 130 Foot Night Vision and built in Audio
(8) 100 Foot Premade Power/Video Cable or Spool(s) (Optional)
(1) Multiple Output Power Supply
High Definition LCD Monitor is OPTIONAL
DVD Instruction Manual and Quick Start Guide
Free Remote Viewing Software and Apps
Video Surveillance Sign

Camera Specifications:

Technical Specification
Camera
Max Resolution	8 MP
Sensor Size	1/2.7" CMOS
Min. Illumination	0.005 lux (F1.6, AGC ON) 0 lux (IR ON)
Lens
Focus	2.8 mm
Lens Mount	M12
Angle of View (H)	109.1°
Angle of View (V)	61.0°
Angle of View (D)	126.7°
Illuminator
Illuminator Number	Two IR illuminators
Illumination Distance	40m
Lifetime	≥ 60000 hours
Video
Resolution	4K: 3840(H) × 2160(V) 5MP@20fps: 2592(H) × 1944(V) 4MP: 2560(H) × 1440(V)
Frame Rate	CVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC
Shutter Time	PAL: 1/25s-1/50000s NTSC: 1/30s-1/50000s
Exposure Mode	Four modes: Global (default), BLC, HLC, WDR
Day/Night	Three modes: Auto (default), Day, Night
Digital Noise Reduction	2D/3D
White Balance	Two modes: Auto (default), Manual
WDR	120 dB WDR
Smart IR	Support
Flip	Supports 180° horizontal flip, 180° vertical flip
Digital Defog	N/A
Audio
Built-in Mic	Support
Camera Audio	CVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps
Interface
Power Interface	5.5 mm Power Interface
Video Output	BNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Humidity	≤ 95% RH (non-condensing)
Surge Protection	4kV for power & 4kV for video output interfaces
General
Power	DC 12 V ± 25%
Power Consumption	MAX 4.8W
Mount	Wall Mount, Pole Mount, Corner Mount, Pendant Mount
Dimensions	Φ111mm × 98mm (diameter × height)
Material	Metal
Weight	417g (0.92lb)
OSD Menu Language	11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (47 CFR part15 B)
Safety	CE-LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)

NVR Specifications:

Technical Specification
Video/Audio Input
IP Video Input	16-ch
Analog Video Input	16-ch, BNC
Max IP Video Input	32-ch
Supported Analog Camera Types	Support AHD input: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps Support TVI input: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps Support CVI input: 8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps Support CVBS input
BNC Audio Input	16-ch, channel audio
RCA Audio Input	4-ch
Video/Audio Output
HDMI Output	4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output	1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
BNC Video Output	1-ch
RCA Audio Output	1-ch
Live View Display	HDMI/VGA: 1/4/6/8/9/25/32
Encoding/Decoding
Recording Resolution	8MP/5MP/4MP/1080P/720P/D1
Recording Frame Rate	Main stream: 8MP@8fps, 5MP@12fps, 4MP@15fps, 1080P@25fps, 720P@30fps Sub stream: D1@8/12/15/25/30fps
Audio Sample Rate	8 kHz, 16 bit per channel
Audio Bit Rate	64 Kbps per channel
Decoding Capability	Analog: 8 × 8MP@8, 8 × 5MP@12, 8 × 4MP@15, 8 × 1080P@25, 16 × 720P@30 IP: 2 × 8MP@30, 4 × 4MP@30, 8 × 1080P@30, 16 × 720P@30
Coaxial Cable
Audio over Coaxial Cable (TVI)	16-ch, One-way Audio
Two-way Audio
Two-way Audio	1-ch, RCA (using audio input and output)
Analog Snapshot
FTP/Schedule/Event Snapshot	Schedule/FTP/Event snapshot: 16-ch snapshot, up to 704 × 576 resolution
Network
Incoming Bandwidth	80Mbps (Up to 112Mbps after analog channel conversion)
Outgoing Bandwidth	160Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Smart
Analog Smart by XVR	Ultra Motion Detection (UMD), SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Face Detection
IP Smart by IPC	Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking
VCA Search	Face Search, Behavior Search
Smart Functions by XVR	16-ch (UMD), 8-ch (SIP), 2-ch (Face Detection)
Alarm
General Alarm	Motion
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA	2 SATA interfaces
Capacity	Up to 16 TB for each HDD
External Interface
Network Interface	1 RJ45 10/100/1000M self-adaptive Ethernet Interface
USB	Rear panel: 1 × USB3.0, Front panel: 1 × USB2.0
RS485	1
RS232	N/A
Alarm In	8-ch
Alarm Out	4-ch
Power Supply	DC 12 V / 5 A
Working Environment
Working Temperature	-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 38W
Dimensions
Weight (without HDD)	≤ 2.3 kg (5.07 lb)
Dimensions	380mm × 326mm × 53mm (15.0" × 12.8" × 2.1")
Certification
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130
FCC	Part 15 Subpart B

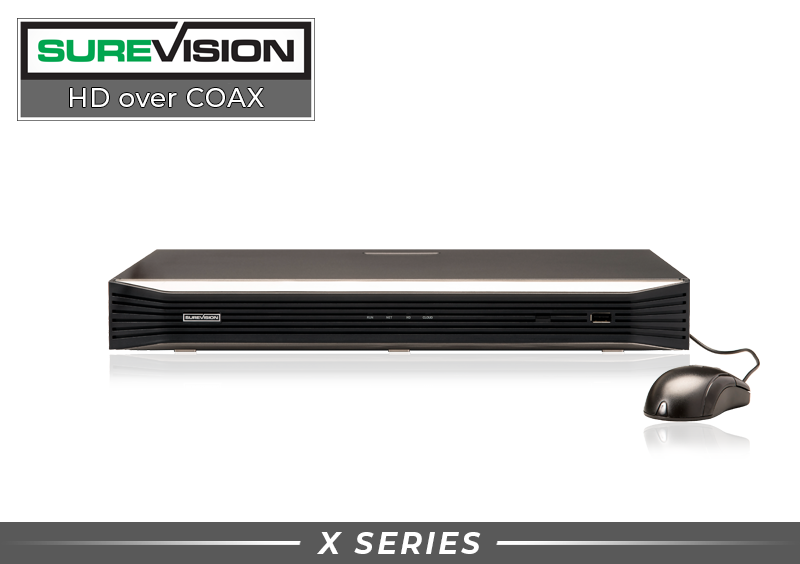

SUEVEILLANCE DVR FEATURES

4K Ultra High Definition
16 BNC Camera Inputs
Supports CVI/TVI/AHD/Analog Cameras
Remote Viewing – No Monthly Fees
H.265 High Video Compression
HDMI and VGA Display Output
2 Hard Drive Bays

SECURITY CAMERA FEATURES

8 Megapixel HD-CVI Camera (3840x2160)
Built-in Microphone
2.8mm Lens (110° Wide Angle View)
Up to 130ft Infrared Night Vision
Weatherproof - Indoor/Outdoor (IP67)
Wide Dynamic Range (120dB)
12 Volt DC
Measurement: 4.37" D x 3.86" H
