About the SONY EFFIO CHIPSET

What is Sony "Effio"?

1.What is "Effio"?

"Effio" means "Enhanced Features and Fine Image Processor", and it is a Sony signal processor which realizes high resolution, high S/N ratio and high color reproduction for security camera.

2."Effio" Series Lineup

"Effio" Series Spec Comparison Chart

Specifications Effio Effio-S Effio-E
Supported CCD 760HWD/Normal 960HWD/(Normal) 760H Normal 960H Normal 510H 760H Normal 960H Normal
System Configuration (FE) 3chip(AFE+DSP+mDDR) 2chip(AFE+DSP) 2chip(AFE+DSP)
Package LFBGA 296pin LFBGA Over200pin LFBGA 100Pin
14x14mm (AFE 8x8mm) 12x12mm (AFE 7x7mm) 9x9mm (AFE 7x7mm)
0.65mm (AFE 0.65mm) 0.65mm (AFE 0.65mm) 0.65 (AFE 0.65mm)
Functions
ADC Resolution 12 bit 12 bit 12 bit
Resolution Over 650TVL (W/960H CCD) Over 650TVL (W/960H CCD) Over 650TVL (W/960H CCD)
Wide D rane Yes No No
Noise Reduction Yes(3D+2D) Yes(3D+2D) 2DNR
Slow Shutter Speed Yes Yes No
Blemish Compensation Static 64 points Dynamic & Static 64 points Dynamic & Static 64 points
ATW 1800~10500°K 1800~10500°K 1800~10500°K
Face Detection Yes(4 faces) No No
Motion Detection Yes(24x16) Yes(24x16) Yes
Digital Image Stabilizer No Yes No
Praivacy Mask 20 zo ne(inc.forMD) 20 zo ne(inc.forMD) & Polygon Mask 8 Mask
Synchronization LL,VSL,VBSLHP/HR/HRVR LL,VSL,VBSLHP/HR/HRVR LL
OSD E,F,G,I,ES,POR E,F,G,I,ES,POR etc E,F,G,ES,POR,SC,RUS,J
Digital Zoom Yes Yes No
Embedded MCU No Yes No
Output Format
Analog Output Y/C separate, Comp. Y/C separate, Comp. Y/C separate, Comp.
Digital Output REC656 REC656 REC656
Dual Output Yes Yes Yes


"Effio" Series



"Effio"

"Effio-E"

Product Name

CXD4112AGG

CXD4127GG

Wide dynamic range model for 960H CCD

Entry-level model for 960H CCD

System Configuration

CCD: 760H, 960H CCDs
AFE: CXD4813GG
DSP: "Effio" (CXD4112AGG)
LPDDR

CCD: 510H, 760H, 960H CCDs
AFE: CXD4816GG
DSP: "Effio-E" (CXD4127GG)

Key Features

·Horizontal resolution of over 650 TVL
·Wide dynamic range
·2D and 3D noise reduction
·OSD
·Motion detection
·DC/Video servo
·Digital zoom
·Slow shutter
·Face detection
·Dual analog and digital outputs
·Synchronization: LL, VSL, VBSLHP/HR, HRVR

·Horizontal resolution of over 650 TVL
·ATR (Adaptive Tone Reproduction)
·2D noise reduction
·Preset OSD menu (8 languages)
·Motion detection
·DC/Video servo
·Dual analog and digital outputs
·HLC (High light compensation)
·Low power consumption


③ "Effio-E" System Block Diagram and Main Specification

System Configuration

Specifications

Item

"Effio-E" system

Supported CCD

510H, 760H, 960H CCD

System Configuration

2 chips (DSP/AFE)

Main Functions

Horizontal Resolution

Over 650 TVL

ATR

Yes

Noise Reduction

2D-NR

Day & Night

Yes

Privacy Mask

8 masks

HLC

Yes

AFD

Yes

Motion Detection

Yes

OSD Menu

8 Languages

White Pixel Detection and Compensation

Static and Dynamic

Automatic Adjustment of Mechanical Iris

Yes

External Synchronization

Line-Lock

Outputs

Analog Output

Y/C Separate video, Composite video

Digital Output

-ITU-R BT.656 Compliant (27MHz)
-CCD image size (CCD drive frequency)

Dual Analog and Digital Outputs

Yes

Power Supply Voltages

CXD4127GG: 3.3V, 1.2V
CXD4816GG: 3.3V, VH, VL

Packages

CXD4127GG: LFBGA 97Pin
CXD4816GG: LFBGA 80Pin


960H CCD Image Sensor

Product Name ICX662AKA
ICX663AKA
ICX668AKA
ICX669AKA
ICX672AK
ICX673AK
"Super HAD CCD II" "Super HAD CCDII" "EXview HAD CCD"
Image Size Type 1/3 Type 1/4 Type 1/3
Pixels 480k
570k
480k
570k
480k
570k
Effective Pixels 976(H) x 494(V)
976(H) x 582(V)
976(H) x 494(V)
976(H) x 582(V)
976(H) x 494(V)
976(H) x 582(V)
Unit Cell Size [µm] 5.0(H) x 7.4(V)
5.0(H) x 6.25(V)
3.75(H) x 5.56(V)
3.75(H) x 4.69(V)
5.0(H) x 7.4(V)
5.0(H) x 6.25(V)
Sensitivity [mV] (F5.6) 1600 1400
1350
2450
2400
Saturation Signal [mV] 800 600
540
1400
Smear [dB] (F5.6) -105 -105 -110
Supply Voltage [V] +15/-7.5 (typ.) +15/-7.5 (typ.) +15/-7.5 (typ.)
H Transfer Voltage [V] 3.3 (typ.) 3.3 (typ.) 3.3 (typ.)

*CCD=CCD image sensor



"Super HAD CCD II" is a trademark of Sony Corporation.The "Super HAD CCD II" is a version of Sony's high performance CCD HAD (Hole-Accumulation Diode) sensor with realized sensitivity (typical) of 1000mV or more per 1µm2 (Color: F5.6/ BW: F8 in 1 s accumulation equivalent.)



"EXview HAD CCD II" is a trademark of Sony Corporation. The "EXview HAD CCD II" is a CCD image sensor that realizes sensitivity (typical) of 1000mV or more per 1µm2 (Color: F5.6/ BW: F8 in 1 s accumulation equivalent) and improves light efficiency by including near infrared light region as a basic structure of Sony's "EXview HAD CCD".



3.Advanced Features

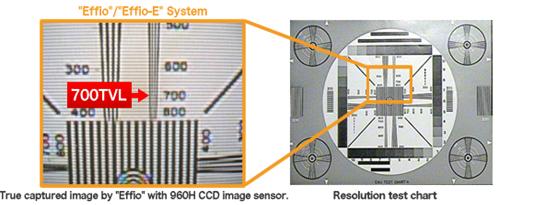

High Resolution

* Higher horizontal resolution of over 650TVL by 960H CCD image sensor

Confirmed maximum resolution to achieve the 700TVL.
Measurement method is refered to JEITA (TTR-4602B).

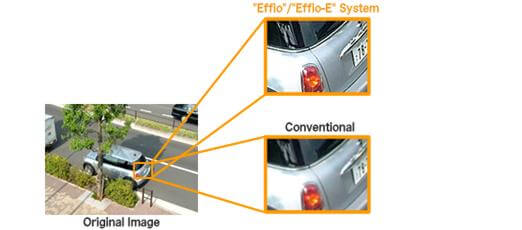

* More fine image after E-Zoom operation

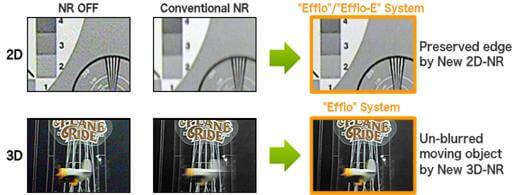

Noise Reduction

* Noise reduction keeping image sharpness

* Excellent NR performance under low light condition

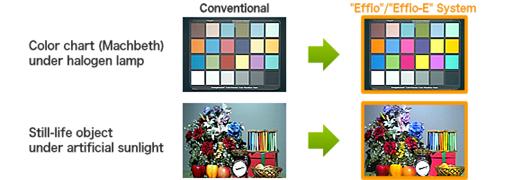

High Color Reproduction

* More excellent color reproduction

* Wide range ATW [1,800 K to 10,500 K]

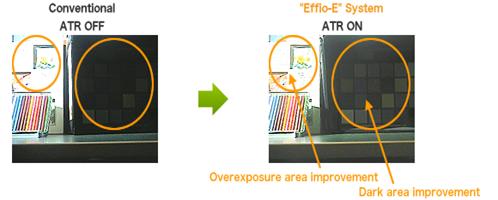

ATR (Adaptive Tone Reproduction)

* Gradation compensation to improve image contrast

* Improvement of loss of dark detail and overexposure area

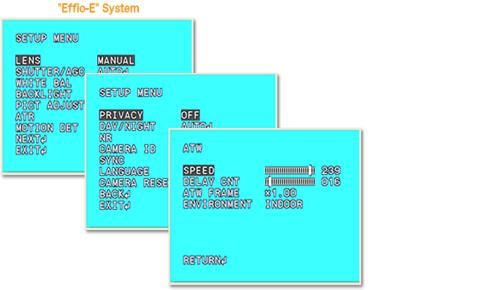

Preset OSD Menu

"Effio-E" OSD function provides preset menus in 8 languages. (EN, FR, DT, ES, POR, CN, RUS, JP)
