HD vs. IP Camera Cable Types for Security Camera Systems

Jul 28, 2022

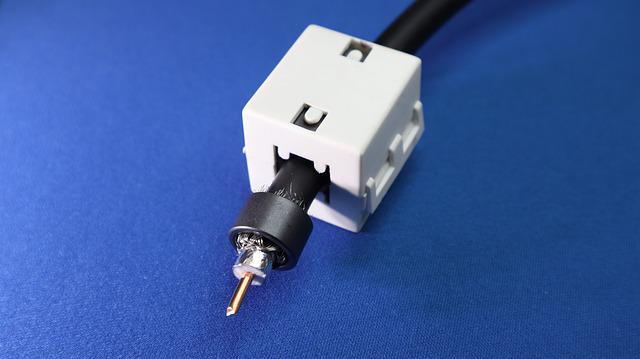

coaxial cable

When it comes time to choose the right security cameras for your property, one of the biggest decisions you'll have to make is if you should go with an HD or IP camera. Both offer their own unique benefits but use different types of cables. Here we'll break down all the differences between IP camera cables and HD camera cables so that you can make an informed decision.

HD Security Camera Cables

HD security cameras operate over siamese coaxial cable (RG-59). This type of cable is also commonly used to transmit analog signals in older CCTV security cameras as well as HD-over-coax security cameras that use a BNC connector. Many buildings are already wired with siamese coaxial cables, which can easily transmit footage over 500 feet. Unlike IP camera cable types that don't need a separate power supply, HD security cameras require 12 volts of DC power to function.

Whether you want to install HD-over-coax cameras or 4-1 cameras (CVI, TVI, AHD, analog), you'll need a cable type that can transmit the additional bandwidth required by high definition security 720p or 1080p cameras. The good thing is that the latest siamese cables (RG-59/U) are designed to do just that. They're available as pre-made or prefabricated cables with end connectors and varying lengths. These cables are designed to connect HD coax cameras to digital video recorders (DVR).

IP Security Camera Cables

IP security cameras operate over ethernet cables or PoE network cables, which are the standard cable type for the latest video surveillance systems. They're the preferred option in commercial-grade surveillance because they provide both power and video signals, eliminating the need to have a separate power source for your cameras. There are different types available, including Cat5, Cat5e, and Cat6.

ethernet cable

These cables connect security cameras under one network to a network video recorder (NVR). Fewer ethernet cables are needed to run a state-of-the-art commercial-grade security system. These cables are ideal for newer buildings or those already upgraded to the latest CAT 5/6 cable wiring. IP camera cables provide superior image resolution, from 1080p to 4K Ultra HD.

Learn More at CCTV Security Pros

Siamese coaxial cables for HD cameras and ethernet cables for IP network cameras have their own unique benefits and applications. When choosing the right type of cable for your security camera installation, consider your specific needs and requirements. If you would like to learn more about HD camera cables vs. IP camera cable types or need assistance with selecting the right cables for your security system, contact CCTV Security Pros at 888.653.2288 today.
