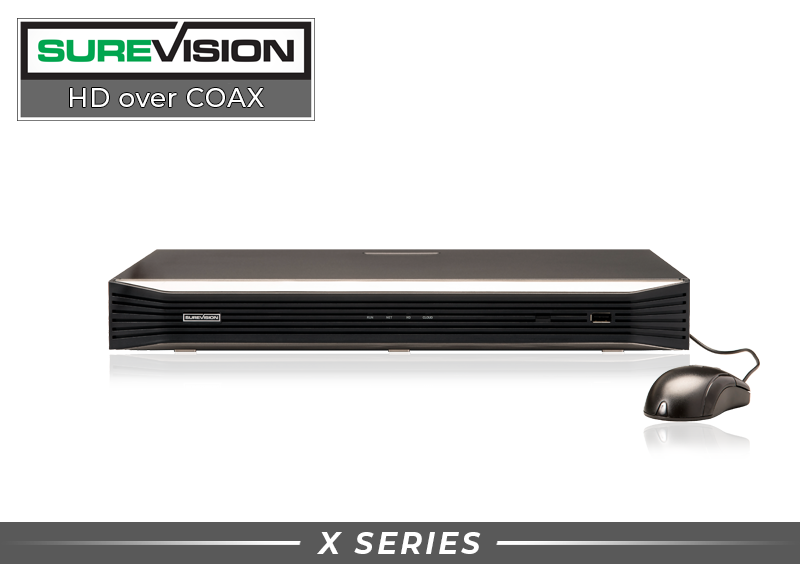

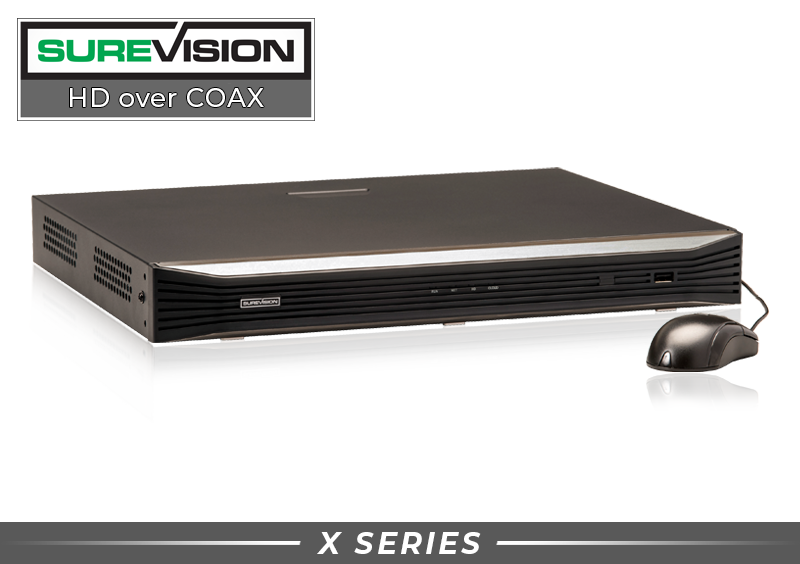

16-Channel Digital Video Recorder (DVR) – SV-DVR16-N
The SV-DVR16-N is a professional-grade 16-channel digital video recorder designed for large businesses, warehouses, multi-building properties, and commercial installations requiring high camera counts and long-term video retention.
This DVR supports up to 16 wired security cameras and includes dual internal hard drive bays for extended storage capacity. With advanced compression, multi-format camera compatibility, and intelligent analytics support, it delivers reliable performance for demanding surveillance environments.
The SV-DVR16-N is ideal for upgrading existing coax-based systems or deploying new mixed-camera installations using analog HD and IP cameras — all with no monthly fees.
Key DVR Features
16-Channel Recording
Supports up to sixteen wired security cameras via BNC inputs.
Dual HDD Storage
Two SATA bays support up to 16TB per hard drive for extended recording retention.
Multi-Format Camera Support
Compatible with TVI, AHD, CVI, CVBS, and IP cameras with adaptive access.
H.265 / H.264 Compression
Efficient compression maximizes storage while maintaining high video quality.
4K HDMI Output
HDMI output supports resolutions up to 4K (3840 × 2160).
Smart Analytics Ready
Supports motion detection, intrusion detection, face detection, and VCA search.
DVR Specifications
| Model | SV-DVR16-N |
| Video Inputs | 16 × BNC (Analog), up to 32 IP |
| Supported Camera Types | TVI / AHD / CVI / CVBS / IP (Adaptive) |
| Recording Resolution | 8MP / 5MP / 4MP / 1080P / 720P / D1 |
| Video Compression | H.265 / H.264 |
| HDMI Output | Up to 4K (3840 × 2160) |
| VGA Output | Supported (simultaneous with HDMI) |
| Audio Support | Audio over Coax (TVI), RCA Audio I/O |
| Hard Drive Bays | 2 × SATA (up to 16TB per HDD) |
| Incoming Bandwidth | 80 Mbps (112 Mbps after conversion) |
| Outgoing Bandwidth | 160 Mbps |
| Network Interface | 1 × RJ45 Gigabit Ethernet |
| Protocols | ONVIF, RTSP, TCP/IP, HTTP, HTTPS, DHCP, DNS |
| Power | DC 12V / 5A |
| Dimensions | 15.0" × 12.8" × 2.1" |
| Certifications | CE, FCC, UL, RoHS, WEEE |
Need compatible cameras? Browse wired security cameras here.
Need help sizing storage? Our U.S.-based support team is happy to assist.
SURVEILLANCE DVR FEATURES
- 4K 16 Channel Ultra High Definition

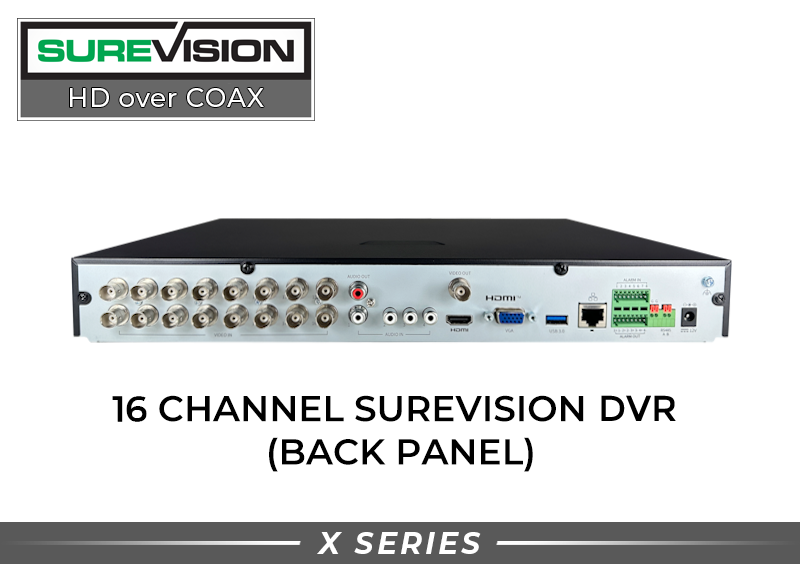

- 16 BNC Security Camera Inputs
- Supports CVI/TVI/AHD/Analog CCTV Cameras
- Remote Viewing – No Monthly Fees
- H.265 High Video Compression
- HDMI and VGA & BNC Display Output
- 2 Hard Drive Bays
