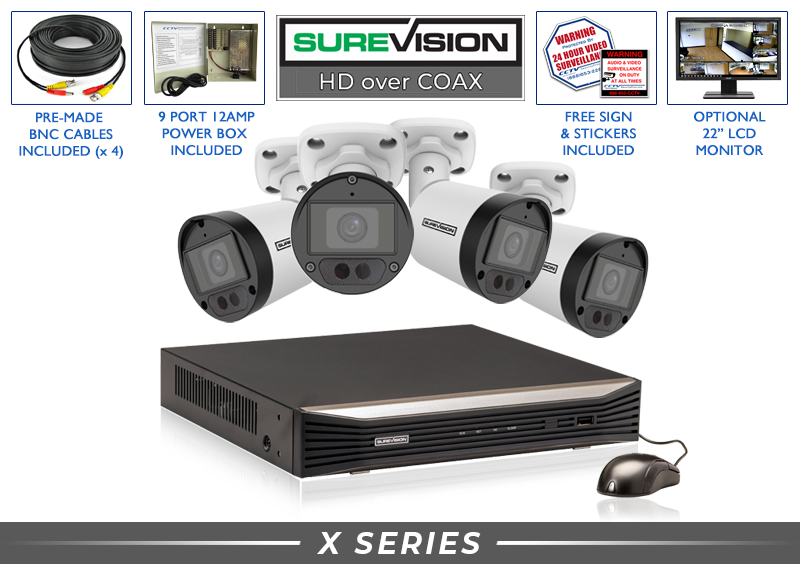

SureVision 1080p HD Over Coax Security Camera System – 130ft IR Bullet Cameras
The SureVision 1080p HD over coax security camera system delivers commercial-grade performance with dependable wired reliability. Featuring professional 2MP 1080p HD over coax bullet cameras, this system provides sharp 1920×1080 video, powerful infrared night vision up to 130 feet, and rugged metal camera construction built for long-term indoor or outdoor use.
Unlike many entry-level consumer security kits, our professional-grade cameras are engineered with superior optics, image processing, and build quality. The result is clearer real-world video, stronger night performance, and a more stable system that often rivals or exceeds higher-resolution consumer-grade cameras.
Designed for both new installations and upgrades, this HD over coax CCTV system provides consistent performance with traditional coaxial cable infrastructure while supporting modern DVR features such as remote viewing, motion alerts, and playback access with no monthly fees.
Professional Video Quality & Night Performance
- 1080p Full HD Resolution: Clear 1920×1080 video for dependable identification and monitoring.
- 130ft Infrared Night Vision: Powerful IR illumination for reliable coverage in complete darkness.
- Enhanced Low-Light Visibility: Improved image clarity in dim environments.
- All-Metal Camera Housing: Commercial-grade durability for indoor and outdoor security.
Reliable Recording & Smart Monitoring
- Continuous or Motion-Based Recording
- Built-In Audio Over Coax: Video and audio transmitted through the same cable.
- Remote Viewing: Access live and recorded video from smartphone, tablet, or computer.
- No Monthly Fees: Full system functionality without subscriptions.
Stable HD Over Coax Installation
- Uses Existing Coax Cabling: Ideal for system upgrades.
- Secure Wired Connection: Stable video transmission without WiFi interference.
- Commercial-Grade DVR Recorder Included
- Preconfigured for Easy Setup
Commercial-Grade Reliability
- Professional Optics & Components
- Engineered for Long-Term Continuous Operation
- Superior Image Stability Compared to Consumer Kits
- Built to Last
Ideal for Residential & Commercial Security
Perfect for homes, retail stores, offices, warehouses, schools, and commercial buildings, the SureVision 1080p HD over coax security system delivers dependable performance, superior clarity, and long-term reliability without the instability of entry-level consumer equipment.
This complete high definition security camera system comes with everything needed for complete installation. It includes a 3 Year Warranty, Free USA Technical and Support and 100% Money Back Guarantee.
Installation of our HD over Coax camera systems is simple and easy. A simple step-by-step guide is included with every system. We also include live USA based Technical Support available Monday through Friday. We are happy to answer any questions and assist you at (888) 653-2288.
This Complete HD Security Camera System Includes:
- (1) 8 Channel High Definition Digital Video Recorder
- (1) 2 Terabyte Surveillance Grade Hard Drive (installed)
- (4) 2MP HD Infrared Indoor/Outdoor Wide Angle Bullet Security Cameras with up to 130 Foot Night Vision and built in Microphone
- (4) 100 Foot Premade Power/Video Cable or Spool(s) (Optional)
- (1) Multiple Output Power Supply
- High Definition LCD Monitor is OPTIONAL
- Quick Start Setup Guide
- Free Remote Viewing Software and Apps
- Video Surveillance Warning Sign
Camera Specifications:
| Technical Specification | |
|---|---|
| Camera | |
| Max Resolution | 2 MP |
| Sensor Size | 1/2.9" CMOS |
| Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (white light on) |
| Lens | |
| Focus | 2.8 mm |
| Lens Mount | M12 |
| Angle of View (H) | 101.5° |
| Angle of View (V) | 56.9° |
| Angle of View (D) | 117.4° |
| Illuminator | |
| Illuminator Number | Two white-light illuminators |
| Illumination Distance | 40m |
| Lifetime | ≥ 60000 hours |
| Video | |
| Resolution | 1080P: 1920(H) × 1080(V) 720P: 1280(H) × 720(V) |
| Frame Rate | TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC |
| Shutter Time | PAL: 1/25s-1/50000s NTSC: 1/30s-1/50000s |
| Image | |
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night | 24/7 color images |
| Digital Noise Reduction | 2D/3D |
| White Balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Flip | Supports 180° horizontal flip, 180° vertical flip |
| Digital Defog | Support |
| Audio | |
| Built-in Mic | Support |
| Camera Audio | TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps |
| Interface | |
| Power Interface | 5.5 mm Power Interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment | |
| Temperature | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
| Humidity | ≤ 95% RH (non-condensing) |
| Surge Protection | 4kV for power, 4kV for video output interfaces |
| Ingress Protection | IP67 |
| General | |
| Power | DC 12 V ± 25% |
| Power Consumption | MAX 3.12W |
| Mount | Corner Mount, Pole Mount |
| Dimensions | 157mm × 67mm × 66mm (L × W × H) |
| Material | Metal |
| Weight | 279g (0.62lb) |
NVR Specifications:
| Technical Specification | |
|---|---|
| Video/Audio Input | |
| IP Video Input | 8-ch |
| Analog Video Input | 8-ch, BNC |
| Max IP Video Input | 16-ch |
| Supported Analog Camera Types | Support AHD input: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps Support TVI input: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps Support CVI input: 8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps Support CVBS input |
| BNC Audio Input | 8-ch, channel audio |
| RCA Audio Input | 1-ch |
| Video/Audio Output | |
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| BNC Video Output | 1-ch |
| RCA Audio Output | 1-ch |
| Live View Display | HDMI/VGA: 1/4/6/8/9/16 |
| Playback Screen | 1/4/9/16 |
| Encoding/Decoding | |
| Recording Resolution | 8MP/5MP/4MP/1080P/720P/D1 |
| Recording Frame Rate | Main stream: 8MP@8fps, 5MP@12fps, 4MP@15fps, 1080P@25fps, 720P@30fps Sub stream: D1@8/12/15/25/30fps |
| Audio Sample Rate | 8 kHz, 16 bit per channel |
| Audio Bit Rate | 64 Kbps per channel |
| Decoding Capability | Analog: 8 × 8MP@8, 8 × 5MP@12, 8 × 4MP@15, 8 × 1080P@25, 8 × 720P@30 IP: 2 × 8MP@30, 4 × 4MP@30, 8 × 1080P@30, 16 × 720P@30 |
| Num of Concurrent Playback (Local) | 16-ch |
| Coaxial Cable | |
| Audio over Coaxial Cable (TVI) | 8-ch, One-way Audio |
| Two-way Audio | |
| Two-way Audio | 1-ch, RCA (using audio input and output) |
| Analog Snapshot | |
| FTP/Schedule/Event Snapshot | Schedule/FTP/Event snapshot: 8-ch snapshot, up to 704 × 576 resolution |
| Network | |
| Incoming Bandwidth | 80Mbps (Up to 96Mbps after analog channel conversion) |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Smart | |
| Analog Smart by XVR | Ultra Motion Detection (UMD), SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area) |
| IP Smart by IPC | Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking |
| VCA Search | Face Search, Behavior Search |
| Smart Functions by XVR | 8-ch (UMD), 4-ch (SIP) |
| Smart Functions by IP Camera | 4-ch (SIP) |
| Alarm | |
| General Alarm | Motion |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| GUI Language | |
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 16 TB per HDD |
| External Interface | |
| Network Interface | 1 RJ45 10/100/1000M self-adaptive Ethernet interface |
| USB | Rear panel: 1 × USB2.0, 1 × USB3.0 |
| RS485 | 1 |
| RS232 | N/A |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| Power Supply | DC 12 V / 2 A |
| Working Environment | |
| Working Temperature | -10 ℃ to 55 ℃ (14 ℉ to 131 ℉) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 12W |
| Dimensions | |
| Weight (without HDD) | ≤ 1.2 kg (2.65 lb) |
| Dimensions | 260mm × 251mm × 46mm (10.2" × 9.9" × 1.8") |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2 |
| FCC | Part 15 Subpart B |
DVR FEATURES
- 4K Ultra High Definition
- 8 BNC Camera Inputs
- Supports CVI/TVI/AHD/Analog Cameras
- Remote Viewing – No Monthly Fees
- H.265 High Video Compression
- HDMI and VGA Display Output
- 1 Hard Drive Bay
CAMERA FEATURES
- 8 Megapixel HD-CVI Camera (3840x2160)
- Built-in Microphone
- 2.8mm Lens (110° Wide Angle View)
- Up to 100ft Infrared Night Vision
- Enhanced Low Light Performance
- Weatherproof - Indoor/Outdoor (IP67)
- 12 Volt DC
- Measurement: 6.18" L x 2.64" W x 2.60" H
