SureVision NVR Features Video
This is video monitoring at its best. This is SureVision.
This complete system package comes with our industry leading SureVision NVR. This professional grade NVR unit was designed to be simple and easy to setup while offering unmatched quality, function and reliability. The NVR comes equipped with all of the latest features such as 24/7 recording, motion recording, object masking, mobile alerts, audio and much more. You can easily view and receive instant motion alerts from your cameras remotely on any smartphone, tablet or computer using our free software and mobile apps. Built-in PoE (power over ethernet) makes this unit ideal for simple plug and play setup. All SureVision NVR units have extended PoE allowing you to cable over 800ft away! You can expect the very best surveillance for your business or home with this top of the line NVR.

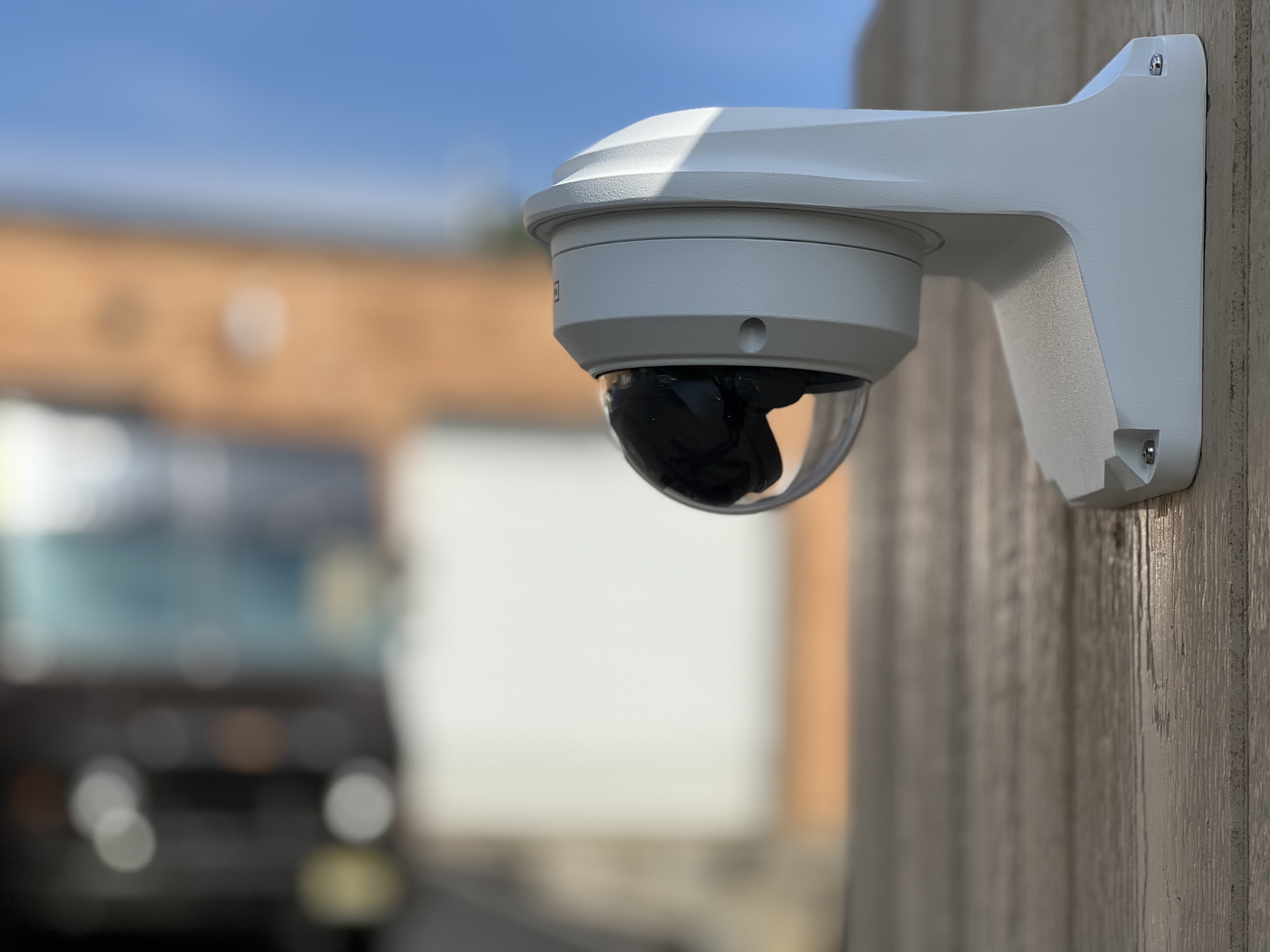

This complete security camera system package includes our SureVision 2 megapixel infrared vandal dome style camera with fixed 110 degree wide-angle lens and powerful night vision of up to 100ft. This well-designed camera is packed with high-end features including a built-in microphone for audio recording. Many customers prefer dome cameras for use both indoor and outdoor due to their low profile design and discreet look. Dome cameras are also optimal when mounting low or within human reach since their vandal-proof design makes them difficult to be tampered with. Our professional-grade dome has a 3-axis lens meaning that it can be mounted to a ceiling or wall. What makes this camera extra special is an AI feature called Ultra Motion Detection (UMD) that focuses specifically on humans and/or vehicles to produce the most accurate motion alerts – while eliminating any unwanted alerts! These notifications can instantly be sent to your smartphone or tablet so you never miss an important event. Other advanced features of this camera include WDR used to combat any glare from intense lighting as well as the latest H.265 high video compression technology for extended video storage time. This popular high definition dome camera will provide you with excellent wide-angle coverage for use in any application where superior video quality is a must.
This Complete High Definition IP Security Camera System comes with everything needed for complete installation. It includes a 3 Year Warranty, Free USA Technical and Support and 100% Money Back Guarantee.
Installation of our IP camera systems is simple and easy. A simple step-by-step guide is included with every system. We also include live USA based Technical Support available Monday through Friday. We are happy to answer any questions and assist you at (888) 653-2288.
*The equipment in this package is fully NDAA compliant and suitable for installation in government facilities and federally funded projects

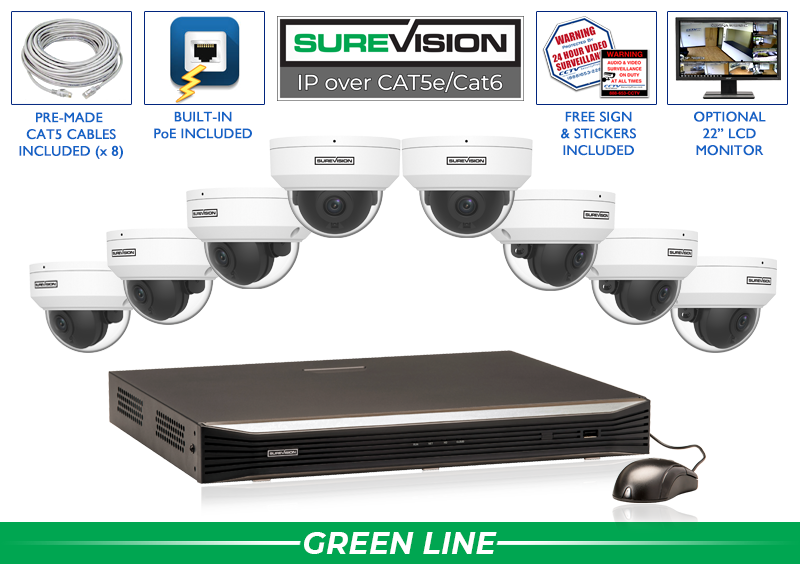

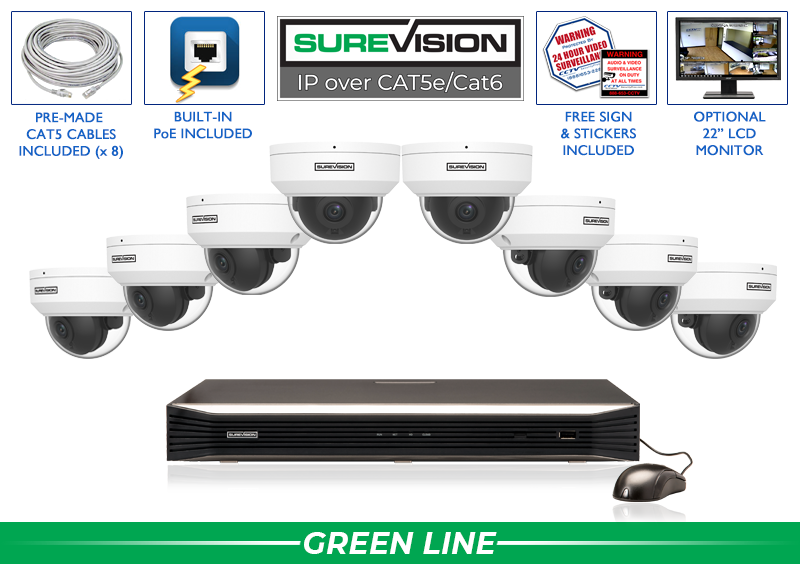

This Complete HD Security Camera System includes:
- (1) 16 Channel (FREE UPGRADE DURING PROMO) SUREVISION HD Network Video Recorder
- (1) 2 Terabyte Surveillance Grade Hard Drive (installed)
- (8) 2MP IP Infrared Indoor/Outdoor Vandal Dome Security Cameras with 100 Foot Night Vision
- (8) 100ft CAT5e Cables
- High Definition LCD Monitor is OPTIONAL
- Quick Start Guide
- Free Remote Viewing Software and Apps
- Video Surveillance Aluminum Sign
Security Camera Specifications:
Technical Specification | ||||||||
---|---|---|---|---|---|---|---|---|
Camera | ||||||||
Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS | |||||||
Lens | 2.8mm@F2.0 | |||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
2.8 | 42.0 | 16.8 | 8.4 | 4.2 | ||||
Angle of view (H) | 101.1° | |||||||
Angle of View (V) | 55.3° | |||||||
Angle of View (O) | 111.1° | |||||||
Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 68° | Rotate: 3° ~ 360° | |||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Minimum Illumination | Colour: 0.01Lux ( F2.0 AGC ON) 0 Lux with IR |
|||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Digital noise reduction | 2D/3D DNR | |||||||
S/N | >52dB | |||||||
IR Range | Up to 30m (98ft) IR range | |||||||
Wavelength | 850nm | |||||||
IR On/Off Control | Auto/Manual | |||||||
Defog | Digital Defog | |||||||
WDR | 120dB | |||||||
Video/Audio | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
H.264 code profile | Baseline profile, Main profile, High profile | |||||||
Frame Rate |
Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps |
|||||||
Video Bit Rate | 128 Kbps~6144 kpbs | |||||||
9:16 Corridor Mode | Supported | |||||||
OSD | Up to 4 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Up to 8 areas | |||||||
Motion Detection | Up to 4 areas | |||||||
Built-in Mic | Supported | |||||||
Image | ||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
Digital noise reduction | 2D/3D DNR | |||||||
Smart IR | Supported | |||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
Dewarping | N/A | |||||||
HLC | Supported | |||||||
BLC | Supported | |||||||
Network | ||||||||
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP |
|||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
Client | SVStation SVTools |
|||||||
Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
|||||||
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
||||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 128 GB | |||||||
Network Storage | ANR,NAS(NFS) | |||||||
Interface | ||||||||
Network | 10/100M Base-TX Ethernet | |||||||
Certifications | ||||||||
Certifications | CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) FCC: (FCC 47 CFR part15 B) |
|||||||
General | ||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
Power consumption: Max5.0W | ||||||||
Dimensions (Ø x H) | Φ109 x 83mm (Ø4.3” x 3.3”) | |||||||
Net Weight | 0.36kg (0.79lb) | |||||||
Material | Metal + Plastic | |||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
Surge Protection | 4KV | |||||||
Ingress Protection | IP67 | |||||||
Vandal Resistant | IK10 | |||||||
Reset Button | N/A |

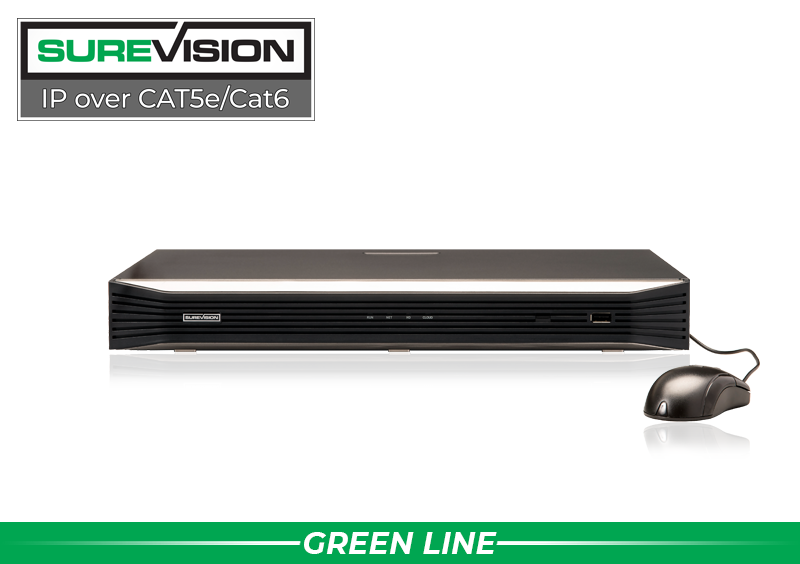

About our SUREVISION IP Camera Network Video Recorder:
Network Video Recorders are the most important part of any high quality IP surveillance system. Take advantage of our high-end, commercial-grade SUREVISION IP Camera NVRs at CCTV Security Pros to enjoy HD video quality live over the internet. Our full-featured and affordable IP camera recorders now offer up to 4K video resolution with multiple hard drive options that can be expanded for a flexible solution that fits your surveillance recording needs. Our SUREVISION IP NVR line is ONVIF compatible. SUREVISION is our latest and greatest line of IP Cameras. Order a SUREVISION IP NVR and treat yourself to a crystal clear, user friendly video recorder. View your cameras over the Internet, tablets, and cell phones as easy as 1-2-3.
SUREVISION "Green Line" Video Surveillance Recorder Highlights:
- Remote Viewing on PC, Cell Phone, and Tablet
- Industry Latest and Greatest
- Up to 4K Recording and Playback
- Motion 24/7 or on Motion Detection Mode
- Quick Start Guide Included for Easy Set Up
- 3 Year Warranty
- ONVIF Compliant
- Free Unlimited USA Support
Technical Specification | ||
---|---|---|
Video/Audio Input | ||
IP Video Input | 16-ch | |
Two-way Audio Input | 1-ch, RCA | |
Network | ||
Incoming Bandwidth | 320Mbps | |
Outgoing Bandwidth | 160Mbps | |
Remote Users | 128 | |
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6 | |
Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
|
Video/Audio Output | ||
HDMI/VGA Output |
HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60 |
|
Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Audio Output | 1-ch, RCA | |
Audio Compression | G.711A, G.711U | |
Synchronous Playback | 16-ch | |
Live View Display | 1/4/6/8/9/16 | |
Corridor Mode Screen | 3/4/5/7/9/10/12/16 | |
Snapshot | ||
FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution | |
Decoding | ||
Decoding Format | Ultra 265, H.265, H.264 | |
Live View/Playback | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Capability | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1 | |
Hard Disk | ||
SATA | 2 SATA interfaces | |
Capacity | up to 20TB for each HDD | |
eSATA | NA | |
Disk Group | Support | |
Smart | ||
VCA Detection by Camera | Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring | |
VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report | |
People Counting | People Flow Counting, Crowd Density Monitoring | |
Smart Intrusion Prevention (SIP), Vehicle Detection by Camera | Total 8-ch | |
General Alarm | ||
General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | |
Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
External Interface | ||
Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | |
USB Interface | Front panel: 1 x USB2.0,Rear panel: 1 x USB3.0 | |
RS232 | NA | |
RS485 | 1 | |
Alarm In | 8-ch | |
Alarm Out | 2-ch | |
PoE | ||
Interface | 16 RJ-45 10M/100M self-adaptive Ethernet Interface | |
Max Power | Max 30W for single port Max 240W in total |
|
Supported Standard | IEEE 802.3af/at | |
General | ||
Power Supply | 100~240V AC Power Consumption: ≤ 20W (without HDD) |
|
Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
Dimensions (W×D×H) | 380mm × 315mm × 53mm (15.0" × 12.4"× 2.1") | |
Weight (without HDD) | ≤2.6Kg (5.73lb) | |
Certification | ||
Certification | CE, FCC, UL, RoHS, WEEE | |
CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |
FCC | Part15 Subpart B |
Features:
- Support Ultra 265/H.265/H.264 video formats
- 16-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- Up to 12 Megapixels resolution recording
- 2 SATA HDD up to 20 TB
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
16 CHANNEL NVR
*Free Upgrade to 16ch Recorder!
- 4K Ultra High Definition
- 16 PoE Camera Inputs
- Remote Viewing – No Monthly Fees
- H.265 High Video Compression
- 320 Mbps Incoming Bandwidth
- HDMI and VGA Display Output
- 2 Hard Drive Bays
SECURITY CAMERAS
- 2 Megapixel IP Camera (2688×1520)
- 2.8mm Lens (110° Wide Angle View)
- Up to 100ft Infrared Night Vision
- Built-in Microphone
- H.265 Video Compression
- Weatherproof, Vandalproof (IP67, IK10)
- Wide Dynamic Range (120dB)
- Power Over Ethernet - PoE
- Measurement: 3.2" H x 4.3" D
Approximate Distances:
Identify (Up to 14ft)
Recognize (Up to 28ft)
Detect (Up to 138ft)
