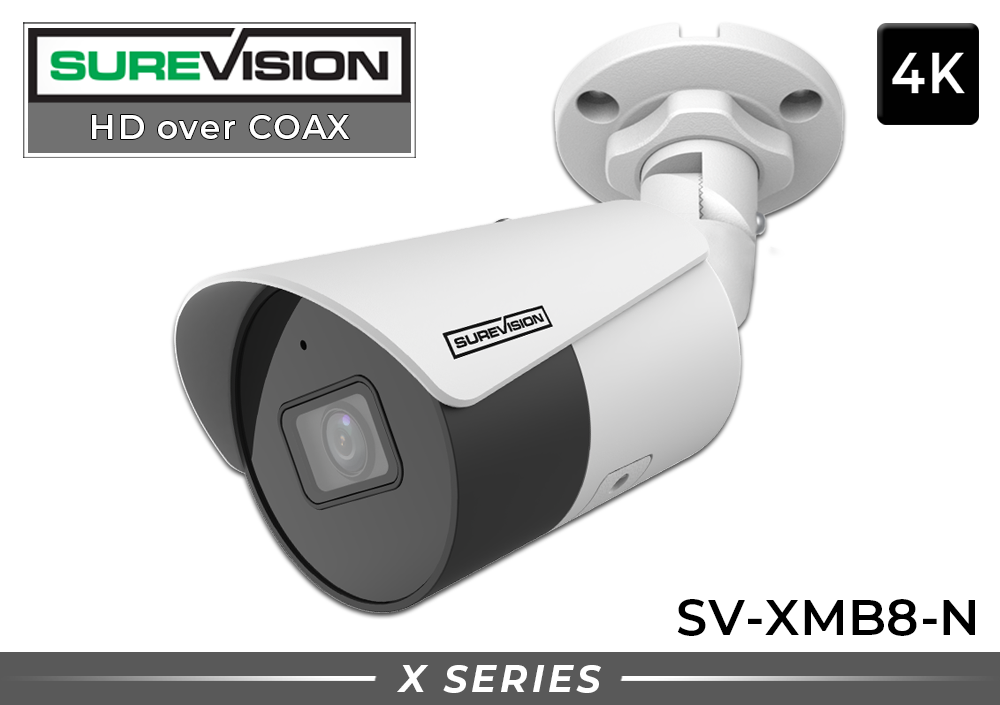

8MP 4K Analog HD Security Camera – 130ft IR Bullet CCTV Camera (HD Over Coax)

This 8MP 4K Analog HD security camera delivers ultra-clear 3840×2160 resolution for sharp identification and dependable evidence capture. Designed for professional HD over coax CCTV systems, this 4K bullet security camera provides powerful infrared night vision up to 130 feet and rugged all-metal construction for reliable indoor or outdoor surveillance.

Built with commercial-grade optics and components, this analog CCTV camera offers stronger performance, improved image clarity, and long-term reliability compared to entry-level or consumer-grade cameras. The result is a more stable, dependable security system that performs consistently day after day.

Supporting TVI, CVI, AHD, and CVBS formats, this HD analog security camera integrates seamlessly with modern and legacy CCTV DVR recorders. Advanced features including 120dB true WDR, enhanced low-light visibility, 3D digital noise reduction, and audio over coax ensure clean, balanced video in challenging lighting conditions.

Key CCTV Camera Features

8MP 4K Ultra HD Resolution

3840×2160 video delivers exceptional clarity for commercial and residential CCTV systems.

130ft Infrared Night Vision

Powerful IR illumination provides reliable surveillance in complete darkness.

Heavy-Duty Metal Construction

Commercial-grade metal housing built for durability and long-term outdoor performance.

120dB True WDR

Balances bright and dark areas for clearer video near entrances and high-contrast scenes.

Audio Over Coax

Built-in microphone transmits audio through standard coaxial cable.

TVI / CVI / AHD / CVBS Compatible

Flexible multi-format support for seamless DVR integration and upgrades.

Technical Specifications

Technical Specification
Camera
Max Resolution	8 MP
Sensor Size	1/2.7" CMOS
Min. Illumination	0.005 lux (F1.6, AGC ON) 0 lux (IR ON)
Lens
Focus	2.8 mm
Lens Mount	M12
Angle of View (H)	109.1°
Angle of View (V)	61.0°
Angle of View (D)	126.7°
Illuminator
Illuminator Number	Two IR illuminators
Illumination Distance	40m
Lifetime	≥ 60000 hours
Video
Resolution	4K: 3840(H) × 2160(V) 5MP@20fps: 2592(H) × 1944(V) 4MP: 2560(H) × 1440(V)
Frame Rate	CVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC
Shutter Time	PAL: 1/25s-1/50000s NTSC: 1/30s-1/50000s
Exposure Mode	Four modes: Global (default), BLC, HLC, WDR
Day/Night	Three modes: Auto (default), Day, Night
Digital Noise Reduction	2D/3D
White Balance	Two modes: Auto (default), Manual
WDR	120 dB WDR
Smart IR	Support
Flip	Supports 180° horizontal flip, 180° vertical flip
Digital Defog	N/A
Audio
Built-in Mic	Support
Camera Audio	CVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps
Interface
Power Interface	5.5 mm Power Interface
Video Output	BNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Humidity	≤ 95% RH (non-condensing)
Surge Protection	4kV for power & 4kV for video output interfaces
General
Power	DC 12 V ± 25%
Power Consumption	MAX 4.8W
Mount	Corner Mount & Pole Mount
Dimensions	157mm × 67mm × 66mm (L × W × H)
Material	Metal
Weight	300g (0.67lb)
OSD Menu Language	11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (47 CFR part15 B)
Safety	CE-LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)

SECURITY CAMERA FEATURES

4K Security Camera - 8 Megapixel HD-CVI Camera (3840×2160)
2.8mm Lens (110° Wide Angle View)
Up to 130ft Infrared Night Vision
Built-in Microphone
Weatherproof - Indoor/Outdoor (IP67)
12 Volt DC
Measurement: 7.5" L x 2.9" W x 2.8"
