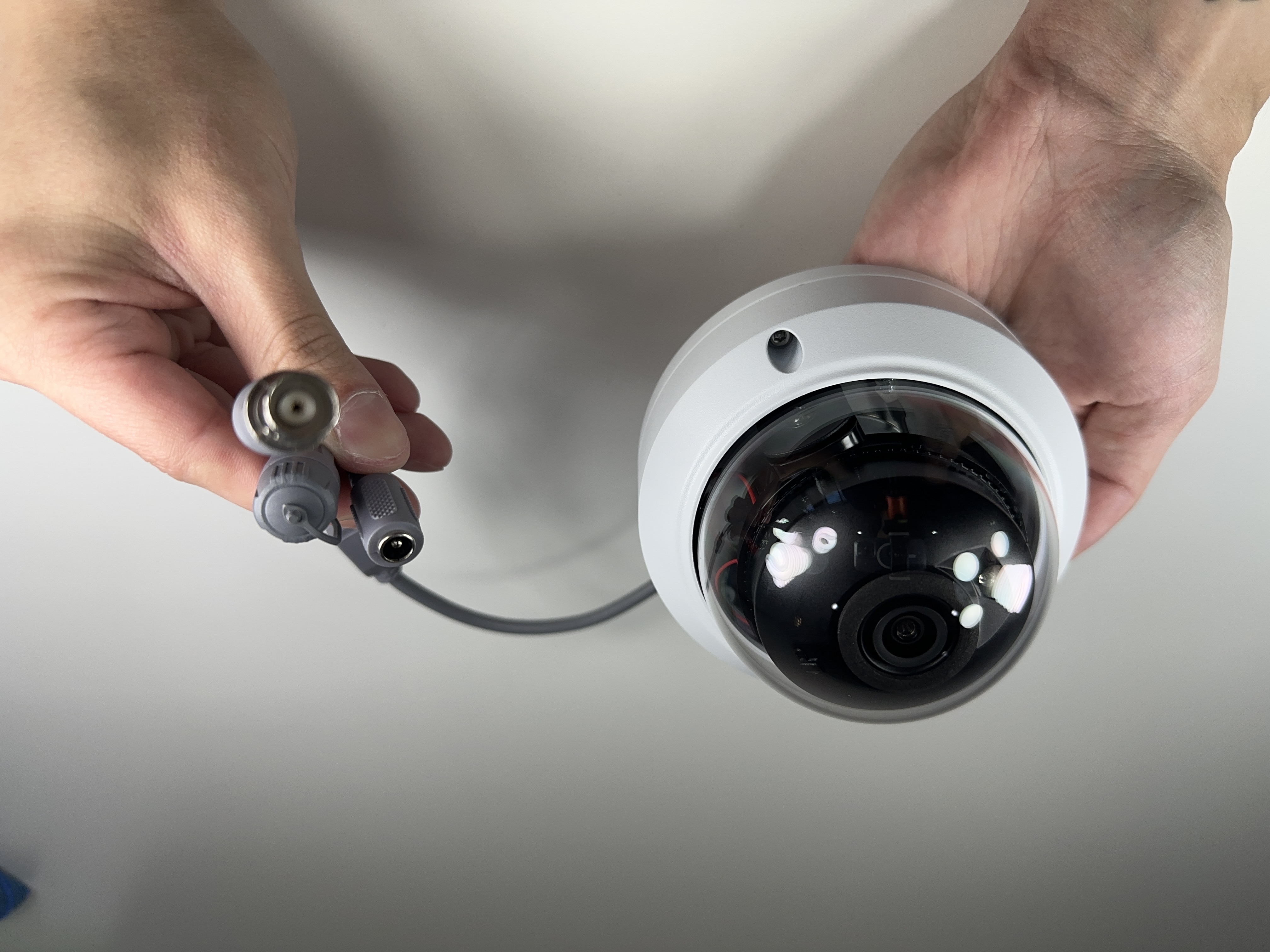

2MP LightHunter Fixed IR Dome Analog CCTV Camera – SV-XMD2-N
The SV-XMD2-N is a professional-grade 2MP analog CCTV dome camera engineered for dependable video surveillance, excellent low-light clarity, and long-term durability. Designed for traditional coaxial installations, this CCTV security camera is ideal for businesses and homeowners upgrading or expanding an existing CCTV camera system.
Powered by a LightHunter high-sensitivity image sensor, this analog CCTV camera delivers clean, sharp video in daytime and low-light environments. It supports TVI, AHD, CVI, and CVBS formats, ensuring broad compatibility with modern hybrid and analog CCTV DVR recorders.
Featuring a rugged IP67 weatherproof and IK10 vandal-resistant metal dome housing, the SV-XMD2-N is well suited for indoor or outdoor CCTV installations including retail stores, offices, schools, warehouses, and building entrances.
Key CCTV Camera Features
2MP High-Definition CCTV Video
Delivers clear 1080P-quality video for reliable CCTV monitoring and identification.
LightHunter Low-Light Performance
High-sensitivity imaging improves visibility in dim indoor and outdoor CCTV scenes.
Built-In Microphone
Captures audio over coaxial cable when paired with compatible CCTV DVR systems.
30m Infrared Night Vision
Integrated IR illumination ensures consistent CCTV visibility in total darkness.
Multi-Format CCTV Compatibility
Supports TVI, AHD, CVI, and CVBS for flexible analog CCTV system integration.
IP67 & IK10 Rated Dome
Weatherproof and vandal-resistant metal housing for harsh CCTV environments.
CCTV Camera Specifications
| Model | SV-XMD2-N |
| Max Resolution | 2 MP |
| Image Sensor | 1/2.9" CMOS |
| Minimum Illumination | 0.005 Lux (F1.6, AGC ON) / 0 Lux (IR On) |
| Lens Options | 2.8mm or 4.0mm Fixed Lens |
| Field of View | 2.8mm: 101.5° (H) / 56.9° (V) 4.0mm: 83.8° (H) / 42.7° (V) |
| Night Vision | IR up to 30m (98 ft) |
| Video Output | BNC (TVI / AHD / CVI / CVBS) |
| Audio | Built-in Microphone (Audio over Coax) |
| Image Enhancements | DWDR, Digital Defog, 2D/3D DNR, Smart IR |
| Flip | 180° Horizontal / Vertical |
| Ingress Protection | IP67 |
| Vandal Rating | IK10 |
| Power | DC 12V ±25% |
| Power Consumption | Max 3.3W |
| Mounting Options | Wall, Pole, Corner, Tilted, Pendant |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Dimensions | Φ109mm × 83mm |
| Weight | 372g (0.82 lb) |
Looking for a compatible CCTV DVR? Browse our Digital Video Recorders here.
SECURITY CAMERA FEATURES
- 2 Megapixel HD-CVI Security Camera (1920×1080)
- 4-1 Camera (CVI, TVI, AHD, Analog)
- 2.8mm Lens (110° Wide Angle View)
- Up to 100ft Infrared Night Vision
- Built-in Microphone
- Weatherproof, Vandalproof (IP67, IK10)
- 12 Volt DC
- Measurement: 4.3" W x 3.7" H
