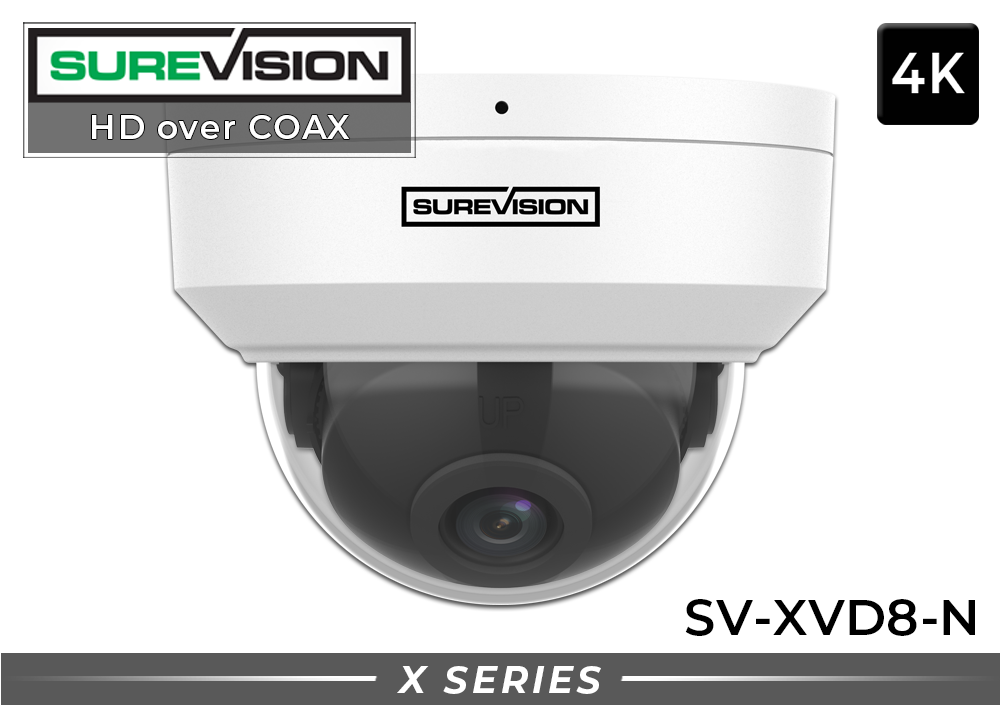

8MP LightHunter Fixed IR Dome Analog HD CCTV Camera
The SV-XVD8-N CCTV camera is a professional-grade 8MP (4K) analog CCTV dome camera engineered for ultra-clear surveillance video, superior low-light performance, and reliable coax-based CCTV installations. This CCTV security camera uses advanced LightHunter imaging technology and 120dB true WDR to deliver clean, balanced CCTV footage in both bright and low-light environments.
Designed for modern CCTV camera systems, this analog CCTV camera supports TVI, CVI, AHD, and CVBS formats, making it fully compatible with hybrid and analog CCTV DVR recorders. With built-in audio over coax, smart IR night vision up to 30 meters, and a rugged IP67 & IK10 vandal-resistant metal dome housing, this CCTV camera is ideal for retail stores, offices, schools, warehouses, and outdoor CCTV surveillance.
Key CCTV Camera Features
Delivers 3840×2160 4K CCTV video for sharp detail, facial recognition, and license-plate clarity.
High-sensitivity sensor provides bright, usable CCTV footage in low-light and nighttime scenes.
Balances bright and dark areas for clear CCTV images near doors, windows, and entrances.
Smart infrared illumination delivers clear nighttime CCTV surveillance without washout.
Built-in microphone sends audio through the same coax cable as video — no extra wiring.
Weatherproof and vandal-resistant CCTV camera enclosure for indoor or outdoor surveillance.
Technical Specifications
| Model | SV-XVD8-N |
| Max Resolution | 8MP (3840 × 2160) |
| Image Sensor | 1/2.7" CMOS |
| Minimum Illumination | 0.005 Lux (F1.6, AGC ON), 0 Lux (IR ON) |
| Lens Options | 2.8mm or 4.0mm Fixed Lens |
| Field of View | 109.1°–86.8° (Horizontal) |
| WDR | 120dB True WDR |
| Night Vision | IR up to 30m (98 ft) |
| Video Output | BNC (TVI / CVI / AHD / CVBS) |
| Audio | Built-in microphone (audio over coax) |
| Power | DC 12V ±25%, Max 3.7W |
| Protection | IP67 Weatherproof, IK10 Vandal-Resistant |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Dimensions | Ø109 × 83 mm (4.29" × 3.27") |
| Weight | 395 g (0.87 lb) |
SECURITY CAMERA FEATURES
- 4K Security Camera - 8 Megapixel HD-CVI Camera (3840×2160)
- 2.8mm Lens (110° Wide Angle View)
- Up to 100ft Infrared Night Vision
- Built-in Microphone
- Weatherproof, Vandalproof (IP67, IK10)
- 12 Volt DC
- Measurement: 4.3" W x 3.7" H
