Better video.

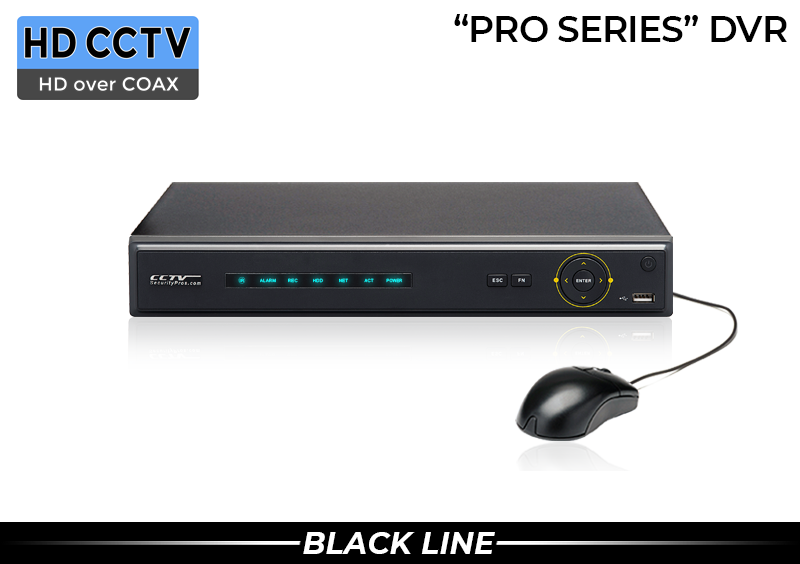

Our PRO Series DVR is the perfect choice for high definition video over coax cable. This professional-grade digital video recorder is capable of producing superior images up to 4K ultra high definition and is also backwards compatible to support older analog cameras. Our top-of-the-line PRO Series is designed to include all of the latest and greatest features for viewing live and recorded video including 24/7 recording, motion recording, object masking, smart mobile alerts, audio and much more. Recently added AI functionality makes this DVR far superior to any others. By simply enabling Smart Motion Detection in the AI menu, the recorder can send the most accurate alerts directly to your smartphone only when humans and/or vehicles are detected eliminating any unwanted alerts. This DVR utilizes the new H.265 high video compression technology to store more video while using less hard drive space. You can easily view your cameras remotely on any smartphone, tablet or computer using our free software and mobile apps. HD over Coax cameras are installed using RG59 Siamese (Power/Video) cable just like traditional analog cameras. Our HD over Coax systems offer a superior HD solution for your business or home. They are also an excellent solution for customers looking to upgrade their older analog systems.

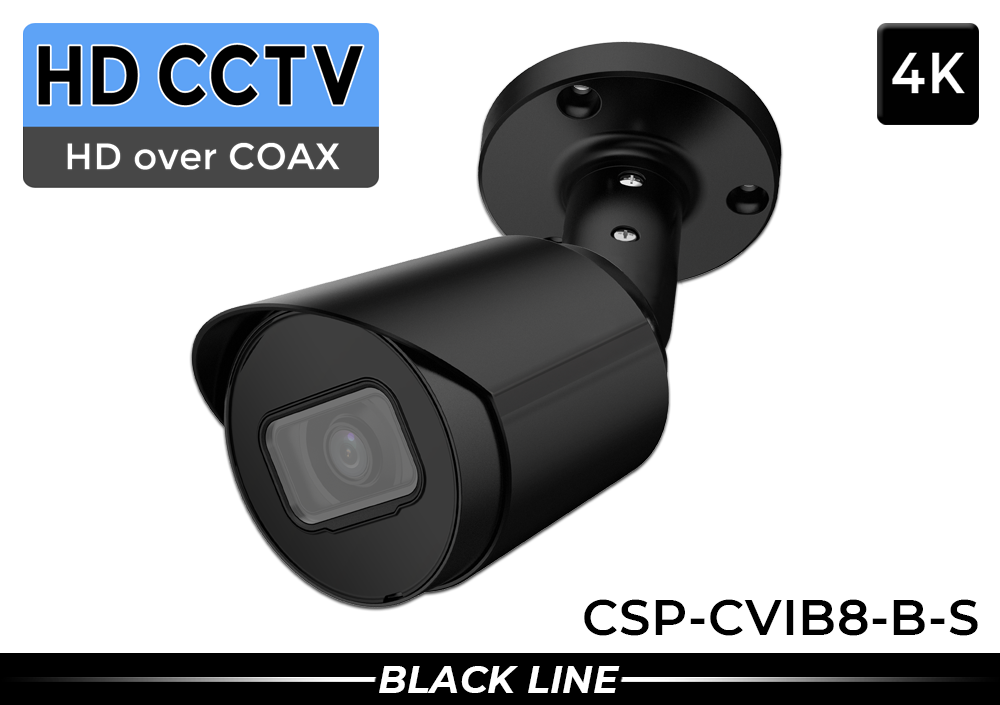

This complete HD over Coax security camera system package includes our professional-grade 8MP HD bullet style camera with 110 degree wide-angle lens and powerful night vision of up to 100ft. This well designed camera has a built-in microphone for audio recording. Some advanced features of this camera include the latest Starlight technology to display colorful images in low light conditions and WDR technology to offset any contrast in lighting. The camera transmits both audio and video over a single coax cable. HD over Coax cameras are capable of transmitting high quality video well over 1,000 feet using standard BNC cabling. Our professional-grade security cameras are usually preferred by customers seeking better quality and higher resolution than most consumer brand cameras. Infrared bullet security cameras have long been our most popular choice of camera. Their sleek housing style makes them perfect for use in both indoor and outdoor video surveillance applications. This high definition camera will provide you with superb images and excellent wide area coverage.

This complete high definition security camera system comes with everything needed for complete installation. It includes a 3 Year Warranty, Free USA Technical and Support and 100% Money Back Guarantee.

Installation of our HD over Coax camera systems is simple and easy. A simple step-by-step guide is included with every system. We also include live USA based Technical Support available Monday through Friday. We are happy to answer any questions and assist you at (888) 653-2288.

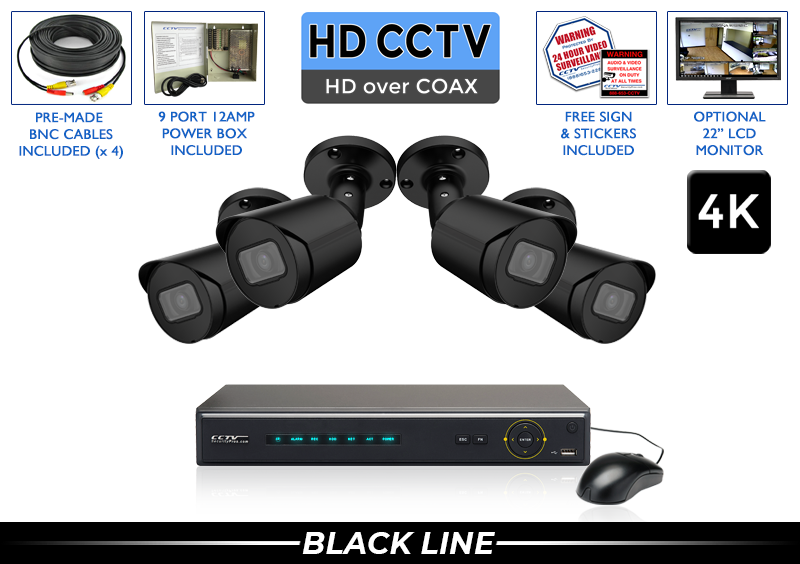

This Complete HD Security Camera System includes:

(1) 8 Channel "PRO SERIES" High Definition Digital Video Recorder
(1) 1 Terabyte Surveillance Grade Hard Dive (installed)
(4) 8MP HD Infrared Indoor/Outdoor Bullet Security Cameras with up to 100 Foot Night Vision
(4) 100 Foot Premade Power/Video Cable or Spool(s) (Optional)
(1) Multiple Output Power Supply
High Definition LCD Monitor is OPTIONAL
Quick Start Setup Guide
Free Remote Viewing Software and Apps
Video Surveillance Aluminum Sign

Technical Specification
System
Main Processor																		Embedded Processor
Operating System																		Embedded LINUX
Perimeter Protection
Performance																		2 channels, 10 IVS for each channel
Object classification																		Human/Vehicle secondary recognition for tripwire and intrusion
AI Search																		Search by target classification (Human, Vehicle)
Face Recognition
Performance																		Max 12 face pictures/sec processing
Performance																		2 channels video stream face recognition, only support analog camera
Stranger Mode																		Detect strangers' faces (not in device's face database). Similarity threshold can be set manually.
AI Search																		Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management																		Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture.
Database Application																		Each database can be applied to video channels independently .
Trigger Events																		Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
SMD Plus
Performance																		8 channels
AI Search																		Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input																		8 channels, BNC
HDCVI Camera Input																		4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera Input																		4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
TVI Camera Input																		4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
CVBS Camera Input																		PAL/NTSC
IP Camera Input																		8+8 channels, each channel up to 8MP
Audio In/Out																		1/1, RCA
Two-way Talk																		Reuse audio in/out, RCA
Recording
Compression																		AI Coding/H.265+/H.265/H.264+/H.264
Resolution																		4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Record Rate																		Main stream: All channel 4K(1fps–7fps); 6MP(1fps– 10fps); 5MP(1fps–12fps); 4K-N, 4MP/3MP(1fps–15fps); 4M-N/1080P/720P/960H/D1/CIF (1fps–25/30fps); Sub steram:960H(1fps–15fps); D1/CIF(1fps–25/30fps)
Bit Rate																		32 Kbps–6144 Kbps Per Channel
Record Mode																		Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering),Alarm, Stop
Record Interval																		1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Audio Compression																		G.711A, G.711U, PCM
Audio Sample Rate																		8 KHz, 16 bit Per Channel
Audio Bit Rate																		64 Kbps Per Channel
Display
Interface																		1 HDMI ,1 VGA
Resolution																		HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display																		When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16
OSD																		Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface																		1 RJ-45 Port (1000 MB)
Network Function																		HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access																		128 users
Smart Phone																		iPhone, iPad, Android
Interoperability																		ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events																		Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection																		Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input																		N/A
Relay Output																		N/A
Playback and Backup
Playback																		1/4/9
Search Mode																		Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function																		Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode																		USB Device/Network
Storage
Internal HDD																		1 SATA Port, up to 10TB capacity
eSATA																		N/A
Auxiliary Interface
USB																		2 USB Ports (1 USB 2.0 , 1 USB 3.0)
RS485																		1 Port, for PTZ Control
RS232																		N/A
Electrical
Power Supply																		DC 12V/2A
Power Consumption (Without HDD)																		<10W
Construction
Dimensions																		Mini 1U, 325 mm × 257 mm × 55 mm (12.80'' × 10.11'' × 2.17'')
Net Weight (without HDD)																		1.2 kg (2.6 lb)
Gross Weight																		1.4 kg (3.1 lb)
Installation																		Desktop installation
Environmental
Operating Conditions																		-10°C to +55°C (+14°F to +131°F), 0–90% RH
Storage Conditions																		-20°C to +70°C (-4°F to +158°F) , 0–90% RH
Third-party Support
Third-party Support																		Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony,Videotec, Vivotek, and more
Certifications
Certifications																		FCC: Part 15 Subpart B
Certifications																		CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

DVR FEATURES

*Free Upgrade to 8ch Recorder!

4K Ultra High Definition
8 BNC Camera Inputs
Supports CVI/TVI/AHD/Analog Cameras
Remote Viewing – No Monthly Fees
H.265 High Video Compression
HDMI and VGA Display Output
1 Hard Drive Bay

CAMERA FEATURES

8 Megapixel HD-CVI Camera (3840×2160)
Built-in Microphone
2.8mm Lens (110° Wide Angle View)
Up to 100ft Infrared Night Vision
Starlight - low light performance
Weatherproof - Indoor/Outdoor (IP67)
Wide Dynamic Range (120dB)
12 Volt DC
Measurement: 6.87" L x 2.78" W x 2.85" H

Approximate Distances:
Identify (Up to 28ft)
Recognize (Up to 57ft)
Detect (Up to 288ft)
