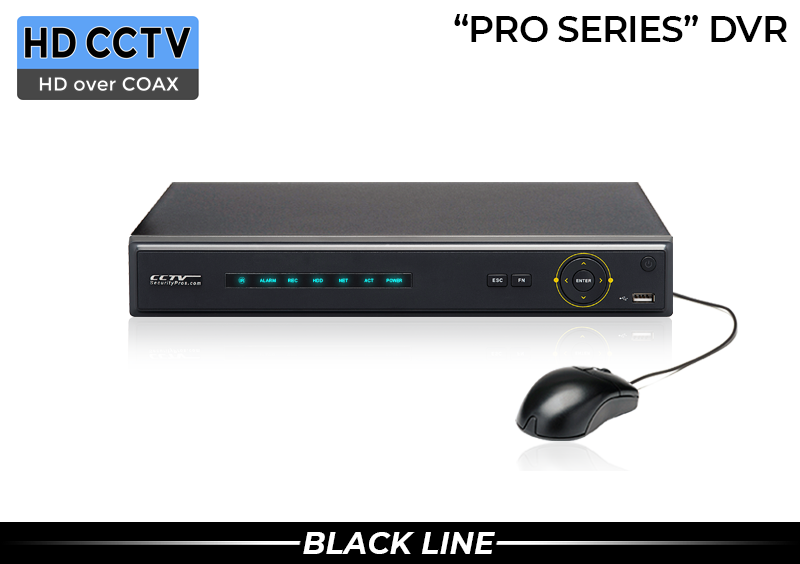

8 Channel Digital Video Recorder | 4K for HD and Analog Security Cameras
DVR includes a 2 Terabyte Hard Drive Storage pre-installed for your convenience.
Superior Image Quality with 4K Ultra High Definition
- Capture stunning footage with our PRO Series 8 Channel Security DVR, designed to produce superior images up to 4K ultra high definition.
- Experience crystal-clear and highly detailed video, ensuring every important detail is captured and preserved.
- Enjoy the benefits of advanced technology and immersive visuals, elevating your surveillance system to new heights.
Advanced AI Functionality for Accurate Alerts
- Our PRO Series DVR goes above and beyond with recently added AI functionality.
- Enable Smart Motion Detection in the AI menu to receive accurate alerts on your smartphone only when humans and/or vehicles are detected.
- Eliminate unwanted alerts and focus on real threats, enhancing the efficiency of your video surveillance system.
Easy Installation and Compatibility
- Upgrade your existing analog video recorder or install a new HD system effortlessly with our PRO Series DVR.
- Backwards compatible to support older analog cameras, ensuring a smooth and seamless transition.
- HD over Coax cameras are installed using RG59 Siamese cable, just like traditional analog cameras.
- Benefit from a hassle-free setup process, and enjoy the convenience of a user-friendly interface.
|Main Processor||Embedded processor|
|Operating System||Embedded Linux|
|Perimeter Performance AI by Recorder (Number of Channels)||2 channels|
|Face Attributes||6 attributes: Gender, age groups (6), glasses, expressions (8), face mask, beard, with up to four detection panels displayed at the same time.|
|Face Detection Performance of AI by Recorder (Number of Channels)||2 channels, and a single channel can detect up to 12 faces.|
|Face Database Capacity||Up to 10 face databases and 20,000 pictures.|
|Face Recognition Performance of AI by Recorder (Number of Channels)||2 channels|
|SMD Plus by Recorder||Full-channel SMD Plus (AI by recorder), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change|
|Audio and Video|
|Analog Camera Input||8 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.|
|Camera Input||1. CVI: 4K, 6MP, 5MP, 4MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
2. TVI: 4K, 5MP, 4MP, 3MP, 1080p@25/30, 720p@25/30 fps.
3. AHD: 4K, 5MP, 4MP, 3MP, 1080p@25/30, 720p@25/30 fps.
|IP Camera Input||8+8 channels, each channel up to 8MP *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.|
|Encoding Capacity||All channel 4K (1 fps–7 fps); 6MP (1 fps–10 fps); 5MP (1 fps–12 fps); 4K-N, 4MP/3MP(1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps);|
|Dual-stream||Supported (960H (1 fps–15 fps); D1/CIF(1 fps–25/30 fps)).|
|Video Frame Rate||PAL: 1 fps–25 fps.
NTSC: 1 fps–30 fps.
|Video Bit Rate||32 Kbps–6144 Kbps Per Channel|
|Audio Sampling||8 KHz, 16 bit Per Channel|
|Audio Bit Rate||64 Kbps Per Channel|
|Bit Rate Type||Video stream and composite stream.|
|Video Output||1 HDMI ,1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
|Multi-screen Display||When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
|Third-party Camera Access||Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung|
|Video Compression||AI Coding/H.265+/H.265/H.264+/H.264|
|Network Protocol||HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P|
|Mobile Phone Access||iPhone, iPad, Android|
|Interoperability||ONVIF 16.12, CGI Conformant|
|Browser||Chrome, IE9 or above, Firefox|
|Network Mode||Single-address mode|
|Record Mode||Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop|
|Backup Method||USB Device/Network|
|Playback Mode||Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)|
|General Alarm||Motion detection, Video Loss, tampering, and local alarm|
|Anomaly Alarm||No disk, disk error, low space, offline, ip conflict, MAC conflict|
|Intelligent Alarm||Face detection, face recognition, perimeter protection|
|Alarm Linkage||Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email|
|Audio Input||1, RCA (external)
8, BNC (coaxial)
|Audio Output||1, RCA|
|Two-way Talk||Yes (share the same audio input with the first channel)|
|HDD Interface||1 SATA Port, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature|
|RS-485||1 Port, for PTZ Control|
|USB||2 USB Ports (1 USB 2.0 , 1 USB 3.0)|
|Network Port||1 (10/100/1000 Mbps Ethernet port, RJ-45)|
|Power Supply||DC12V, 2A|
|Power Consumption||Lower than 10 W|
|Net Weight||1.2 kg (2.65 lb)|
|Gross Weight||1.9 kg (4.19 lb)|
|Product Dimensions||Mini 1U, 325.0 mm × 256.6 mm × 55.0 mm (W × D × H)
12.80'' × 10.10'' × 2.17'' (W × D × H)
|Packaging Dimensions||372.0 mm × 117.0 mm × 308.0 mm (L × W × H)
14.65" × 4.61" × 12.13" (L × W × H)
|Operating Temperature||–10 °C to +55 °C (+14 °F to +131 °F)|
|Certifications||CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
- 4K Ultra High Definition
- 8 BNC Camera Inputs
- Supports CVI/TVI/AHD/Analog Cameras
- Remote Viewing – No Monthly Fees
- H.265 High Video Compression
- HDMI and VGA Display Output
