MOTORIZED Vandal Dome High Definition 4K IP Camera System
This commercial-grade system offers crystal clear 4K video in daytime and powerful night vision of up to 100 foot in darkness. This system is vandal resistant and weatherproof rated. The cameras also come with a motorized controllable zoom. lens. You control the angle and zoom. through your NVR or cell phone, enabling you to capture both wide angle and zoom in angles where needed. View your cameras over internet, tablet, and cell phones. Our free app provides you with security at your fingertips with no monthly fees. You can be confident in this complete 4K system. Each camera system comes with a 100% money back satisfaction guarantee, a 3 year warranty, and free unlimited technical support.
Our SUREVISION IP Systems come with our SUREVISION Network Video Recorder. This NVR is simple and easy to set up. Our Network Video Recorder enables you to individually customize your settings for each camera. View your live video directly over the Internet, cell phones, and tablet devices. There are NO ADDITIONAL MONTHLY FEES other than your high speed internet connection. Easily review video by time, date, or event. Program your NVR for 24/7 recording, upon motion event, or record on a particular schedule. Set up email alerts so you know exactly when and where their is activity at your location. Monitor your assets in HD anytime, anywhere, anyplace. The SUREVISION NVR comes with Remote Viewing Software and Free Cell Phone App to view your cameras wherever you are.
Our SUREVISION IP Security Camera Systems are simple and easy to install. We also offer unlimited one-on-one toll free technical support for the life of our products.

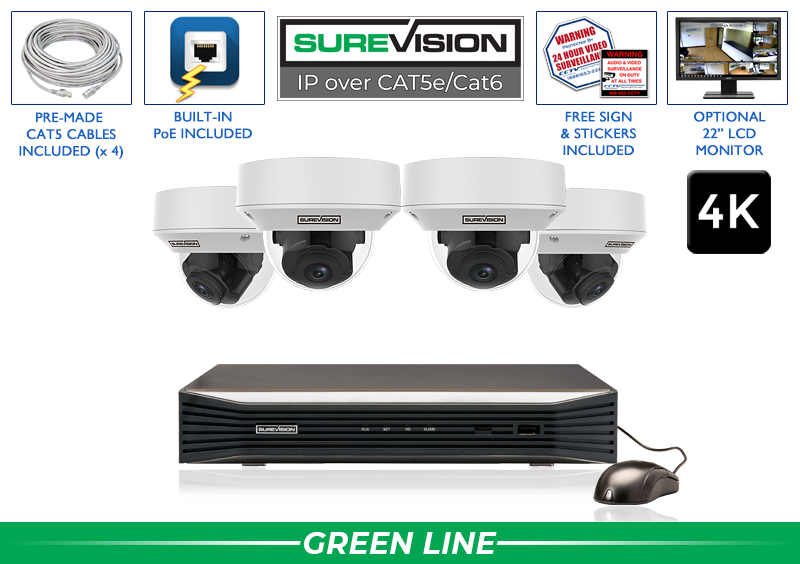

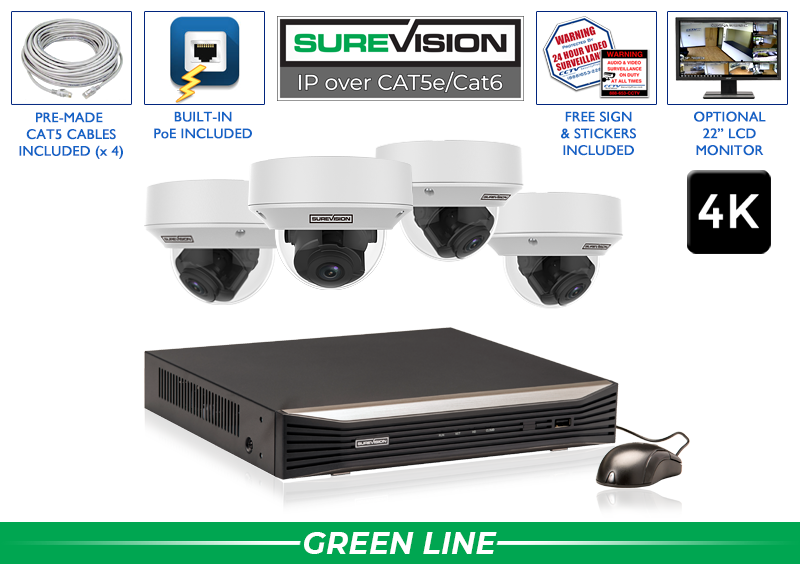

This Complete HD Security Camera System includes:
- (1) 8 Channel SUREVISION HD Network Video Recorder
- (1) 1 Terabyte Surveillance Grade Hard Drive (installed)
- (4) 8MP IP MOTORIZED Infrared Indoor/Outdoor Vandal Dome Security Cameras with Night Vision and Adjustable Lens
- (4) 100 Foot CAT5 Cable
- High Definition LCD Monitor is OPTIONAL
- Quick Start Guide
- Free Remote Viewing Software and Apps
- Video Surveillance Warning Stickers and Aluminum Sign
About the Cameras:

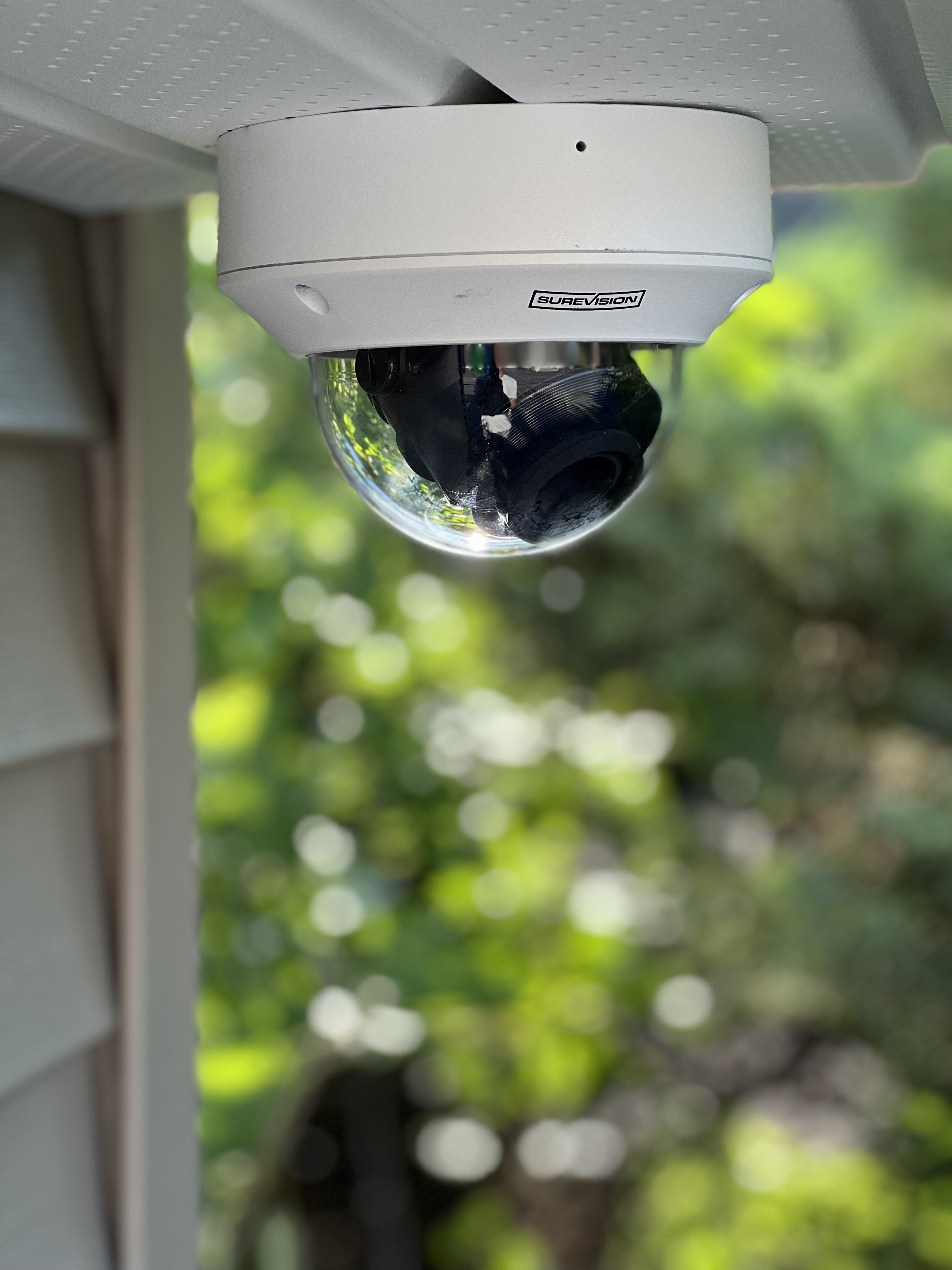

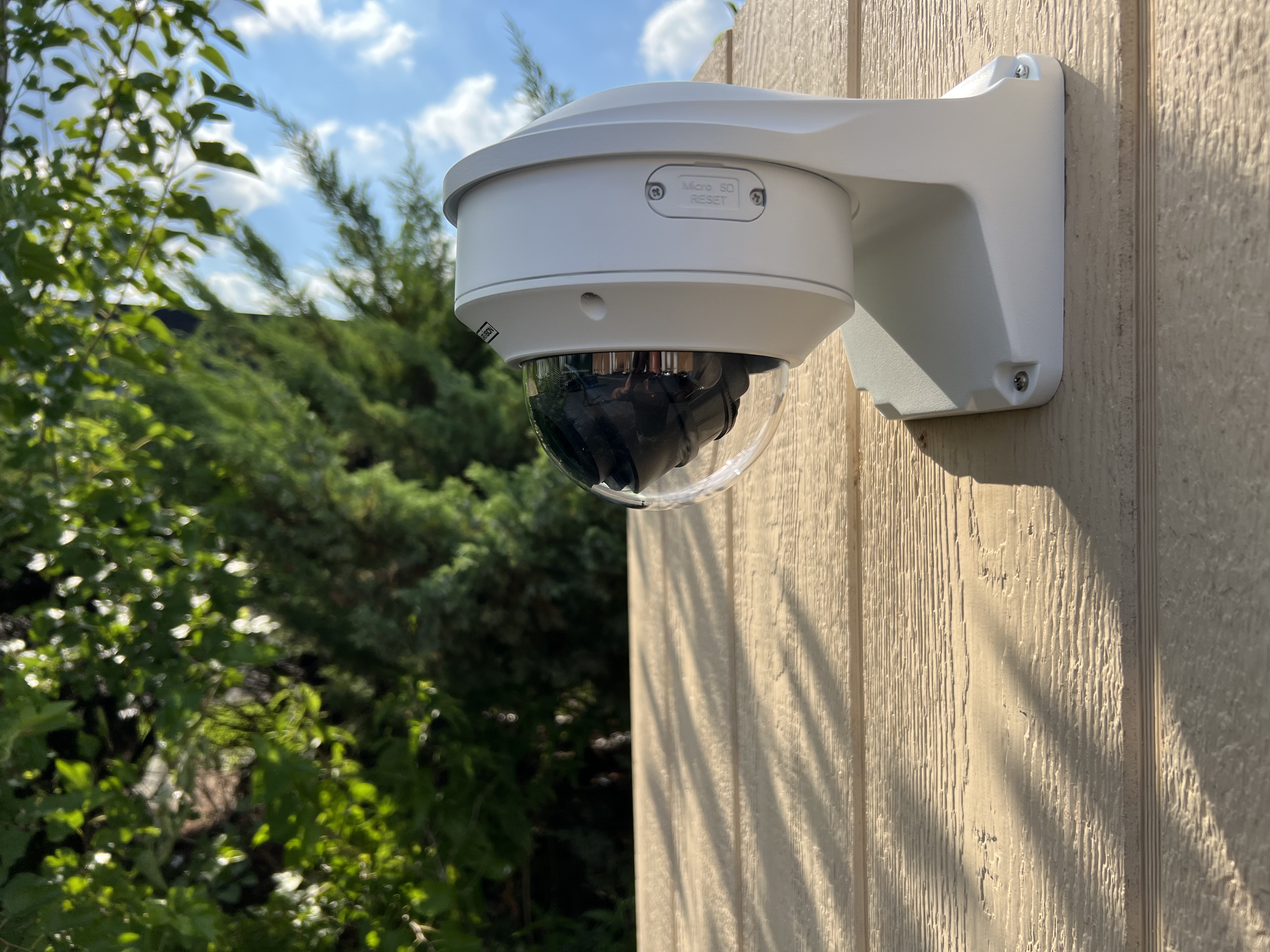

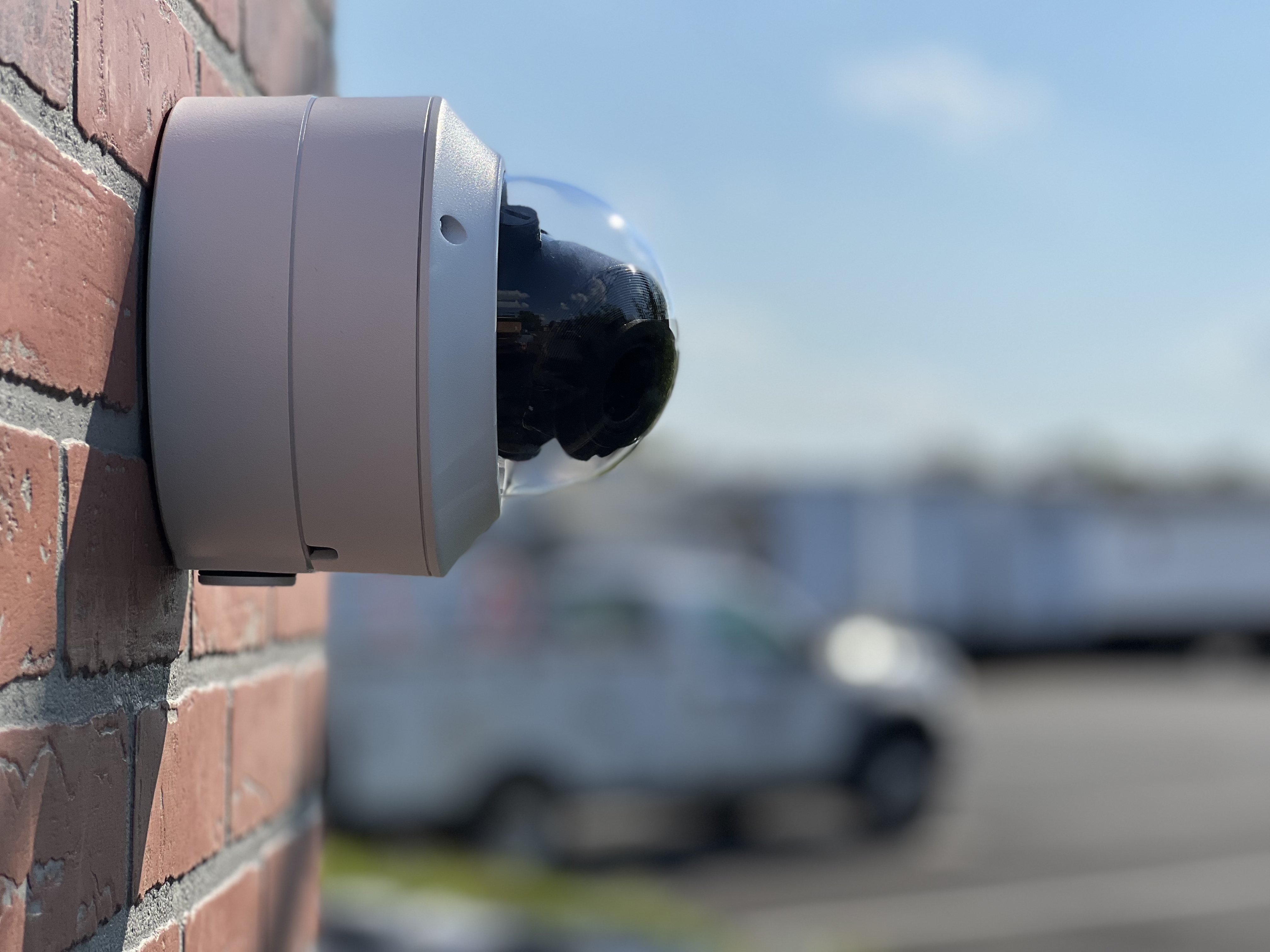

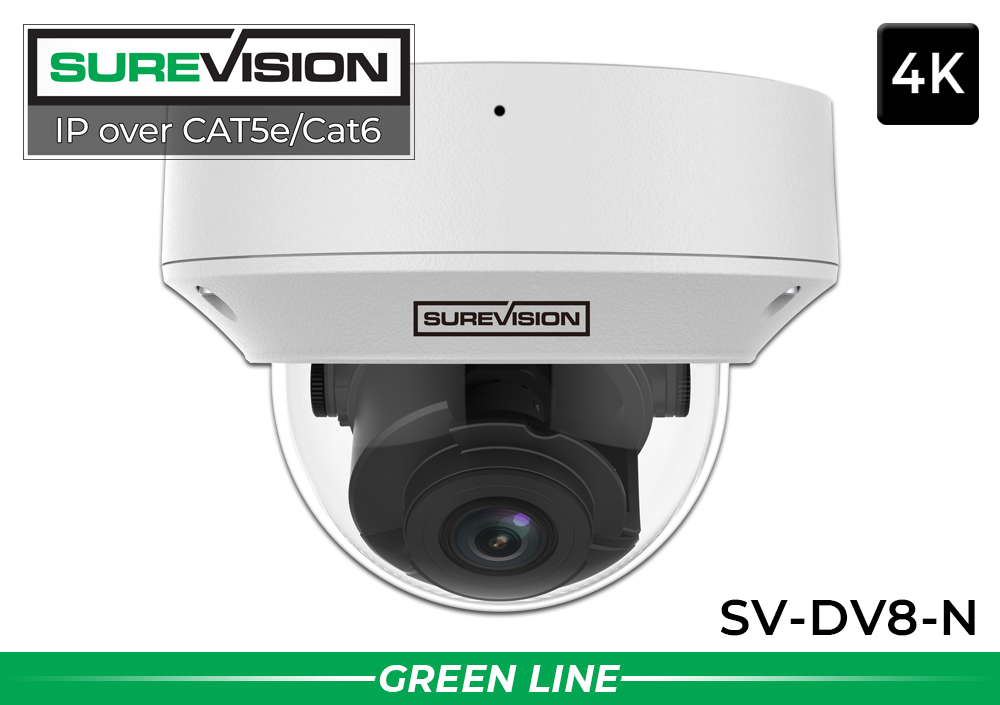

Introducing our SUREVISION Vandal Resistant 5MP Motorized Zoom Dome Camera
Our SUREVISION 8MP Dome IP Security Camera provides you with both both super wide coverage in addition to an optical zoom with it's built in MOTORIZED 2.8 to 12mm lens. This Motorized Zoom Dome Security Camera offers 5MP HD viewing in day and night. This camera has SMART infrared illuminators enabling you to see up to 100 foot in complete darkness. This camera is both vandal resistant and weather proof. Wide dynamic range and SMART infrared night vision illumination makes this camera a great choice for indoor or outdoor use. Other great features include wide dynamic range and multiple area motion detection. You can control the optical zoom through the Network Video Recorder, or remotely through your PC, tablet, and cell phone devices with our free remote viewing app, providing you the ability to zoom in on the areas that matter most.
Features Optics
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Wide temperature range: -40°C to 60°C (-40°F to 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
- 3-Axis
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Camera | ||||||||||
| Sensor | 1/2", 8.0 megapixel, progressive scan, CMOS | |||||||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | |||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||||
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | ||||||
| 12 | 270 | 108 | 54 | 27 | ||||||
| Angle of View (H) | 114.8° ~ 47.3° | |||||||||
| Angle of View (V) | 75.3° ~ 20.4° | |||||||||
| Angle of View (O) | 141.2° ~ 55.8° | |||||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||||
| Min. Illumination | Colour: 0.001Lux (F1.5, AGC ON) 0Lux with IR |
|||||||||
| IR Range | Up to 30m (98ft) IR range | |||||||||
| wavelength | 850nm | |||||||||
| IR On/Off Control | Auto/Manual | |||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||||
| S/N | >52dB | |||||||||
| Defog | Digital Defog | |||||||||
| WDR | 120dB | |||||||||
| Video | ||||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (2592*1944), Max 30fps; 5MP (2944*1656), Max 30fps; 4MP (2560*1440), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
|||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||||
| 9:16 Corridor Mode | Supported | |||||||||
| OSD | Up to 8 OSDs | |||||||||
| ROI | Up to 8 areas | |||||||||
| Privacy Mask | Up to 8 areas | |||||||||
| Motion Detection | Up to 4 areas | |||||||||
| Image | ||||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||||
| Digital noise reduction | 2D/3D DNR | |||||||||
| Smart IR | Support | |||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||||
| Dewarping | Support | |||||||||
| HLC | Support | |||||||||
| BLC | Support | |||||||||
| Audio | ||||||||||
| Audio Compression | G.711 | |||||||||
| Two-way audio | Supported | |||||||||
| Suppression | Supported | |||||||||
| Sampling Rate | 8KHZ | |||||||||
| Storage | ||||||||||
| Edge Storage | Micro SD, up to 256GB | |||||||||
| Network Storage | ANR, NAS(NFS) | |||||||||
| Network | ||||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||||
| Client | EZStation EZView EZLive |
|||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||||
| Interface | ||||||||||
| Audio I/O | Audio cable | |||||||||
| Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | ||||||||||
| Alarm I/O | 1/1 | |||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||||
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] | |||||||||
| Certifications | ||||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
|||||||||
| General | ||||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||||
| Power consumption: Max 8W | ||||||||||
| Dimensions (Ø x H) | Φ148 x 111.3mm (Ø5.8” x 4.4”) | |||||||||
| Net Weight | 0.92kg (2.0lb) | |||||||||
| Material | Metal + Plastic | |||||||||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
| Strorage Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
| surge protection | 6KV | |||||||||
| Reset Button | Supported | |||||||||
| Ingress Protection | IP67 | |||||||||
| Vandal Resistant | IK10 | |||||||||

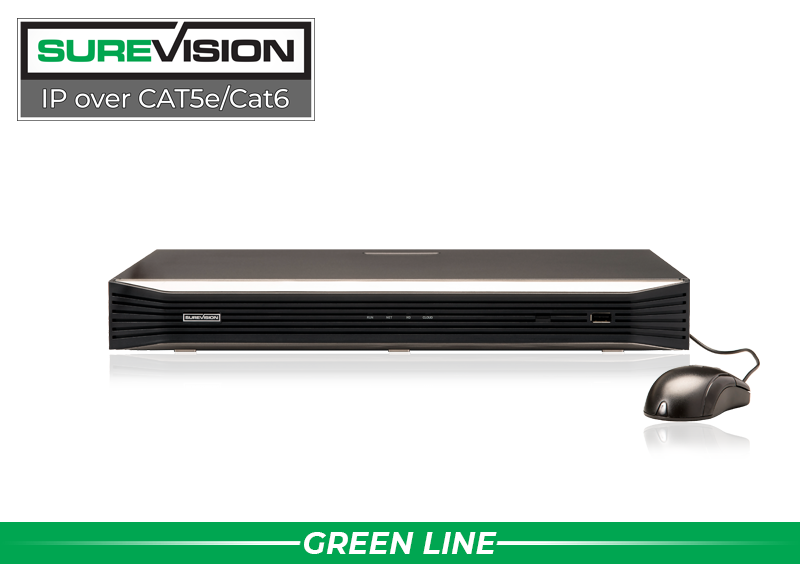

About our SUREVISION IP Camera Network Video Recorder:
Network Video Recorders are the most important part of any high quality IP surveillance system. Take advantage of our high-end, commercial-grade SUREVISION IP Camera NVRs at CCTV Security Pros to enjoy HD video quality live over the internet. Our full-featured and affordable IP camera recorders now offer up to 4K video resolution with multiple hard drive options that can be expanded for a flexible solution that fits your surveillance recording needs. Our SUREVISION IP NVR line is ONVIF compatible. SUREVISION is our latest and greatest line of IP Cameras. Order a SUREVISION IP NVR and treat yourself to a crystal clear, user friendly video recorder. View your cameras over the Internet, tablets, and cell phones as easy as 1-2-3.
SUREVISION "Green Line" Video Surveillance Recorder Highlights:
- Remote Viewing on PC, Cell Phone, and Tablet
- Industry Latest and Greatest
- Up to 4K Recording and Playback
- Motion 24/7 or on Motion Detection Mode
- Quick Start Guide Included for Easy Set Up
- 3 Year Warranty
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Free Unlimited USA Support
| TECHNICAL SPECIFICATIONS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | SV-NVR2P8-N | SV-NVR2P16-N | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video/Audio Input | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IP Video Input | 8-ch | 16-ch | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Two-way Audio Input | 1-ch, RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Incoming Bandwidth | 160Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Outgoing Bandwidth | 64Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Remote Users | 128 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video/Audio Output | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI/VGA Output | HDMI: 4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60 VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | 1-ch, RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Synchronous Playback | 8-ch | 16-ch | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Corridor Mode Screen | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Decoding | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Decoding format | Ultra265/H.265/H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Capability | 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @30 | 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Hard Disk | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 2 SATA interfaces | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Capacity | Up to 10TB for each disk | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| External Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm In | 4-ch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Out | 1-ch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | 8 RJ-45 10M/100M self-adaptive Ethernet Interface | 16 RJ-45 10M/100M self-adaptive Ethernet Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Power | Max 30W for single port Max 130W in total |
Max 30W for single port Max 240W in total |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Supported Standard | IEEE 802.3af/at | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 100 ~ 240 V AC Power Consumption: ≤10W(without HDD) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions (W×D×H) | 380mm ×315mm × 53mm (14.9" × 12.4" ×2.1") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight (without HDD) | ≤2.6kg (5.29lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NVR FEATURES
*Free Upgrade to 8ch Recorder!
- 4K Ultra High Definition
- 8 PoE Camera Inputs
- Remote Viewing – No Monthly Fees
- H.265 High Video Compression
- 160 Mbps Incoming Bandwidth
- HDMI and VGA Display Output
- 2 Hard Drive Bays
CAMERA FEATURES
- 8 Megapixel IP Camera (3840×2160)
- 2.8-12mm Motorized Adjustable Lens
- Up to 100ft Infrared Night Vision
- H.265 Video Compression
- Weatherproof, Vandalproof (IP67, IK10)
- Wide Dynamic Range (120dB)
- Power Over Ethernet - PoE
- Measurement: 4.4" H x 5.8" D
Approximate Distances:
Identify (Up to 21-89ft)
Recognize (Up to 41-177ft)
Detect (Up to 207-886ft)
