This is a professional IP security camera system. This is SureVision.
This complete system package comes with our industry leading SureVision NVR. This professional grade NVR unit was designed to be simple and easy to setup while offering unmatched quality, function and reliability. The NVR comes equipped with all of the latest features such as 24/7 recording, motion recording, object masking, mobile alerts, audio and much more. You can easily view and receive instant motion alerts from your cameras remotely on any smartphone, tablet or computer using our free software and mobile apps. Built-in PoE (power over ethernet) makes this unit ideal for simple plug and play setup. All SureVision NVR units have extended PoE allowing you to cable over 800ft away! You can expect the very best surveillance for your business or home with this top of the line NVR.

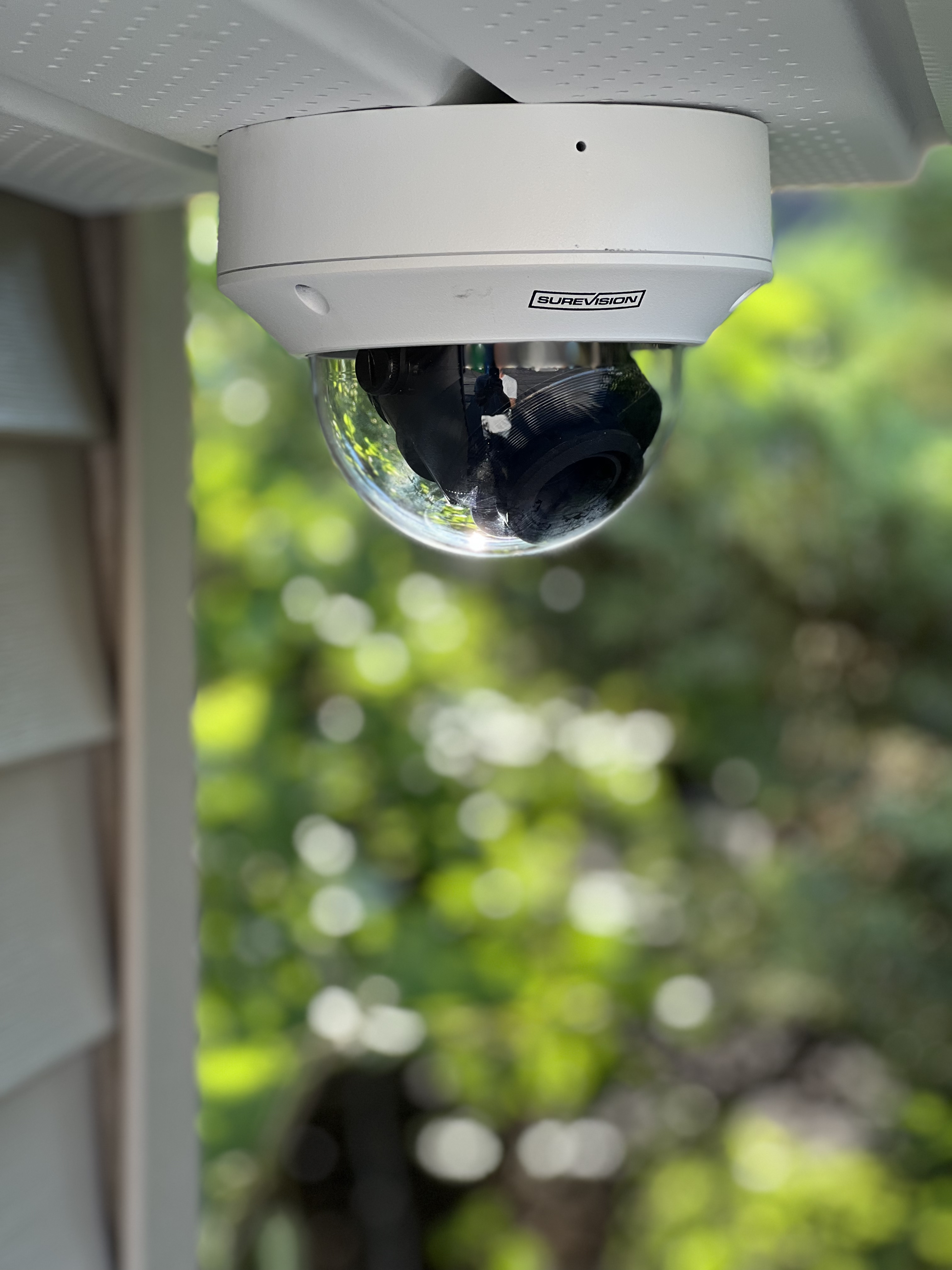

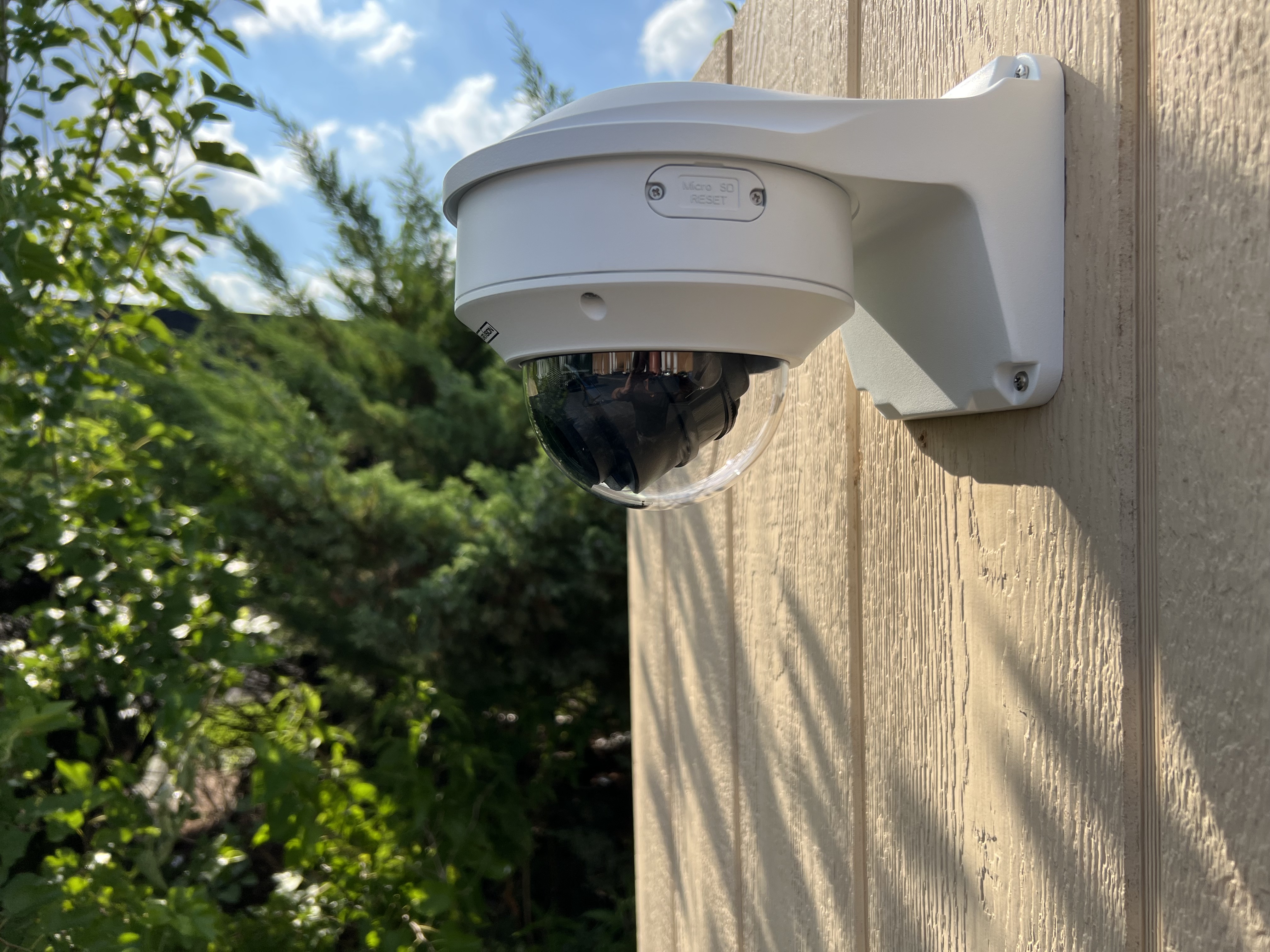

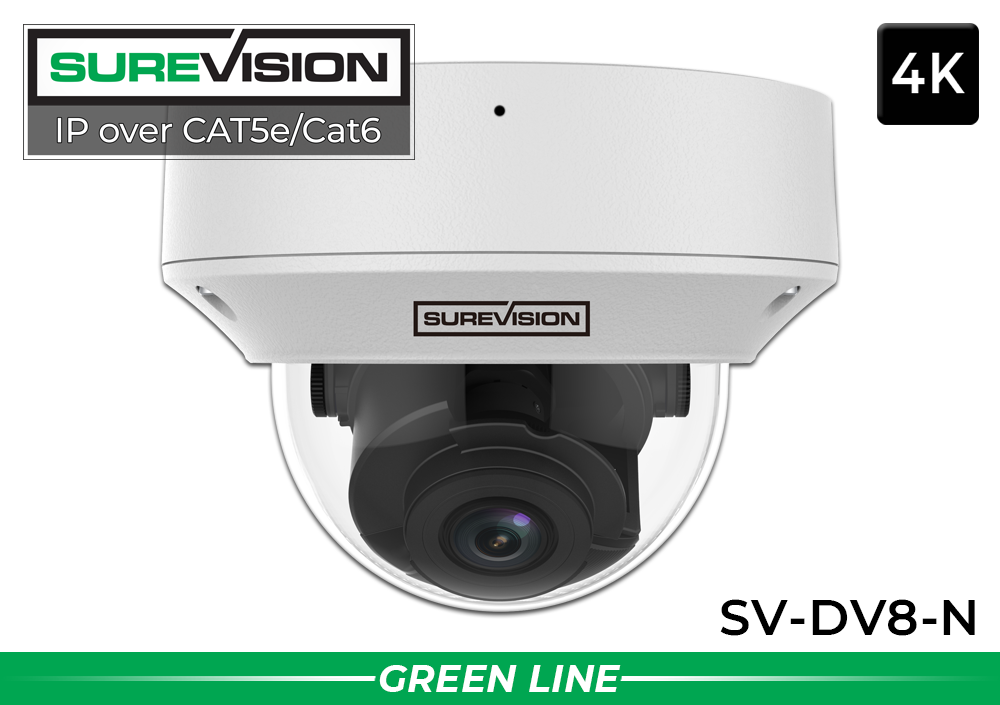

This complete security camera system package includes our SureVision 8 megapixel (4K) ultra high definition infrared dome camera with a motorized adjustable lens and powerful night vision of up to 130ft. This well-designed camera is packed with high-end features including a built-in microphone for audio recording. The adjustable lens provides you with the added flexibility of focusing on objects either close-up or up to 100ft away with incredible 4K detail and clarity. Dome cameras are also optimal when mounting low or within human reach since their vandal-proof design makes them difficult to be tampered with. Our professional-grade dome has a 3-axis lens meaning that it can be mounted to a ceiling or wall. Some other advanced features of this cameras include WDR used to combat any glare from intense lighting as well as the latest H.265 high video compression technology for extended video storage time. What makes this camera extra special is an AI feature called Ultra Motion Detection (UMD) that focuses specifically on humans and/or vehicles to produce the most accurate motion alerts – while eliminating any unwanted alerts! These notifications can instantly be sent to your smartphone or tablet so you never miss an important event. You can expect superior 24/7 coverage from this amazing quality camera.
This Complete High Definition IP Security Camera System comes with everything needed for complete installation. It includes a 3 Year Warranty, Free USA Technical and Support and 100% Money Back Guarantee.
Installation of our IP camera systems is simple and easy. A simple step-by-step guide is included with every system. We also include live USA based Technical Support available Monday through Friday. We are happy to answer any questions and assist you at (888) 653-2288.
*The equipment in this package is fully NDAA compliant and suitable for installation in government facilities and federally funded projects
This Complete HD Security Camera System Includes:
- (1) 16 Channel (FREE UPGRADE DURING PROMO) SUREVISION HD Network Video Recorder
- (1) 2 Terabyte Surveillance Grade Hard Drive (installed)
- (8) 8MP MOTORIZED IP Infrared Indoor/Outdoor Vandal Dome Security Cameras with Controllable Lens
- (8) 100ft CAT5e Cable
- High Definition LCD Monitor is OPTIONAL
- Quick Start Guide
- Free Remote Viewing Software and Apps
- Video Surveillance Aluminum Sign
Order Your Complete IP Camera System
As a leading supplier of professional-grade security cameras and systems, we know what it takes to ensure peace of mind when it comes to securing your property. That’s why we provide all the tools and resources that you need to get your SUREVISION 5MP security camera system set up quickly. Contact our knowledgeable staff to enjoy free unlimited USA tech support for the entire lifetime of your product.
Place your order at CCTV Security Pros today or contact us if you have any questions.
About the Cameras:
| Technical Specification | |||||
|---|---|---|---|---|---|
| Camera | |||||
| Sensor | 1/2.8", 8.0 megapixel, progressive scan, CMOS | ||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 86.9 | 34.8 | 17.4 | 8.7 | |
| 12 | 372.4 | 149.0 | 74.5 | 37.2 | |
| Angle of View (H) | 107.4°~ 29.2° | ||||
| Angle of View (V) | 54.2°~ 16.3° | ||||
| Angle of View (O) | 111.0°~33.1° | ||||
| Adjustment angle | Pan: 0° ~ 355° | Tilt: 0° ~ 80° | Rotate: 0° ~ 355° | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| S/N | >56dB | ||||
| IR Range | Up to 40m (131ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Smart IR | Support | ||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| Dewarping | Supported | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Client | EZStation EZView EZLive |
||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||
| Interface | |||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||
| Alarm I/O | 1/1 | ||||
| Built-in Mic | Supported | ||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| Certifications | |||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 9.0W | |||||
| Dimensions (Ø x H) | Φ148 x 111.4mm (Ø5.8” x 4.4”) | ||||
| Net Weight | 0.97kg (2.14lb) | ||||
| Material | Metal + Plastic | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 2KV | ||||
| Ingress Protection | IP67 | ||||
| Vandal Resistant | IK10 | ||||
| Reset Button | Supported | ||||
About our SUREVISION IP Camera Network Video Recorder:
Network Video Recorders are the most important part of any high quality IP surveillance system. Take advantage of our high-end, commercial-grade SUREVISION IP Camera NVRs at CCTV Security Pros to enjoy HD video quality live over the internet. Our full-featured and affordable IP camera recorders now offer up to 4K video resolution with multiple hard drive options that can be expanded for a flexible solution that fits your surveillance recording needs. Our SUREVISION IP NVR line is ONVIF compatible. SUREVISION is our latest and greatest line of IP Cameras. Order a SUREVISION IP NVR and treat yourself to a crystal clear, user friendly video recorder. View your cameras over the Internet, tablets, and cell phones as easy as 1-2-3.
SUREVISION "Green Line" Video Surveillance Recorder Highlights:
- Remote Viewing on PC, Cell Phone, and Tablet
- Industry Latest and Greatest
- Up to 4K Recording and Playback
- Motion 24/7 or on Motion Detection Mode
- Quick Start Guide Included for Easy Set Up
- 3 Year Warranty
- ONVIF Compliant
- Free Unlimited USA Support
| TECHNICAL SPECIFICATIONS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | SV-NVR2P8-N | SV-NVR2P16-N | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video/Audio Input | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IP Video Input | 8-ch | 16-ch | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Two-way Audio Input | 1-ch, RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Incoming Bandwidth | 160Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Outgoing Bandwidth | 64Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Remote Users | 128 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video/Audio Output | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI/VGA Output | HDMI: 4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60 VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | 1-ch, RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Synchronous Playback | 8-ch | 16-ch | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Corridor Mode Screen | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Decoding | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Decoding format | Ultra265/H.265/H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Capability | 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @30 | 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Hard Disk | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 2 SATA interfaces | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Capacity | Up to 10TB for each disk | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| External Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm In | 4-ch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Out | 1-ch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | 8 RJ-45 10M/100M self-adaptive Ethernet Interface | 16 RJ-45 10M/100M self-adaptive Ethernet Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Power | Max 30W for single port Max 130W in total |
Max 30W for single port Max 240W in total |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Supported Standard | IEEE 802.3af/at | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 100 ~ 240 V AC Power Consumption: ≤10W(without HDD) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions (W×D×H) | 380mm ×315mm × 53mm (14.9" × 12.4" ×2.1") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight (without HDD) | ≤2.6kg (5.29lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Features:
- Support Ultra 265/H.265/H.264 video formats
- 16-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- Up to 8 Megapixels resolution recording
- 2 SATA HDD up to 20 TB
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
NVR FEATURES
*Free Upgrade to 16ch Recorder!
- 4K Ultra High Definition
- 16 PoE Camera Inputs
- Remote Viewing – No Monthly Fees
- H.265 High Video Compression
- 160 Mbps Incoming Bandwith
- HDMI and VGA Display Output
- 2 Hard Drive Bays
CAMERA FEATURES
- 8 Megapixel IP Camera (3840×2160)
- 2.8-12mm Motorized Adjustable Lens
- Up to 130ft Infrared Night Vision
- Starlight - low light performance
- Built-in Microphone
- H.265 Video Compression
- Weatherproof, Vandalproof (IP67, IK10)
- Wide Dynamic Range (120dB)
- Power Over Ethernet - PoE
- Measurement: 4.4" H x 5.8" D
Approximate Distances:
Identify (Up to 28-122ft)
Recognize (Up to 57-244ft)
Detect (Up to 285-1222ft)
