SureVision IP Security Camera System with Motorized Vandal Dome Cameras & 130ft Night Vision

The SureVision Professional-Grade IP Security Camera System is built with advanced motorized vandal dome security cameras engineered for superior optics, performance, and durability. Unlike many entry-level or consumer-grade systems, our professional cameras deliver enhanced clarity, stronger low-light performance, and long-term reliability. Each camera features a motorized 2.8–12mm adjustable lens for flexible coverage and detailed zoom, combined with a discreet, low-profile dome design that is both tamper-resistant and vandal-proof.

With 130ft infrared night vision and true 120 dB Wide Dynamic Range (WDR), this system captures clear video in bright daylight, high-contrast environments, and complete darkness. Remote viewing, playback, and real-time alerts are available from your computer or smartphone with no monthly fees.

Professional Video Quality & Night Performance

4MP High-Resolution Video: Sharp, detailed images for identification and evidence.
Motorized 2.8–12mm Varifocal Lens: Remotely adjust field of view without repositioning cameras.
130ft Infrared Night Vision: Reliable surveillance in complete darkness.
True 120 dB WDR: Balanced images in bright, shadowed, or backlit scenes.
Enhanced Low-Light Imaging: Clearer video in dimly lit environments.
9:16 Corridor Mode Support: Optimized vertical coverage for hallways and narrow areas.

Flexible Recording & Smart Monitoring

24/7 Continuous or Motion-Based Recording
Per-Camera Configuration: Customize recording modes and alert settings individually.
Smart Motion Detection: Intelligent alerts when activity is detected.
Instant Notifications: Stay informed in real time.

Remote Viewing with No Monthly Fees

Live & Recorded Video Access
View from Computer, Tablet, or Smartphone
Secure Remote Connectivity
No Subscriptions or Ongoing Costs

Simple Professional Installation

Power over Ethernet (PoE): One cable for both power and video.
IK10 Vandal-Resistant Dome Housing: Ideal for cameras installed within reach.
IP67 Weatherproof Rating: Built for indoor and outdoor use.
Automatic Camera Detection: Quick and streamlined setup.

Professional-Grade Reliability

Commercial-Grade Components: Designed for continuous 24/7 operation.
Superior Optics & Build Quality: Enhanced clarity compared to many consumer-grade systems.
Stable IP Network Performance
Engineered for Long-Term Dependability

Superior Protection for Homes & Businesses

Ideal for commercial buildings, retail stores, offices, warehouses, schools, parking areas, and residential properties, the SureVision motorized vandal dome security camera system combines discreet appearance with a tamper-resistant design. It delivers dependable performance, flexible coverage, and professional-level clarity without ongoing subscription fees.

What’s Included with Your SureVision System

(1) 16 Channel SureVision HD Network Video Recorder (FREE UPGRADE DURING PROMO)
(1) 4TB Surveillance-Grade Hard Drive (installed)

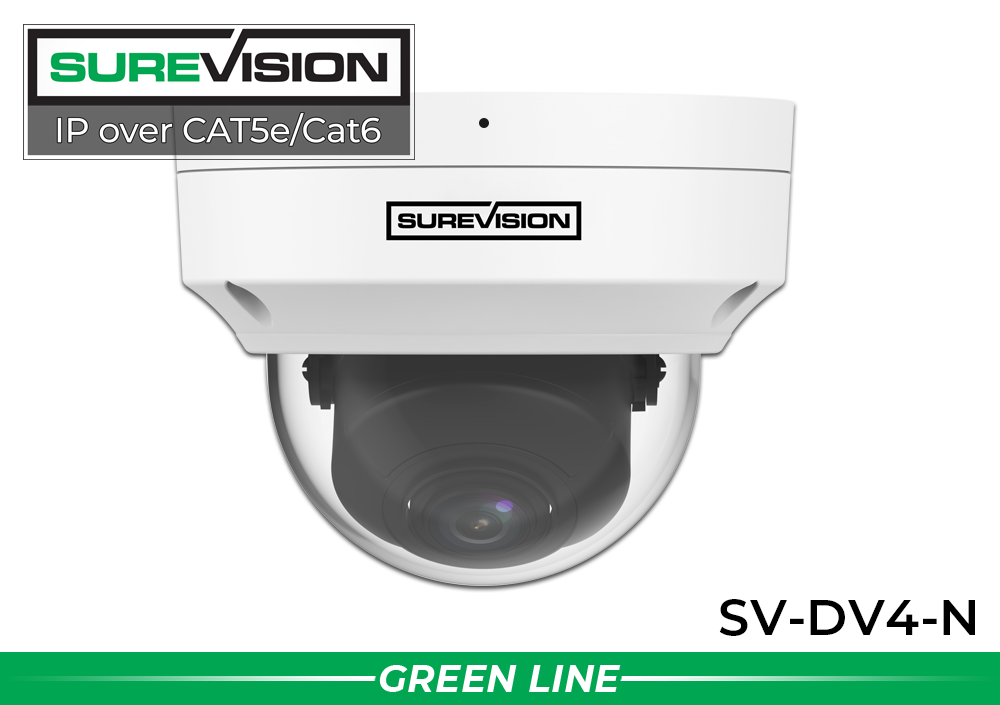

(16) 4MP Motorized Infrared Dome IP Security Cameras with 2.8–12mm adjustable zoom lens
(16) 100ft CAT5e Ethernet Cables

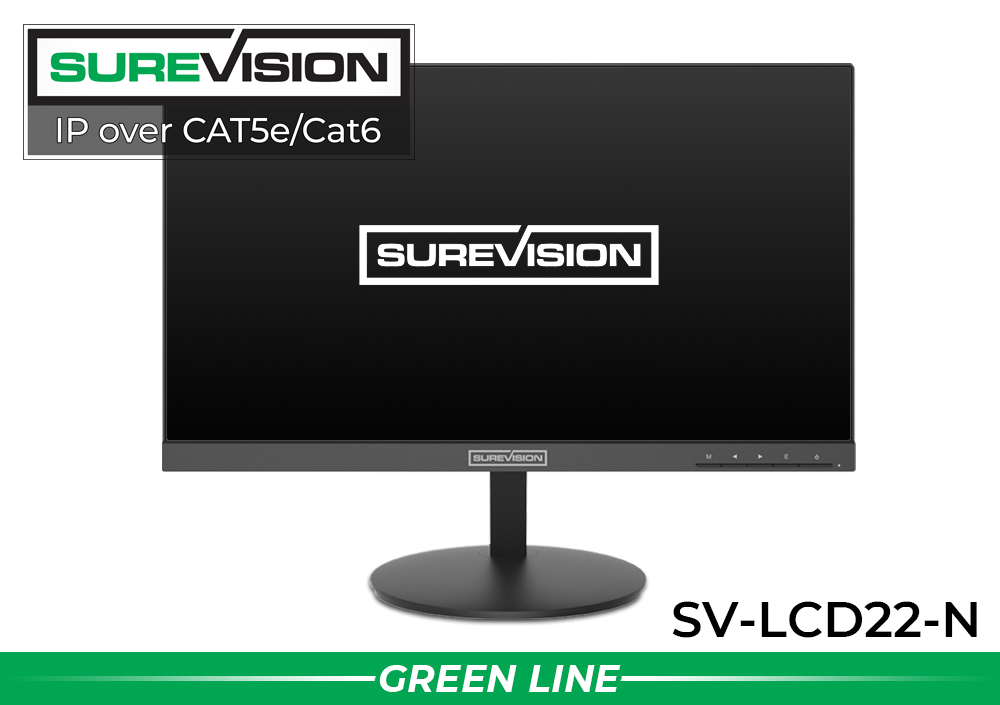

High-Definition LCD Monitor is INCLUDED
Quick Start Instruction Guide
Free Remote Viewing Software & Mobile Apps
Video Surveillance Warning Sign

Motorized Zoom Lens Features

Camera Specifications:

Technical Specifications
Camera
Max Resolution	4 MP
Sensor	1/3.0" CMOS
Min. Illumination	Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment Angle	Pan: 3° to 360°, Tilt: 0° to 70°, Rotate: 3° to 360°
S/N	>52 dB
WDR	120 dB
Lens
Focal Length	2.8 to 12 mm
Iris Type	Fixed
Iris	F1.6
Field of View (H)	91.5° to 34°
Field of View (V)	51.0° to 18.9°
Field of View (D)	96.0° to 36.9°
DORI
DORI Distance (Lens)	2.8 to 12 mm
DORI Distance (Detect)	63.0 m to 270.0 m (206.7 ft. to 885.8 ft)
DORI Distance (Observe)	25.2 m to 108.0 m (82.7 ft. to 354.3 ft)
DORI Distance (Recognize)	12.6 m to 54.0 m (41.3 ft. to 177.2 ft)
DORI Distance (Identify)	6.3 m to 27.0 m (20.7 ft. to 88.6 ft)
Illuminator
Supplemental Light	IR
Illumination Distance (IR)	40 m (131.2 ft)
Wavelength	850 nm
IR On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4 MP (2688 × 1520), max. 25 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog
Events
Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection)
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users, 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (47 CFR part15 B)
Safety	CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529); IK10 (IEC 62262)
General
Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 8.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø128 mm × 100 mm (Ø5.0" × 3.9") (Ø × H)
Weight	0.66 kg (1.46 lb)
Material	Metal + Plastic
Working Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
Web Client Language	4 Languages: English, Russian, Spanish, Vietnamese

NVR Specifications:

Technical Specification
Decoding
Decoding Format	Ultra 265, H.265, H.264
Decoding Capability	Ultra 265/H.265: 2 × 16MP@30, 2 × 12MP@30, 4 × 4K@30, 6 × 5MP@30, 8 × 4MP@30, 10 × 3MP@30, 16 × 1080P@30 H.264: 2 × 16MP (4800 × 2688)@30, 2 × 12MP@30, 2 × 4K@30, 4 × 5MP@30, 6 × 4MP@30, 8 × 3MP@30, 14 × 1080P@30, 16 × 720P@30
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width. For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page.
Audio Compression	G.711A, G.711U
Network
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	160 Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input	16-ch
RCA Audio Input	1-ch
Video/Audio Output
HDMI Output	4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output	1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output	1-ch
Liveview Display	1/4/6/8/9/16
Corridor Mode Screen	3/4/5/7/9/10/12/16
Two-way Audio
Two-way Audio	1-ch, RCA (Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot	4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
Recording
Recording Resolution	16 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Synchronous Playback (Local)	16-ch
Smart
Smart by IPC	All channels (up to 8 images/s total): Face Detection, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
VCA Search	Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
Alarm
General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language	38 languages including English, Spanish, French, German, Italian, Dutch, Polish, Czech, Hungarian, Russian, Arabic, Korean, Japanese, Vietnamese, Thai, Turkish, Portuguese (Brazil), and more
Hard Disk
SATA	2 SATA Interfaces
Capacity	Up to 24 TB per HDD (environment temperature ≤ 40 °C)
Disk Group	Support
Redundant Storage	Support
Disk Array Type	RAID 1
External Interface
Network Interface	1 RJ45 10/100/1000 M self-adaptive Ethernet Interface
USB	Front panel: 1 × USB2.0; Rear panel: 1 × USB3.0
RS485	1
RS232	N/A
Alarm In	8-ch
Alarm Out	2-ch
Power Supply	AC 100–240 V
Power Switch	Support
PoE
PoE Interface	16 RJ45 10 M/100 M self-adaptive Ethernet Interfaces
Max Power	Max 30 W per port, Max 240 W total
Supported Standard	IEEE 802.3at, IEEE 802.3af
Working Environment
Working Temperature	-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 20 W
Dimensions
Weight (without HDD)	≤ 2.6 kg (5.73 lb)
Dimensions	380 mm × 322 mm × 53 mm (15.0" × 12.7" × 2.1")
Certification
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B

NVR FEATURES

4K Ultra High Definition
16 PoE Camera Inputs
Remote Viewing – No Monthly Fees
H.265 High Video Compression
320 Mbps Incoming Bandwidth
HDMI and VGA Display Output
2 Hard Drive Bays

CAMERA FEATURES

4 Megapixel IP Camera (2688×1520)
2.8-12mm 4x Motorized Adjustable Lens
Up to 130ft Infrared Night Vision
Starlight - low light performance
Built-in Microphone
H.265 Video Compression
Weatherproof, Vandalproof (IP67, IK10)
Wide Dynamic Range (120dB)
Power Over Ethernet - PoE
Measurement: 5.0" D X 3.9" H

Approximate Distances:
Identify (Up to 21-89ft)
Recognize (Up to 41-177ft)
Detect (Up to 207-886ft)
