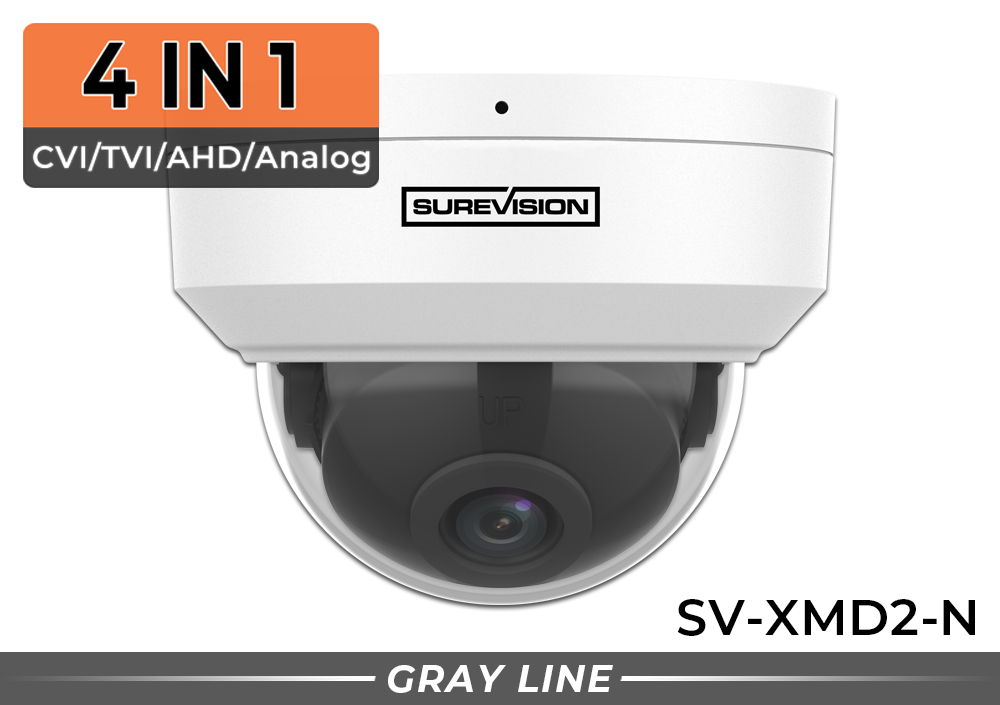

SureVision 1080p HD Over Coax Security Camera System – 100ft IR Dome Cameras

The SureVision 1080p HD over coax security camera system delivers commercial-grade performance in a compact, vandal-resistant dome design. Featuring professional 2MP 1080p HD over coax infrared dome cameras, this system provides sharp 1920×1080 video, powerful infrared night vision up to 100 feet, and rugged vandal-proof metal housing built for dependable indoor or outdoor protection.

Many customers prefer dome cameras for their discreet appearance and compact profile. The low-profile design blends cleanly into ceilings and soffits while the vandal-resistant construction helps protect against tampering. Unlike entry-level consumer systems, our professional-grade dome cameras feature superior optics, enhanced image processing, and stronger internal components for clearer real-world video and greater long-term stability.

Designed for both new installations and system upgrades, this HD over coax CCTV system provides reliable performance using traditional coaxial cabling while supporting advanced DVR features such as remote viewing, motion alerts, and playback access — all with no monthly fees.

Professional Video Quality & Night Performance

1080p Full HD Resolution: Clear 1920×1080 video for dependable identification and monitoring.
100ft Infrared Night Vision: Powerful IR illumination for reliable coverage in complete darkness.
Enhanced Low-Light Performance: Improved clarity in dimly lit environments.
Vandal-Resistant Metal Dome Housing: Compact, tamper-resistant construction for added protection.

Reliable Recording & Smart Monitoring

Continuous or Motion-Based Recording
Built-In Audio Over Coax: Video and audio transmitted through a single cable.
Remote Viewing: Access live and recorded footage from smartphone, tablet, or computer.
No Monthly Fees: Full functionality without subscription costs.

Stable HD Over Coax Installation

Uses Existing Coax Cabling: Ideal for upgrading older analog systems.
Secure Wired Connection: Stable video transmission without WiFi interference.
Commercial-Grade DVR Recorder Included
Preconfigured for Straightforward Setup

Commercial-Grade Reliability

Professional Optics & Internal Components
Engineered for Continuous 24/7 Operation
Greater Image Stability Than Entry-Level Consumer Kits
Long-Term Durability & Consistent Performance

Ideal for Residential & Commercial Security

Perfect for homes, retail stores, offices, restaurants, warehouses, schools, and commercial facilities, the SureVision 1080p HD over coax dome camera system delivers dependable performance, discreet protection, and long-term reliability — without the instability of entry-level consumer equipment.

This complete high definition security camera system comes with everything needed for complete installation. It includes a 3 Year Warranty, Free USA Technical and Support and 100% Money Back Guarantee.

Installation of our HD over Coax camera systems is simple and easy. A simple step-by-step guide is included with every system. We also include live USA based Technical Support available Monday through Friday. We are happy to answer any questions and assist you at (888) 653-2288.

This Complete HD Security Camera System Includes:

(1) 32 Channel High Definition Digital Video Recorder
(1) 4 Terabyte Surveillance Grade Hard Drive (installed)
(24) 2MP HD Infrared Indoor/Outdoor Wide Angle Dome Security Cameras with up to 100 Foot Night Vision and built in Audio
(24) 100 Foot Premade Power/Video Cable or Spool(s) (Optional)
(2) 18 Port Multiple Output Power Supplies
(1) High Definition 22inch LCD Monitor Included
DVD Instruction Manual and Quick Start Guide
Free Remote Viewing Software and Apps
Video Surveillance Warning Stickers and Aluminum Sign

Camera Specifications:

Technical Specification
Camera
Max Resolution	2 MP
Sensor Size	1/2.9" CMOS
Min. Illumination	0.005 lux (F1.6, AGC ON) 0 lux (IR on)
Lens
Focus	2.8 mm
Lens Mount	M12
Angle of View (H)	101.5°
Angle of View (V)	56.9°
Angle of View (D)	117.4°
Illuminator
Illuminator Number	One IR illuminator
Illumination Distance	30m
Lifetime	≥ 60000 hours
Video
Resolution	1080P: 1920(H) × 1080(V) 720P: 1280(H) × 720(V)
Frame Rate	TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC
Shutter Time	PAL: 1/25s-1/50000s NTSC: 1/30s-1/50000s
Exposure Mode	Four modes: Global (default), BLC, HLC, DWDR
Day/Night	Three modes: Auto (default), Day, Night
Digital Noise Reduction	2D/3D
White Balance	Two modes: Auto (default), Manual
WDR	DWDR
Smart IR	Support
Flip	Supports 180° horizontal flip, 180° vertical flip
Digital Defog	Support
Audio
Built-in Mic	Support
Camera Audio	TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps
Interface
Power Interface	5.5 mm Power Interface
Video Output	BNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature	-30°C to 60°C (-22°F to 140°F)
Humidity	≤ 95% RH (non-condensing)
Surge Protection	4 KV for power, 4 KV for video output interfaces
Ingress Protection	IP67
IK Rating	IK10
General
Power	DC 12 V ± 25%
Power Consumption	MAX 3.3W
Mount	Wall Mount, Pole Mount, Corner Mount, Tilted Mount, Pendant Mount
Dimensions	Φ109mm × 83mm (diameter × height)
Material	Metal
Weight	372g (0.82lb)

NVR Specifications:

Technical Specification
Video/Audio Input
IP Video Input	4-ch
Analog Video Input	32-ch, BNC
Max IP Video Input	36-ch
Supported Analog Camera Types	Support AHD input: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps Support TVI input: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps Support CVI input: 8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps Support CVBS input
BNC Audio Input	32-ch, channel audio
RCA Audio Input	1-ch
Video/Audio Output
HDMI Output	HDMI1: 1920 × 1080/60Hz, 1920 × 1080/50Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI2: 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1920 × 1080/50Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output	1920 × 1080/60Hz, 1920 × 1080/50Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
BNC Video Output	1-ch
RCA Audio Output	1-ch
Live View Display	HDMI/VGA: 1/4/6/8/9/16/25/36
Playback Screen	1/4/9/16
Encoding/Decoding
Recording Resolution	8MP Lite / 5MP Lite / 4MP Lite / 1080P / 720P / D1
Recording Frame Rate	Main stream: 8MP Lite@8fps, 5MP Lite@12fps, 4MP Lite@15fps, 1080P@15fps, 720P@30fps Sub stream: D1@8/12/15/15/30fps
Audio Sample Rate	8 kHz, 16 bit per channel
Audio Bit Rate	64 Kbps per channel
Decoding Capability	Analog: 32 × 8MP Lite@8, 32 × 5MP Lite@12, 32 × 4MP Lite@15, 32 × 1080P@25, 32 × 720P@30 IP: 2 × 8MP@30, 4 × 4MP@30, 8 × 1080P@30, 16 × 720P@30, 36 × D1
Num of Concurrent Playback (Local)	16-ch
Coaxial Cable
Audio over Coaxial Cable	32-ch, One-way Audio (TVI & Uniview CVI protocol cameras)
Two-way Audio
Two-way Audio	1-ch, RCA (using audio input and output)
Analog Snapshot
FTP/Schedule/Event Snapshot	Schedule/FTP/Event snapshot: 32-ch snapshot, up to 704 × 576 resolution
Network
Incoming Bandwidth	160Mbps (Up to 224Mbps after analog channel conversion)
Outgoing Bandwidth	160Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, IPv6
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Smart
Analog Smart by XVR	Ultra Motion Detection (UMD), SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Face Detection
IP Smart by IPC	Face Detection, Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area)
VCA Search	Face Search, Behavior Search
Smart Functions by XVR	16-ch (UMD), 8-ch (SIP), 2-ch (Face Detection)
Smart Functions by IP Camera	8-ch (SIP)
Alarm
General Alarm	Motion
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA	4 SATA interfaces
Capacity	Up to 16 TB for each HDD
External Interface
Network Interface	2 RJ45 10/100/1000M self-adaptive Ethernet interfaces
USB	Front panel: 2 × USB2.0, Rear panel: 1 × USB3.0
RS485	1
RS422	1
RS232	1
eSATA	1
Alarm In	16-ch
Alarm Out	6-ch
Power Supply	AC 100–240V
Working Environment
Working Temperature	-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 45W
Dimensions
Weight (without HDD)	≤ 6.0 kg (13.23 lb)
Height	2U
Dimensions	442.0mm × 435.9mm × 88.6mm (17.4" × 17.2" × 3.5")
Certification
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2
FCC	Part 15 Subpart B

DVR FEATURES

4K Ultra High Definition
32 BNC Camera Inputs
Supports CVI/TVI/AHD/Analog Cameras up to 8MP
Remote Viewing – No Monthly Fees
H.265 High Video Compression
2 HDMI, VGA & BNC Display Output
4 Hard Drive Bays

CAMERA FEATURES

2 Megapixel HD-CVI Camera (1920×1080)
Built-in Microphone
2.8mm Lens (110° Wide Angle View)
Up to 100ft Infrared Night Vision
Enhanced Low Light Performance
Weatherproof, Vandalproof (IP67, IK10)
12 Volt DC
Measurement: 4.29" D x 3.27" H
