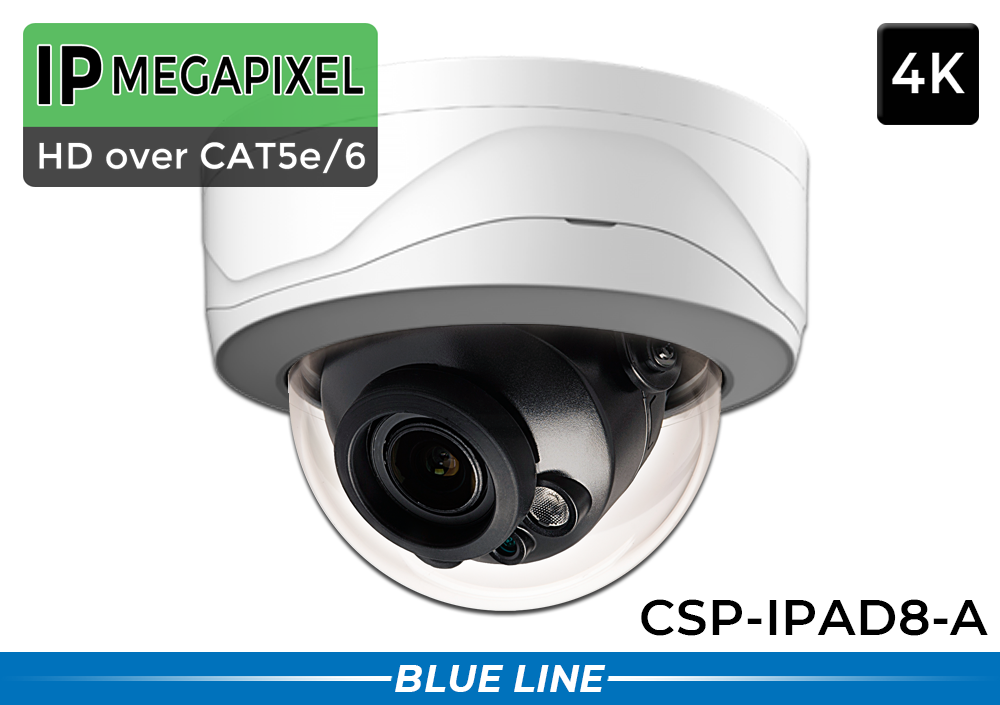

Outdoor Security Camera - Dome 4K Ultra HD - Motorized Zoom Lens

$429.99 after 20% promo after 20% promo $343.99
(You save $86.00)
Model: CSP-IPAD8-A
Outdoor Security Camera

Select your options:

superior products 3 year warranty
live usa technical support
30 day money back guarantee
free shipping on all orders over $100

Security Cameras with Zoom Lens

Smart Motion Detection Security Camera



Outdoor Security Camera for Homes and Businesses

Step up your security game with this 4K Ultra HD Dome Security Camera with a Motorized Zoom Lens. This advanced surveillance device is not just another security camera; it has been engineered to perfection. With an impressive 8 megapixel (4K) ultra-high-definition infrared camera, you can expect absolutely clear video footage, even at night.

Equipped with Starlight technology and Wide Dynamic Range (WDR), the camera can deliver vibrant and glare-free images even in low light conditions. Its H.265 high video compression technology ensures ample video storage time, making it super-efficient.

Advanced Motion Detection for Accurate Alerts

One of the standout features of this security camera is the Smart Motion Detection (SMD). This technology focuses specifically on human or vehicle movement, minimizing false alarms while perfectly catching all worthwhile events. The notifications are immediately sent to your smartphone or tablet, making sure you're always in the loop.

Easy Installation and Endless Flexibility

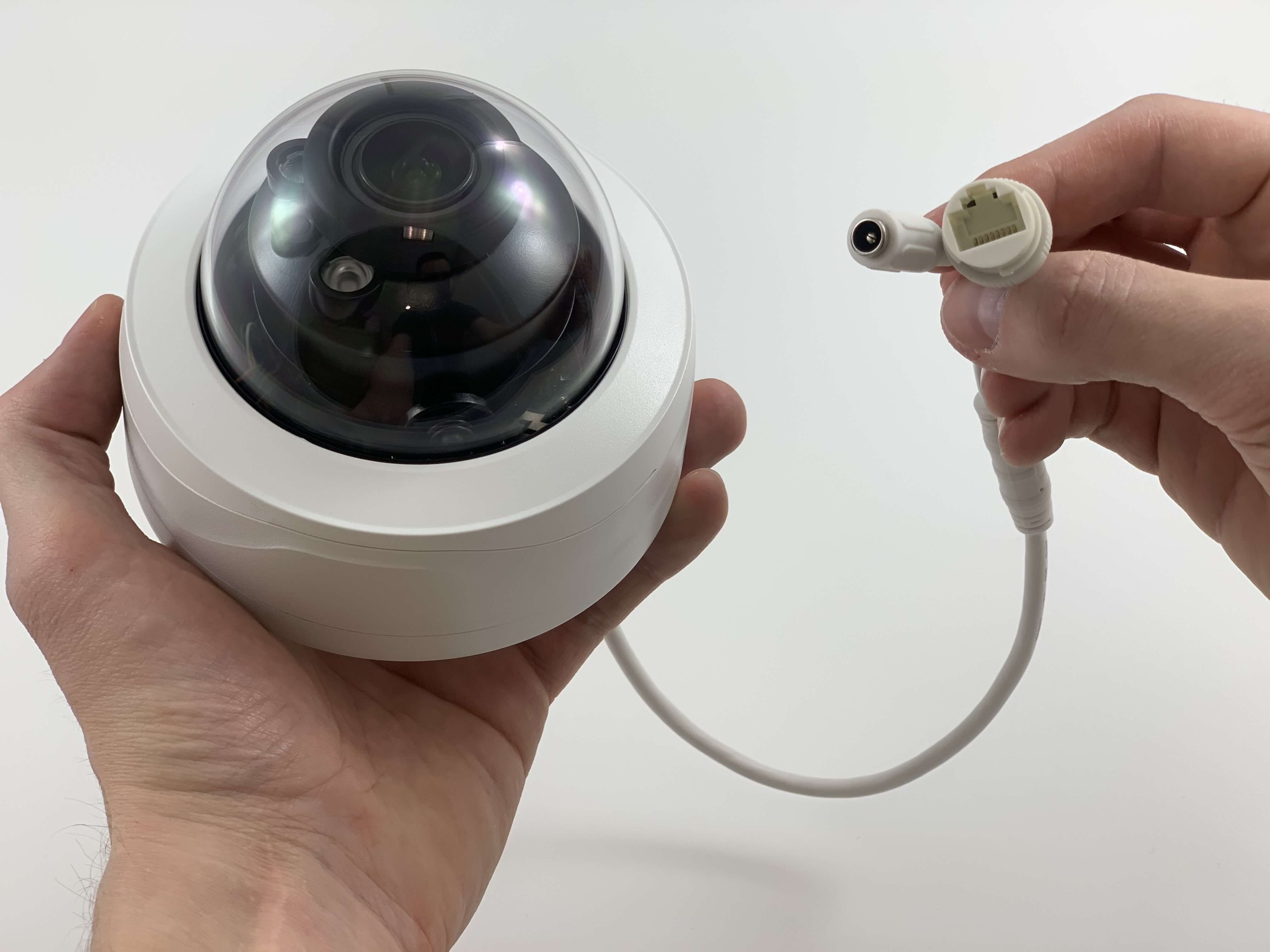

Installation problems are a thing of the past with this camera's built-in Power over Ethernet (PoE) feature, promising a simple plug and play set up. The motorized adjustable lens will let you capture the perfect angle for monitoring objects, whether they are near or far. This versatility, combined with a weatherproof housing, makes the camera suitable for both indoor and outdoor use.

*IP cameras intended to be used with one of our dedicated NVR (Network Video Recorders) for full feature use and easy plug and play functionality.  Purchase one of our industry leading IP NVR Recorders for a Superior Surveillance Solution!

4K Ultra HD 8 MP Indoor/Outdoor Dome Security Camera

upgrade your system today

4K Security Camera Monitoring Images

Professional Grade Security camera by CCTV security pros


Blue Line Series IP Security Camera

Looking for a complete IP camera system?

Check out our Blue Line Series
IP Security Camera Systems.

SHOP NOW

Shop Blue Line Network Video Recorders

Looking for a network video recorder for this camera?

Check out our compatible
Blue Line Network
Video Recorders.

SHOP NOW



TECHNICAL SPECIFICATIONS
Camera
Image Sensor 1/2.8" 8 Megapixel progressive CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.007 Lux@F1.5 (Color, 30IRE)
0.0007 Lux@F1.5 (B/W, 30IRE)
0 Lux (Illuminator on)
S/N Ratio 56 dB
Illumination Distance 40 m (131.2 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°
Lens
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.5
Field of View Horizontal: 113°–31°
Vertical: 58°–17°
Diagonal: 138°–36°
Iris Type Fixed
Close Focus Distance 0.8 m (2.6 ft)
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
DORI Distance Lens Detect Observe Recognize Identify
W 85.3 m (279.9 ft) 34.1 m (111.9 ft) 17.0 m (55.8 ft) 8.5 m (27.9 ft)
T 280.0 m (918.6 ft) 112.0 m (367.5 ft) 56.0 m 28.0 m
Professional, intelligent
Perimeter Protection Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream: 3840 × 2160 @(1–25/30 fps when AI function disabled)
sub stream: 704 × 576 @(1–25 fps)/704 × 480 @ (1–30 fps)
third stream: 1920 × 1080 @(1–25/30 fps)
Stream Capability 3 streams
Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Audio
Audio Compression G.711a; G.711Mu; G726
Alarm
Alarm Event - ZAS:
No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; safety exception
-ZS:
No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; voltage detection; defocus detection; SMD; safety exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host 20 (Total bandwidth: 72 M)
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser IE: IE8; IE9; IE11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input 1 channel (RCA port) (Only - ZAS supports)
Audio Output 1 channel (RCA port) (Only - ZAS supports)
Alarm Input 1 channel in: 5mA 3V–5V DC (Only - ZAS supports)
Alarm Output 1 channel out: 300mA 12V DC (Only - ZAS supports)
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption Basic power consumption: 2.7W (12V DC); 3.3W (PoE)
Max. power consumption (WDR + H.265 + IR LED intensity): 6.8W (12V DC); 8.2W (PoE)
Environment
Operating Conditions –30°C to +60°C (–22°F to +140°F)/Less than 95% RH
Storage Conditions –40°C to +60°C (–40°F to +140°F)
Protection Grade IP67; IK10
Structure
Casing Metal
Dimensions 88.9 mm × Φ122 mm (3.5" × Φ4.8")
Net Weight 492 g (1.1 lb)
Gross Weight 663 g (1.5 lb)

CAMERA FEATURES
  • 8 Megapixel IP Camera (3840×2160)
  • Smart Motion Detection (SMD)
  • 2.7-13.5mm Motorized Adjustable Lens
  • Up to 130ft Infrared Night Vision
  • Starlight - low light performance
  • H.265 Video Compression
  • Weatherproof, Vandalproof (IP67, IK10)
  • Wide Dynamic Range (120dB)
  • Power Over Ethernet - PoE
  • Measurement: 3.5" H x 4.8" D
Approximate Distances:
Identify (Up to 28-92ft)
Recognize (Up to 56-184ft)
Detect (Up to 280-919ft)
