The following steps will show you how to add and set up our 4G SureVision camera and Solar Panel Module, as well as how to add it to your cell phone or mobile device with the SV Max remote viewing app. If you are using your 4G SureVision camera on its own, click here to see that guide instead.

1. Requirements
2. 4G Camera Setup
3. Mobile Device Setup with SV Max
4. Solar Panel Module Setup

You will need the following for this guide:

• A Windows or Mac computer *
• An Internet router with Wi-Fi and Ethernet ports *
• A 12v DC power adapter (included) **
• An Ethernet cable (included) *
• Our Guard Station software (free for download on our website here)
• Our SV Max mobile app (free for download on the App Store or Google Play Store)

* The Windows/Mac computer, the Internet router, and the Ethernet cable are only necessary for first-time setup. You must have at least two Ethernet ports to plug into; either directly into the Internet router or into a network switch.

** The 12v DC power adapter is only necessary for first time setup if you are using the 4G camera alongside our solar panel module. If you are using the 4G camera standalone, the adapter is necessary even after the setup.

Plug in the provided 12v DC power adapter into a sufficient power source and into the camera. Plug the camera into your Internet router using the provided Ethernet cable as well.

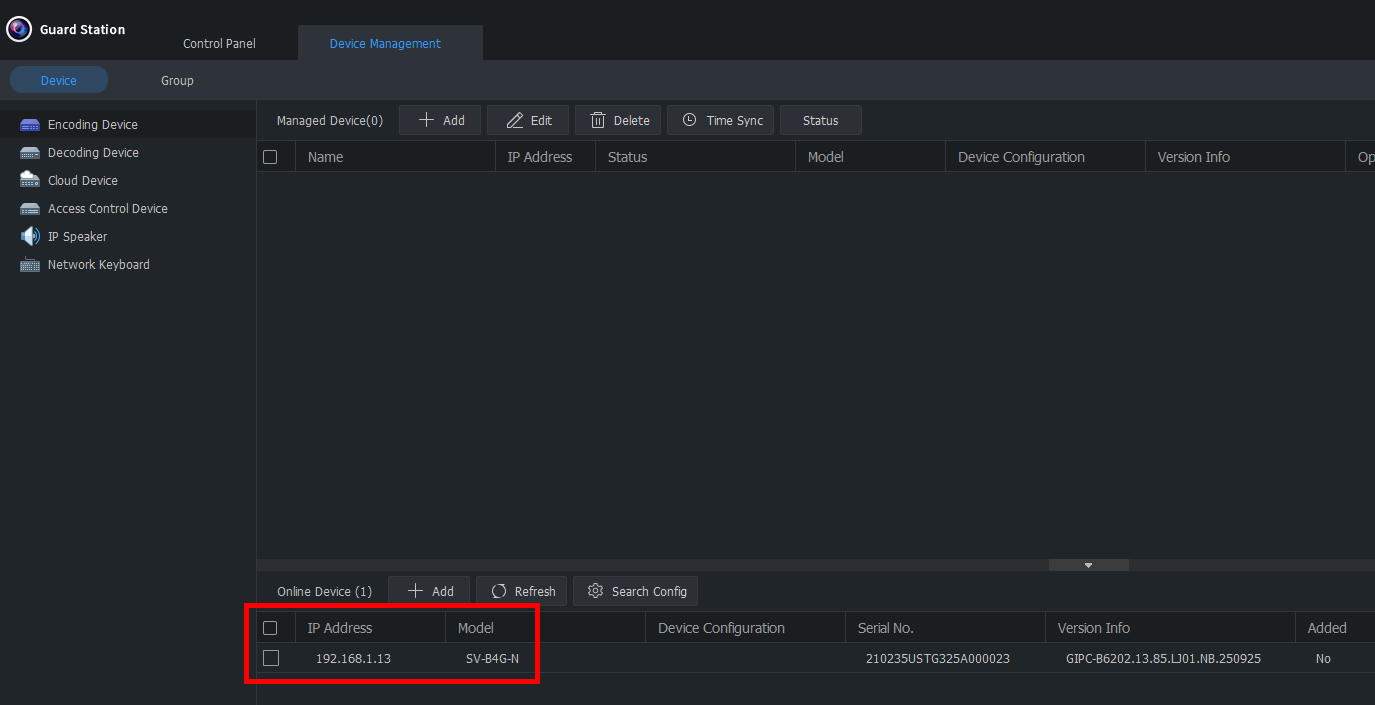

Download and install the Guard Station software from our website onto your Windows/Mac computer (found here). Make sure you are connected with either Ethernet or Wi-Fi to the same Internet router that the camera is plugged into. Within Guard Station, go to Device Management, and you should see the camera listed within the software after one minute of it being powered on.

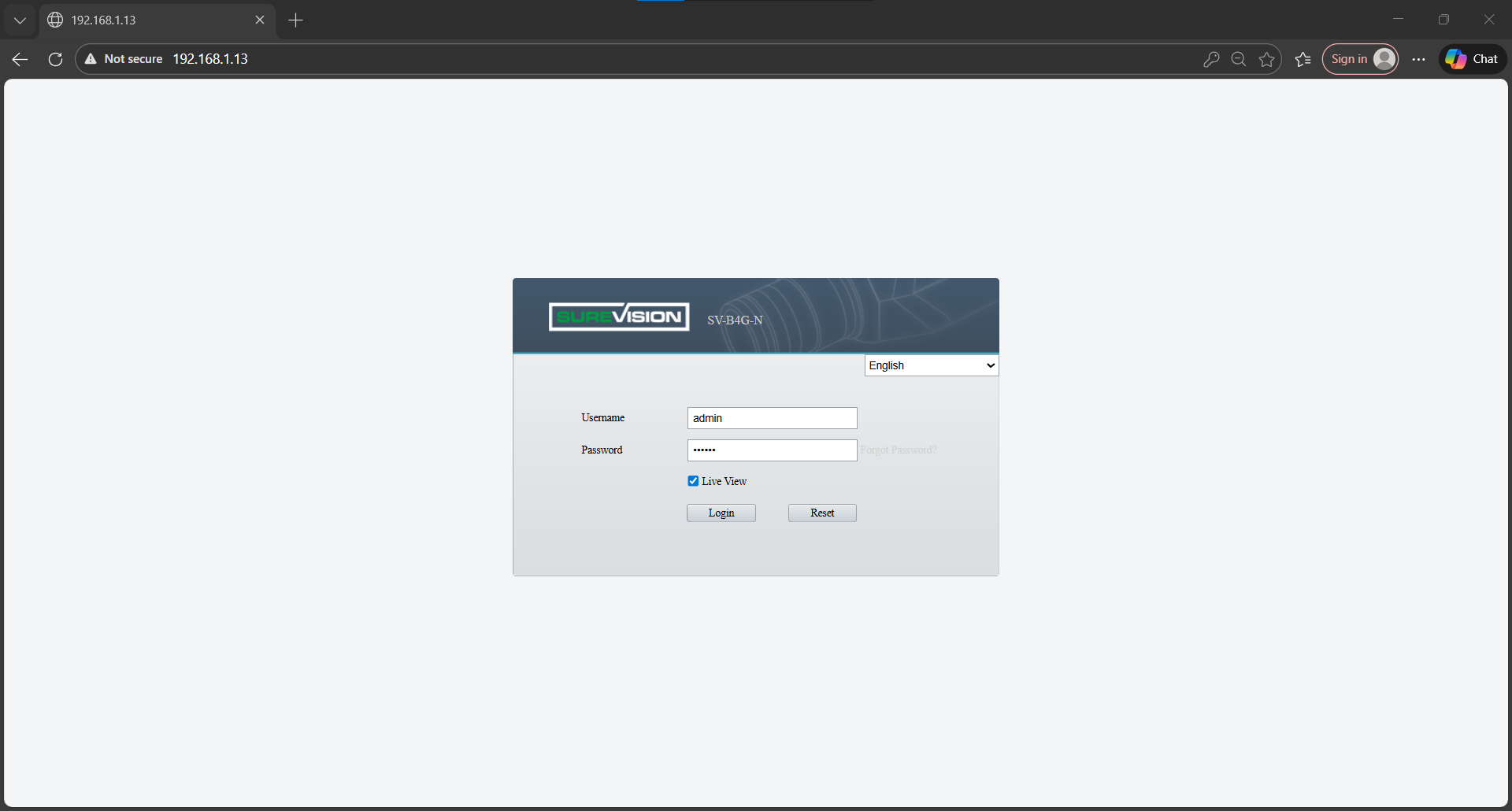

Type the IP Address of the camera into a web browser such as Microsoft Edge or Google Chrome. You will be greeted with a login page that says "SureVision". Login to the page with the username admin and the password 123456.

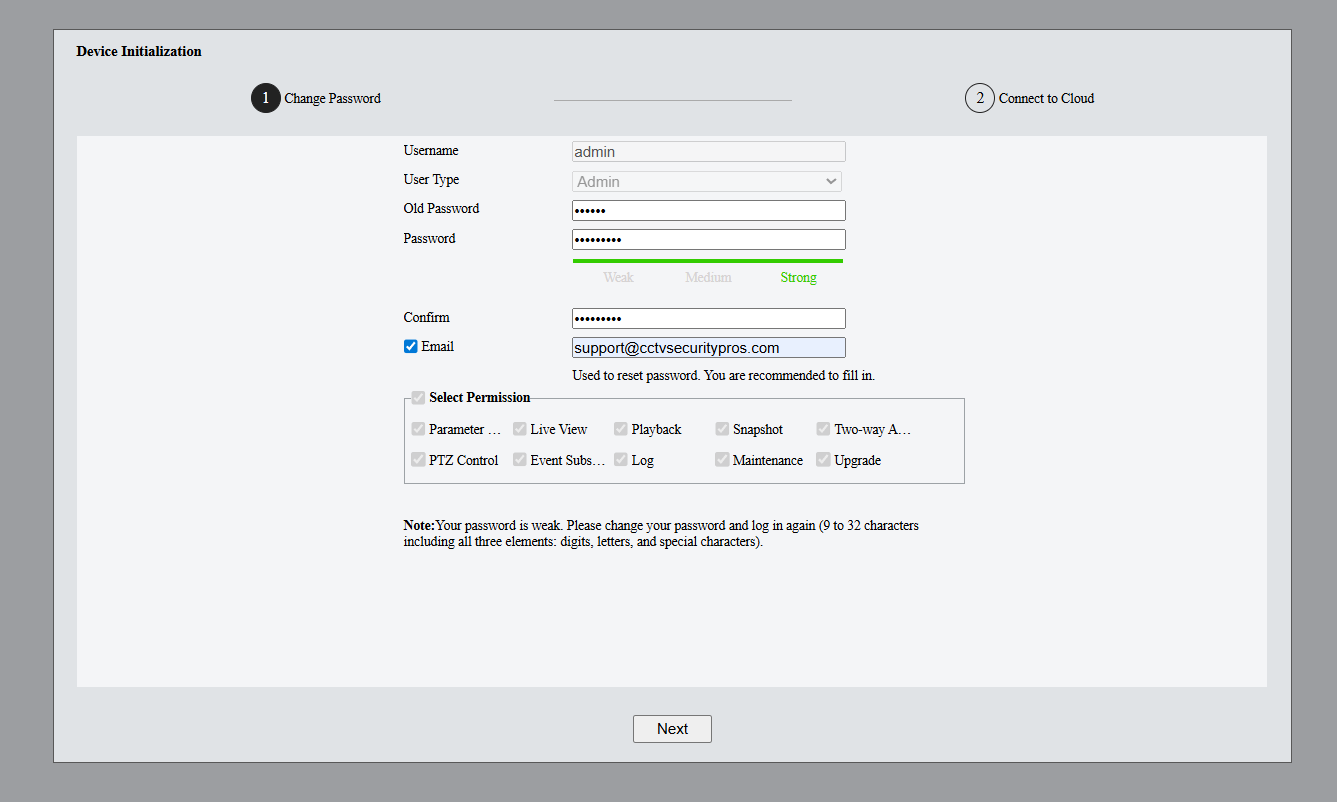

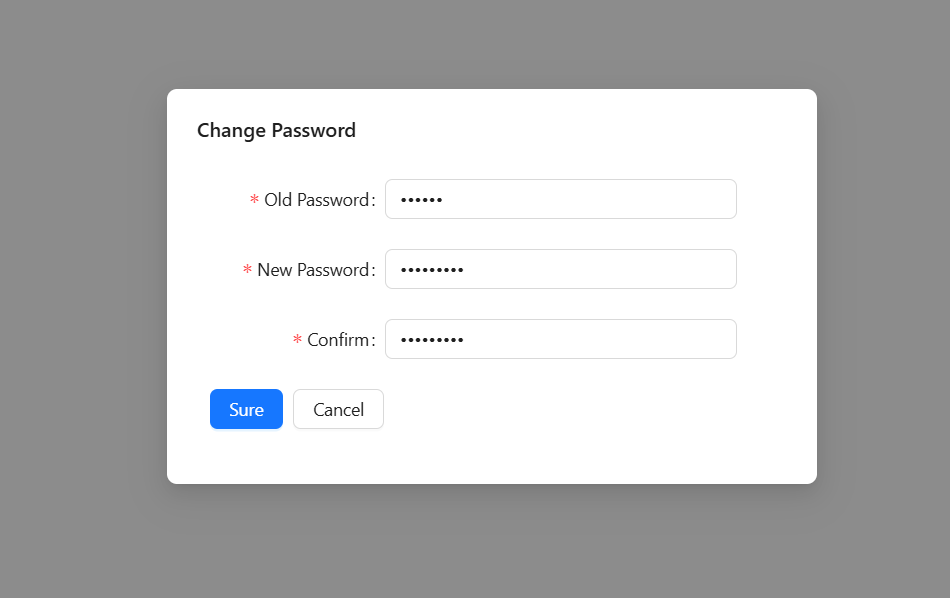

The page will then ask you to create a new password. Put in 123456 for the old password and create your own with at least eight characters including one letter, one number, and a special character. You should also enter a valid email address that will be used in case the password is ever forgotten.

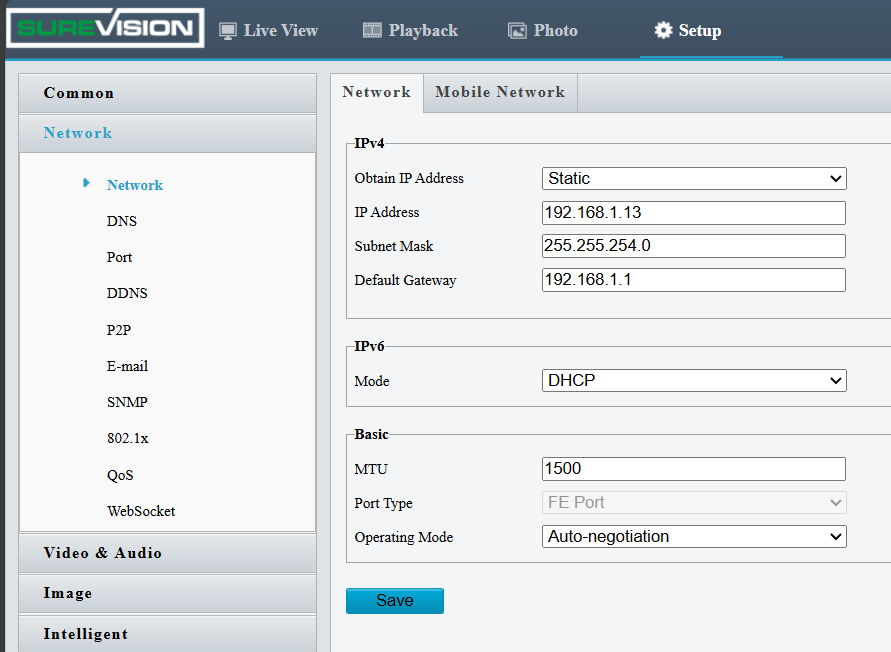

You should now see the image of your camera. At the top, click on Setup, then go to Network > Network. You should see a page like below. If Obtain IP Address is set to DHCP currently, change that to Static, and click Save. It may have you refresh and log back in when this is completed.

Keep note of this IP address, as you will need it for the Battery Percentage OSD setup.

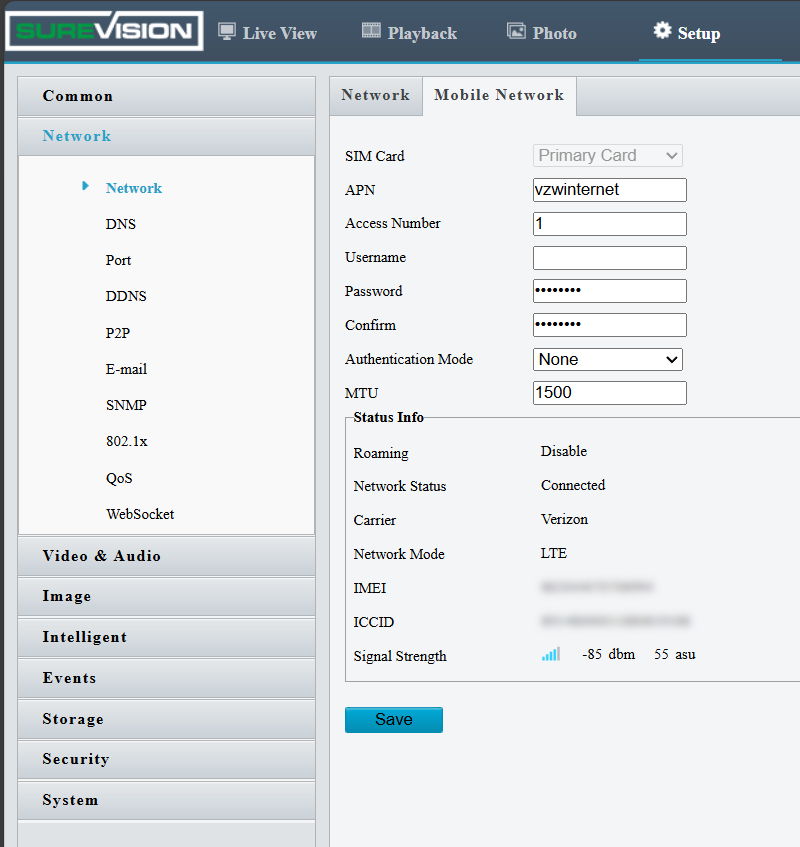

Click Setup at the top once again, and select Network > Mobile Network. You will need to enter the APN and Access Number. The APN is determined by the Mobile Carrier for your SIM Card. Here are a few examples:

Verizon: vzwinternet
T-Mobile: fast.t-mobile.com
AT&T: NXTGENPHONE

Enter the dedicated APN for your specific carrier. The Access Number will be a number between 1 and 3. Try using 1 first, and change to 2 or 3 if it doesn't work. You do not need to enter anything in the Username or Password boxes. Click Save, and the camera will attempt to connect. If successful, the Network Status should say Connected.

The below section will instead show you how to add the camera directly to the SV Max mobile app.

First, download the application from the App Store or Google Play Store. You will also need to get through the initial setup of the app if you have not already. If you need guidance, Steps 3 and 4 of this guide here will walk you through the process.

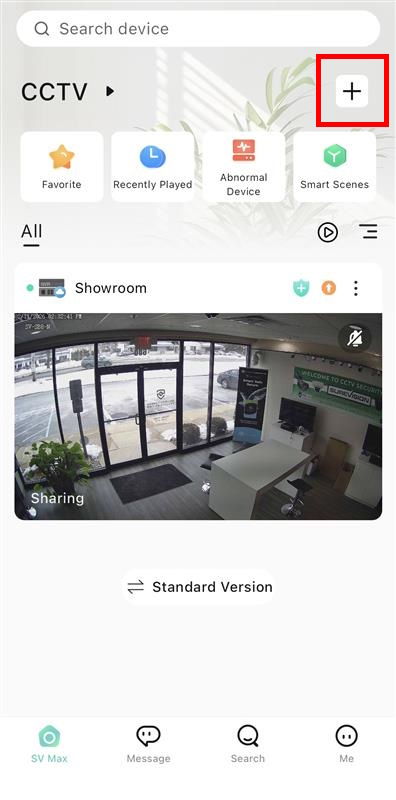

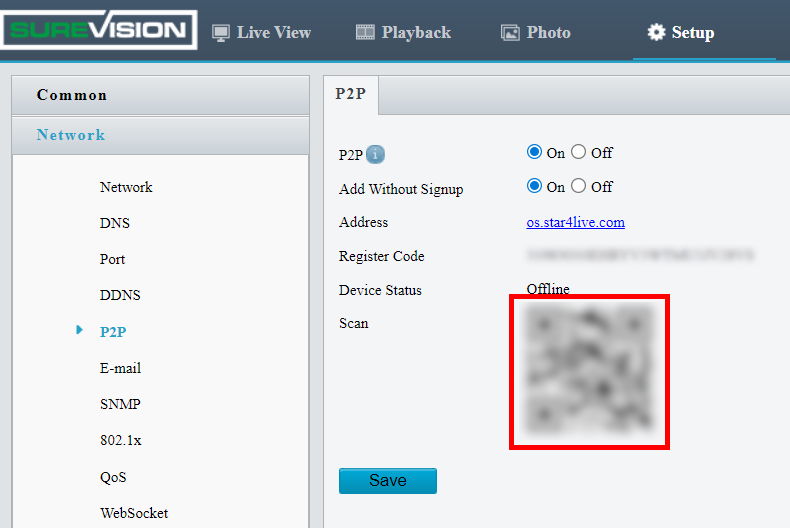

On the web page of the camera, go to Network > P2P. The status will show Offline because the camera is not connected to a cloud account. Within the SV Max app, tap the + sign at the top right and scan the QR Code shown on the P2P page.

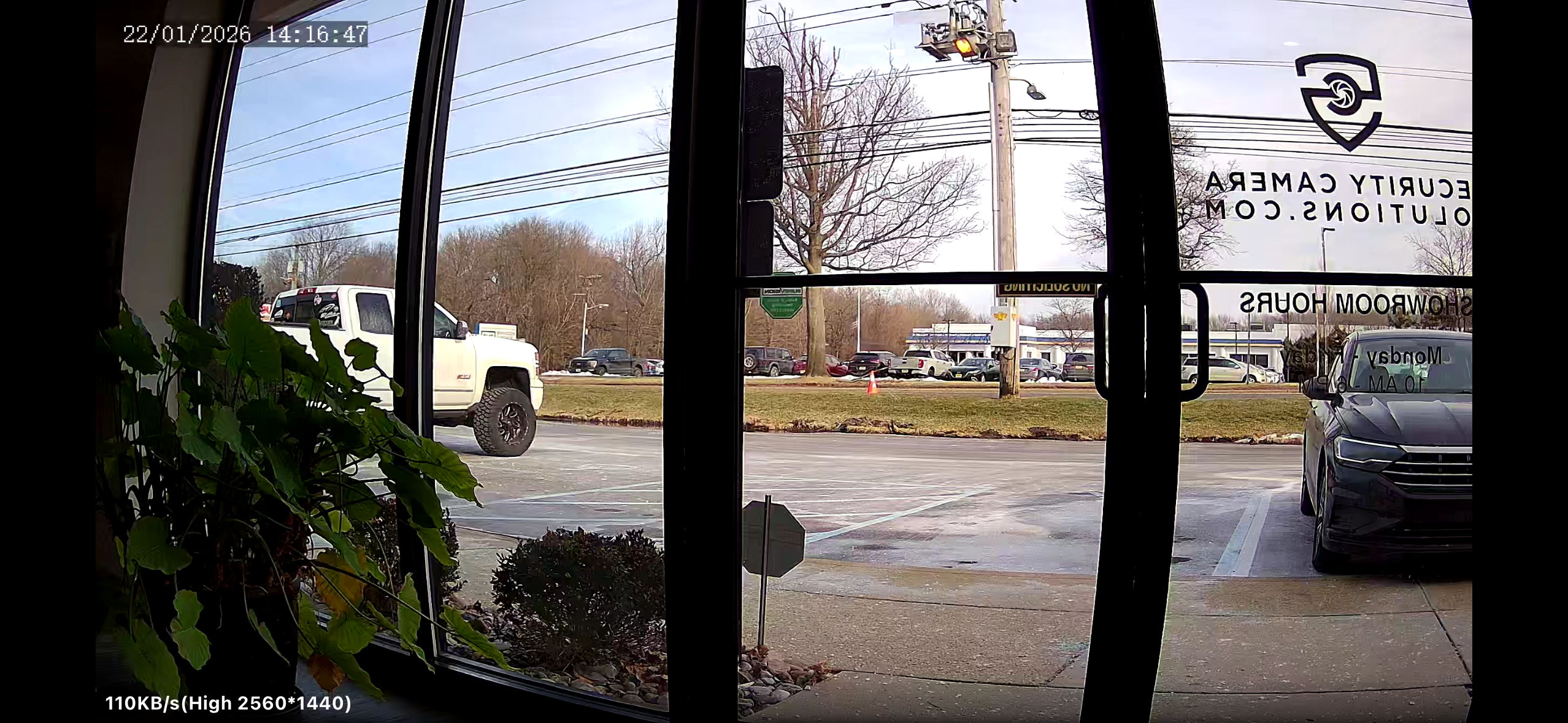

The app will let you name the camera, and then add it to your account. You should now be able to see the Live View and Playback from your phone. Disconnect the camera from the Ethernet cable. If you can still see the Live View and Playback, we can disconnect the camera from power, and put it to the side for now.

Once the camera is fully functional, we can setup the Solar Module. This is the little box that you attach to your solar panel. Plug in the provided 12v DC power adapter into a sufficient power source and into the module. Plug the module into your Internet router using the Ethernet connection coming from the module as well.

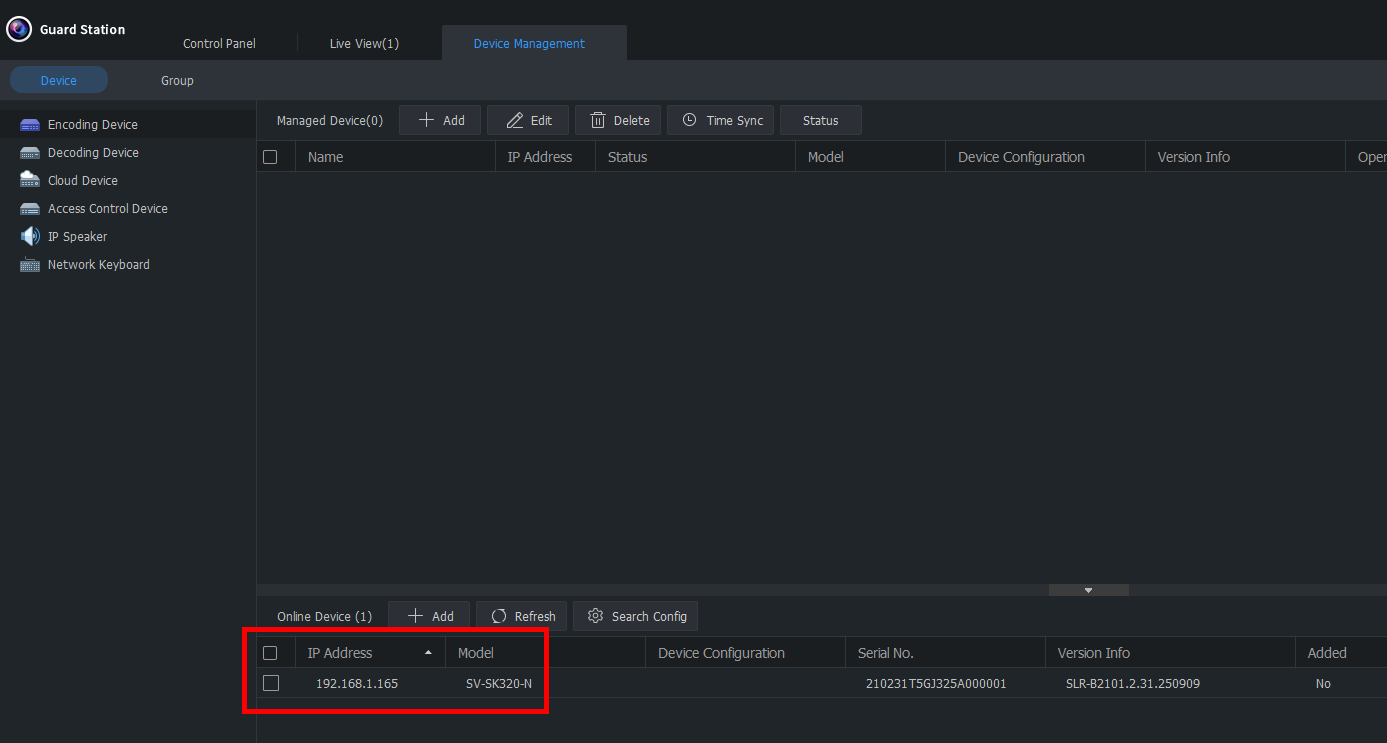

Within the Guard Station application, go to Device Management, and you should see the module listed within the software after one minute of it being powered on.

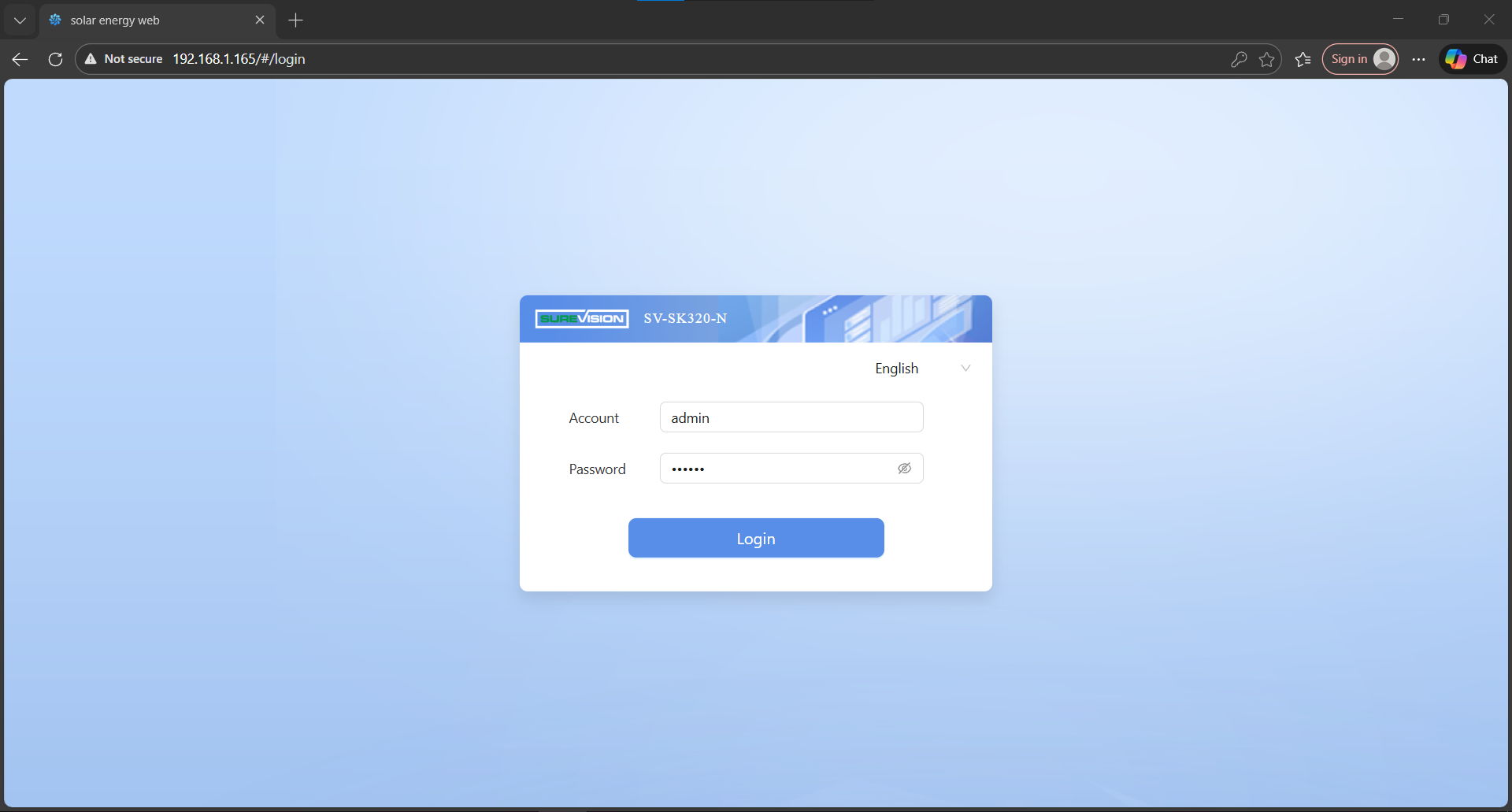

Type the IP Address of the camera into a web browser such as Microsoft Edge or Google Chrome. You will be greeted with a login page. Login to the page with the username admin and the password 123456.

The page will then ask you to create a new password. Put in 123456 for the old password and create your own with at least eight characters including one letter, one number, and a special character.

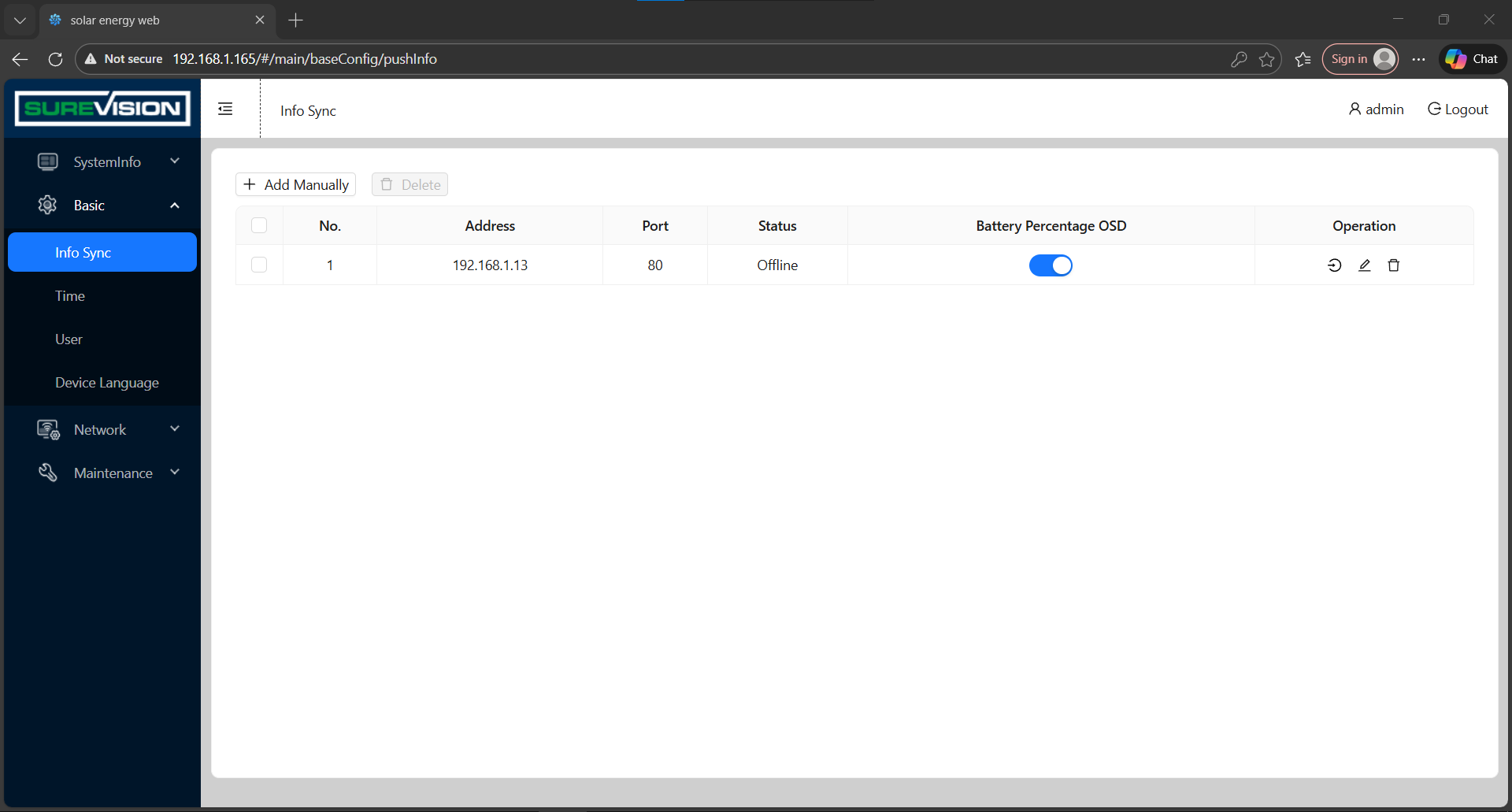

Go to Basic > Info Sync. Click Add Manually and enter the IP Address, Account (admin), and Password of the camera we set up. The username will always be admin. Click Save, and it will display the IP Address that you entered.

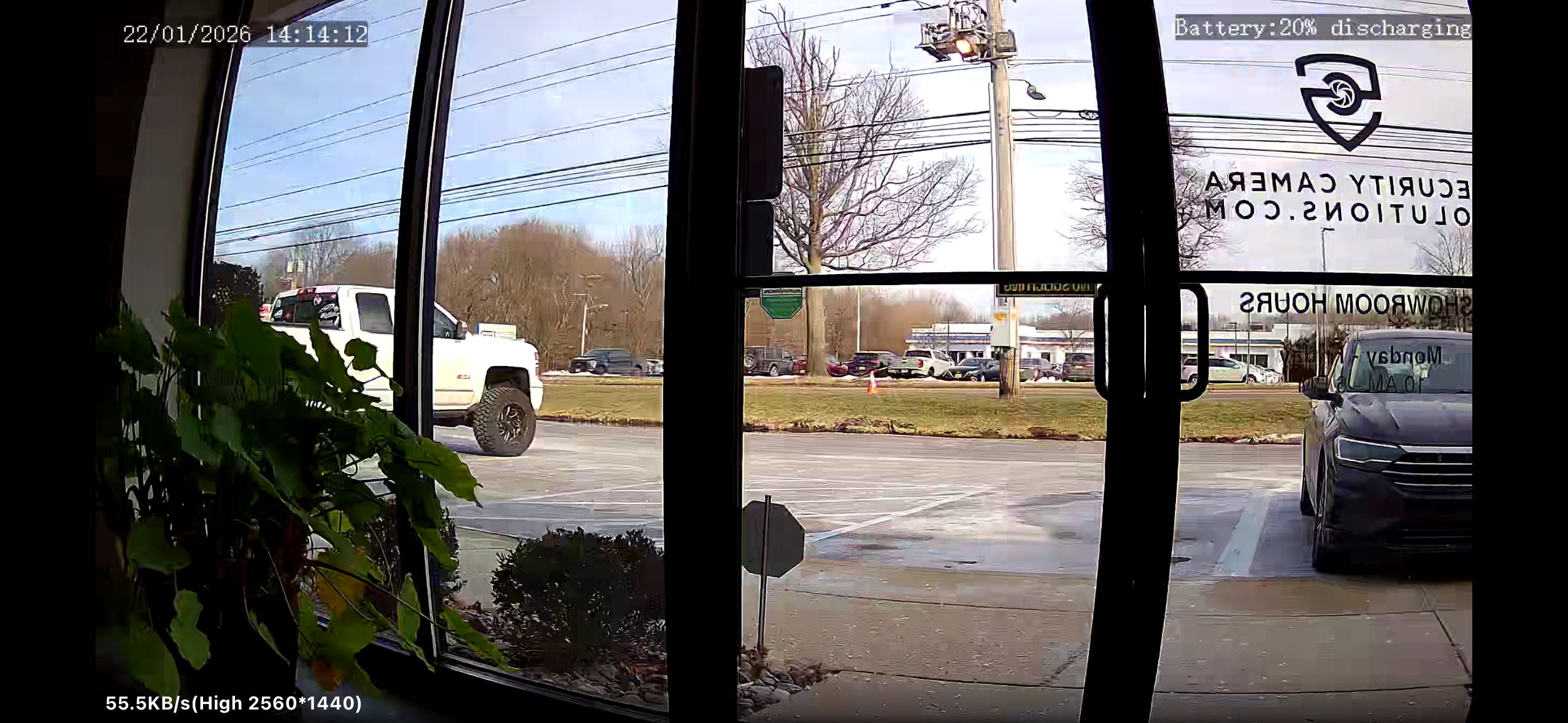

You can now unplug the Solar Module and connect it to the Solar Panel and 4G camera. Once they power on, you should see the battery percentage at the top right of the camera's live view.
