GV-800 (Select 4, 8, or 16 Channels)

Model No. :
GV-800
Regular price:
$599.99
Your Price:

$399.99

Select Options:
Camera Input:
Card Type:
Quantity:
Bottom Curve
GV-800 (Select 4, 8, or 16 Channels)

Product Description

Select from 4, 8, and 16 Channel Models in the dropdown.

ALL GeoVision Cards come with EVERYTHING NEED FOR INSTALLATION, a 3 Year Warranty and Free UPS Same Day Shipping!


The GV-800 Card provides you with 120 Frames Per Second Recording. In addition, the GeoVision Card supports up to 4 Channel of Audio Recording. This GeoVision Card is used for business and home applications. GeoVision is regarded as one of the VERY BEST DVR Cards available in the industry. Choose from 4 Channel (supports up to 4 Cameras), 8 Channel, and 16 Channel Versions.

Our GeoVision Cards come with a 3 Year Warranty, and EVERYTHING you will need for complete installation (you provide the PC and we provide the rest). Place the GeoVision Card in your PCI slot and download the CD. Each of your security cameras will plug into the INDIVIDUAL BNC video connections that will be plugged into in the back of the PC. Enjoy the BEST WINDOWS BASED Digital Video Recorder.

All GeoVision Cards come with many robust features and functionality including motion detection, 24 hour recording, phone and email alerts with digital snapshots, ability to operate in conjunction with most alarms, and much more.

In addition, for those of you that are in an environment with a cash register, GeoVision offers an OPTIONAL POS (Point of Sale) Device that enables you to keep track of everything that is "rung up" on your cash register.

Datasheet

Specifications

Input Type BNC BNC X 4
D-Type DB15 X 2
Video Input(s) 4, 8, 12, 16 Cams
Audio Input(s) 4 Channels
Total Recording Rate
At 320 X 240 Resolution /
MPEG4 (ASP)
120 fps (NTSC), 100 fps (PAL)
Display Rate 120 fps (NTSC), 100 fps (PAL).
Video Resolution - NTSC/PAL Full D1, Half D1, CIF
Video Compression Format Geo MPEG4, Geo MPEG4 (ASP), Geo H264, Geo H264 V2
Audio Compression Format ADPCM codec
GV-A16 Support Yes
GV-NET Card Support Yes
GV-NET/IO Card Support Yes
Dimensions (W x H) BNC 152 x 101 ( mm) / 5.98 x 3.98 (in)
D-Type 174 x 107 ( mm) / 6.85 x 4.21 (in)
Installation Guide Single Card & Two Cards

Note:GV-800 is currently not compatible with VIA series and ATI series chipset motherboards.

Minimum System Requirements For One Card
OS Supported 32-bit Windows XP / Windows Vista / Windows 7 / Windows Server 2008
64-bit Windows 7 / Windows Server 2008
CPU Pentium 4, 3.0 GHz with Hyper-threading
RAM Windows XP: 2 x 512 MB Dual Channels
Windows Vista / 7 / Server 2008 : 2 x 1 GB Dual Channels
HDD 80 GB
VGA ATI Radeon X600
NVIDIA 6200
DirectX 9.0c
Minimum System Requirements For Two Cards
OS Supported 32-bit Windows XP / Windows Vista / Windows 7 / Windows Server 2008
64-bit Windows 7 / Windows Server 2008
CPU Pentium 4, 3.0 GHz Dual Core
RAM 2 x 1 GB Dual Channels
HDD 160 GB
VGA ATI Radeon X1300 PCI-E
NVIDIA GeForce 7300 PCI-E
DirectX 9.0c

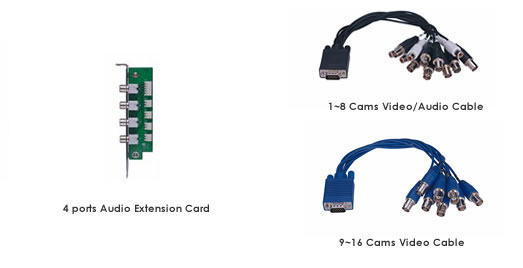

Accessories
