SUREVISION 24 Channel 4MP Dome IP Camera System
Enjoy the peace of mind that you deserve with the SUREVISION 24 channel 4MP Dome IP camera system at CCTV Security Pros. With theft cases becoming more complicated, enhancing your business security should be a priority. Whether you want a future-proof complete surveillance system or plan to upgrade your analog security system, our IP security camera systems offer superior surveillance features so you can keep tabs on your property 24/7.
High-Resolution Monitoring
Our SUREVISION IP dome security cameras boast 4MP 2K high resolution that delivers high-quality images and videos. The complete system offers clear live footage day and night, long recording times, easy remote access via phone, PC, and tablet, and easy plug-and-play installation. Our free remote viewing software and mobile apps allow you to monitor your security cameras at any time, anywhere, at no monthly cost.
With our superior range of SUREVISION network video recorders, you get to enjoy faster H.265 video compression, 80% less data consumption and a reduced data footprint that allows you to store more video footage in the commercial-grade 24 channel IP camera system NVR. Installation is simple with PoE technology with the help of our free USA tech support. Save thousands of dollars in installation costs by opting for our self-install security camera systems.
This Complete HD Security Camera System Includes:
- (1) 32 Channel SUREVISION HD Network Video Recorder
- (1) 4 Terabyte Surveillance Grade Hard Drive (installed)
- (24) 4MP IP Infrared Indoor/Outdoor Dome Security Cameras with up to 100 Foot Night Vision
- (24) 100 Foot CAT5 Cable
- (2) 16 Port POE Switch
- High Definition LCD Monitor is INCLUDED
- Quick Start Guide
- Free Remote Viewing Software and Apps
- Video Surveillance Warning Stickers and Aluminum Sign
Get Started Today
If you’re looking for a professional-grade security system for your business or residential complex, get started with our SUREVISION line of IP security cameras and systems. Our 24 channel IP dome security system can be customized to fit your surveillance needs and comes with every component you need for quick installation. Purchase our complete IP systems at CCTV Security Pros and enjoy a 3-year warranty with every product.
Contact us today if you have any questions about our 24 channel IP camera systems.

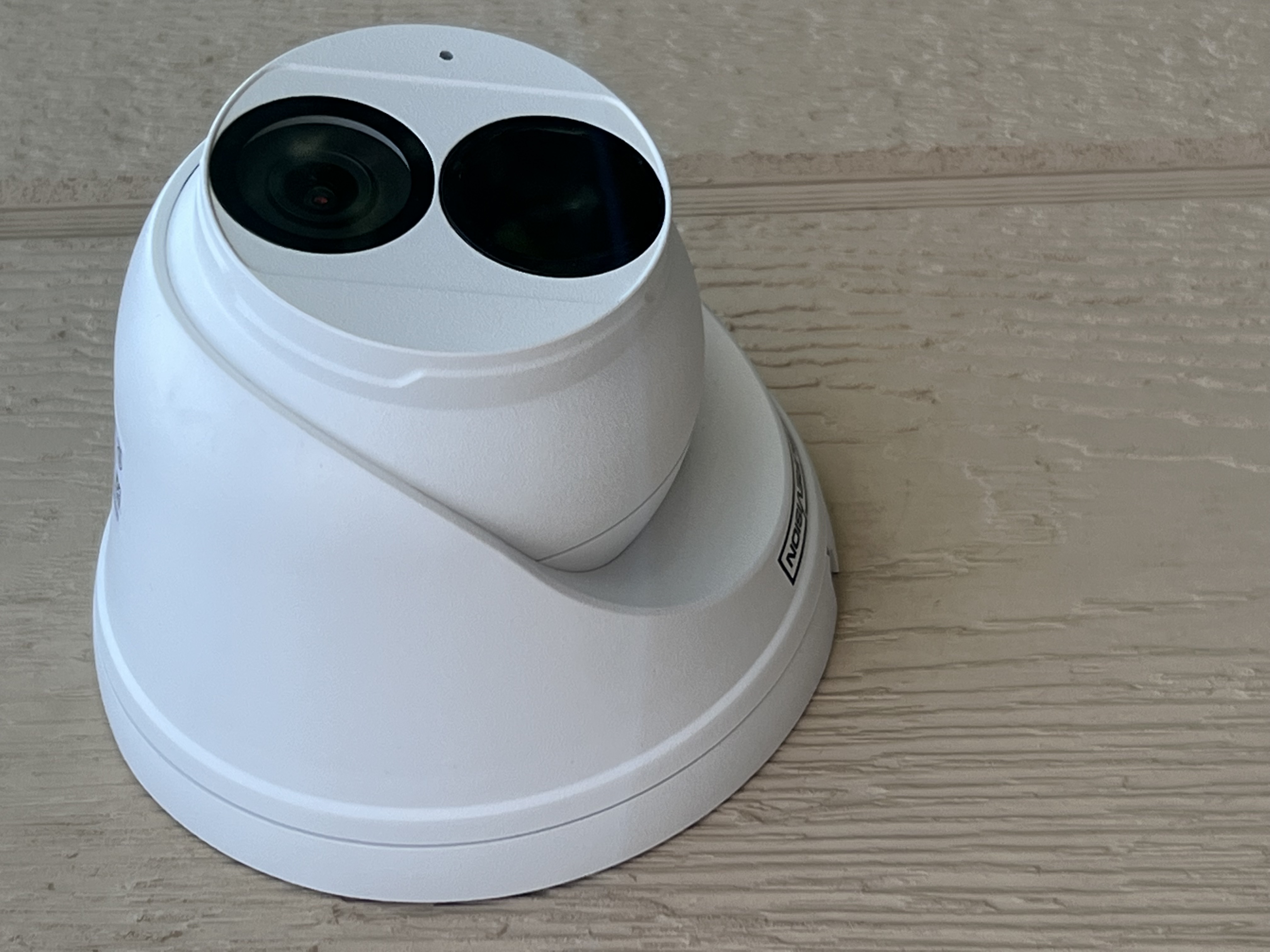

About the Cameras:
*Always use SureVision cameras with SureVision NVR units for full-featured use and functionality.
Features Optics
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265,H.264,MJPEG
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Wide temperature range: -30°C to 60°C (-22°F to 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Camera | |||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | ||||||||
| Lens | 2.8mm@F1.6 | 4.0mm@F1.6 | |||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | |||||
| 4.0 | 90 | 36 | 18 | 9 | |||||
| Angle Of View (H) | 105.3° | 79.7° | |||||||
| Angle Of View (V) | 57° | 41.6° | |||||||
| Angle Of View (O) | 136.9° | 98.0° | |||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Minimum Illumination | Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR |
||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||
| S/N | >52dB | ||||||||
| IR Range | Up to 30m (98ft) IR range | ||||||||
| Wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Defog | Digital Defog | ||||||||
| WDR | 120db | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| H.264 Code Profile | Baseline profile, Main Profile, High Profile | ||||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 25fps |
||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| OSD | Up to 4 OSDs | ||||||||
| Privacy Mask | Up to 4 areas | ||||||||
| ROI | Up to 4 areas | ||||||||
| Motion Detection | Up to 4 areas | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180° | ||||||||
| Dewarping | Support | ||||||||
| HLC | Supported | ||||||||
| BLC | Supported | ||||||||
| Network | |||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | ||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||||
| Client | EZStation EZView EZLive |
||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||||
| Audio | |||||||||
| Audio Compression | G.711 | ||||||||
| Suppression | Supported | ||||||||
| Sampling Rate | 8KHZ | ||||||||
| Storage | |||||||||
| Edge Storage | Micro SD, up to 256 GB | ||||||||
| Network Storage | ANR | ||||||||
| Interface | |||||||||
| Network | 10/100M Base-TX Ethernet | ||||||||
| Built-in Mic | Supported | ||||||||
| Certifications | |||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
||||||||
| General | |||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
| Power consumption: Max 3W | |||||||||
| Dimensions (Ø x H) | Φ118 x 96mm (Φ4.6" x 3.8") | ||||||||
| Net Weight | 0.35kg (0.77lb) | ||||||||
| Material | Front cover：metal Rear cover：plastic Bracket：plastic Bottom plate：metal |
||||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Surge Protection | 2KV | ||||||||
| Ingress Protection | IP67 | ||||||||

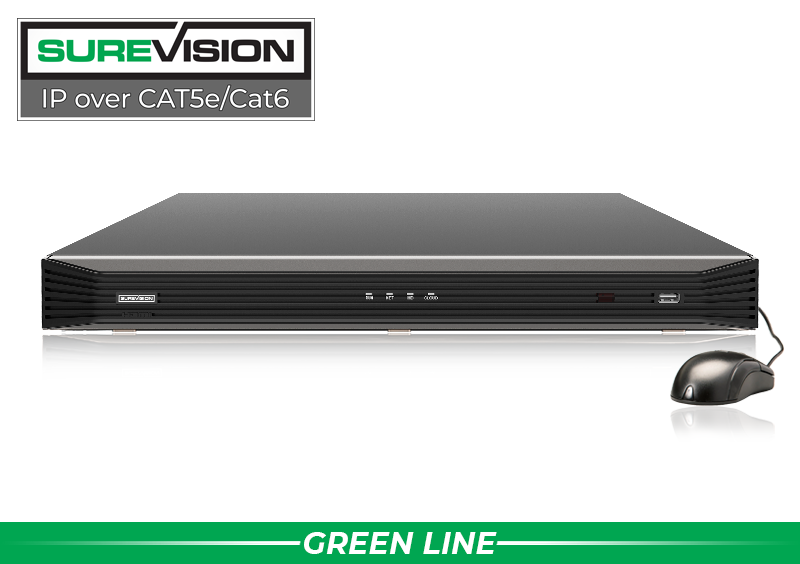

About the Network Video Recorder:
Take advantage of a high end, commercial grade SUREVISION Network Video Recorder. Record up to months of video storage with the 8 built in hard drives. This recorder is perfectly compatible with all of our SURVEVISION (OMNIF Compatible) IP Cameras. Watch your live security cameras on PC, cell phone, and tablet devices. "See and be where you need to be" 24 hours a day with HD video of up to 4K definition. Our cell phone app is FREE and there are no monthly fees whatsoever. Analytics include face detection, intrusion detection, cross line detection, audio detection, defocus detection, scene change detection and auto tracking.
Features
- 32 Channel Input
- Up to 12 Megapixel Recording
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support Ultra 265/H.265/H.264 Video Formats
- 8 SATA HDDs, Up to 10TB for each HDD
- Dewarping Support for Fisheye Cameras
- Support N+1 Hot Spare
- ANR technology to enhance the storage reliability when the network is disconnected
- Support Cloud Upgrade
- Pan Tilt Zoom Cameras Supported
- Video Analytics Supported
| Technical Specification | ||||
|---|---|---|---|---|
| Video/Audio Input | ||||
| IP Video Input | 32-ch | |||
| Two-way Audio Input | 1-ch, RCA | |||
| Network | ||||
| Incoming Bandwidth | 320Mbps | |||
| Outgoing Bandwidth | 320Mbps | |||
| Remote Users | 128 | |||
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |||
| Video/Audio Output | ||||
| HDMI/VGA Output | HDMI1/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI2: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
|||
| CVBS Output | 1-ch, BNC | |||
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||
| Audio Output | 1-ch, RCA | |||
| Synchronous Playback | 16-ch | |||
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 | |||
| Decoding | ||||
| Decoding format | Ultra 265, H.265, H.264 | |||
| Live view/ Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||
| Capability | 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 | |||
| Hard Disk | ||||
| SATA | 8 SATA interfaces | |||
| Capacity | up to 10TB for each HDD | |||
| eSATA | 1 eSATA interface | |||
| Smart | ||||
| VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking | |||
| VCA Search | Face search, Behavior search | |||
| Statistical Analysis | People counting | |||
| Disk Array | ||||
| Array Type | RAID 0, 1, 5, 6, 10 | |||
| External Interface | ||||
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | |||
| Serial Interface | 1 x RS232, 1 x RS485 | |||
| USB Interface | Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0 | |||
| Alarm In | 16-ch | |||
| Alarm Out | 4-ch | |||
| General | ||||
| Power Supply | 100 ~ 240 VAC Power Consumption: ≤ 20 W( without HDD ) |
|||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |||
| Dimensions(W×D×H) | 442mm ×425mm× 86mm (17.4" × 16.7"× 3.4") | |||
| Weight ( without HDD ) | ≤ 5.13 Kg (11.31 lb ) | |||
NVR FEATURES
- 4K Ultra High Definition
- External POE Switch (Up to 32 Cameras)
- Remote Viewing – No Monthly Fees
- H.265 High Video Compression
- 320 Mbps Incoming Bandwidth
- HDMI and VGA Display Output
- 4 Hard Drive Bays
CAMERA FEATURES
- 4 Megapixel IP Camera (2688×1520)
- Built-in Microphone
- 2.8mm Lens (110° Wide Angle View)
- Up to 100ft Infrared Night Vision
- H.265 Video Compression
- Weatherproof - Indoor/Outdoor(IP67)
- Wide Dynamic Range (120dB)
- Power Over Ethernet - PoE
- Measurement: 3.8" H x 4.6" D
Identify (Up to 21ft)
Recognize (Up to 41ft)
Detect (Up to 207ft)
