4 Camera IP System with Free Upgrade to 8 Channel NVR / 4IPBV8-B-N

$2,609.99 after 20% promo after 20% promo $2,087.99
(You save $522.00)
Model: SV-4IPBV8-B-N
4 Camera IP System with Free Upgrade to 8 Channel NVR / 4IPBV8-B-N

Select your options:

superior products 3 year warranty
live usa technical support
30 day money back guarantee
free shipping on all orders over $100

SureVision Camera Features Video

SureVision NVR Features Video


Motorized Zoom Lens Security Camera





This is video monitoring at its best.  This is SureVision.

This complete system package comes with our industry leading SureVision NVR.  This professional grade NVR unit was designed to be simple and easy to setup while offering unmatched quality, function and reliability.  The NVR comes equipped with all of the latest features such as 24/7 recording, motion recording, object masking, mobile alerts, audio and much more.  You can easily view and receive instant motion alerts from your cameras remotely on any smartphone, tablet or computer using our free software and mobile apps.  Built-in PoE (power over ethernet) makes this unit ideal for simple plug and play setup.  All SureVision NVR units have extended PoE allowing you to cable over 800ft away!  You can expect the very best surveillance for your business or home with this top of the line NVR.

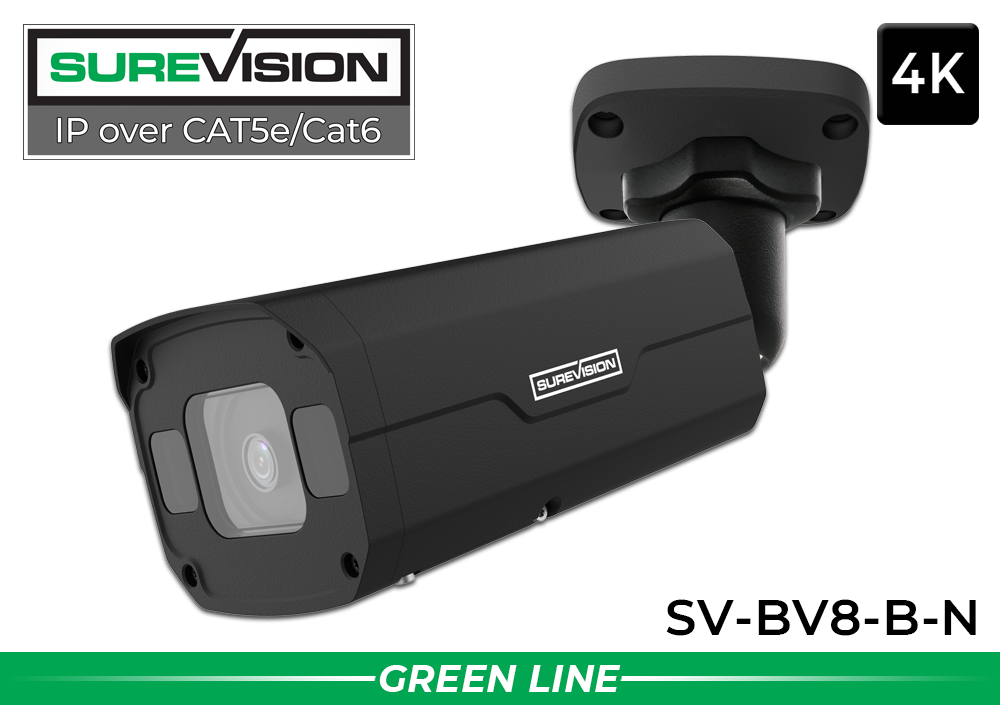

This complete security camera system package includes our SureVision 8 megapixel (4K) ultra high definition infrared bullet camera with a motorized adjustable lens and powerful night vision of up to 164ft.  The adjustable lens provides you with the added flexibility of focusing on objects either close-up or up to 120ft away with incredible 4K detail and clarity.  This professional-grade camera leverages the latest color at night technology to display illuminated images in low light areas. Some other advanced features of this cameras include WDR used to combat any glare from intense lighting as well as the latest H.265 high video compression technology for extended video storage time. What makes this camera extra special is an AI feature called Ultra Motion Detection (UMD) that focuses specifically on humans and/or vehicles to produce the most accurate motion alerts – while eliminating any unwanted alerts! These notifications can instantly be sent to your smartphone or tablet so you never miss an important event. You can expect superior coverage both day and night from this top of the line camera.

This Complete High Definition IP Security Camera System comes with everything needed for complete installation. It includes a 3 Year Warranty, Free USA Technical and Support and 100% Money Back Guarantee.

Installation of our IP camera systems is simple and easy. A simple step-by-step guide is included with every system. We also include live USA based Technical Support available Monday through Friday. We are happy to answer any questions and assist you at (888) 653-2288.

*The equipment in this package is fully NDAA compliant and suitable for installation in government facilities and federally funded projects

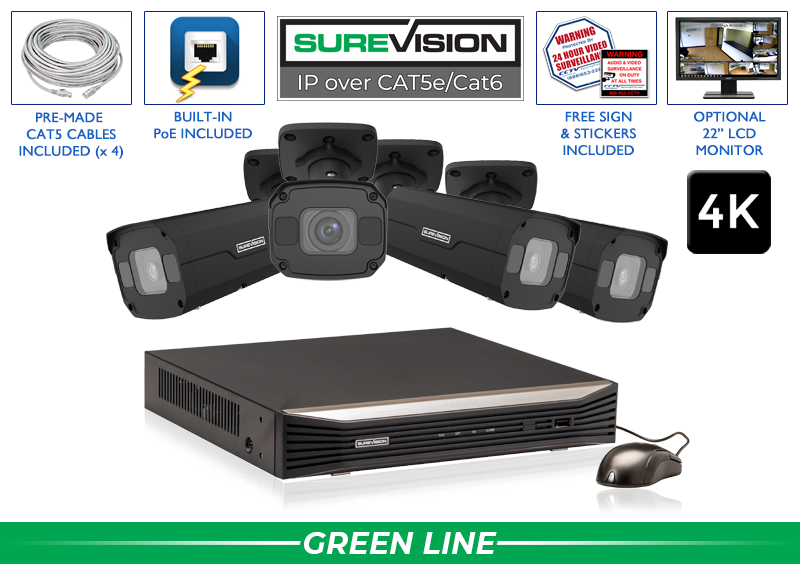

This Complete HD Security Camera System includes:

  • (1) 8 Channel SUREVISION HD Network Video Recorder
  • (1) 2 TB Surveillance Grade Hard Drive (installed)
  • (4) 8MP (4K) IP MOTORIZED Infrared Bullet Security Cameras with Night Vision and Adjustable Lens
  • (4) 100ft CAT5e Cables
  • High Definition LCD Monitor is OPTIONAL
  • Quick Start Guide
  • Free Remote Viewing Software and Apps
  • Video Surveillance Aluminum Sign




Cameras Specifications:

Technical Specification
Camera
Sensor 1/2.8", 8.0 megapixel, progressive scan, CMOS
Lens 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 86.9 34.8 17.4 8.7
12 372.4 149.0 74.5 37.2
Angle of View (H) 107.4°~ 29.2°
Angle of View (V) 54.2°~ 16.3°
Angle of View (O) 111.0°~33.1°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.003Lux (F1.6, AGC ON)
0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital Noise Reduction 2D/3D DNR
S/N >56 dB
IR Range Up to 50m (164ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8MP (3840*2160), Max 20fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping Supported
HLC Supported
BLC Supported
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 1/1
Network 1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 10.5W
Dimensions (L × W × H) 245 × 86 × 72mm (9.6" × 3.4" × 2.8")
Net Weight 0.92kg (2.03lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 6KV
Ingress Protection IP67
Vandal Resistant IK10
Reset Button N/A


About our SUREVISION IP Camera Network Video Recorder:



Network Video Recorders are the most important part of any high quality IP surveillance system. Take advantage of our high-end, commercial-grade SUREVISION IP Camera NVRs at CCTV Security Pros to enjoy HD video quality live over the internet. Our full-featured and affordable IP camera recorders now offer up to 4K video resolution with multiple hard drive options that can be expanded for a flexible solution that fits your surveillance recording needs. Our SUREVISION IP NVR line is ONVIF compatible. SUREVISION is our latest and greatest line of IP Cameras. Order a SUREVISION IP NVR and treat yourself to a crystal clear, user friendly video recorder. View your cameras over the Internet, tablets, and cell phones as easy as 1-2-3.



TECHNICAL SPECIFICATIONS
Video/Audio Input
IP Video Input 8-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 160Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS
Browser IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz,1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI:
4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 8-ch
Live View Display 1/4/6/8/9
Corridor Mode Screen 3/4/5/7/9
Snapshot
FTP/Schedule/Event Snapshot 16-ch snapshot, up to 1080P resolution
Decoding
Decoding Format Ultra 265, H.265, H.264
Live View/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 8 x 1080P@30
Hard Disk
SATA 2 SATA interfaces
Capacity up to 10TB for each HDD
eSATA NA
Disk Group Support
Smart
VCA Detection by Camera Intrusion Detection, Cross Line Detection, Enter Area, Leave Area,  Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking
VCA Search Behavior Search, Vehicle Search
People Counting People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), Vehicle Detection by Camera Total 8-ch
General Alarm
General Alarm Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface Front panel: 1 x USB2.0,Rear panel: 1 x USB3.0
RS232 NA
RS485 1
Alarm In 8-ch
Alarm Out 2-ch
PoE
Interface 8 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 130W in total
Supported Standard IEEE 802.3af/at
General
Power Supply 100~240V AC
Power Consumption: ≤ 15W (without HDD)
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 380mm × 315mm × 53mm (15.0" × 12.4"× 2.1")
Weight (without HDD) ≤2.6Kg (5.73lb)





NVR FEATURES
*Free Upgrade to 8ch Recorder!
  • 4K Ultra High Definition
  • 8 PoE Camera Inputs
  • Remote Viewing – No Monthly Fees
  • H.265 High Video Compression
  • 320 Mbps Incoming Bandwidth
  • HDMI and VGA Display Output
  • 2 Hard Drive Bays
CAMERA FEATURES
  • 8 Megapixel IP Camera (3840×2160)
  • 2.8-12mm 4x Motorized Adjustable Lens
  • Up to 164ft Infrared Night Vision
  • Starlight - low light performance
  • H.265 Video Compression
  • Weatherproof - Indoor/Outdoor (IP67)
  • Wide Dynamic Range (120dB)
  • Power Over Ethernet - PoE
  • Measurement: 9.6" L x 3.4" W X 2.8" H

Approximate Distances:
Identify (Up to 28-122ft)
Recognize (Up to 57-244ft)
Detect (Up to 285-1221ft)
