Security Camera System - 4 Channel NVR with 2 4K IP Cameras

Discover unparalleled video surveillance with our 4K security camera system, designed for both home and business protection. This professional-grade security camera system from SureVision delivers crystal-clear 8-megapixel (4K) ultra-high-definition footage, ensuring every detail is captured with precision.

SureVision Network Video Recorder (NVR)

At the heart of this 4K security camera system is the industry-leading SureVision NVR. Engineered for simplicity, reliability, and top-tier performance, this NVR offers advanced features including:

24/7 recording and motion recording for constant vigilance
Object masking and mobile alerts for customized monitoring
Built-in Power over Ethernet (PoE) for easy plug-and-play setup
Extended PoE range, supporting cable runs over 800ft
Free software and mobile apps for remote viewing on smartphones, tablets, or computers
Audio recording capabilities for enhanced security

With its user-friendly interface, the SureVision NVR ensures seamless setup and operation, making it the ideal choice for a robust security camera system.

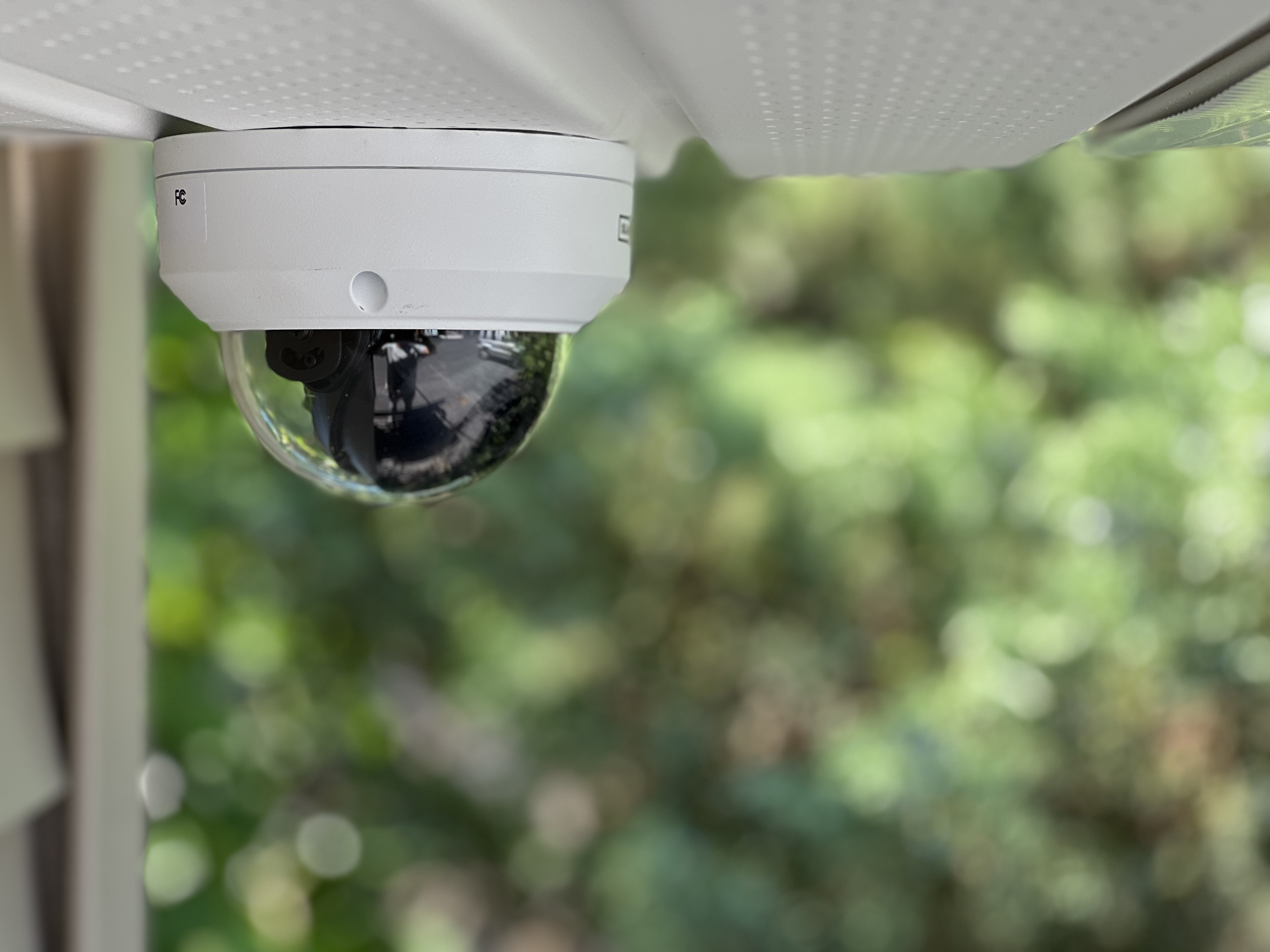

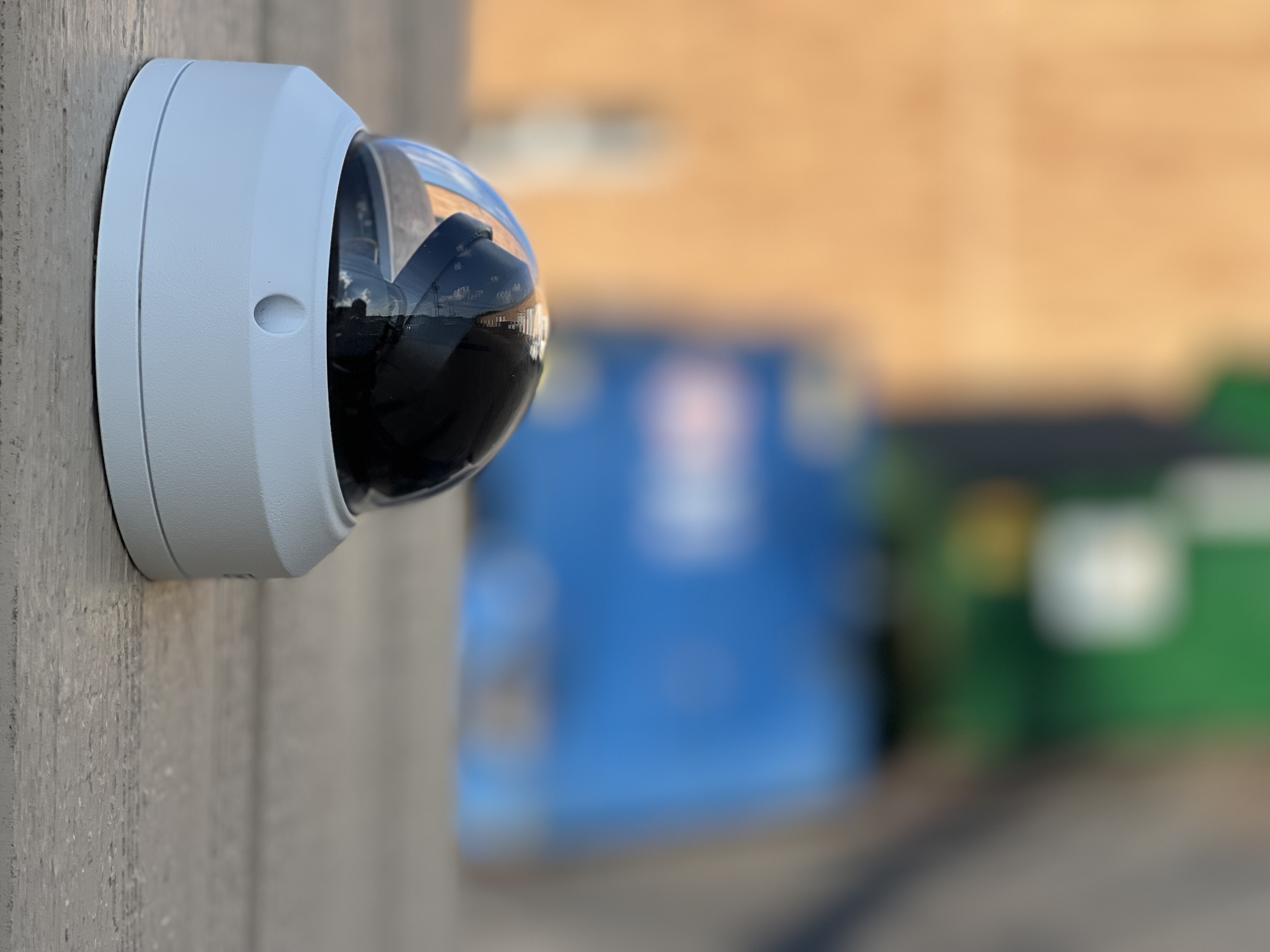

4K Infrared Vandal Dome Cameras

This 4K security camera system includes two 8-megapixel (4K) ultra-high-definition infrared vandal dome cameras, perfect for both indoor and outdoor use. Key features include:

110-degree wide-angle lens for comprehensive coverage
Night vision up to 100ft for clear imaging in low-light conditions
Vandal-proof design, ideal for low-mount or accessible installations
3-axis lens for flexible mounting on ceilings or walls
Built-in microphone for audio recording
Color at night technology for vivid low-light images
Wide Dynamic Range (WDR) to counter intense lighting glare
H.265 video compression for extended storage efficiency
Ultra Motion Detection (UMD) with AI to focus on human and vehicle activity, reducing false alerts

These advanced cameras deliver superior video quality and reliable motion notifications, instantly sent to your smartphone or tablet, ensuring you stay informed of critical events.

Complete System Package

This 4K security camera system includes everything needed for a hassle-free installation:

(1) 4 Channel Network Video Recorder
(1) 2 Terabyte Surveillance Grade Hard Drive (installed)
(2) 4K IP Infrared Indoor/Outdoor Vandal Dome Security Cameras with Microphone and Night Vision
(2) 100ft CAT5e Cables
Optional High Definition LCD Monitor
Quick Start Guide
Free Remote Viewing Software and Apps
Video Surveillance Warning Stickers and Aluminum Sign

Easy Installation and Support

Installing this security camera system is straightforward with the included step-by-step guide. Our USA-based technical support team is available Monday through Friday at (888) 653-2288 to assist with any questions. The system comes with a 3-Year Warranty, Free USA Technical Support, and a 100% Money Back Guarantee for your peace of mind.

Security Camera Specifications:

Technical Specification
Camera
Sensor	1/3", 8.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0
DORI Distance	Lens	Detect(m)		Observe(m)	Recognize(m)		Identify(m)
	2.8mm	84		33.6	16.8		8.4

Angle of View (H)	112.7°
Angle of View (V)	60.1°
Angle of View (D)	146.5°
Adjustment angle	Pan: 0°~360°		Tilt: 0°~68°			Rotate: 0°~360°
Shutter	Auto/Manual, 1~1/100000 s
Minimum Illumination	Colour: 0.05 Lux (F2.0, AGC ON) 0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>56dB
IR Range	Up to 30m (98 ft) IR range
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline Profile, Main Profile
Frame Rate	Main Stream:8MP (38402160): Max. 20 fps; 5MP (25921944): Max. 30 fps; 5MP(29441656): Max. 30 fps; 4MP(25601440): Max. 30 fps; 2MP(19201080): Max. 30 fps Sub Stream:720P (1280720): Max. 20 fps Third Stream:D1 (720*576): Max. 20 fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
Interface
Network	10/100M Base-TX Ethernet
Built-In Mic	Supported
General
Power	DC12V±25%, PoE (IEEE802.3 af)
Power	Power consumption: Max 4.5w
Dimensions (Ø x H)	Φ108.7 x 83mm (Ø4.3" x 3.3")
Weight	0.37kg (0.82lb)
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity: ≤95% RH(non-condensing)
Ingress Protection	IP67
Vandal Resistant	IK10

About the Network Video Recorder:

Features:

Support Ultra 265/H.265/H.264 video formats
4-channel input
Plug & Play with 4 independent PoE network interfaces
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA
HDMI and VGA simultaneous output
1 SATA HDD up to 10 TB
Support cloud upgrade

TECHNICAL SPECIFICATIONS
Video/Audio Input
IP Video Input	4-ch
Audio Input	1-ch, RCA
Network
Incoming Bandwidth	80Mbps
Outgoing Bandwidth	64Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output	HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
Recording Resolution	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Two-way Audio	1-ch, RCA(Using the audio input and output)
Audio Compression	G.711A, G.711U
Synchronous Playback	4-ch
Liveview display	1/4
Corridor Mode Screen	3/4
Snapshot
FTP/Schedule/Event Snapshot	4-ch snapshot, up to D1 resolution
Decoding
Decoding format	Ultra 265/H.265
Live view/Playback	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 9 x 4MP@25, 10 x 3MP@30, 16 x 1080p@30
Hard Disk
SATA	1 SATA interfaces
Capacity	Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature)
Smart
VCA Detection by Camera	Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, SMD(Smart Motion Detection)
VCA Search	Behavior Search, People Counting Report
People counting	People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), SMD by Camera	Total 4-ch
General Alarm
General Alarm	Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface	1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB Interface	Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
RS232	NA
RS485	NA
Alarm In	NA
Alarm Out	NA
PoE
Interface	4 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power	Max 30W for single port Max 50W in total
Supported Standard	IEEE 802.3af/at
General
Power Supply	48V DC/1.35A Power Consumption: ≤ 10W (without HDD)
Working Environment	-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)	260mm × 222mm × 47mm (10.2" × 8.7" × 1.8")
Weight (without HDD)	≤ 0.98Kg (2.16lb)

NVR FEATURES

4K Ultra High Definition
4 PoE Camera Inputs
Remote Viewing – No Monthly Fees
H.265 High Video Compression
80 Mbps Incoming Bandwidth
HDMI and VGA Display Output
1 Hard Drive Bay

IP CAMERA FEATURES

4K 8 Megapixel IP Camera (3840×2160)
2.8mm Lens (110° Wide Angle View)
Up to 100ft Infrared Night Vision
Starlight - low light performance
Built-in Microphone
H.265 Video Compression
Weatherproof, Vandalproof (IP67, IK10)
Wide Dynamic Range (120dB)
Power Over Ethernet - PoE
Measurement: 3.2" H x 4.3" D

Approximate Distances:
Identify (Up to 28ft)
Recognize (Up to 56ft)
Detect (Up to 276ft)
