32-Camera 4K PoE Black Vandal Dome Security Camera System

Model: SV-32IPVP8-B-N
32-Camera 4K PoE Black Vandal Dome Security Camera System
30-Day Money-Back Guarantee
3-Year Product Warranty
Unlimited Live USA Support
Free Shipping
4.8/5 Google Rating 325 Google Reviews

Choose Options:

Required selections are marked Required. All other choices are optional upgrades.

Current price$13,129.99
Secure Checkout 30-Day Money-Back Guarantee Expert Help: 888-653-2288

SureVision Camera Features Video

SureVision • SV-32IPVP8-B-N

32 Camera 4K Vandal-Resistant Dome Security Camera System

Clear Video. Local Recording. Professional Support.

Coverage That Fits Your Property

Build a clear picture of your property with 32 SureVision 4K vandal-resistant dome cameras working together in one recording system. This package is a practical fit for a substantial site where many entrances, work areas and perimeter approaches need their own camera views. Rather than relying on a single camera to see everything, you can place individual views where they are useful and review them together. The right layout depends on the distances, obstructions and lighting at your property; our team can help you plan coverage before installation.

Professional Security, Backed by Experience

CCTV Security Pros has helped businesses, government organizations and homeowners choose professional surveillance since 2008. That experience matters when you are deciding where to place cameras, how much coverage you need and which recording options fit your property. This SureVision system combines a hardwired camera network with local recording and practical remote-viewing tools, backed by a U.S.-based team that can help with setup and getting the most from your system.

Your cameras and recorder

SV-VP8-B-N
32 × SV-VP8-B-N
SV-NVR432-N
SureVision 32-channel NVR • SV-NVR432-N

A Wide View for Everyday Protection

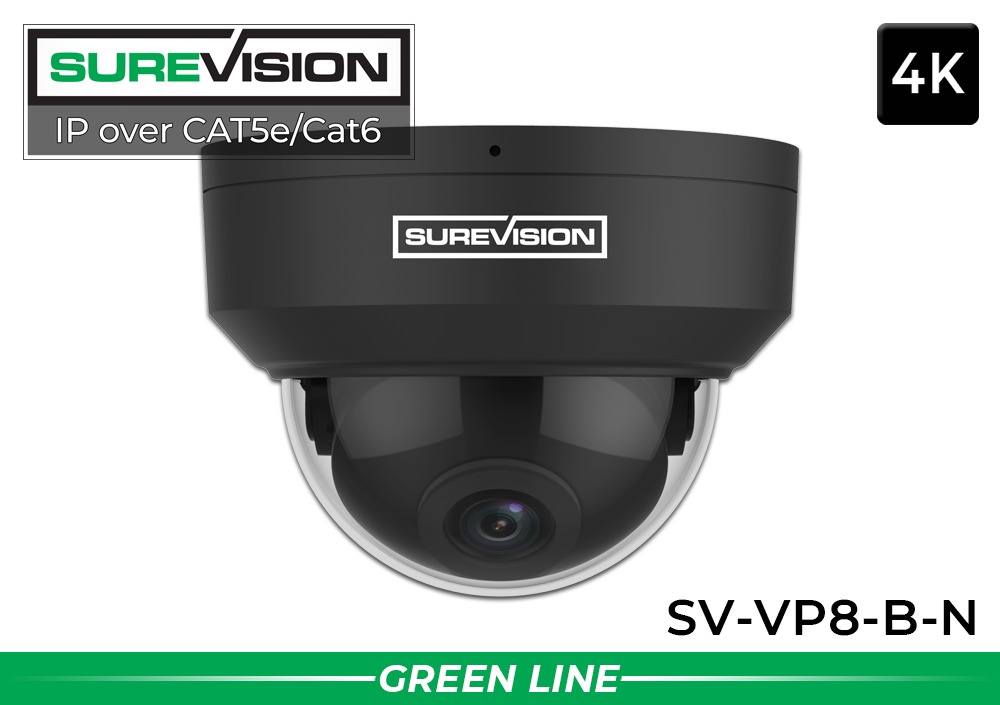

Each camera combines 8MP / 4K video with a fixed 2.8mm lens. That wide view is useful for seeing a broad area from one mounting position, such as an entrance, room or open work area. The compact dome housing suits entrances, customer-facing areas and locations where a lower-profile camera is preferred. IP67 weather resistance and IK10 impact resistance make it a practical choice for exposed or accessible mounting locations. Choose the mounting position to balance overall coverage with the detail you want to see.

Clarity After Dark

Built-in infrared illumination supports nighttime viewing up to 98.4 feet—approximately 100 feet, with performance depending on the scene, placement and lighting. Infrared provides black-and-white viewing after dark, while the built-in microphone adds sound to the picture where audio recording is appropriate and permitted. Together, the wide lens, 8MP / 4K resolution and nighttime illumination make this a useful everyday surveillance choice for entrances, rooms and outdoor activity areas.

Recording and Review in One Place

The currently selected package pairs these 32 cameras with the SV-NVR432-N 32-channel network video recorder and 6TB of surveillance storage. The recorder brings your camera views together for live monitoring, playback, searches and video export. This 32-camera package uses the recorder’s 32 camera channels, giving you a complete set of views within that capacity. Storage upgrades and other available choices are shown in the product options. Your footage is stored locally; recording settings and activity determine how long the available storage lasts.

Straightforward Wired Installation

The selected package includes 32 premade 100-foot Cat5 camera cables and two 16-port PoE switches. A single network cable carries power and video from each camera to a PoE switch, with the switches and recorder connected through the network. This arrangement gives a larger property an organized wired installation rather than relying on separate wireless camera connections. Plan cable routes and mounting positions around your building layout; our team can help with placement, network setup and remote access.

Stay Connected With Real Support

Use the compatible app or desktop software to check live views and review recordings from your phone or computer. Local recording stays on your recorder, with an internet connection required for remote access outside the property. There are no required monthly recording or remote-viewing fees for this wired system, apart from your own internet service. Your purchase includes a three-year limited warranty, a money-back guarantee and free unlimited U.S.-based technical support under the applicable terms. A free surveillance yard sign and warning stickers are included with complete systems to let visitors know the property is monitored.

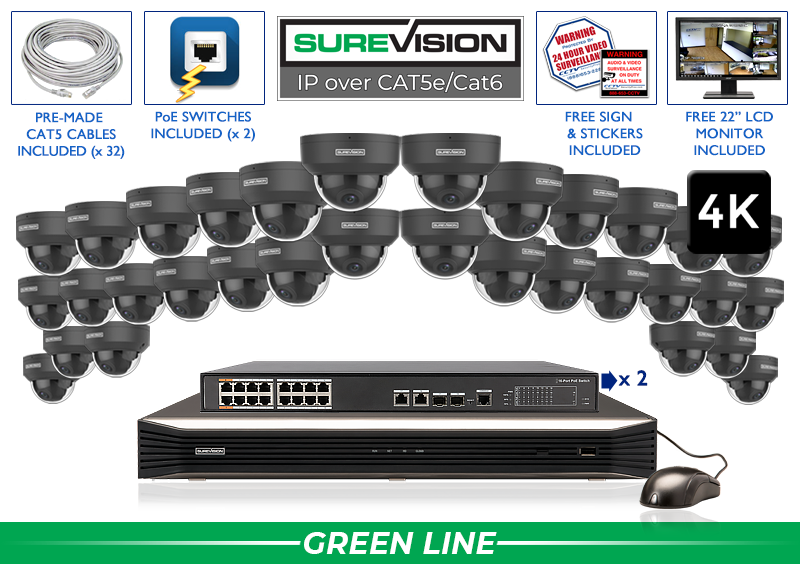

What’s included

  • 32 SureVision cameras (SV-VP8-B-N)
  • 1 SureVision 32-channel NVR (SV-NVR432-N)
  • 6 TB surveillance hard drive installed
  • 32 × 100-foot premade Cat5 camera cables
  • 2 x 16 Port POE Switch

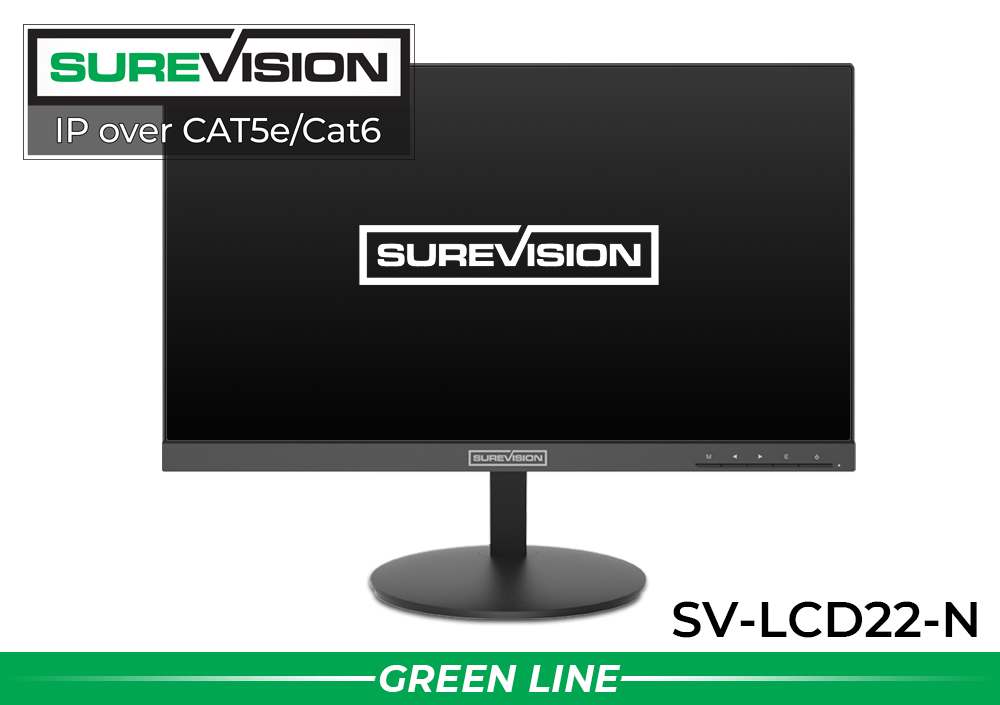

  • 1 free 22-inch SureVision monitor (SV-LCD22-N)
  • Free remote-viewing app and software
  • Unlimited U.S.-based technical support

Storage upgrades, cable choices, and monitor options follow the configuration selected when ordering.

Common questions

Can I zoom in?

Digital zoom lets you enlarge part of the image for a closer look.

Is internet needed to record?

The NVR records locally. Internet is needed for remote access from outside the property.

Does this system record sound?

Built-in microphone.

Full Technical Specifications

Full camera specifications — SV-VP8-B-N

Max Resolution8 MP
Sensor1/2.7" CMOS
Min. IlluminationColor: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 68°, Rotate: 0° to 360°
S/N>52 dB
WDR120 dB
Focal Length2.8 mm
Iris TypeFixed
IrisF1.6
Field of View (H)111.1°
Field of View (V)58.8°
Field of View (D)134.6°
Supplemental LightIR
Illumination Distance (IR)30 m (98.4 ft.)
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame RateMain Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2688 × 1520), max. 30 fps; 1080P (1920 × 1080), max. 30 fps. Sub Stream: 720P, D1, 640 × 360, max. 30 fps.
Video Bit Rate128 Kbps to 16384 Kbps
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
HLC/BLC/DefogSupport / Support / Digital defog
Basic DetectionCross line, intrusion, enter area, leave area, motion detection, tampering alarm
Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, 802.1x, SNMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ProtectionIK10, IP67
PowerDC 12 V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax. 5.5 W
MaterialMetal + Plastic
Working Environment-30 C to 60 C (-22 F to 140 F), ≤ 95% RH (non-condensing)
Reset ButtonSupport

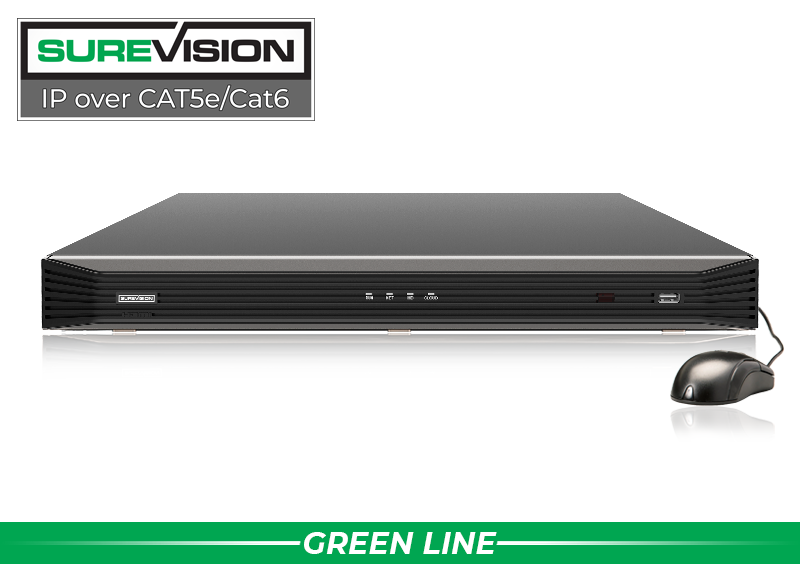

Full recorder specifications — SV-NVR432-N

ModelSV-NVR432-N
Included Storage6TB surveillance-grade storage, preinstalled
Decoding
Decoding FormatUltra 265, H.265, H.264
Decoding CapabilityUltra 265/H.265: 2 × 16MP@30, 2 × 12MP@30, 4 × 4K@30, 6 × 5MP@30, 8 × 4MP@30, 10 × 3MP@30, 16 × 1080P@30, 32 × 960P@25
H.264: 2 × 16MP (4800×2688)@30, 2 × 12MP@30, 2 × 4K@30, 4 × 5MP@30, 6 × 4MP@30, 8 × 3MP@30, 14 × 1080P@30, 30 × 720P@30, 32 × D1
Capability DescriptionThe resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width. For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, clear the VGA video on the preview page.
Audio CompressionG.711A, G.711U
Network
Incoming Bandwidth320 Mbps
Outgoing Bandwidth160 Mbps
ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, 802.1x, IPv6, IPv4
BrowserIE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video / Audio Input
IP Video Input32-ch
RCA Audio Input1-ch
Video / Audio Output
HDMI Output4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output1-ch
Liveview Display1 / 4 / 6 / 8 / 9 / 16 / 25 / 32
Corridor Mode Screen3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 / 32
Two-Way Audio
Two-Way Audio1-ch, RCA (using the audio input and output)
Snapshot
FTP / Schedule / Event Snapshot4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
Recording
Recording Resolution16 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Synchronous Playback in Local16-ch
Smart
Smart by IPCAll channels (up to 8 images/s in total): Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
VCA SearchFace Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
Alarm
General AlarmDefocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert AlarmIP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
Languages38 languages including Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA4 SATA interfaces
Included Hard Drive6TB surveillance-grade storage, preinstalled
CapacityUp to 24 TB for each HDD (maximum HDD capacity varies with environment temperature and hard disk size; environment temperature should not exceed 40°C)
Disk GroupSupport
Redundant StorageSupport
Disk Array TypeRAID 1, 5
External Interface
Network Interface2 RJ45 10 M / 100 M / 1000 M self-adaptive Ethernet interfaces
RS232N/A
Alarm In16-ch
Alarm Out4-ch
Power SupplyDC 12 V / 5 A
Power SwitchSupport
Working Environment
Working Temperature-10°C to 55°C (14°F to 131°F)
Working Humidity≤ 90% RH (non-condensing)
Power Consumption (without HDD)≤ 20W
Weight (without HDD)≤ 3.4 kg (7.50 lb)
Dimensions440 mm × 344 mm × 48 mm (17.3" × 13.5" × 1.9")
Certification
CertificationCE; FCC; UL; RoHS; WEEE
