SureVision NVR Features Video
Complete Security Camera System with Cameras and Recorder
A professional 16-channel 4k IP security camera system with audio gives you a complete wired surveillance package built for stable recording, easier installation, and long-term reliability. This system combines eight SureVision SV-B8IR-N 8MP (4K) IP bullet cameras with built-in microphones, a 16-channel network video recorder, Cat5e camera cables, free remote viewing software, and advanced monitoring tools into one premium package.
Unlike consumer-grade wireless kits that depend on unstable Wi-Fi or paid cloud plans, these systems use direct PoE wiring from camera to recorder. That means cleaner installation, more dependable video transmission, and local recording you control. Each camera simply snaps into the recorder with a Cat5e cable, making the setup much easier than most buyers expect while still delivering professional performance.
Every package on this 8-camera page is designed around the features that matter most: dependable local recording, remote viewing, easy playback, future expansion capacity, and no monthly fees for core recording. Looking for more options? Browse all security camera systems, compare IP security cameras, or view compatible NVR recorders to build the right solution for your property.
Why Professionals Choose This System
- Plug-and-play installation with one Cat5e cable per camera
- Free remote viewing for iPhone, Android, PC, and Mac
- No monthly fees or cloud plan required for core recording
- 3-year warranty, money-back protection, and lifetime support
8 Camera 4K Ultra HD PoE Security Camera System with Audio and 16-Channel NVR
This 8-camera system is built for buyers who want a premium wired solution with better long-term reliability, stronger image quality, and a more professional ownership experience than typical consumer kits. It is a strong fit for homes, offices, retail stores, warehouses, service businesses, church campuses, restaurants, and mixed indoor/outdoor properties that need broad coverage from one recorder.
Because the recorder supports up to 16 channels, this package gives you eight cameras now while preserving future expansion headroom. That makes it especially attractive for customers who may want to add cameras later instead of replacing the recorder. The included software and mobile apps also make it practical for owners, managers, and installers who want live view, playback, and recorded video search tools without extra monthly charges.
These 8MP bullet cameras are built for customers who want 4K image quality combined with stronger outdoor emphasis and longer-range night vision. The bullet body is ideal for driveways, lot edges, building perimeters, gates, and other areas where you want a more directional camera style and more visible deterrence. With 8MP resolution, this family delivers significantly more pixel detail than standard HD and 4MP options, which is especially valuable when reviewing wider scenes or digitally zooming in during playback. Built-in audio adds more context to events, while the wide-angle 2.8mm lens helps cover large outdoor zones efficiently. These cameras are also part of the color-at-night / long-range IR family shown on your 8-camera page, making them a strong fit for properties that need better after-hours visibility without moving to PTZ or specialty camera models. As part of a PoE system, they remain easy to install, stable, and well suited for premium residential or commercial surveillance. This particular SKU is positioned as a premium bullet solution for buyers who want professional-grade surveillance rather than a basic consumer app camera. With room to expand on the included 16-channel recorder, it also protects your investment if you need to add cameras later.
Professional Security Cameras
These 8MP bullet cameras are built for customers who want 4K image quality combined with stronger outdoor emphasis and longer-range night vision. The bullet body is ideal for driveways, lot edges, building perimeters, gates, and other areas where you want a more directional camera style and more visible deterrence. With 8MP resolution, this family delivers significantly more pixel detail than standard HD and 4MP options, which is especially valuable when reviewing wider scenes or digitally zooming in during playback. Built-in audio adds more context to events, while the wide-angle 2.8mm lens helps cover large outdoor zones efficiently. These cameras are also part of the color-at-night / long-range IR family shown on your 8-camera page, making them a strong fit for properties that need better after-hours visibility without moving to PTZ or specialty camera models. As part of a PoE system, they remain easy to install, stable, and well suited for premium residential or commercial surveillance.

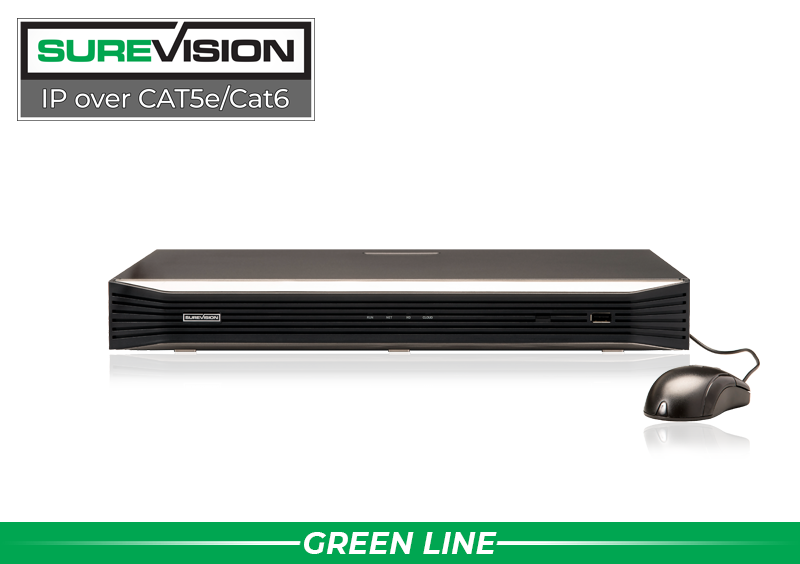

Network Video Recorder (NVR)
The included 16-channel network video recorder is the control center of this system. It provides local recording, PoE power for the cameras, 4K-class output, remote access, and the built-in tools that make a professional wired system easier to manage over the long term. Because video is stored locally on the recorder, you keep full control of your footage and avoid recurring subscription costs. This recorder family supports up to 16 camera inputs, so even when you start with an 8-camera package, you still have room to expand later. It also supports live view, playback, time-and-date recorded video search, HDMI/VGA display output, mobile and desktop remote viewing, system management, and dual hard-drive bays for larger storage options. For customers who want a premium system rather than a throwaway consumer kit, the recorder is one of the biggest reasons these packages perform like real surveillance systems instead of simple app gadgets.
What’s Included with This System

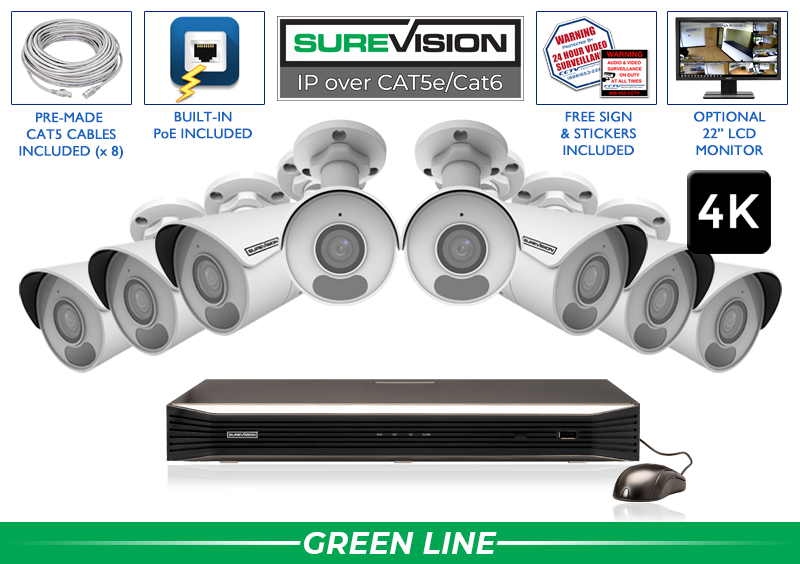

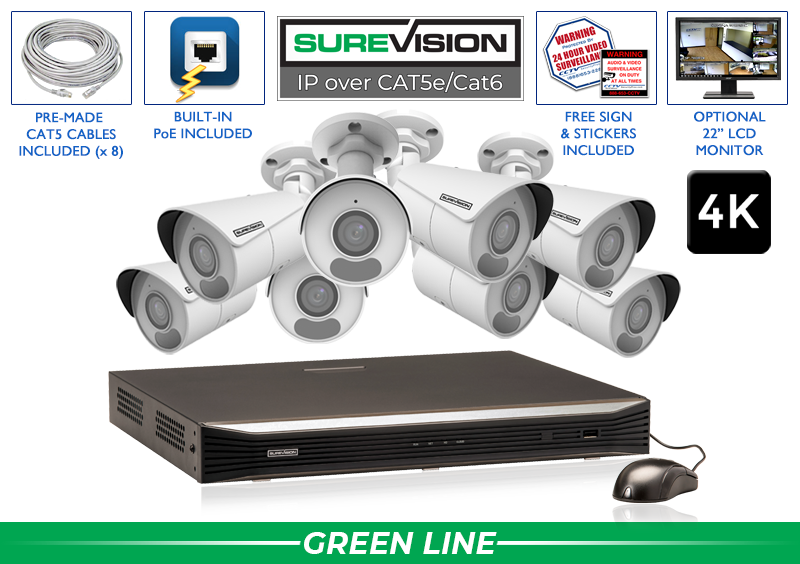

- 8 professional SureVision SV-B8IR-N 8MP 4K IP bullet security cameras
- FREE upgrade to a 16-channel PoE network video recorder with capacity for up to 8 additional cameras
- 2TB surveillance-grade hard drive installed
- Cat5e camera cables for each camera
- Free remote viewing apps and desktop software
- No monthly fees for core local recording
- 3-year warranty and lifetime technical support
SV-B8IR-N Camera Technical Specifications
| Feature | Specification |
|---|---|
| SureVision Model | SV-B8IR-N |
| Camera Type | 4K 8MP mini fixed bullet IP security camera |
| Maximum Resolution | 8MP / 4K Ultra HD, 3840 × 2160 |
| Image Sensor | 1/2.7" CMOS |
| Minimum Illumination | Color: 0.01 Lux at F1.6 with AGC on; 0 Lux with infrared on |
| Day / Night | IR-cut filter with automatic switching (ICR) |
| Shutter | Auto / Manual, 1 to 1/100000 second |
| Adjustment Angle | Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360° |
| Signal-to-Noise Ratio | Greater than 52 dB |
| Wide Dynamic Range | True 120 dB WDR |
| Lens & Viewing Angle | |
| Focal Length | 2.8mm fixed lens |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Horizontal Field of View | 107.0° |
| Vertical Field of View | 59.7° |
| Diagonal Field of View | 111.5° |
| Approximate Distances | |
| Detect | Up to 206.7 ft. (63.0 m) |
| Observe | Up to 82.7 ft. (25.2 m) |
| Recognize | Up to 41.3 ft. (12.6 m) |
| Identify | Up to 20.7 ft. (6.3 m) |
| Infrared Night Vision | |
| Supplemental Light | Infrared |
| Infrared Distance | Up to 30 m (98.4 ft.); marketed as up to 100 ft. |
| Infrared Wavelength | 850 nm |
| IR Control | Auto / Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Profile | Baseline, Main, and High profiles |
| Main Stream | 8MP (3840 × 2160) at 15 fps; 5MP (2880 × 1620) at 25/20 fps; 4MP (2560 × 1440) at 25/20 fps; 3MP (2304 × 1296) at 30/25 fps; 1080p (1920 × 1080) at 30/25 fps |
| Sub Stream | 720p (1280 × 720) at 30/25 fps; D1 (720 × 576) up to 30 fps; 640 × 360 up to 30 fps |
| Video Bitrate | 128 Kbps to 16 Mbps |
| U-Code | Supported |
| OSD | Up to 4 OSD areas |
| Privacy Mask | Up to 4 areas |
| Region of Interest | Up to 8 areas |
| Video Streams | Dual streams |
| Corridor Mode | 9:16 supported |
| Image Processing | |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| Smart IR | Supported |
| Image Flip | Normal, vertical, horizontal, 180°, 90° clockwise, 90° counterclockwise |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital defog |
| Audio | |
| Built-In Microphone | Supported |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-Way Audio | Not supported |
| Noise Suppression | Supported |
| Sampling Rate | 8 kHz |
| Storage | |
| MicroSD Edge Storage | Up to 512GB |
| Network Storage | ANR and NAS via NFS |
| Network & Cybersecurity | |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE |
| Compatible Integration | ONVIF Profiles S, G, and T; API; SDK |
| Users | Up to 32 users with administrator, operator, and common-user levels |
| Security | Password protection, strong-password support, HTTPS encryption, operation-log export, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE, and ONVIF digest authentication |
| Client Software | Mobile app and Guard Station |
| Web Browser Support | Plug-in live view: Internet Explorer 10+, Chrome 45+, Firefox 52+, Edge 79+; plug-in-free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interfaces | |
| Network Interface | 1 × RJ45 10/100 Base-TX Ethernet |
| Audio Input / Output | Not available; built-in microphone included |
| Alarm Input / Output | Not available |
| Serial Port | Not available |
| Built-In Speaker | Not available |
| Wi-Fi | Not available |
| Video Output | Not available |
| Reset Button | Not available |
| Power, Construction & Environmental | |
| Power | 12V DC ±25% or PoE IEEE 802.3af |
| Maximum Power Consumption | 3.7 W |
| Power Interface | Ø5.5mm coaxial power connector |
| Construction | Metal |
| Weather Protection | IP67 |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Operating Humidity | Up to 95% RH, non-condensing |
| Storage Environment | -30°C to 60°C (-22°F to 140°F), up to 95% RH non-condensing |
| Surge Protection | 4 kV |
| Dimensions | 191 × 73 × 71 mm (7.5 × 2.9 × 2.8 in.) |
| Weight | 0.43 kg (0.95 lb.) |
| Certifications | |
| EMC | CE-EMC and FCC Part 15 B |
| Safety | CE LVD, CB, UL, and CUL |
| Environmental | RoHS and WEEE |
| Ingress Protection | IP67 (IEC 60529) |
Recorder (NVR) Technical Specifications
| Feature | Specification |
|---|---|
| IP Video Input | 16-channel |
| Two-way Audio Input | 1-channel RCA |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | Up to 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6 |
| Video Output | HDMI and VGA |
| HDMI Resolutions | Up to 4K (3840x2160)@30 plus 1080p, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-channel RCA; G.711A / G.711U |
| Synchronous Playback | 16-channel |
| Live View Layouts | 1 / 4 / 6 / 8 / 9 / 16 |
| Snapshot | FTP / schedule / event snapshot |
| Decoding Format | Ultra 265, H.265, H.264 |
| Drive Bays | 2 SATA bays |
| Drive Capacity | Up to 20TB per HDD |
| Alarm I/O | 8 alarm inputs / 2 alarm outputs |
| Network Interface | 1 RJ45 10/100/1000 self-adaptive Ethernet |
| PoE Ports | 16 x RJ-45 10/100 PoE interfaces |
| PoE Budget | 30W max per port / 240W total |
| Supported Standard | IEEE 802.3af/at |
| Power Supply | 100–240V AC |
| Recorder Size | 380 x 315 x 53mm (15.0" x 12.4" x 2.1") |
| Operating Environment | -10°C to +55°C, ≤90% RH non-condensing |
| Certifications | CE, FCC, UL, RoHS, WEEE |
Shop Professional Security Camera Systems by Camera Count
CCTV Security Pros offers complete security camera systems for properties of every size. Browse nearby system sizes, compare compatible IP security cameras, or view matching NVR recorders to build the right solution for your property.
How many security cameras do you need?
Choosing the right security camera system size depends on the number of entrances, exits, hallways, parking areas, and outdoor zones you want to monitor. Smaller properties may only need 2 or 4 cameras, while larger homes and businesses often need 8, 16, 24, 32, or even 64 camera systems for complete coverage. If you are unsure, our team can help size the right cameras, recorder, and storage for your layout.
