Crystal Clear Security: The Ultimate Protection
Unmatched Surveillance Quality
Elevate your security with the SureVision 4K Security Camera System. Designed for those who seek peace of mind, this system is powered by a professional-grade SureVision NVR unit, ensuring reliability and top-tier functionality. Experience uninterrupted 24/7 recording, sophisticated motion and object detection, and instant mobile alerts. With easy remote access from any device, keeping an eye on your premises has never been simpler or more effective.
Advanced Technology for Superior Safety
The heart of this system lies in the 8MP ultra high-definition infrared bullet cameras. Boasting a 110-degree wide-angle lens and astonishing 164ft night vision, these cameras are equipped to capture every detail, day or night. The built-in microphone for audio recording adds another layer of security, while the innovative color at night technology ensures illuminated images in low light conditions. Advanced features like WDR and H.265 video compression extend video storage time without compromising on quality.
Effortless Installation and Guaranteed Support
Setting up your security system shouldn't be complex. With our Complete High Definition IP Security Camera System, installation is straightforward, thanks to the included step-by-step guide and built-in PoE for easy plug-and-play setup. Backed by a 3-Year Warranty, Free USA Technical Support, and a 100% Money Back Guarantee, rest assured that help is always a phone call away. Our commitment to you extends beyond sale, ensuring your utmost satisfaction and security.
Installation of our IP camera systems is simple and easy. A simple step-by-step guide is included with every system. We are happy to answer any questions and assist you at (888) 653-2288.
*The equipment in this package is fully NDAA compliant and suitable for installation in government facilities and federally funded projects
This Complete HD Security Camera System includes:
- (1) 8 Channel Network Video Recorder
- (1) 2 TB Surveillance Grade Hard Drive (installed)
- (4) POE 4K Bullet Security Cameras with Night Vision - Microphone
- (4) 100 Foot CAT5e Cables
- High Definition LCD Monitor is OPTIONAL
- Quick Start Guide
- Free Remote Viewing Software and Apps
- Video Surveillance Aluminum Sign
About the Security Cameras:
Specifications:
• High quality image with 8MP, 1/2.7"CMOS sensor
• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Easystar technology ensures high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 50m (164ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
Camera | ||||||||
Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS | |||||||
Lens | 2.8mm@F1.6 | |||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
2.8 | 84.0 | 33.6 | 16.8 | 8.4 | ||||
Angle Of View (H) | 112.9° | |||||||
Angle Of View (V) | 59.1° | |||||||
Angle Of View (O) | 121.2° | |||||||
Adjustment Angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Minimum Illumination | Support Easystar: Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR |
|||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
S/N | >56dB | |||||||
IR Range | Up to 50m (164ft) IR range | |||||||
Wavelength | 850nm | |||||||
IR On/Off Control | Auto/Manual | |||||||
Defog | Digital Defog | |||||||
WDR | 120dB | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||||||
Video Bit Rate | 128 Kbps~16 Mbps | |||||||
9:16 Corridor Mode | Supported | |||||||
OSD | Up to 4 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Up to 8 areas | |||||||
Motion Detection | Up to 4 areas | |||||||
Image | ||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
Dewarping | N/A | |||||||
HLC | Supported | |||||||
BLC | Supported | |||||||
Audio | ||||||||
Audio Compression | G.711 | |||||||
Suppression | Supported | |||||||
Sampling Rate | 8KHZ | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 256GB | |||||||
Network Storage | ANR, NAS(NFS) | |||||||
Network | ||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
Client | SVStation SVTools |
|||||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | ||||||||
Interface | ||||||||
Network | 10/100M Base-TX Ethernet | |||||||
Built-in Mic | Supported | |||||||
Certifications | ||||||||
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
|||||||
General | ||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
Power consumption: Max 6.5W | ||||||||
Dimensions(L × W × H) | 190×73×71mm (7.5”×2.9”×2.8”) | |||||||
Net Weight | 0.45kg (0.99lb) | |||||||
Material | Metal | |||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
Surge Protection | 4KV | |||||||
Ingress Protection | IP67 | |||||||
Reset Button | Supported |

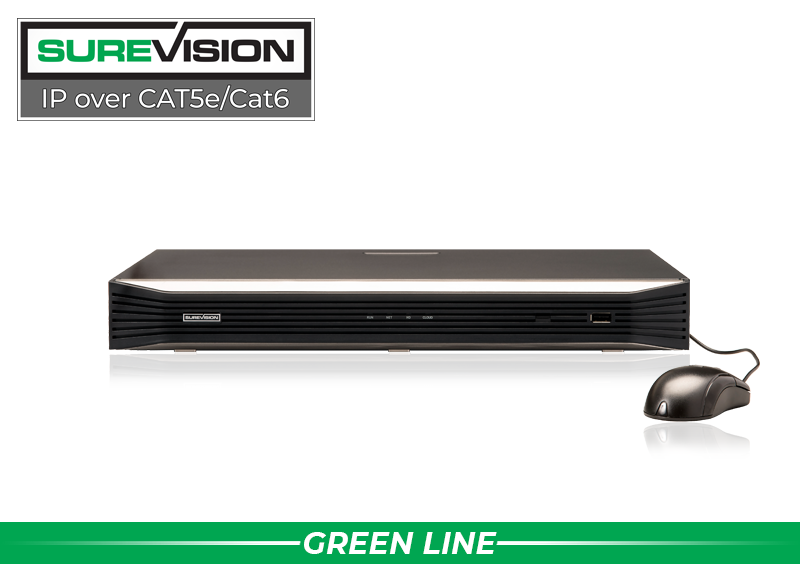

About our SureVision IP Camera Network Video Recorder:
Network Video Recorders are the most important part of any high quality IP surveillance system. Take advantage of our high-end, commercial-grade SUREVISION IP Camera NVRs at CCTV Security Pros to enjoy HD video quality live over the internet. Our full-featured and affordable IP camera recorders now offer up to 4K video resolution with multiple hard drive options that can be expanded for a flexible solution that fits your surveillance recording needs. Our SUREVISION IP NVR line is ONVIF compatible. SUREVISION is our latest and greatest line of IP Cameras. Order a SUREVISION IP NVR and treat yourself to a crystal clear, user friendly video recorder. View your cameras over the Internet, tablets, and cell phones as easy as 1-2-3.
TECHNICAL SPECIFICATIONS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Video/Audio Input | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Video Input | 8-ch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Two-way Audio Input | 1-ch, RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Incoming Bandwidth | 320Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Outgoing Bandwidth | 160Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Remote Users | 128 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video/Audio Output | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz,1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | 1-ch, RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression | G.711A, G.711U | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Synchronous Playback | 8-ch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Live View Display | 1/4/6/8/9 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Corridor Mode Screen | 3/4/5/7/9 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Snapshot | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
FTP/Schedule/Event Snapshot | 16-ch snapshot, up to 1080P resolution | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Decoding | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Decoding Format | Ultra 265, H.265, H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Live View/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Capability | 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 8 x 1080P@30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hard Disk | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SATA | 2 SATA interfaces | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Capacity | up to 10TB for each HDD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
eSATA | NA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Disk Group | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VCA Search | Behavior Search, Vehicle Search | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
People Counting | People Flow Counting, Crowd Density Monitoring | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Intrusion Prevention (SIP), Vehicle Detection by Camera | Total 8-ch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
External Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB Interface | Front panel: 1 x USB2.0,Rear panel: 1 x USB3.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS232 | NA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS485 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm In | 8-ch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Out | 2-ch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interface | 8 RJ-45 10M/100M self-adaptive Ethernet Interface | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max Power | Max 30W for single port Max 130W in total |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Supported Standard | IEEE 802.3af/at | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 100~240V AC Power Consumption: ≤ 15W (without HDD) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions (W×D×H) | 380mm × 315mm × 53mm (15.0" × 12.4"× 2.1") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight (without HDD) | ≤2.6Kg (5.73lb) |
*Always use SureVision cameras with SureVision NVR units for full-featured use and functionality.
8 CHANNEL NVR FEATURES
*Free Upgrade to 8ch Recorder!
- 4K Ultra High Definition
- 8 PoE Camera Inputs
- Remote Viewing – No Monthly Fees
- H.265 High Video Compression
- 320 Mbps Incoming Bandwidth
- HDMI and VGA Display Output
- 2 Hard Drive Bays
SECURITY CAMERA FEATURES
- 8 Megapixel IP Camera (3840×2160)
- 2.8mm Lens (110° Wide Angle View)
- Up to 164ft Infrared Night Vision
- Starlight - low light performance
- Built-in Microphone
- H.265 Video Compression
- Weatherproof - Indoor/Outdoor (IP67)
- Wide Dynamic Range - WDR (120dB)
- Power Over Ethernet - PoE
- Measurement: 7.5" L x 2.9" W x 2.8"
Identify (Up to 27ft)
Recognize (Up to 55ft)
Detect (Up to 275ft)
