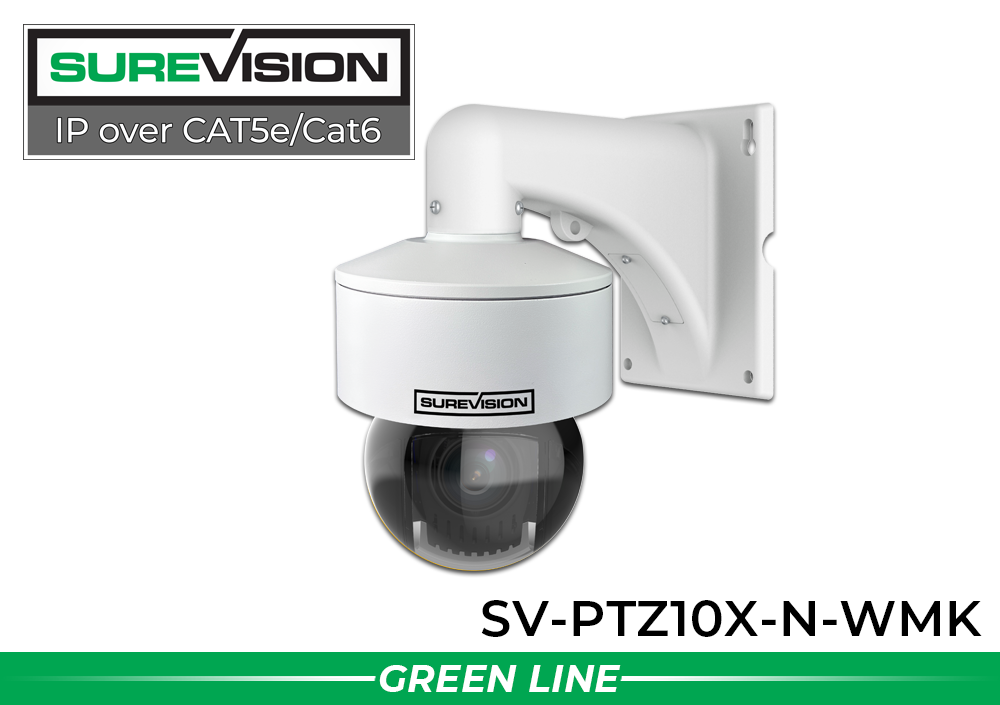

10X PTZ Security Camera with Dome Cover Adapter & Wall Mount | Auto Tracking & Night Vision | SV-PTZ10X-N-WMK
The SV-PTZ10X-N-WMK is a professional PTZ security camera with dome cover adapter and wall mount built for buyers who want remote camera control, meaningful optical zoom, intelligent tracking, and a clean wall-mounted installation solution in one complete package. This outdoor IP security camera wall mount kit includes the 10X PTZ camera, dome cover adapter, and wall mount kit ready for assembly, making it a strong fit for parking areas, entrances, lots, commercial properties, and building perimeters where one camera needs to cover more than a fixed security camera can handle.
With 10X optical zoom, auto tracking support, up to 328 feet of IR night vision, and free app plus PC viewing, this security camera helps buyers monitor larger scenes with more flexibility. This version simply includes the dome cover adapter and wall mount kit for a professional wall-mounted installation, while keeping the same powerful PTZ camera features, no monthly fees, and compatibility with a suitable NVR for recording, playback, and broader system management.
PTZ Security Camera 10X Optical Zoom 4MP IP Camera Auto Tracking 328ft IR Range Free App + PC Viewing Includes Dome Cover Adapter & Wall Mount
What This Security Camera Is Good For
This PTZ IP camera is ideal for buyers who want a balance of zoom range, remote camera control, and intelligent monitoring in a compact outdoor PTZ. It works especially well for commercial properties, entrances, lots, and perimeter areas where one camera needs to do more.
Includes Dome Cover Adapter & Wall Mount Kit
This SV-PTZ10X-N-WMK version includes the matching dome cover adapter and wall mount kit ready for assembly, giving installers a complete solution for a clean, professional wall-mounted PTZ security camera installation. The included adapter and wall mount help create a finished installation appearance while supporting proper mounting for commercial buildings, warehouses, schools, parking lots, retail locations, offices, and perimeter surveillance applications.
Free Remote Viewing, Notifications, and No Monthly Fees
Free mobile apps and desktop software let buyers remotely view live video, control the camera, and monitor activity without monthly subscription fees. That gives you stronger surveillance flexibility without recurring costs.
NVR Pairing Recommended for Recording and Review
This PTZ security camera wall mount kit can be used on its own, but for recording, playback, and easier long-term review, it is best paired with a compatible NVR.
Why Buyers Choose CCTV Security Pros
CCTV Security Pros helps buyers choose dependable surveillance equipment backed by expert guidance, strong compatibility, and long-term support. Every purchase includes expert support, a 3-year warranty, and a money-back satisfaction guarantee.
Call 888-653-2288 for Expert Guidance
Note: This SV-PTZ10X-N-WMK package includes the 10X PTZ security camera, dome cover adapter, and wall mount kit ready for assembly. It also includes free phone and PC viewing with no monthly fees. For full recording and playback, pair it with a compatible NVR.
Full Technical Specifications
Detailed specifications are provided below for design review, installer reference, procurement documentation, and SEO-friendly product comparison for this PTZ security camera wall mount kit.
Camera
| Max Resolution |
4 MP |
| Sensor |
1/2.9" CMOS |
| Min. Illumination |
Colour: 0.005 Lux (F1.78, AGC ON), 0 Lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| WDR |
120 dB |
| S/N |
>56 dB |
Lens, DORI & Illuminator
| Focal Length |
5.5 to 55 mm |
| Optical Zoom |
10X |
| Iris |
F1.78-F3.73 |
| Field of View (H) |
50.85°~3.47° |
| Field of View (V) |
29.94°~1.95° |
| Field of View (D) |
62.55°~4.09° |
| DORI Distance (Detect) |
127.6m~2048.4m(418.6ft~6720.5ft) |
| DORI Distance (Observe) |
51.0m~819.4m(167.4ft~2688.2ft) |
| DORI Distance (Recognize) |
25.5m~409.7m(83.7ft~1344.1ft) |
| DORI Distance (Identify) |
12.8m~204.8m(41.9ft~672.0ft) |
| Illumination Distance (IR) |
Up to 100m (328 ft) IR range |
| IR On/Off Control |
Auto/Manual |
| Wavelength |
850 nm |
Video, Image, Intelligent, Events & Audio
| Privacy Mask |
24 areas, up to 4 areas per scene |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Frame Rate |
Main Stream: 4MP(2688*1520), Max 30fps; Sub Stream: 720P(1280*720), Max 30fps |
| Video Bit Rate |
128 Kbps to 16 Mbps |
| U-code |
Support |
| ROI |
Support |
| Video Stream |
Dual Streams |
| OSD |
Up to 4 OSDs |
| Defog |
Digital Defog |
| White Balance |
Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction |
2D/3D DNR |
| Flip |
Normal, Flip Vertical, Flip Horizontal, 180° |
| HLC |
Support |
| BLC |
Support |
| Smart IR |
Support |
| Auto Tracking |
Support, target filtering: human and vehicle |
| Smart Intrusion Prevention |
Cross line detection, Intrusion detection (support false alarm filtering and the classification of human and vehicle) |
| Basic Detection |
Motion Detection, Tampering Alarm, Audio Detection |
| General Function |
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, Alarm Input |
| Audio Compression |
G.711U, G.711A |
| Audio Bitrate |
128 Kbps |
| Two-way Audio |
Support |
| Suppression |
Support |
| Sampling Rate |
16KHZ |
Storage, Network, PTZ, Interface, Certification & General
| Edge Storage |
Micro SD, up to 512 GB |
| Network Storage |
ANR, NAS (NFS) |
| User/Host |
Up to 32 users. 3 user levels: administrator, common user and operator |
| Protocols |
IPv4, IPv6, IGMP, RTP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API |
| Security |
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client |
EZStation, UNV-Link, UNV-Link Pro |
| Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Pan Range |
360° (endless) |
| Pan Speed |
0.1°/s~240°/s |
| Tilt Range |
-5°~90°(auto flip) |
| Tilt Speed |
0.1°/s~120°/s |
| Route Patrol |
16 patrols, up to 32 actions for each patrol |
| Recorded Patrol |
16 patrols, up to 128 actions for each patrol |
| Preset Patrol |
16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time |
15 s to 1800 s |
| Home Position |
Support |
| Audio I/O |
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O |
2/1 |
| Serial Port |
1*RS485 |
| Network |
1*RJ45 10M/100M Base-TX Ethernet |
| EMC |
CE-EMC, FCC |
| Safety |
CE LVD, UL |
| Environment |
CE-RoHS |
| Protection |
IP66, IK10 |
| Power |
DC12V(±10%,3A), PoE+(IEEE 802.3at) |
| Power Consumption |
Max 23W |
| Power Interface |
Ø5.5 mm coaxial power plug |
| Dimensions |
Ø 167 x 181mm (Ø 6.6” x 7.1”) (Ø x H) |
| Weight |
2.3Kg(5.07lb) |
| Working Environment |
-40 C~65 C (-40°F~149°F), Humidity: <=95% RH (non-condensing) |
| Storage Environment |
-40 C~70 C (-40°F~158°F), Humidity: <=95% RH (non-condensing) |
| Surge Protection |
6 KV |
| Reset Button |
Support |
