Security Camera System for Home or Business

Ultimate Surveillance Control

Experience Premium Quality and Reliability

This Security Camera System for Home and Business features our SureVision NVR (Network Video Recorder). This powerful unit supports 24/7 recording, motion recording, and object masking, ensuring every moment is captured with precision. The built-in PoE simplifies installation, allowing for cable runs over 800ft without the need for additional power sources. Trust in a system that delivers unparalleled function and reliability for peace of mind around the clock.

Cutting-edge Camera Technology

Advanced Features for Enhanced Security

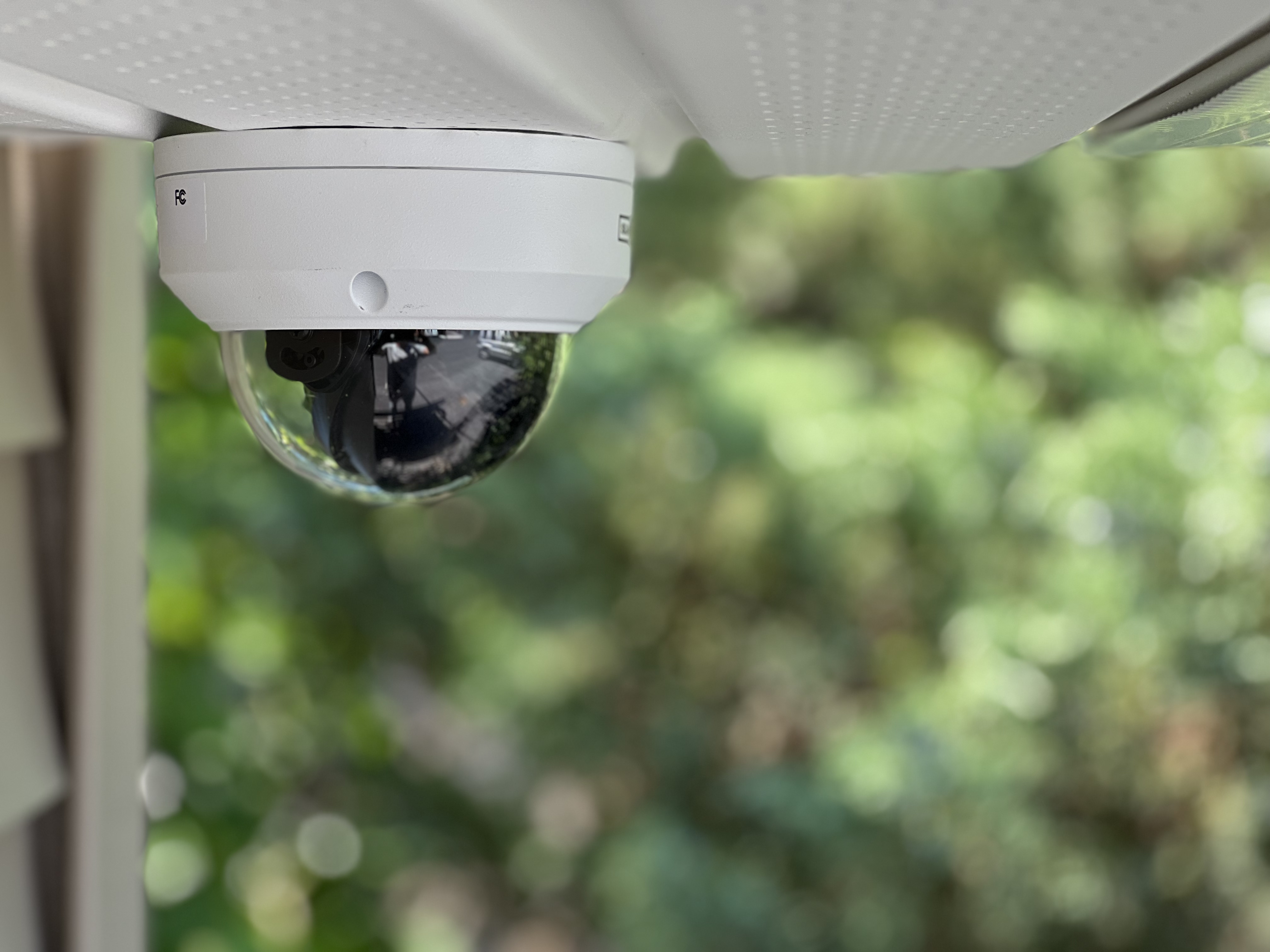

Equipped with a SureVision 2 megapixel infrared vandal dome style camera, this system stands out for its robust design and advanced technological integrations. The camera comes with a built-in microphone and offers exceptional night vision up to 100ft. Its Smart Motion Detection focuses on humans and vehicles, minimizing false alerts and ensuring you receive only the most critical notifications directly to your mobile device. Enhanced with WDR to address intense lighting and the latest H.265 compression, this camera ensures crisp, clear video footage and efficient storage management.

Effortless Setup and Support

Comprehensive Support for Easy Maintenance

Installation is a breeze with our easy-to-follow guide and built-in PoE for quick plug and play set-up. Our package includes a 3-year warranty and access to our USA based Technical Support team, ensuring that help is just a call away. Embrace simplicity with a system designed for easy maintenance and extended functionality, granting you more convenience and less hassle.

*The equipment in this package is fully NDAA compliant and suitable for installation in government facilities and federally funded projects

This Complete HD Security Camera System includes:

(1) 16 Channel 4K Network Video Recorder - SureVision
(1) 4TB Surveillance Grade Hard Drive (installed)
(16) Indoor / Outdoor Vandal 2MP Dome Security Cameras with 100 Foot Night Vision
(16) 100ft CAT5e Cables
High Definition LCD Monitor is INCLUDED
Quick Start Guide
Free Remote Viewing Software and Apps
Video Surveillance Aluminum Sign

Camera Specifications:

Technical Specification
Camera
Sensor	1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0
DORI Distance	Lens (mm)	Detect (m)		Observe (m)	Recognize (m)		Identify (m)
DORI Distance	2.8	42.0		16.8	8.4		4.2
Angle of view (H)	101.1°
Angle of View (V)	55.3°
Angle of View (O)	111.1°
Adjustment angle	Pan: 3° ~ 360°		Tilt: 0° ~ 68°			Rotate: 3° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.01Lux ( F2.0 AGC ON) 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
WDR	120dB
Video/Audio
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640*360,Max 30fps;
Video Bit Rate	128 Kbps~6144 kpbs
9:16 Corridor Mode	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Built-in Mic	Supported
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Supported
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping	N/A
HLC	Supported
BLC	Supported
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Client	SVStation SVTools
Web Browser	Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Web Browser	Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Storage
Edge Storage	Micro SD, up to 128 GB
Network Storage	ANR,NAS(NFS)
Interface
Network	10/100M Base-TX Ethernet
Certifications
Certifications	CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) FCC: (FCC 47 CFR part15 B)
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
Power	Power consumption: Max5.0W
Dimensions (Ø x H)	Φ109 x 83mm (Ø4.3” x 3.3”)
Net Weight	0.36kg (0.79lb)
Material	Metal + Plastic
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	4KV
Ingress Protection	IP67
Vandal Resistant	IK10
Reset Button	N/A

About our SUREVISION IP Camera Network Video Recorder:

Network Video Recorders are the most important part of any high quality IP surveillance system. Take advantage of our high-end, commercial-grade SUREVISION IP Camera NVRs at CCTV Security Pros to enjoy HD video quality live over the internet. Our full-featured and affordable IP camera recorders now offer up to 4K video resolution with multiple hard drive options that can be expanded for a flexible solution that fits your surveillance recording needs. Our SUREVISION IP NVR line is ONVIF compatible. SUREVISION is our latest and greatest line of IP Cameras. Order a SUREVISION IP NVR and treat yourself to a crystal clear, user friendly video recorder. View your cameras over the Internet, tablets, and cell phones as easy as 1-2-3.

Technical Specification
Video/Audio Input
IP Video Input	16-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	320Mbps
Outgoing Bandwidth	160Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6
Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output	HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
Recording Resolution	16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Audio Compression	G.711A, G.711U
Synchronous Playback	16-ch
Live View Display	1/4/6/8/9/16
Corridor Mode Screen	3/4/5/7/9/10/12/16
Snapshot
FTP/Schedule/Event Snapshot	4-ch snapshot, up to D1 resolution
Decoding
Decoding Format	Ultra 265, H.265, H.264
Live View/Playback	16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
Hard Disk
SATA	2 SATA interfaces
Capacity	up to 20TB for each HDD
eSATA	NA
Disk Group	Support
Smart
VCA Detection by Camera	Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring
VCA Search	Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
People Counting	People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), Vehicle Detection by Camera	Total 8-ch
General Alarm
General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface	1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface	Front panel: 1 x USB2.0,Rear panel: 1 x USB3.0
RS232	NA
RS485	1
Alarm In	8-ch
Alarm Out	2-ch
PoE
Interface	16 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power	Max 30W for single port Max 240W in total
Supported Standard	IEEE 802.3af/at
General
Power Supply	100~240V AC Power Consumption: ≤ 20W (without HDD)
Working Environment	-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)	380mm × 315mm × 53mm (15.0" × 12.4"× 2.1")
Weight (without HDD)	≤2.6Kg (5.73lb)
Certification
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B

SECURITY CAMERA FEATURES

2 IP Camera for Home or Business (1920x1080)
2.8mm Lens (110° Wide Angle View)
Up to 100ft Infrared Night Vision
Built-in Microphone
H.265 Video Compression
Weatherproof, Vandalproof (IP67, IK10)
Wide Dynamic Range (120dB)
Power Over Ethernet - PoE
Measurement: 3.2" H x 4.3" D

Approximate Distances:
Identify (Up to 14ft)
Recognize (Up to 28ft)
Detect (Up to 138ft)
