SureVision Professional-Grade IP Security Camera System with 4× Motorized Adjustable Lens & 164ft Night Vision

The SureVision Professional-Grade IP Security Camera System is built with professional-grade IP cameras designed to deliver better reliability, image quality, and long-term performance than consumer or entry-level systems. Each camera features a motorized adjustable 2.8–12mm lens with true 4× optical zoom, allowing easy adjustment between wide coverage and close-up detail. Enhanced low-light imaging and 164ft infrared night vision provide clear video day or night, while remote viewing, playback, and instant alerts are available from a computer or smartphone with no monthly fees.

Professional Video Quality & Night Performance

4MP High-Resolution Video: Sharp, detailed images for identification and evidence.
Motorized 2.8–12mm Varifocal Lens: Adjust field of view remotely without repositioning cameras.
True 4× Optical Zoom: Maintain image clarity while zooming in.
164ft Infrared Night Vision: Reliable visibility in complete darkness.
Enhanced Low-Light Imaging: Clearer video in dimly lit environments.
Wide Dynamic Range (WDR): Balanced images in scenes with bright and dark areas.

Flexible Recording & Smart Monitoring

24/7 Continuous or Motion-Based Recording
Per-Camera Configuration: Customize recording modes and alerts individually.
Smart Motion Detection: Alerts only when activity is detected.
Instant Notifications: Stay informed in real time.

Remote Viewing with No Monthly Fees

Live & Recorded Video Access
View from Computer, Tablet, or Smartphone
Secure Remote Connectivity
No Subscriptions or Ongoing Costs

Simple Professional Installation

Power over Ethernet (PoE): One cable for power and data.
Automatic Camera Detection: Quick and straightforward setup.
Preconfigured System Settings: Designed for professional security use.

Professional-Grade Reliability

Commercial-Grade Components: Built for continuous operation.
Stable IP Network Performance
Designed for Long-Term Dependability

Designed for Professional Security Applications

Ideal for commercial buildings, offices, warehouses, retail locations, parking areas, and professional residential security, the SureVision Professional-Grade IP Security Camera System delivers flexible coverage, dependable performance, and full remote access without subscription costs.

What’s Included with Your SureVision System

(1) 4 Channel SureVision HD Network Video Recorder (NVR)
(1) 2TB Surveillance-Grade Hard Drive (installed)

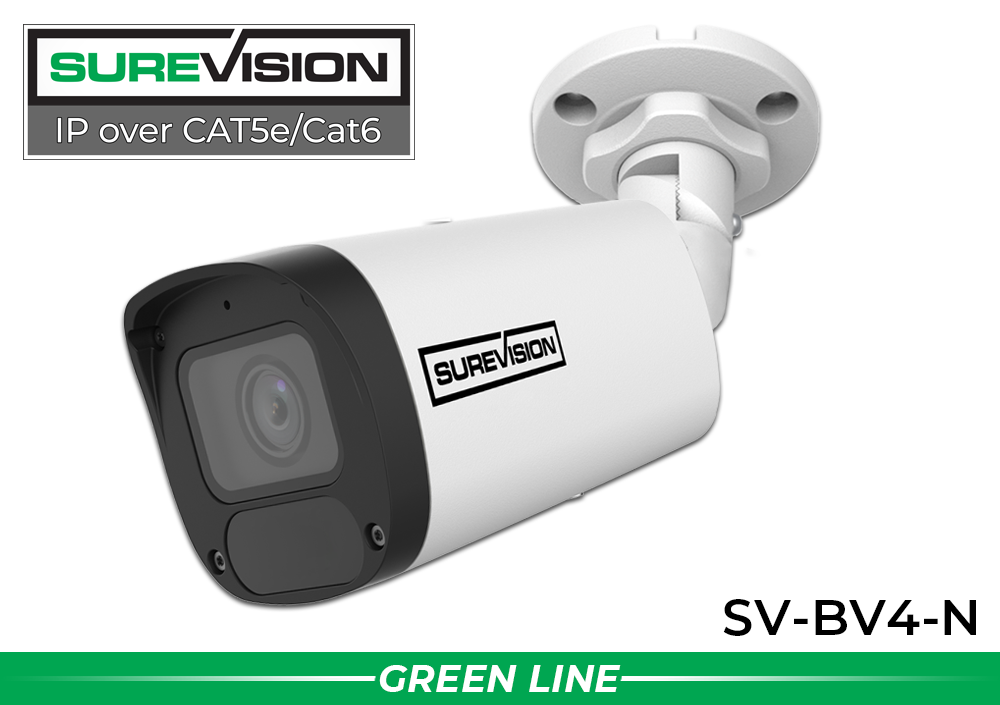

(2) 4MP Motorized Infrared Bullet IP Security Cameras with 2.8–12mm adjustable zoom lens
(2) 100ft CAT5e Ethernet Cables
High-Definition LCD Monitor (optional)
Quick Start Instruction Guide
Free Remote Viewing Software & Mobile Apps
Video Surveillance Warning Sign

Motorized Zoom Lens Features

Cameras Specifications:

Technical Specification
Camera
Max Resolution	4 MP
Sensor	1/3.0" CMOS
Minimum Illumination	Color: 0.003 Lux (F1.6, AGC ON) 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 90°			Rotate: 0° ~ 360°
S/N	>52 dB
WDR	120 dB
Lens	2.8 ~ 12 mm
Iris Type	Fixed
Iris	F1.6
DORI Distance	Lens (mm)	Detect (m)		Observe (m)	Recognize (m)		Identify (m)
	2.8	63.0		25.2	12.6		6.3
	12	270.0		108.0	54.0		27.0
Angle of View (H)	91.5° ~ 34°
Angle of View (V)	51.0° ~ 18.9°
Angle of View (D)	96.0° ~ 36.9°
IR Range	Up to 50 m (164.0 ft)
Wavelength	850 nm
IR On/Off Control	Auto/Manual
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4 MP (2688 × 1520), max. 25 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams
Events
Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection)
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users, 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)
General
Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power	Power Consumption: Max. 9.6 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions (L × W × H)	206 mm × 73 mm × 73 mm (8.1" × 2.9" × 2.9")
Weight	0.51 kg (1.12 lb)
Material	Graphene + Metal
Working Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
Web Client Language	4 Languages: English, Russian, Spanish, Vietnamese

NVR Specifications:

Technical Specification
Decoding
Decoding Format	Ultra 265, H.265, H.264
Decoding Capability	Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Audio Compression	G.711A, G.711U
Network
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	64 Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input	4-ch
RCA Audio Input	1-ch
Video/Audio Output
HDMI Output	4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output	1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output	1-ch
Liveview Display	1/4
Corridor Mode Screen	3/4
Two-way Audio
Two-way Audio	1-ch, RCA (Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot	4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
Recording
Recording Resolution	16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Smart
Smart by IPC	Total 4-ch (Face Detection, SIP, UMD)
VCA Search	Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
Alarm
General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA	1 SATA Interface
Capacity	Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C)
External Interface
Network Interface	1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USB	Rear panel: 1 × USB2.0, 1 × USB3.0
RS485	N/A
RS232	N/A
Alarm In	N/A
Alarm Out	N/A
Power Supply	DC 48 V/1.35 A
PoE
PoE Interface	4 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power	Max 30 W for single port, Max 50 W in total
Supported Standard	IEEE 802.3at, IEEE 802.3af
Working Environment
Working Temperature	-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 10W
Dimensions
Weight (without HDD)	≤ 1.1Kg (2.43lb)
Dimensions	260mm × 222mm × 47mm (10.2"×8.7"×1.8")
Certification
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B

NVR FEATURES

4K Ultra High Definition
4 PoE Camera Inputs
Remote Viewing – No Monthly Fees
H.265 High Video Compression
80 Mbps Incoming Bandwidth
HDMI and VGA Display Output
1 Hard Drive Bay

CAMERA FEATURES

4 Megapixel IP Camera (2688×1520)
2.8-12mm 4x Motorized Adjustable Lens
Up to 164ft Infrared Night Vision
Starlight - low light performance
H.265 Video Compression
Weatherproof - Indoor/Outdoor (IP67)
Wide Dynamic Range (120dB)
Power Over Ethernet - PoE
Measurement: 8.1" L x 2.9" W X 2.9" H

Approximate Distances:
Identify (Up to 21-89ft)
Recognize (Up to 41-177ft)
Detect (Up to 207-886ft)
