Name: 4-Camera 4K PoE Bullet Security Camera System with 100-ft IR
SKU: SV-4IPBIR8-N
Price: 1599.99 USD
Availability: InStock

SureVision • SV-4IPBIR8-N

4 Camera 4K PoE Bullet Security Camera System with Audio and Night Vision

The choice is clear. Professional security, practical control and no monthly viewing fees.

Protect what you have worked hard to build with 4 SureVision SV-B8IR-N 4K bullet cameras and an 8-channel SV-NVR1P8-N network video recorder. This hardwired system brings wide-angle coverage, infrared night vision and microphone audio together, giving you a practical way to check daily activity and review the footage when something happens.

The package includes a preinstalled 4TB surveillance hard drive and 4 premade 100-foot camera cables. The 8-channel recorder leaves room for 4 more compatible cameras as your needs grow. Your recordings stay on your own recorder.

CCTV Security Pros has served government, business and residential customers since 2008. Your system is backed by a three-year product warranty, a 30-day money-back guarantee and unlimited U.S.-based technical support, subject to the applicable terms. Our team can help with installation questions, remote viewing and getting more from your equipment.

Free upgrade to the 8-channel recorder during the current promotion

Four cameras included, with capacity for four more compatible cameras.

Your cameras and recorder

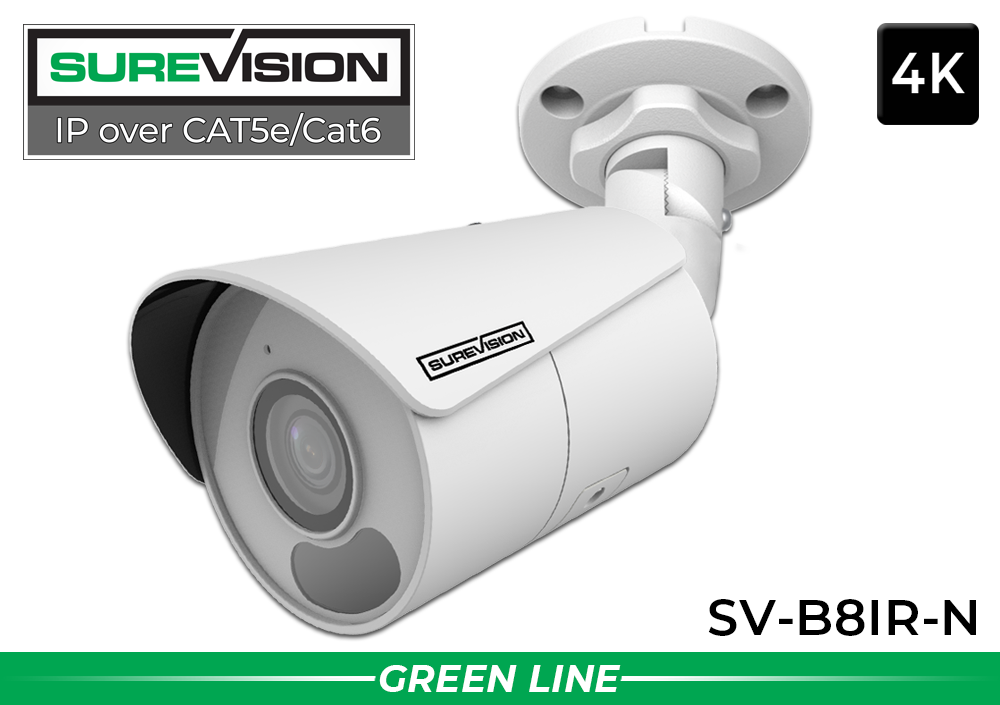

4 SureVision 8MP 4K Ultra HD bullet cameras • SV-B8IR-N

SureVision 8-channel recorder • 4TB included

4K detail and a wide view of your property

Each SureVision SV-B8IR-N camera captures 8-megapixel video at up to 15 frames per second at full 4K resolution. Its fixed 2.8mm lens provides a 107-degree horizontal view, helping you cover entrances, rooms, storefronts and broad outdoor areas with useful detail. Use the wide view to follow activity across a scene and review recorded video when you need a closer look.

True 120 dB wide dynamic range helps balance bright and shaded areas, such as a sunny entrance beside a darker interior. Digital zoom lets you enlarge part of the live or recorded image for inspection.

Night vision and audio for a fuller picture

Built-in infrared illumination provides night vision up to 100 feet, helping you keep an eye on your property after dark. Smart IR adjusts illumination to the scene. The metal, IP67-rated cameras are suitable for indoor and outdoor locations, so you can use the same camera family around building entrances, work areas and exterior spaces.

A built-in microphone records sound alongside the video. Hear what happened as well as seeing it when reviewing an incident. These cameras provide microphone audio recording; they do not include a speaker for two-way talk.

Find and save the footage that matters

Use the recorder's timeline playback and recorded-video search to review a camera and time period. Locate a delivery, check an after-hours event or look back at activity around an entrance. Export useful recordings for later review or sharing, while keeping your everyday recordings on your own local surveillance hard drive.

Check in from your phone or computer

Connect the recorder to your router for remote viewing. The free mobile app and desktop software let you check live views and review recordings from compatible iPhone, Android, Windows and Mac devices. Remote access requires a working internet connection. There are no required monthly recording or remote-viewing fees.

Your recorder continues recording locally without an internet connection. You stay in control of your footage, with the convenience of checking in while you are away.

A 8-channel recorder built around your coverage

The included SV-NVR1P8-N brings all 4 cameras into one recording and viewing system. Built-in PoE ports carry power and video data to the cameras through their Ethernet cables. Connect your own compatible monitor through HDMI or VGA to check several camera views together, then open the camera you need for a closer look.

One 4TB surveillance hard drive is included. Recording time depends on your camera and recording settings. Storage upgrades are available through the product options, so you can choose the capacity that suits your retention needs.

Pick and click connections with cables included

The system includes 4 premade 100-foot Cat5 camera cables, one per camera. One Ethernet cable carries both camera power and video, and the premade connectors avoid field crimping for these runs. Connect the included cameras to the powered recorder, and it is preset to record 24/7. Allow a little extra cable length for routing and slack.

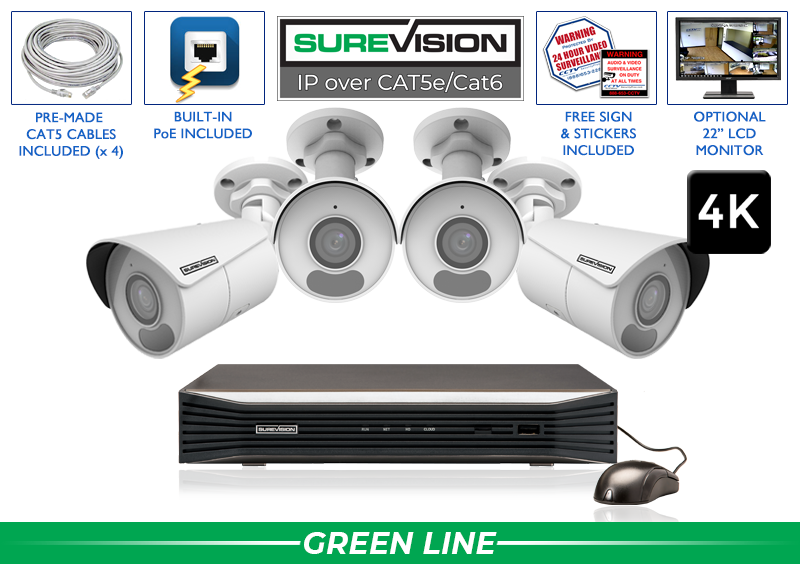

What comes with the system

4 SureVision SV-B8IR-N 4K bullet IP cameras with built-in microphones
One SV-NVR1P8-N 8-channel NVR
One preinstalled 4TB surveillance hard drive
4 premade 100-foot Cat5 camera cables
Free remote-viewing app and desktop software
Unlimited U.S.-based technical support

Use the options above to choose available storage, cable and accessory upgrades. Need a different mix? Explore our custom security camera system builder or call 888-653-2288 for help planning your system.

A few helpful answers

Does the system need internet to record?

No. It records locally to the NVR. Internet is needed for remote access while away from the property.

Can I hear and speak through these cameras?

The built-in microphones record audio. These camera models do not include speakers for two-way talk.

Can I add cameras later?

Yes. The included 8-channel recorder supports up to 4 additional compatible cameras.

See the SureVision recorder in action

Complete technical specifications

Feature	Specification
SureVision Model	SV-B8IR-N
Camera Type	4K 8MP mini fixed bullet IP security camera
Maximum Resolution	8MP / 4K Ultra HD, 3840 × 2160
Image Sensor	1/2.7" CMOS
Minimum Illumination	Color: 0.01 Lux at F1.6 with AGC on; 0 Lux with infrared on
Day / Night	IR-cut filter with automatic switching (ICR)
Shutter	Auto / Manual, 1 to 1/100000 second
Adjustment Angle	Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
Signal-to-Noise Ratio	Greater than 52 dB
Wide Dynamic Range	True 120 dB WDR
Lens & Viewing Angle
Focal Length	2.8mm fixed lens
Iris Type	Fixed
Aperture	F1.6
Horizontal Field of View	107.0°
Vertical Field of View	59.7°
Diagonal Field of View	111.5°
Approximate Distances
Detect	Up to 206.7 ft. (63.0 m)
Observe	Up to 82.7 ft. (25.2 m)
Recognize	Up to 41.3 ft. (12.6 m)
Identify	Up to 20.7 ft. (6.3 m)
Infrared Night Vision
Supplemental Light	Infrared
Infrared Distance	Up to 30 m (98.4 ft.); marketed as up to 100 ft.
Infrared Wavelength	850 nm
IR Control	Auto / Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Profile	Baseline, Main, and High profiles
Main Stream	8MP (3840 × 2160) at 15 fps; 5MP (2880 × 1620) at 25/20 fps; 4MP (2560 × 1440) at 25/20 fps; 3MP (2304 × 1296) at 30/25 fps; 1080p (1920 × 1080) at 30/25 fps
Sub Stream	720p (1280 × 720) at 30/25 fps; D1 (720 × 576) up to 30 fps; 640 × 360 up to 30 fps
Video Bitrate	128 Kbps to 16 Mbps
U-Code	Supported
OSD	Up to 4 OSD areas
Privacy Mask	Up to 4 areas
Region of Interest	Up to 8 areas
Video Streams	Dual streams
Corridor Mode	9:16 supported
Image Processing
White Balance	Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction	2D / 3D DNR
Smart IR	Supported
Image Flip	Normal, vertical, horizontal, 180°, 90° clockwise, 90° counterclockwise
HLC	Supported
BLC	Supported
Defog	Digital defog
Audio
Built-In Microphone	Supported
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-Way Audio	Not supported
Noise Suppression	Supported
Sampling Rate	8 kHz
Storage
MicroSD Edge Storage	Up to 512GB
Network Storage	ANR and NAS via NFS
Network & Cybersecurity
Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE
Compatible Integration	ONVIF Profiles S, G, and T; API; SDK
Users	Up to 32 users with administrator, operator, and common-user levels
Security	Password protection, strong-password support, HTTPS encryption, operation-log export, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE, and ONVIF digest authentication
Client Software	Mobile app and Guard Station
Web Browser Support	Plug-in live view: Internet Explorer 10+, Chrome 45+, Firefox 52+, Edge 79+; plug-in-free live view: Chrome 57+, Firefox 58+, Edge 16+
Interfaces
Network Interface	1 × RJ45 10/100 Base-TX Ethernet
Audio Input / Output	Not available; built-in microphone included
Alarm Input / Output	Not available
Serial Port	Not available
Built-In Speaker	Not available
Wi-Fi	Not available
Video Output	Not available
Reset Button	Not available
Power, Construction & Environmental
Power	12V DC ±25% or PoE IEEE 802.3af
Maximum Power Consumption	3.7 W
Power Interface	Ø5.5mm coaxial power connector
Construction	Metal
Weather Protection	IP67
Operating Temperature	-30°C to 60°C (-22°F to 140°F)
Operating Humidity	Up to 95% RH, non-condensing
Storage Environment	-30°C to 60°C (-22°F to 140°F), up to 95% RH non-condensing
Surge Protection	4 kV
Dimensions	191 × 73 × 71 mm (7.5 × 2.9 × 2.8 in.)
Weight	0.43 kg (0.95 lb.)
Certifications
EMC	CE-EMC and FCC Part 15 B
Safety	CE LVD, CB, UL, and CUL
Environmental	RoHS and WEEE
Ingress Protection	IP67 (IEC 60529)

Feature	Specification
Recorder Type	SureVision 8-Channel PoE Network Video Recorder (NVR)
Channel Capacity	8 IP camera channels
Camera Count Included	4 cameras included; room to expand later
Video Compression	H.265 / H.264
Recording Mode	Continuous, scheduled, motion-triggered, and event recording
Playback	Timeline playback, recorded video search, and evidence export
Storage	Internal surveillance hard drive for local recording
Remote Viewing	iPhone, Android, PC, and Mac remote access
Video Output	HDMI / VGA monitor output
Networking	Ethernet LAN / WAN access for remote viewing
PoE	Built-in PoE ports for power + video over one cable
Ownership	No monthly fees; local recording ownership

Detailed specifications for the standard selected recorder. Product options determine the final equipment and storage configuration.

Recorder Specifications — SV-NVR1P8-N

Model	SV-NVR1P8-N
Included Storage	4TB surveillance-grade storage, preinstalled
Decoding
Decoding Format	Ultra 265, H.265, H.264
Decoding Capability	Ultra 265/H.265: 2 × 16MP@30, 2 × 12MP@30, 4 × 4K@30, 6 × 5MP@30, 8 × 4MP@30 H.264: 2 × 16MP(4800×2688)@30, 2 × 12MP@30, 2 × 4K@30, 4 × 5MP@30, 6 × 4MP@30, 8 × 3MP@30
Capability Description	The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Audio Compression	G.711A, G.711U
Network
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	64 Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
Browser	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video / Audio Input
IP Video Input	8-ch
RCA Audio Input	1-ch
Video / Audio Output
HDMI Output	4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output	1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output	1-ch
Liveview Display	1 / 4 / 6 / 8 / 9
Corridor Mode Screen	3 / 4 / 5 / 7 / 9
Two-Way Audio
Two-Way Audio	1-ch, RCA (using the audio input and output)
Snapshot
FTP / Schedule / Event Snapshot	8-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
Recording
Recording Resolution	16 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Smart
Smart by IPC	Total 8-ch (Face Detection, SIP, UMD)
VCA Search	Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
Alarm
General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
Languages	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA	1 SATA Interface
Included Hard Drive	4TB surveillance-grade storage, preinstalled
Capacity	Up to 20TB HDD (The maximum HDD capacity varies with environment temperature and hard disk size. The environment temperature for use should not exceed 40°C.)
External Interface
Network Interface	1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USB	Rear panel: 1 × USB2.0, 1 × USB3.0
RS485	N/A
RS232	N/A
Alarm In	N/A
Alarm Out	N/A
Power Supply	DC 52 V / 1.8 A
PoE
PoE Interface	8 RJ45 10 M/100 M self-adaptive Ethernet PoE Interface
Max Power	Max 30 W for single port, Max 75 W in total
Supported Standard	IEEE 802.3at, IEEE 802.3af
Working Environment
Working Temperature	-10 C to 55 C (14 F to 131 F)
Working Humidity	<= 90% RH (non-condensing)
Power Consumption (without HDD)	<= 10W
Weight (without HDD)	<= 1.1Kg (2.43lb)
Dimensions	260mm × 222mm × 47mm (10.2"×8.7"×1.8")
Certification
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B

View SV-NVR1P8-N Product Details
