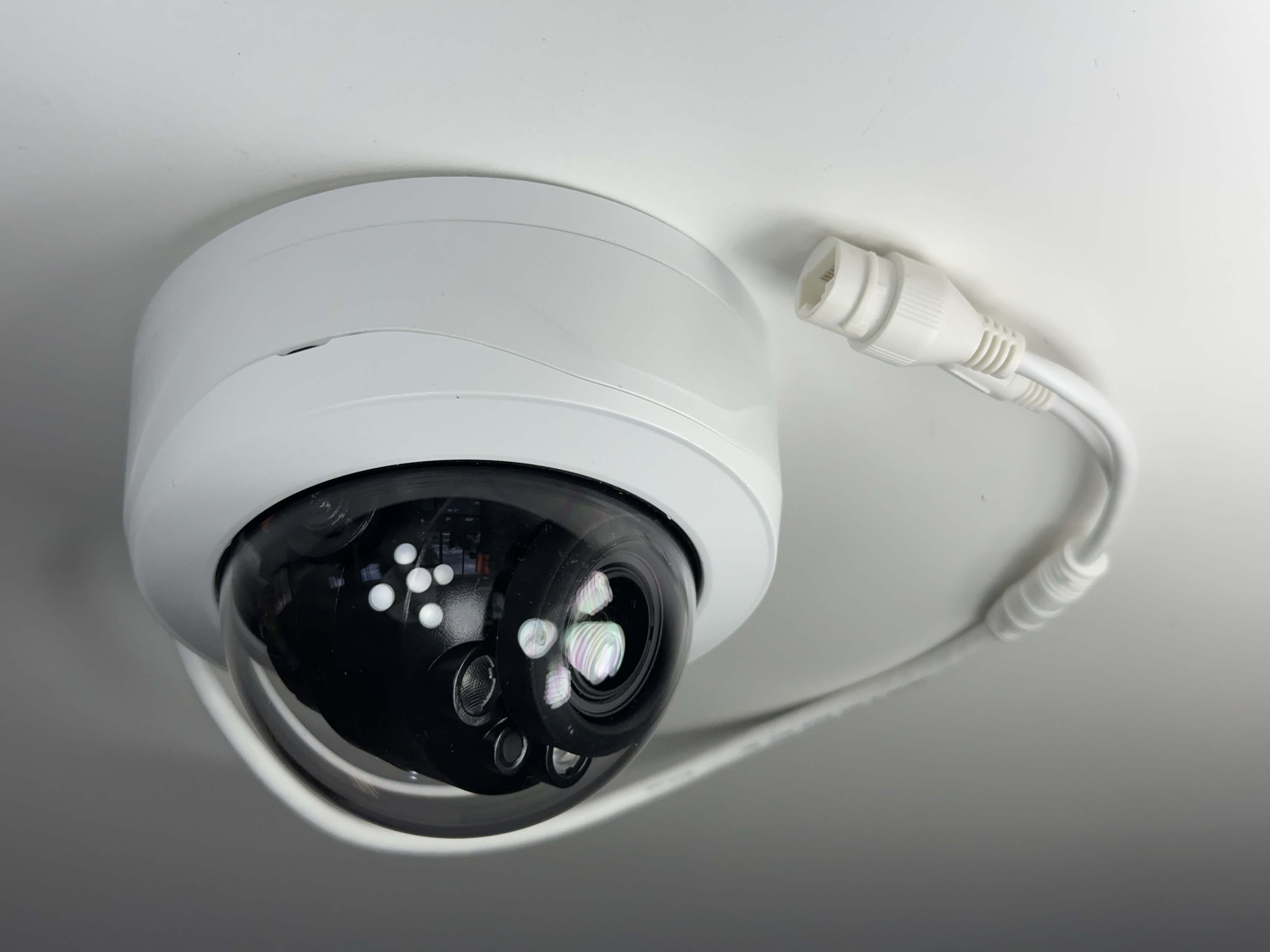

(CSP-IPAD8.S) Blue Line - 4K Infrared Vandal Dome with Adjustable Lens IP Camera / BS901

Camera

Image Sensor

1/1.8” 8Megapixel progressive CMOS

Effective Pixels

3840(H) x2160(V)

RAM/ROM

512MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.004Lux/F1.9( Color,1/3s,30IRE)

0.09Lux/F1.9 Color,1/30s,30IRE)

0Lux/F1.9(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

2

Lens

Lens Type

Motorized

Mount Type

Board-in

Focal Length

3.7mm~11mm

Max. Aperture

F1.9

Angle of View

H:112°~46°, V:60°~26°

Focus Control

Fixed

Close Focus Distance

0.2m(0.66ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

83m(272ft)

33m(108ft)

17m(56ft)

8m(26ft)

T

190m(623ft)

76m(249t)

38m(125ft)

19m(62ft)

PTZ

Pan/Tilt Range

Pan:0° ~355° ;Tilt:0° ~75° ;Rotation:0° ~355°

Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly

IVS

Tripwire, Intrusion

Video

Compression

H.265/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

2 Streams

Resolution

4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/

3M(2048x1536)/3M(2304×1296)/

1080P(1920×1080)/1.3M(1280x960)/

720P(1280×720)/D1(704×576/704×480) /VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 4K (1~25/30fps)

Sub Stream: D1(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32Kbps~8192Kbps

H.265: 16Kbps~8192Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization(EIS)

N/A

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;

FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS;NFS;SSH

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

Edge Storage

NAS

Local PC for instant recording

Micro SD Card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

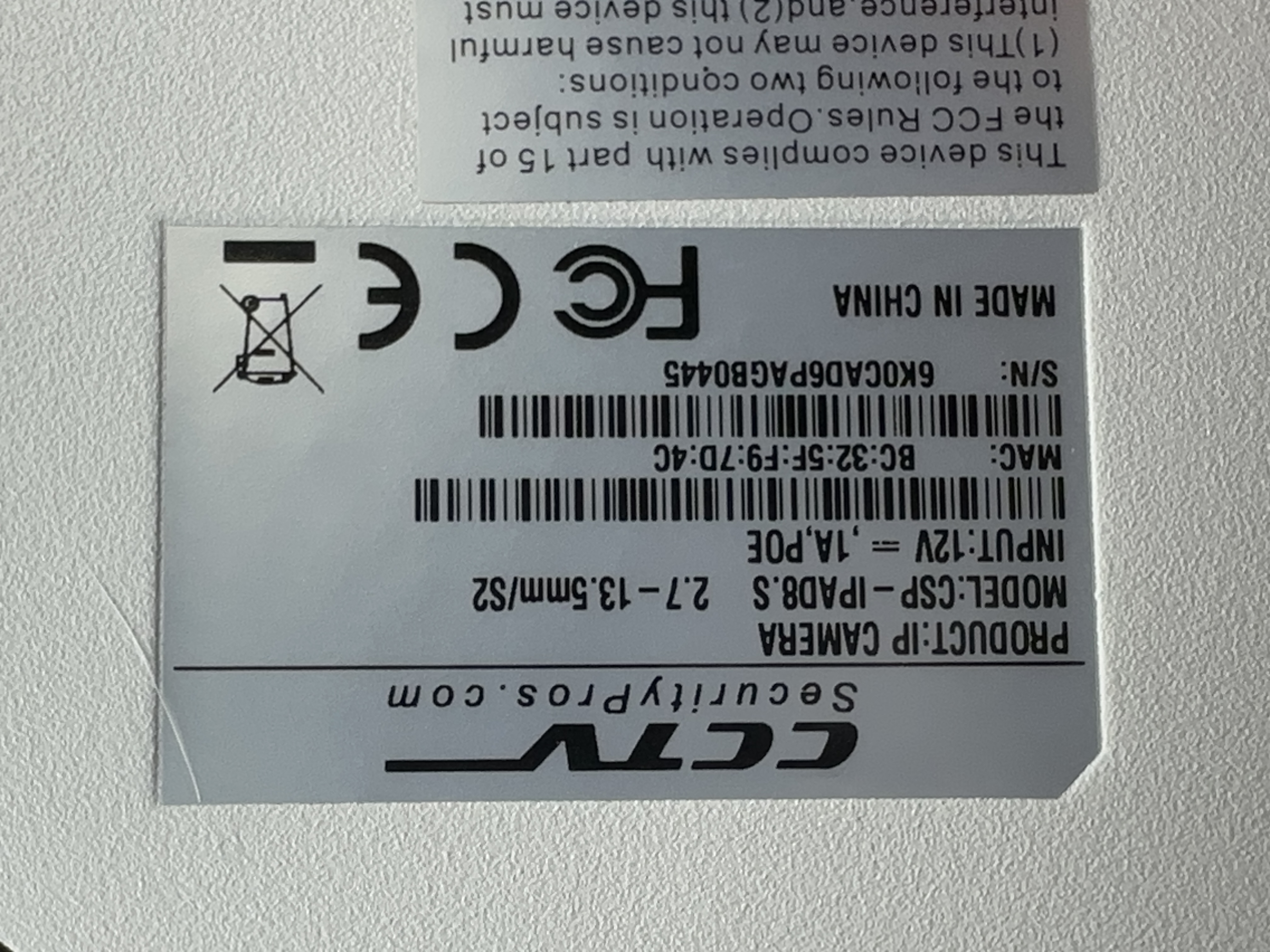

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V PoE (802.3af)(Class 0)

Power Consumption

<10.9W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

φ122mm×88.9mm(4.80''x3.50'')

Net Weight

0.49Kg (1.09lb)

Gross Weight

0.66Kg(1.46lb)
