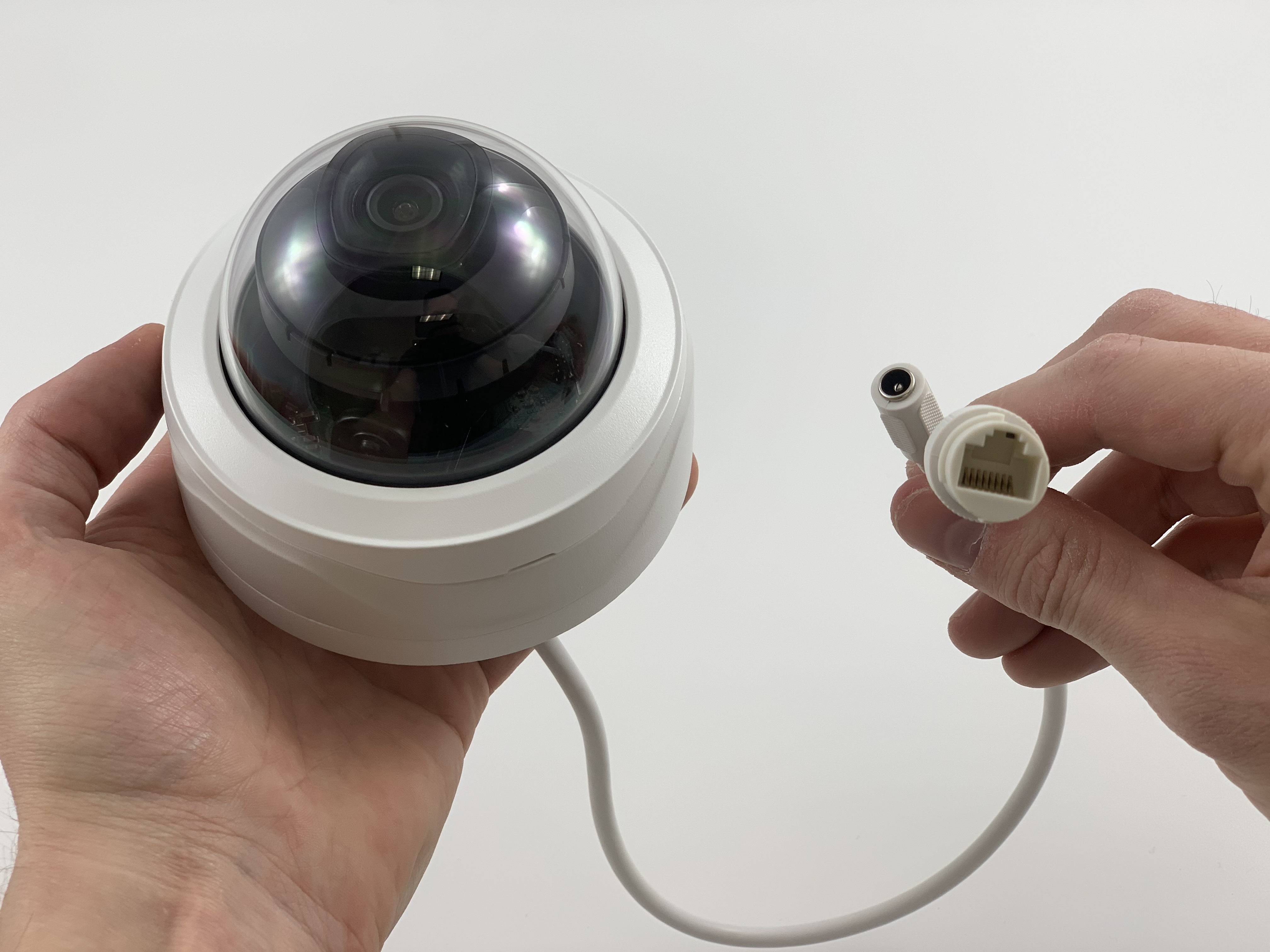

4K AI Vandal Dome IP Security Camera with Wide Angle Lens and Night Vision

$299.99 after 20% promo after 20% promo $239.99
(You save $60.00)
Model: CSP-IPMD8-A
4K Security Cameras | Outdoor Night Vision

Select your options:

superior products 3 year warranty
live usa technical support
30 day money back guarantee
free shipping on all orders over $100




Supreme Night Vision & Wide Coverage

Capture Everything in Detail with 4K ClarityThe heart of our 4K Vandal Dome Camera lies in its 8-megapixel lens, providing crystal-clear images that don’t miss a speck. Enjoy coverage like never before with a 110-degree extra wide-angle lens, ensuring that every corner is monitored. This camera is designed to keep vigilance round the clock with powerful night vision up to 100ft, letting you rest easy knowing every detail is captured, even in the dead of night.

Intelligent Surveillance with Smart Motion Detection

Focus on What MattersOur 4K Vandal Dome Camera is smarter than your average security camera. With Smart Motion Detection (SMD) technology, it separates the important from the mundane. It hones in on humans and vehicles, providing accurate alerts and minimizing distractions. Receive instant notifications on your smartphone or tablet, ensuring you're always in the loop and can respond swiftly to any suspicious activity.

Simplified Security for Peace of Mind

Easy Setup and Robust DesignWe understand that security shouldn’t be complicated. That’s why our 4K Vandal Dome Camera features built-in PoE, allowing for straightforward plug-and-play setup. The camera's low profile and vandal-proof design make it an ideal, unobtrusive guardian for both indoor and outdoor settings. Moreover, its compatibility with “blue line” of network video recorders means you can expand your surveillance system with ease.

Want to learn more about our top rated security systems? Talk to us at 888.653.2288.



*IP cameras intended to be used with one of our dedicated NVR (Network Video Recorders) for full feature use and easy plug and play functionality.  Purchase one of our industry leading IP NVR Recorders for a Superior Surveillance Solution!


upgrade your system today


 Professional Grade Security camera by CCTV security pros






Shop Blue Line Series Cameras

Looking for a complete IP camera system?

Check out our Blue Line Series
IP Security Camera Systems.

SHOP NOW

Shop Blue Line Network Video Recorders

Looking for a network video recorder for this camera?

Check out our compatible
Blue Line Network
Video Recorders.

SHOP NOW

Technical Specification
Camera
Image Sensor 1/2.8" 8 Megapixel progressive CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.007 Lux@F1.4 (Color, 30IRE) 0.0007 Lux@F1.4 (B/W, 30IRE) 0 Lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 3 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–60° Rotation: 0°–355°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm;3.6 mm
Max. Aperture F1.4
Field of View 2.8 mm: Horizontal 108° × Vertical 58° × Diagonal 127°
3.6 mm: Horizontal 85° × Vertical 45° × Diagonal 100°
Iris Type Fixed
Close Focus Distance 2.8 mm: 1.4 m (4.6 ft) 3.6 mm: 2.4 m (7.9 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 85.5 m (280.5 ft) 34.2 m (112.2 ft) 17.1 m (56.1 ft) 8.6 m (28.2 ft)
3.6 mm 110.3 m (361.9 ft) 44.1 m (144.7 ft) 22.1 m (72.5 ft) 11.0 m (36.1 ft)
Professional, Intelligent
Perimeter Protection Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream: 3840 × 2160 @(1–20 fps by default) 3840 × 2160 @(1–25/30 fps when AI function disabled) sub stream: 704 × 576 @(1–25 fps)/704 × 480 @ (1–30 fps) third stream: 1920 × 1080 @(1–25/30 fps)
Stream Capability 3 streams
Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Audio
Audio Compression G.711a; G.711Mu; G726
Alarm
Alarm Event - AS:
No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception
-S:
No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; voltage detection; SMD; safety exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host 20 (Total bandwidth: 72 M)
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser IE: IE8; IE9; IE11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input 1 channel (RCA port) (Only - AS supports)
Audio Output 1 channel (RCA port) (Only - AS supports)
Alarm Input 1 channel in: 5mA 3V–5V DC (Only - AS supports)
Alarm Output 1 channel out: 300mA 12V DC (Only - AS supports)
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption Basic power consumption: 2.7W (12V DC); 3.6W (PoE) Max. power consumption (WDR + H.265 +IR LED intensity): 6W (12V DC); 7W (PoE)
Environment
Operating Conditions –40°C to +55°C (–40°F to +131°F)/Less than 95% RH
Storage Conditions –40°C to +60°C (–40°F to +140°F)
Protection Grade IP67; IK10
Structure
Casing Metal
Dimensions 81 mm × F109.9 mm (3.2" × F4.3")
Net Weight 378 g (0.8 lb)
Gross Weight 523 g (1.2 lb)
CAMERA FEATURES
  • 8 Megapixel IP Camera (3840×2160)
  • Smart Motion Detection (SMD)
  • 2.8mm Lens (110° Wide Angle View)
  • Up to 100ft Infrared Night Vision
  • Starlight - low light performance
  • H.265 Video Compression
  • Weatherproof, Vandalproof (IP67, IK10)
  • Wide Dynamic Range (120dB)
  • Power Over Ethernet - PoE
  • Measurement: 3.2" H x 4.3" D
Approximate Distances:
Identify (Up to 28ft)
Recognize (Up to 56ft)
Detect (Up to 280ft)
