Professional Pan-Tilt-Zoom Camera Planning
How to Choose the Best PTZ Security Camera
The right PTZ security camera depends on the size of the area, the distance to important subjects and whether the camera will be actively controlled, used with presets or allowed to auto-track selected activity. A PTZ can cover a large scene dynamically, but it should still be planned around specific monitoring goals.

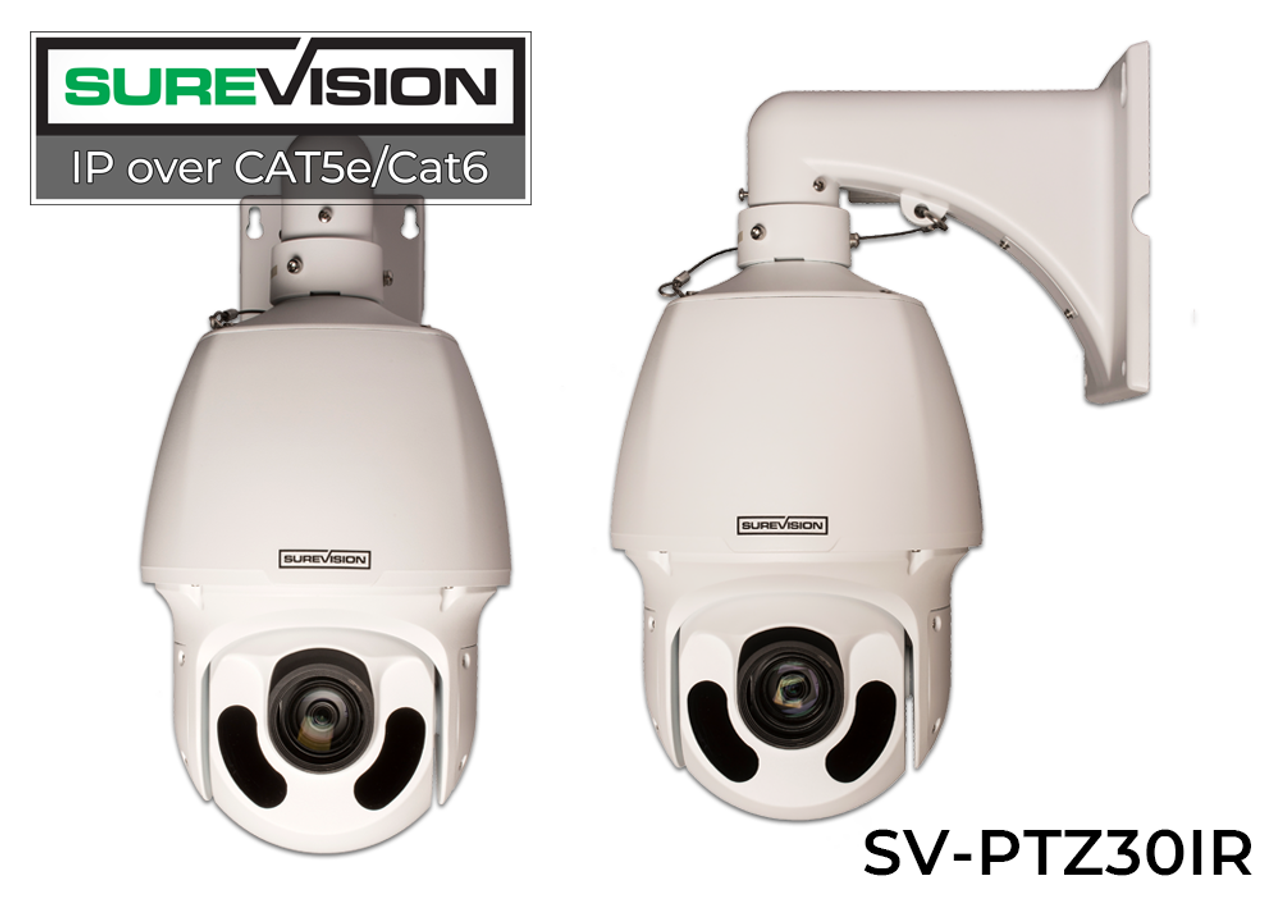

SureVision PTZ IP cameras provide remote pan, tilt and optical zoom control, long-range infrared illumination and PoE connectivity. For full-time recording and playback, connect the camera to a compatible SureVision NVR and combine it with fixed cameras that continuously watch critical entrances, gates and other areas.
Where PTZ Cameras Work Best
PTZ cameras are most useful in larger spaces where operators need flexible control or where presets and automated movement can supplement fixed-camera coverage.
Parking Lots and Garages
Pan across traffic areas, inspect incidents and zoom toward vehicles, entrances and activity zones.
Warehouses and Loading Areas
Monitor docks, open warehouse floors, inventory yards, equipment and delivery activity.
Campuses and Schools
Add controllable coverage across parking, building approaches, courtyards and large common areas.
Commercial Yards and Perimeters
Survey fences, gates, equipment storage, construction materials and larger outdoor zones.
Retail and Multi-Building Properties
Monitor exterior approaches, delivery zones, parking and activity across multiple structures.
High-End Residential Properties
Add long-range, controllable surveillance for gates, large yards, driveways and estate perimeters.
Compare SureVision 10X and 25X PTZ Cameras
The live category currently offers three professional PTZ choices. Use the 10X model for balanced wide-area control and auto tracking, choose the wall-mount kit for a finished wall installation, or select 25X optical zoom when long-range inspection is the priority.
Optical Zoom vs. Digital Zoom
Optical zoom changes the camera lens position to bring distant subjects closer before the image is captured. This preserves more usable detail than simply enlarging recorded pixels with digital zoom.
10X Optical Zoom
A strong balance for parking areas, entrances, commercial lots and perimeter views where flexible control is more important than extreme distance.
25X Optical Zoom
Better for larger campuses, industrial yards, perimeter lines and distant targets that require a narrower field of view and more lens reach.
PTZ Auto Tracking, Presets and Patrols
Select PTZ cameras can identify human or vehicle activity and automatically keep the target in view. Presets return the camera to saved positions, while patrols move through a programmed sequence of views.
Manual PTZ Control
Move and zoom the camera from supported mobile, desktop and NVR interfaces when an operator needs to inspect an area.
Saved Presets and Patrols
Return quickly to gates, entrances and loading areas, or cycle through programmed viewing positions.
Auto Tracking
The 10X model supports human and vehicle target filtering to follow qualifying movement automatically.
Professional Design Tip: Use PTZ and Fixed Cameras Together
A PTZ records only the direction it is facing at that moment. Fixed cameras should continuously watch entrances, gates, registers and other critical evidence points while the PTZ provides flexible oversight and zoom.
Connect PTZ Cameras to a SureVision NVR
A compatible NVR provides centralized recording, playback, video export, user permissions and remote access. PTZ cameras can operate independently for live viewing, but NVR pairing is recommended when you need dependable evidence retention and a complete multi-camera surveillance system.
PTZ Installation and Mounting Considerations
PTZ cameras are larger and heavier than typical fixed cameras. Plan the mounting surface, viewing angle, cable route, PoE power requirements and service access before installation.
Mounting Height
Balance wide-area visibility with a useful downward angle and practical identification distance.
PoE+ Power
Confirm the compatible NVR, switch or injector can supply the power standard required by the PTZ camera.
Wall and Corner Mounting
Use suitable adapters, brackets and junction boxes for a secure, weather-resistant and serviceable installation.
Nighttime Conditions
Avoid nearby surfaces that can reflect infrared light and reduce useful nighttime visibility.
Helpful PTZ Camera Guides
Learn more about PTZ movement, optical zoom, auto tracking and wide-area surveillance planning before choosing a camera.
PTZ Security Camera FAQs
What does PTZ mean on a security camera?
PTZ means pan, tilt and zoom. The camera can move horizontally, tilt vertically and change its optical zoom under manual or programmed control.
Are PTZ cameras good for parking lots?
Yes. PTZ cameras are well suited to parking areas because they can survey a wide scene and zoom toward vehicles, entrances or activity at a distance.
What is the difference between 10X and 25X optical zoom?
A 25X lens can narrow the field of view more and inspect subjects at greater distances. A 10X PTZ provides a strong balance of wide-area coverage, useful zoom and compact size.
Do PTZ cameras automatically follow people or vehicles?
Select models do. The SureVision 10X PTZ supports auto tracking with human and vehicle target filtering.
Can a PTZ camera replace several fixed cameras?
A PTZ can inspect multiple areas, but it records only the direction it is facing. Fixed cameras are recommended for continuous coverage of critical evidence points.
Do I need an NVR for a PTZ IP camera?
The camera can be used for supported live viewing without an NVR, but a compatible NVR is recommended for reliable recording, playback and multi-camera management.
Can I control a PTZ camera from my phone?
Yes. Supported SureVision apps allow authorized users to view video and operate compatible PTZ controls remotely.
Do PTZ cameras require monthly fees?
No required monthly fee is needed for standard local NVR recording and supported SureVision mobile and computer viewing tools.
Choose the Right PTZ Camera the First Time
Tell us the size of the area, mounting location and distance you need to inspect. Our U.S.-based team can help choose the PTZ camera, NVR, mounting hardware and fixed-camera coverage for your property.
