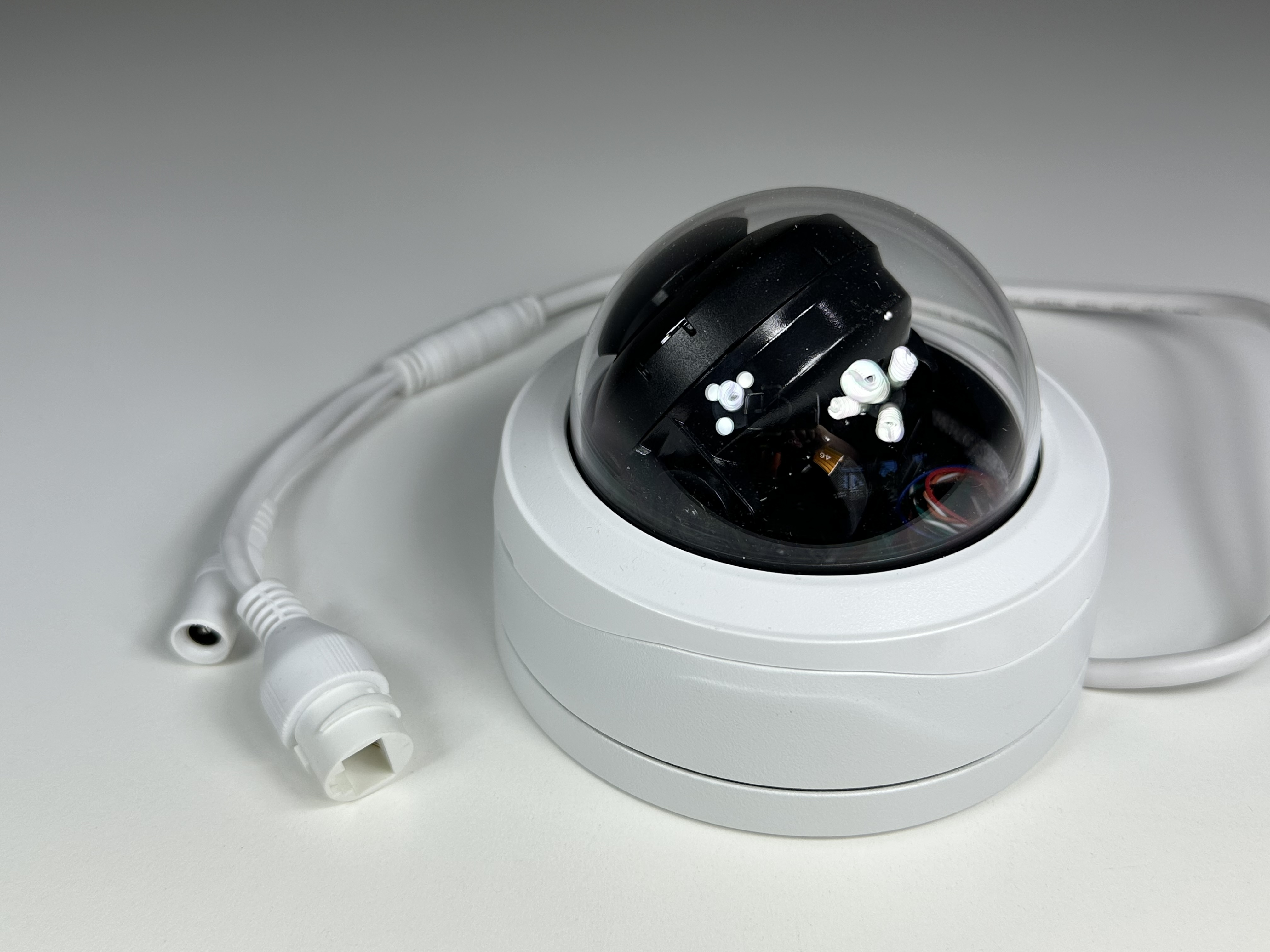

(CSP-IPMD4-A) Blue Line - 4MP Infrared Vandal Dome IP Camera / BS1021

B-Stock Products B-Stock products offer outstanding value and performance. These items were previously returned by customers and cannot be sold as new. Although many of these cameras appear like new as depicted in their respective images, some have been briefly mounted or may show signs of light use. Please note that original packaging is not always included. Every B-Stock product is inspected, tested, and factory restored to meet the same performance and reliability standards as a brand-new model. Our B-Stock products are backed by a 90-day limited warranty.     Looking for a complete IP camera system? Check out our Blue Line Series IP Security Camera Systems. SHOP NOW Looking for a network video recorder for this camera? Check out our compatible Blue Line Network Video Recorders. SHOP NOW TECHNICAL SPECIFICATIONS Camera Image Sensor 1/2.9" CMOS Max. Resolution 2688 (H) — 1520 (V) ROM 128 MB RAM 128 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s€“1/100,000 s Min. Illumination 0.008 lux@F1.6 (Color,30IRE) 0.0008 lux@F1.6 (B/W,30IRE) 0 lux (Illuminator on) S/N Ratio >56 dB Illumination Distance 30 m (98.43 ft) (IR LED) Illuminator On/Off Control Auto;Manual Illuminator Number 3 (IR LED) Pan/Tilt/Rotation Range Pan: 0°€“355° Tilt: 0°€“65° Rotation: 0°€“355°) Lens Lens Type Fixed-focal Lens Mount M12 Focal Length 2.8 mm; 3.6 mm Max. Aperture F1.6 Field of View 2.8 mm: H: 102°; V: 54°; D: 121° 3.6 mm: H: 84°; V: 42°; D: 101° Iris Control Fixed Close Focus Distance 2.8 mm: 1.1 m (2.30 ft) 3.6 mm: 1.7 m (4.27 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 63.6 m (208.66 ft) 25.4 m (83.33 ft) 12.7 m (41.67 ft) 6.4 m (21.00 ft) 3.6 mm 85.4 m (280.18 ft) 34.2 m (112.20 ft) 17.1 m (56.10 ft) 8.5 m (27.89 ft) Intelligence IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Video Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) Smart Codec Smart H.265+; Smart H.264+ Video Frame Rate Main stream: 2688 — 1520@(1€“20 fps)/2560 — 1440@ (1€“25/30 fps) Sub stream: 704 — 576@(1€“25 fps)/704 — 480@(1€“30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability 2 streams Resolution 4M (2688 — 1520/2560 — 1440); 3M (2304 — 1296); 1080p (1920 — 1080); 1.3M (1280 — 960); 720p (1280 — 720); D1 (704 — 576/704 — 480); VGA (640 — 480); CIF (352 — 288/352 — 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 kbps€“6144 kbps H.265: 12 kbps€“6144 kbps Day/Night Auto(ICR) / Color / B/W BLC Yes HLC Yes WDR 120 dB White Balance Auto; natural; street lamp; outdoor; manual; regional custom Gain Control Manual;Auto Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Smart Illumination Yes Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 — 1520 resolution and lower) Mirror Yes Privacy Masking 4 areas Audio Built-in MIC Yes Audio Compression G.711a; G.711Mu; G.726; PCM Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception; Network Network Port RJ-45 (10/100 Base-T) SDK and API Yes Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP Interoperability ONVIF (Profile S/Profile G); CGI; P2P User/Host 6 (Total bandwidth: 36 M) Storage FTP;SFTP; Micro SD card (support max. 256 GB) Browser IE; Chrome; Firefox Management Software DSS; DMSS Mobile Client iOS; Android Cyber Security Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/ MAC filtering;Generation and importing of X.509 ce rtification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade Certification Certifications CE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B Power Power Supply 12 VDC/PoE Power Consumption Basic: 2.3 W (12 VDC); 2.9 W (PoE) Max. (ICR + H.265 + WDR + max. Illumination + intelligence on): 5 W (12 VDC); 6 W (PoE) Environment Operating Temperature €“40 °C to +60 °C (€“40 °F to +140 °F) Operating Humidity ‰¤ 95% Protection IP67; IK10 Structure Casing Material Metal Product Dimensions 81.0 mm — Φ109.9 mm (3.19"— Φ4.33") Net Weight 0.34 kg (0.75 lb) Gross Weight 0.49 kg (1.08 lb)   CAMERA FEATURES 4 Megapixel IP Camera (2688—1520) Smart Motion Detection (SMD) Built-in Microphone+ 2.8mm Lens (110° Wide Angle View) Up to 100ft Infrared Night Vision Starlight - low light performance H.265 Video Compression Weatherproof, Vandalproof (IP67, IK10) Wide Dynamic Range (120dB) Power Over Ethernet - PoE Measurement: 3.19" H x 4.33" D Approximate Distances: Identify (Up to 21ft) Recognize (Up to 42ft) Detect (Up to 209ft)
