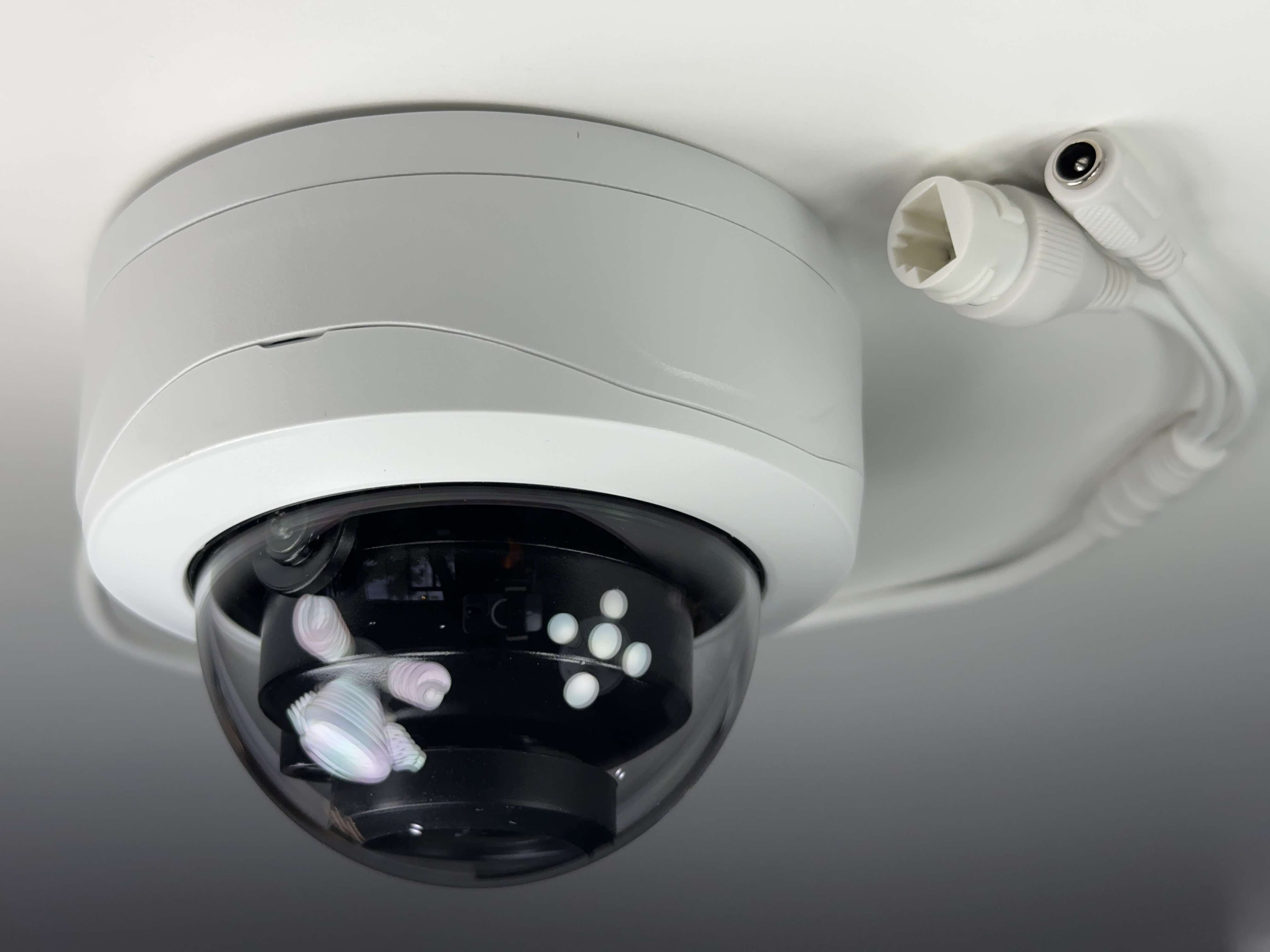

(CSP-IPAD4.S) Blue Line - 4MP Infrared Vandal Dome with Adjustable Lens IP Camera / BS895

Image Sensor

1/3” 4Megapixel progressive CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.008 Lux @ F1.5

S/N Ratio

>56 dB

Illumination Distance

40 m (131.23 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Mount Type

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

Horizontal: 104°–27°
Vertical: 55°–15°
Diagonal: 124°–31°

Iris Type

Fixed

Close Focus Distance

0.8 m–0.8 m (2.62 ft–2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

64 m
(209.97 ft)

25.6 m
(83.99 ft)

12.8 m
(41.99 ft)

6.4 m
(21 ft)

T

220 m
(721.78 ft)

88 m
(288.71 ft)

44 m
(144.36 ft)

22 m
(72.18 ft)

Smart Event

IVS

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream:

2688 × 1520 (1 fps-20 fps)

2560 × 1440 (1 fps-25/30 fps)

Sub stream:

704 × 576 (1 fps-25 fps)

704 × 480 (1 fps-30 fps)

Stream Capability

2 streams

Resolution

2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps

H.265: 12 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; safety exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20

Storage

FTP; Micro SD card (support max. 256 G); NAS; SFTP

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certification

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 6.5W

Environment

Operating Conditions

-30°C to +60°C (-22°F to +140°F)/less than ≤ 95% RH

Storage Temperature

-40°C to +60°C (-40°F to +140°F)

Protection

IP67; IK10

Structure

Casing

Metal

Dimensions

Φ122 mm × 88.9 mm (Φ4.80" × 3.50")

Net Weight

0.47 kg (1.04 lb)

Gross Weight

0.63 kg (1.39 lb)
