This is video monitoring at its best. This is SureVision.
This complete system package comes with our industry leading SureVision NVR. This professional grade NVR unit was designed to be simple and easy to setup while offering unmatched quality, function and reliability. The NVR comes equipped with all of the latest features such as 24/7 recording, motion recording, object masking, mobile alerts, audio and much more. You can easily view and receive instant motion alerts from your cameras remotely on any smartphone, tablet or computer using our free software and mobile apps. Built-in PoE (power over ethernet) makes this unit ideal for simple plug and play setup. All SureVision NVR units have extended PoE allowing you to cable over 800ft away! You can expect the very best surveillance for your business or home with this top of the line NVR.
This complete security camera system package includes our SureVision 8 megapixel (4K) ultra high definition infrared dome camera with a motorized adjustable lens and powerful night vision of up to 130ft. This well-designed camera is packed with high-end features including a built-in microphone for audio recording. The adjustable lens provides you with the added flexibility of focusing on objects either close-up or up to 100ft away with incredible 4K detail and clarity. Dome cameras are also optimal when mounting low or within human reach since their vandal-proof design makes them difficult to be tampered with. Our professional-grade dome has a 3-axis lens meaning that it can be mounted to a ceiling or wall. Some other advanced features of this cameras include WDR used to combat any glare from intense lighting as well as the latest H.265 high video compression technology for extended video storage time. What makes this camera extra special is an AI feature called Ultra Motion Detection (UMD) that focuses specifically on humans and/or vehicles to produce the most accurate motion alerts – while eliminating any unwanted alerts! These notifications can instantly be sent to your smartphone or tablet so you never miss an important event. You can expect superior 24/7 coverage from this amazing quality camera.
This Complete High Definition IP Security Camera System comes with everything needed for complete installation. It includes a 3 Year Warranty, Free USA Technical and Support and 100% Money Back Guarantee.
Installation of our IP camera systems is simple and easy. A simple step-by-step guide is included with every system. We also include live USA based Technical Support available Monday through Friday. We are happy to answer any questions and assist you at (888) 653-2288.
*The equipment in this package is fully NDAA compliant and suitable for installation in government facilities and federally funded projects
The Complete 2 Camera Security System with NVR Includes:
- (1) 4 Channel High Definition NVR
- (1) 2 TB Surveillance Grade Storage Hard Drive (installed)
- (2) 8MP IP Infrared Motorized Dome Security Cameras with 2.8 - 12mm Zoom Lens
- (2) 100ft CAT5e Cables
- High Definition LCD Monitor is OPTIONAL
- Quick Start Instruction Guide
- Free Remote Viewing Software and Apps
- Video Surveillance Aluminum Sign
Enjoy HD Surveillance
Upgrade to the latest in IP surveillance technology with our new SUREVISION IP systems at CCTV Security Pros. Order complete commercial-grade systems, security cameras, video recorders, and accessories at the leading USA supplier of security products. Along with unlimited tech support, we offer a 100% money-back satisfaction guarantee, a 3-year warranty, and free shipping.
Order your 2 camera system with DVR or NVR today and see why thousands of customers choose us. Connect with a PRO for a quote or advice at 888.653.2288.

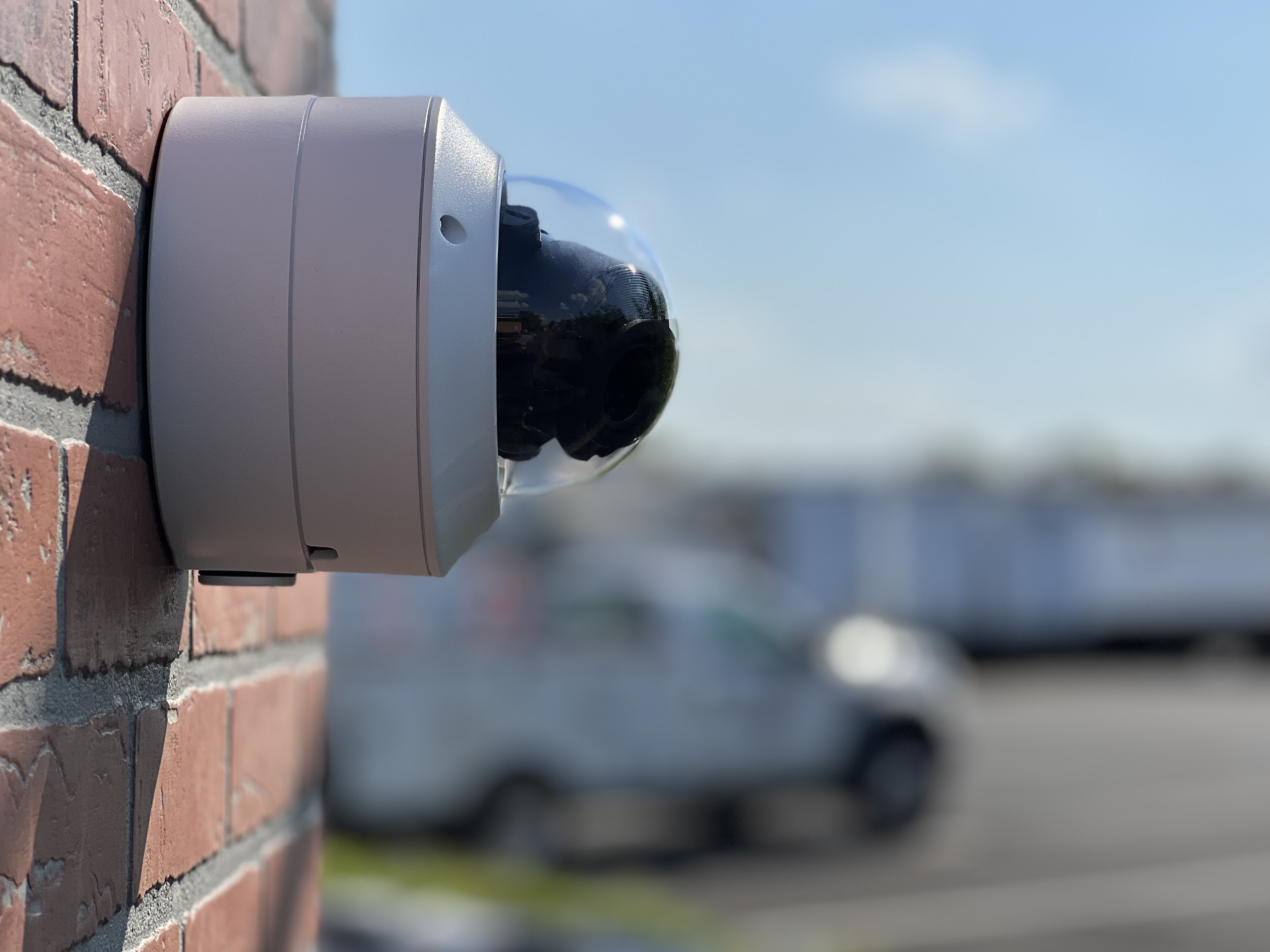

SureVision Camera Specifications:
| Technical Specification | |||||
|---|---|---|---|---|---|
| Camera | |||||
| Sensor | 1/2.8", 8.0 megapixel, progressive scan, CMOS | ||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 86.9 | 34.8 | 17.4 | 8.7 | |
| 12 | 372.4 | 149.0 | 74.5 | 37.2 | |
| Angle of View (H) | 107.4°~ 29.2° | ||||
| Angle of View (V) | 54.2°~ 16.3° | ||||
| Angle of View (O) | 111.0°~33.1° | ||||
| Adjustment angle | Pan: 0° ~ 355° | Tilt: 0° ~ 80° | Rotate: 0° ~ 355° | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| S/N | >56dB | ||||
| IR Range | Up to 40m (131ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Smart IR | Support | ||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| Dewarping | Supported | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Client | SVStation SVTools |
||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||
| Interface | |||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||
| Alarm I/O | 1/1 | ||||
| Built-in Mic | Supported | ||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| Certifications | |||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 9.0W | |||||
| Dimensions (Ø x H) | Φ148 x 111.4mm (Ø5.8” x 4.4”) | ||||
| Net Weight | 0.97kg (2.14lb) | ||||
| Material | Metal + Plastic | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 2KV | ||||
| Ingress Protection | IP67 | ||||
| Vandal Resistant | IK10 | ||||
| Reset Button | Supported | ||||

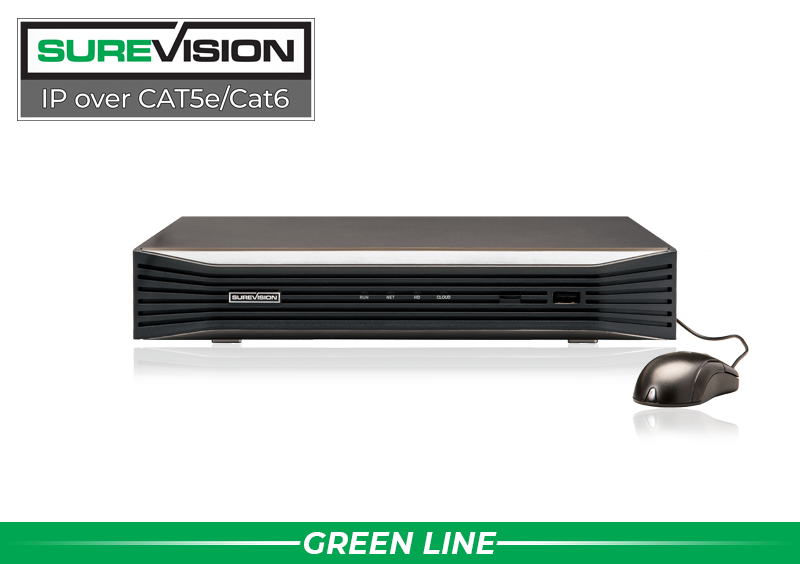

NVR Specifications:
| TECHNICAL SPECIFICATIONS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Video/Audio Input | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IP Video Input | 4-ch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1-ch, RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Incoming Bandwidth | 80Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Outgoing Bandwidth | 64Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Remote Users | 128 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video/Audio Output | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI/VGA Output | HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | 1-ch, RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Two-way Audio | 1-ch, RCA(Using the audio input and output) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | G.711A, G.711U | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Synchronous Playback | 4-ch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Liveview display | 1/4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Corridor Mode Screen | 3/4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Snapshot | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Decoding | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Decoding format | Ultra 265/H.265 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Capability | 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 9 x 4MP@25, 10 x 3MP@30, 16 x 1080p@30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Hard Disk | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 1 SATA interfaces | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, SMD(Smart Motion Detection) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VCA Search | Behavior Search, People Counting Report | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| People counting | People Flow Counting, Crowd Density Monitoring | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Intrusion Prevention (SIP), SMD by Camera | Total 4-ch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| External Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS232 | NA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS485 | NA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm In | NA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Out | NA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | 4 RJ-45 10M/100M self-adaptive Ethernet Interface | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Power | Max 30W for single port Max 50W in total |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Supported Standard | IEEE 802.3af/at | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 48V DC/1.35A Power Consumption: ≤ 10W (without HDD) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions (W×D×H) | 260mm × 222mm × 47mm (10.2" × 8.7" × 1.8") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight (without HDD) | ≤ 0.98Kg (2.16lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NVR FEATURES
- 4K Ultra High Definition
- 4 PoE Camera Inputs
- Remote Viewing – No Monthly Fees
- H.265 High Video Compression
- 80 Mbps Incoming Bandwidth
- HDMI and VGA Display Output
- 1 Hard Drive Bay
CAMERA FEATURES
- 8 Megapixel IP Camera (3840×2160)
- 2.8-12mm Motorized Adjustable Lens
- Up to 130ft Infrared Night Vision
- Built-in Microphone
- H.265 Video Compression
- Weatherproof, Vandalproof (IP67, IK10)
- Wide Dynamic Range (120dB)
- Power Over Ethernet - PoE
- Measurement: 4.4" H x 5.8" D
Identify (Up to 22-122ft)
Recognize (Up to 57-244ft)
Detect (Up to 285-1222ft)
