What’s included
Your complete system includes monitoring software and a remote-viewing app. No monthly fees.
SureVision Camera Features Video
SureVision • SV-24IPVP4-B-N
24 Camera 4MP black vandal-resistant dome PoE Security System
The choice is clear. Protect what you have worked hard to build with a professional hardwired system that keeps you connected to your property. This package brings 24 SureVision SV-VP4-B-N 4MP black vandal-resistant dome cameras together with a 32-channel SV-NVR432-N network video recorder for live viewing, local recording and practical incident review.
Professional equipment, real support
CCTV Security Pros has served government, business and residential customers since 2008. Your SureVision system is backed by a three-year limited product warranty, a money-back guarantee and unlimited U.S.-based technical support, subject to the applicable terms. Get help with installation, remote viewing and making the most of your system.
Your Cameras and Recorder
Equipment shown matches the current standard package. Your selected product options determine the final configuration.
See the areas that matter
The fixed 2.8mm lens provides a 97-degree horizontal view. Infrared illumination reaches up to 98.4 feet under specified conditions, and the built-in microphone records audio context. Build a multi-zone view of a larger commercial property, covering access points, workspaces and outdoor approaches. The vandal-resistant dome housing is suited to locations where the camera may be within reach.
Your footage stays with you
The recorder brings your cameras into one viewing and recording system. Check several areas together, select a camera for a closer look, and review recordings when you need to check a delivery or an after-hours event. Export useful footage for later review or sharing.
The 32-channel recorder leaves capacity for 8 more compatible cameras, within its specifications. This package includes a preinstalled 4TB surveillance hard drive. Recording time depends on resolution, frame rate, bitrate and recording settings.
Stay connected when you are away
Use compatible free mobile and desktop viewing software to see live video and review recordings from your phone or computer. Remote viewing requires a working internet connection. Local recording continues without internet, and there are no required monthly recording or remote-viewing fees.
Simple wired connections
PoE carries power and video over one Ethernet cable per camera. The package includes 24 premade 100-foot Cat5 camera cables, one for each camera. Two included 16-port PoE switches provide camera power and network connections. Connect the cameras to the switches and the switches to the recorder through your network. Choose the recording schedule and settings that suit your property. Allow a little extra cable length for routing and slack. A free surveillance yard sign and warning stickers are included with complete systems.
What’s Included With Your System
- 24 SureVision cameras — SV-VP4-B-N
- 1 SureVision 32-channel network video recorder — SV-NVR432-N
- 4TB surveillance hard drive, preinstalled
- 24 premade 100-foot Cat5 camera cables — CSP-C100
- 2 × 16-port PoE switches
- 22-inch LCD monitor — SV-LCD22-N (current included upgrade)
- Free remote-viewing app and desktop software
- Free surveillance yard sign and warning stickers
Storage, cable and monitor selections on the product page determine your final configuration.
Common questions
Does recording need internet?
No. Recordings stay on the local recorder. Internet is needed for remote access while you are away.
Can I review an earlier event?
Yes. Use playback and search to review the camera and time period you need, then export useful footage.
Need a different mix? Explore our custom security camera system builder or call 888-653-2288.
Full Technical Specifications
Camera Technical Specifications
| Feature | Specification |
|---|---|
| Resolution | 4MP |
| Audio | Built-in mic |
| Lens | 2.8mm fixed |
| View Angle | 97° horizontal |
| Night Vision | Infrared up to 30m (98.4ft; approximately 100ft) |
| Connection | PoE over Cat5e |
| Use Case | Commercial interiors and exteriors |
| Housing | Indoor/outdoor rated |
Recorder (NVR) Technical Specifications
| Feature | Specification |
|---|---|
| Channels | 32-channel SureVision NVR |
| Recording Platform | Professional wired IP / PoE surveillance |
| Storage | Local NVR recording |
| Remote Viewing | Secure remote viewing apps |
| Video Management | Live view, playback, export, alerts |
| Installation | Plug-and-play PoE camera setup |
| Fees | No monthly fees |
| Expansion | Built for larger commercial camera counts |
Additional Product Resources
- security camera systems, this 24-camera size hits an ideal range for larger stores, warehouses, churches, schools, offices, and multi-tenant properties.
- NVR recorders, this configuration delivers the practical mix of scale, reliability, and everyday usability that larger properties need.
- 2 Camera Systems |
- 4 Camera Systems |
- 8 Camera Systems |
- 16 Camera Systems |
- 24 Camera Systems |
- 32 Camera Systems |
- 64 Camera Systems
- IP security cameras, compare
Complete Component Specifications
Detailed specifications for the standard camera and recorder models in this package. Optional equipment selections may change the final configuration.

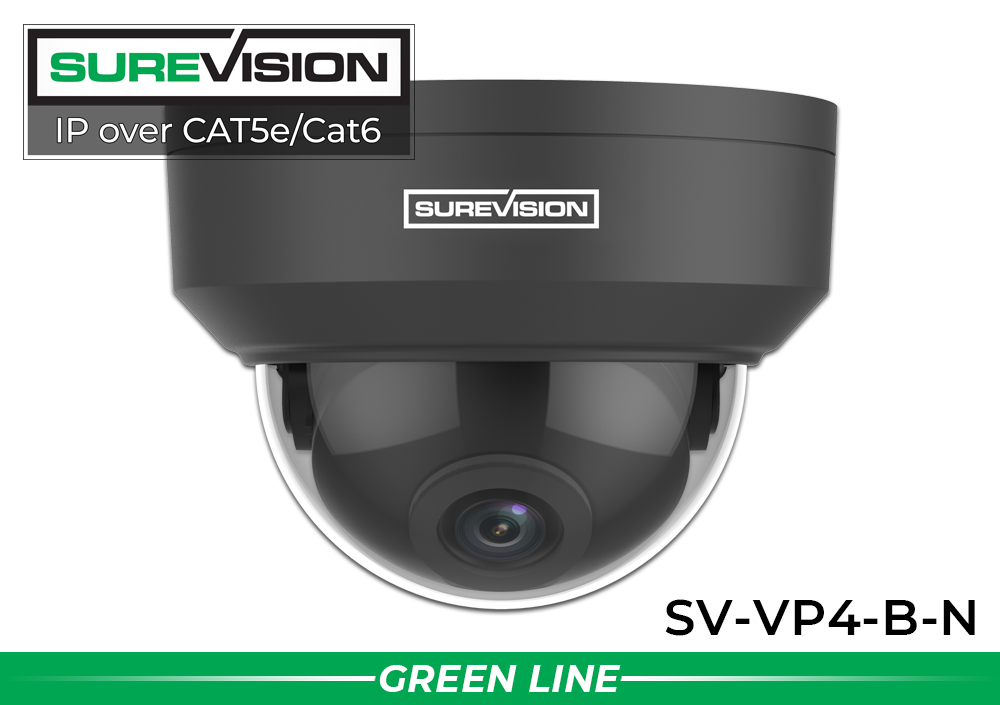

Camera Specifications — SV-VP4-B-N
| Max Resolution | 4 MP |
| Sensor | 1/3.0" CMOS |
| Min. Illumination | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360° |
| S/N | >52 dB |
| WDR | 120 dB |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | 97.0° |
| Field of View (V) | 52.2° |
| Field of View (D) | 107.5° |
| DORI Distance (Lens) | 2.8 mm |
| DORI Distance (Detect) | 63.0 m (206.7 ft.) |
| DORI Distance (Observe) | 25.2 m (82.7 ft.) |
| DORI Distance (Recognize) | 12.6 m (41.3 ft.) |
| DORI Distance (Identify) | 6.3 m (20.7 ft.) |
| Supplemental Light | IR |
| Illumination Distance (IR) | 30 m (98.4 ft.) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 4 MP (2688 × 1520), max. 25 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Dual streams |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anticlockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Basic Detection | Cross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, 802.1x, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, APP |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 4.4 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø111 mm × 83 mm (Ø4.4" × 3.3") (Ø × H) |
| Weight | 0.35 kg (0.77 lb.) |
| Material | Metal + Plastic |
| Working Environment | -30 C to 60 C (-22 F to 140 F), Humidity: <= 95% RH (non-condensing) |
| Storage Environment | -30 C to 60 C (-22 F to 140 F), Humidity: <= 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| Web Client Language | 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
Recorder Specifications — SV-NVR432-N
| Model | SV-NVR432-N |
| Included Storage | 4TB surveillance-grade hard drive, preinstalled |
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | Ultra 265/H.265: 2 × 16MP@30, 2 × 12MP@30, 4 × 4K@30, 6 × 5MP@30, 8 × 4MP@30, 10 × 3MP@30, 16 × 1080P@30, 32 × 960P@25 H.264: 2 × 16MP (4800×2688)@30, 2 × 12MP@30, 2 × 4K@30, 4 × 5MP@30, 6 × 4MP@30, 8 × 3MP@30, 14 × 1080P@30, 30 × 720P@30, 32 × D1 |
| Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width. For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, clear the VGA video on the preview page. |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, 802.1x, IPv6, IPv4 |
| Browser | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Video / Audio Input | |
| IP Video Input | 32-ch |
| RCA Audio Input | 1-ch |
| Video / Audio Output | |
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | 1 / 4 / 6 / 8 / 9 / 16 / 25 / 32 |
| Corridor Mode Screen | 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 / 32 |
| Two-Way Audio | |
| Two-Way Audio | 1-ch, RCA (using the audio input and output) |
| Snapshot | |
| FTP / Schedule / Event Snapshot | 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) |
| Recording | |
| Recording Resolution | 16 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Synchronous Playback in Local | 16-ch |
| Smart | |
| Smart by IPC | All channels (up to 8 images/s in total): Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| VCA Search | Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| Alarm | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| GUI Language | |
| Languages | 38 languages including Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk | |
| SATA | 4 SATA interfaces |
| Included Hard Drive | 1 × 4TB surveillance-grade hard drive, preinstalled |
| Capacity | Up to 24 TB for each HDD (maximum HDD capacity varies with environment temperature and hard disk size; environment temperature should not exceed 40°C) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 1, 5 |
| External Interface | |
| Network Interface | 2 RJ45 10 M / 100 M / 1000 M self-adaptive Ethernet interfaces |
| RS232 | N/A |
| Alarm In | 16-ch |
| Alarm Out | 4-ch |
| Power Supply | DC 12 V / 5 A |
| Power Switch | Support |
| Working Environment | |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 20W |
| Weight (without HDD) | ≤ 3.4 kg (7.50 lb) |
| Dimensions | 440 mm × 344 mm × 48 mm (17.3" × 13.5" × 1.9") |
| Certification | |
| Certification | CE; FCC; UL; RoHS; WEEE |
Need help choosing your security camera system?
Tell us what you need to cover. Our experts will recommend the right equipment.
USA-based support
Customize Your Coverage
Start with the complete system as shown. Need a different view for a special area? Our team can help you choose a suitable camera combination.


Zoom in and Out
4MP · Motorized 2.8–12mm lensAdjust from wider coverage to a closer view. Choose a bullet or protected dome design.
SV-BV4-N / SV-DV4-NView bullet camera →View dome camera →
Add Active Deterrence
4K · Lights and two-way audioBring warning-light and audio features to entrances and areas needing extra attention.
SV-WAD8-NView camera →
Super Wide 180 Degrees
4K · 180° wide-angleCover a broad entrance or room from one camera position.
SV-WT8-NView camera →
Control PTZ Cameras
4MP · 25X optical zoom · PTZPan, tilt and optically zoom toward gates, parking areas and distant activity.
SV-PTZ25X-NView camera →
