This is video monitoring at its best. This is SureVision.
This complete system package comes with our industry leading SureVision NVR. This professional grade NVR unit was designed to be simple and easy to setup while offering unmatched quality, function and reliability. The NVR comes equipped with all of the latest features such as 24/7 recording, motion recording, object masking, mobile alerts, audio and much more. You can easily view and receive instant motion alerts from your cameras remotely on any smartphone, tablet or computer using our free software and mobile apps. Built-in PoE (power over ethernet) makes this unit ideal for simple plug and play setup. All SureVision NVR units have extended PoE allowing you to cable over 800ft away! You can expect the very best surveillance for your business or home with this top of the line NVR.

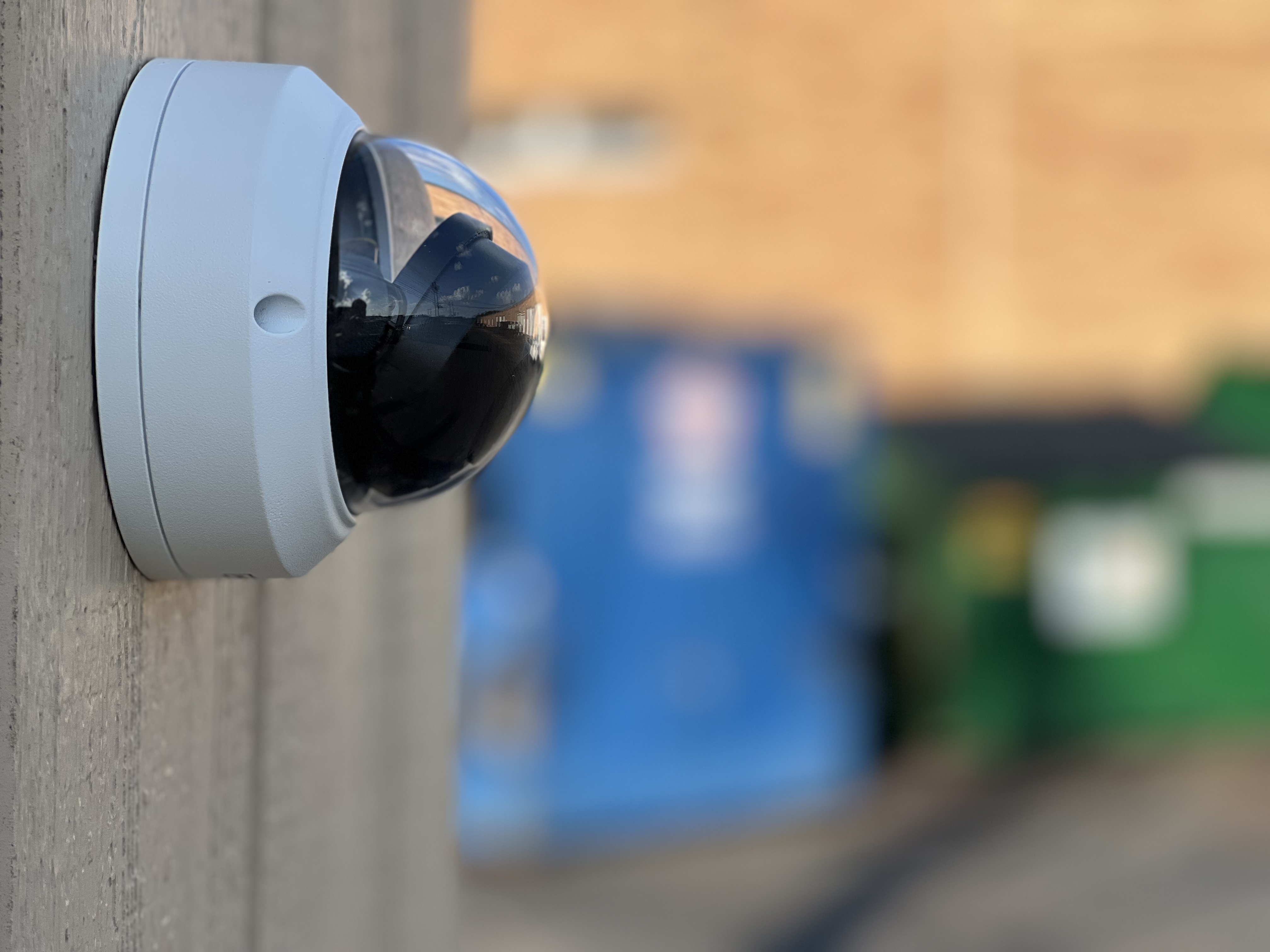

This complete security camera system package includes our SureVision 8 megapixel (4K) ultra high definition infrared vandal dome style camera with fixed 110 degree extra wide-angle lens and powerful night vision of up to 100ft. Many customers prefer dome cameras for use both indoor and outdoor due to their low profile design and discreet look. Dome cameras are also optimal when mounting low or within human reach since their vandal-proof design makes them difficult to be tampered with. Our professional-grade dome camera has a 3-axis lens meaning that it can be mounted to a ceiling or wall. This well-designed camera is packed with high-end features including a built-in microphone for audio recording. It also leverages the latest color at night technology to display illuminated images in low light areas. Other advanced features of this cameras include WDR used to combat any glare from intense lighting as well as the latest H.265 high video compression technology for extended video storage time. What makes this camera extra special is an AI feature called Ultra Motion Detection (UMD) that focuses specifically on humans and/or vehicles to produce the most accurate motion alerts – while eliminating any unwanted alerts! These notifications can instantly be sent to your smartphone or tablet so you never miss an important event. This 4K ultra high definition dome camera will provide you with exceptional wide-angle coverage for use in any application where superior video quality is a must.
This Complete High Definition IP Security Camera System comes with everything needed for complete installation. It includes a 3 Year Warranty, Free USA Technical and Support and 100% Money Back Guarantee.
Installation of our IP camera systems is simple and easy. A simple step-by-step guide is included with every system. We also include live USA based Technical Support available Monday through Friday. We are happy to answer any questions and assist you at (888) 653-2288.
*The equipment in this package is fully NDAA compliant and suitable for installation in government facilities and federally funded projects
This Complete HD Security Camera System includes:
- (1) 64 Channel SUREVISION HD Network Video Recorder
- (1) 8 Terabyte Surveillance Grade Hard Drive (installed)
- (64) 8MP (4K) IP Infrared Indoor/Outdoor Dome Security Cameras with up to 100 Foot Night Vision
- (64) 100 Foot CAT5 Cable
- (4) 16 Port POE Switch
- High Definition LCD Monitor is INCLUDED
- Quick Start Guide
- Free Remote Viewing Software and Apps
- Video Surveillance Aluminum Sign
Security Camera Specifications:
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| Camera | ||||||||
| Sensor | 1/3", 8.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8mm@F2.0 | |||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||
| 2.8mm | 84 | 33.6 | 16.8 | 8.4 | ||||
| Angle of View (H) | 112.7° | |||||||
| Angle of View (V) | 60.1° | |||||||
| Angle of View (D) | 146.5° | |||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~68° | Rotate: 0°~360° | |||||
| Shutter | Auto/Manual, 1~1/100000 s | |||||||
| Minimum Illumination | Colour: 0.05 Lux (F2.0, AGC ON) 0Lux with IR |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | >56dB | |||||||
| IR Range | Up to 30m (98 ft) IR range | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline Profile, Main Profile | |||||||
| Frame Rate | Main Stream:8MP (3840*2160): Max. 20 fps; 5MP (2592*1944): Max. 30 fps; 5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; 2MP(1920*1080): Max. 30 fps Sub Stream:720P (1280*720): Max. 20 fps Third Stream:D1 (720*576): Max. 20 fps |
|||||||
| HLC | Supported | |||||||
| BLC |
Supported |
|||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 2 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
| Interface | ||||||||
| Network |
10/100M Base-TX Ethernet |
|||||||
| Built-In Mic |
Supported |
|||||||
| General | ||||||||
| Power | DC12V±25%, PoE (IEEE802.3 af) | |||||||
| Power consumption: Max 4.5w | ||||||||
| Dimensions (Ø x H) | Φ108.7 x 83mm (Ø4.3" x 3.3") | |||||||
| Weight | 0.37kg (0.82lb) | |||||||
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity: ≤95% RH(non-condensing) | |||||||
| Ingress Protection | IP67 | |||||||
| Vandal Resistant | IK10 | |||||||
About our SUREVISION IP Camera Network Video Recorder:
Network Video Recorders are the most important part of any high quality IP surveillance system. Take advantage of our high-end, commercial-grade SUREVISION IP Camera NVRs at CCTV Security Pros to enjoy HD video quality live over the internet. Our full-featured and affordable IP camera recorders now offer up to 4K video resolution with multiple hard drive options that can be expanded for a flexible solution that fits your surveillance recording needs. Our SUREVISION IP NVR line is ONVIF compatible. SUREVISION is our latest and greatest line of IP Cameras. Order a SUREVISION IP NVR and treat yourself to a crystal clear, user friendly video recorder. View your cameras over the Internet, tablets, and cell phones as easy as 1-2-3.
SUREVISION "Green Line" Video Surveillance Recorder Highlights:
- Remote Viewing on PC, Cell Phone, and Tablet
- Industry Latest and Greatest
- Up to 4K Recording and Playback
- Motion 24/7 or on Motion Detection Mode
- Quick Start Guide Included for Easy Set Up
- 3 Year Warranty
- ONVIF Compliant
- Free Unlimited USA Support
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| Video/Audio Input | ||||||
| IP Video Input | 16-ch | 32-ch | 64-ch | |||
| Two-way Audio Input | 1-ch, RCA | |||||
| Network | ||||||
| Incoming Bandwidth | 384Mbps | |||||
| Outgoing Bandwidth | 384Mbps | |||||
| Remote Users | 128 | |||||
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |||||
| Video/Audio Output | ||||||
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2(HDMI audio output is not supported): 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|||||
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||||
| Audio Output | 1-ch, RCA | |||||
| Synchronous Playback | 16-ch | |||||
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16/32 | ||||
| Decoding | ||||||
| Decoding format | Ultra 265, H.265, H.264 | |||||
| Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||||
| Capability | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30 | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25 | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 | |||
| Hard Disk | ||||||
| SATA | 8 SATA interfaces | |||||
| Capacity | up to 10TB for each HDD | |||||
| eSATA | 1 eSATA interface | |||||
| Disk Array | ||||||
| Array Type | RAID 0, 1, 5, 6, 10 | |||||
| External Interface | ||||||
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | |||||
| Serial Interface | 1 x RS232, 1 x RS485 | |||||
| USB Interface | Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0 | |||||
| Alarm In | 16-ch | |||||
| Alarm Out | 4-ch | |||||
| General | ||||||
| Power Supply | 100~240 VAC Power Consumption: ≤ 25 W (without HDD) |
|||||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |||||
| Dimensions (W×D×H) | 442mm ×426mm× 89mm (17.4" × 16.8"× 3.5") | |||||
| Weight (without HDD) | ≤ 5.7Kg (12.57lb) | |||||
NVR FEATURES
- 4K Ultra High Definition
- External POE Switch (Up to 64 Cameras)
- Remote Viewing – No Monthly Fees
- H.265 High Video Compression
- 384 Mbps Incoming Bandwidth
- HDMI and VGA Display Output
- 8 Hard Drive Bays
CAMERA FEATURES
- 8 Megapixel IP Camera (3840×2160)
- 2.8mm Lens (110° Wide Angle View)
- Up to 100ft Infrared Night Vision
- Starlight - low light performance
- Built-in Microphone
- H.265 Video Compression
- Weatherproof - Indoor/Outdoor (IP67, IK10)
- Wide Dynamic Range - WDR (120dB)
- Power Over Ethernet - PoE
- Measurement: 3.2" H x 4.3" D
Identify (Up to 28ft)
Recognize (Up to 55ft)
Detect (Up to 276ft)
