TOP SELLER - SureVision Complete 64 8MP (4K) IP Camera System / 64IPBA8-B-N

$22,959.99 after 20% promo after 20% promo $18,367.99
(You save $4,592.00)
Model: SV-64IPBA8-B-N
TOP SELLER - SureVision Complete 64 8MP (4K) IP Camera System / 64IPBA8-B-N

Select your options:

superior products 3 year warranty
live usa technical support
30 day money back guarantee
free shipping on all orders over $100





This is IP video monitoring at its best. This is SureVision.

This complete system package comes with our industry leading SureVision NVR.  This professional grade NVR unit was designed to be simple and easy to setup while offering unmatched quality, function and reliability.  The NVR comes equipped with all of the latest features such as 24/7 recording, motion recording, object masking, mobile alerts, audio and much more.  You can easily view and receive instant motion alerts from your cameras remotely on any smartphone, tablet or computer using our free software and mobile apps.  Built-in PoE (power over ethernet) makes this unit ideal for simple plug and play setup.  All SureVision NVR units have extended PoE allowing you to cable over 800ft away! You can expect the very best surveillance for your business or home with this top of the line NVR.

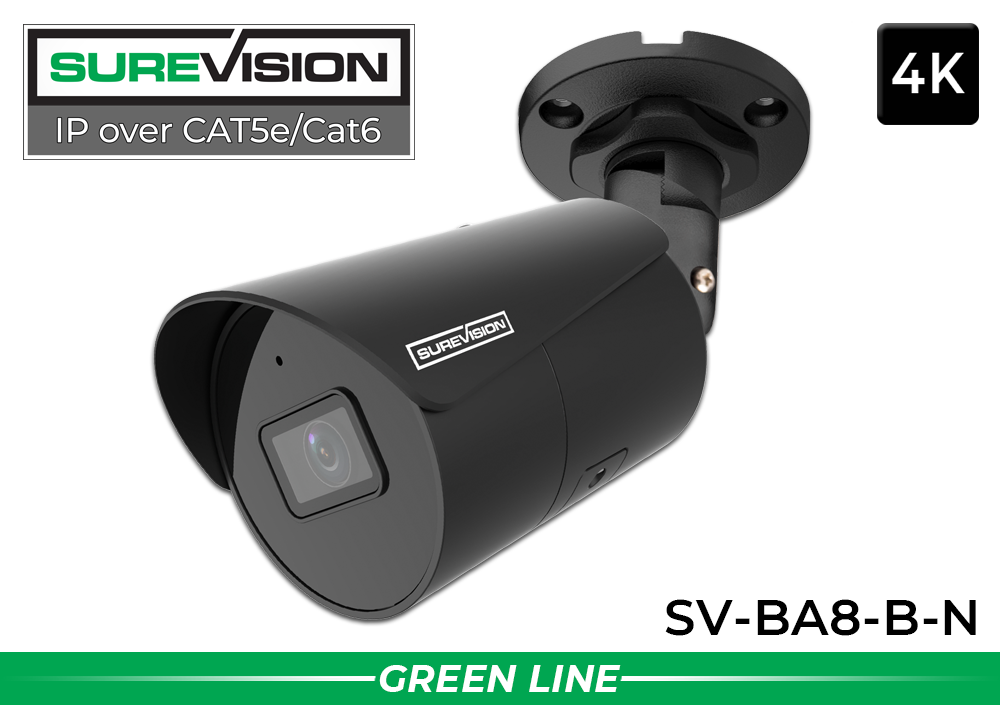

This complete security camera system package includes our SureVision 8MP (4K) ultra high definition infrared bullet style camera with 110 degree extra wide-angle lens and powerful night vision of up to 164ft. This well-designed camera is packed with high-end features including a built-in microphone for audio recording.  It also leverages the latest color at night technology to display illuminated images in low light conditions.  Other advanced features of these cameras include WDR used to combat any glare from intense lighting as well as the latest H.265 high video compression technology for extended video storage time. Whether you are using day or night, indoor or outdoor, this top of the line camera will provide you with crystal clear surveillance you can count on.

This Complete High Definition IP Security Camera System comes with everything needed for complete installation. It includes a 3 Year Warranty, Free USA Technical and Support and 100% Money Back Guarantee.

Installation of our IP camera systems is simple and easy. A simple step-by-step guide is included with every system. We also include live USA based Technical Support available Monday through Friday. We are happy to answer any questions and assist you at (888) 653-2288.

*The equipment in this package is fully NDAA compliant and suitable for installation in government facilities and federally funded projects

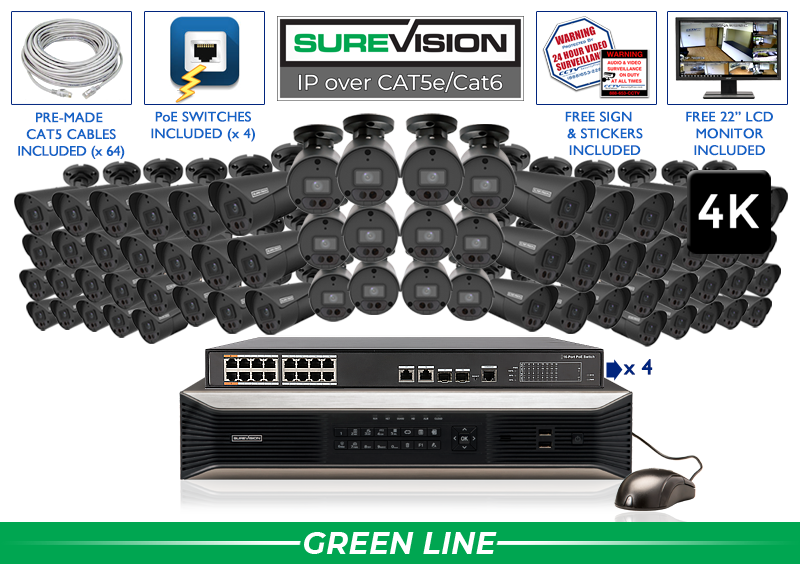

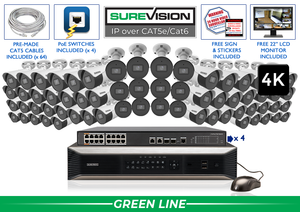

This Complete HD Security Camera System includes:

  • (1) 64 Channel SUREVISION HD Network Video Recorder
  • (1) 8 Terabyte Surveillance Grade Hard Drive (installed)
  • (64) 8MP (4K) IP Infrared Indoor/Outdoor Bullet Security Cameras with up to 164 Foot Night Vision
  • (64) 100 Foot CAT5e Cables
  • (4) 16 Port POE Switch
  • High Definition LCD Monitor is INCLUDED
  • Quick Start Guide
  • Free Remote Viewing Software and Apps
  • Video Surveillance Aluminum Sign








Camera Specifications:


Camera
Sensor 1/2.7", 8.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F1.6
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 84.0 33.6 16.8 8.4

Angle Of View (H) 112.9°
Angle Of View (V) 59.1°
Angle Of View (O) 121.2°
Adjustment Angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Support Easystar: Colour: 0.005Lux ( F1.6, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital Noise Reduction 2D/3D DNR
S/N >56dB
IR Range Up to 50m (164ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
9:16 Corridor Mode Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client SVStation
SVTools
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
Interface
Network 10/100M Base-TX Ethernet
Built-in Mic Supported
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 6.5W
Dimensions(L × W × H) 190×73×71mm (7.5”×2.9”×2.8”)
Net Weight 0.45kg (0.99lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Ingress Protection IP67
Reset Button Supported

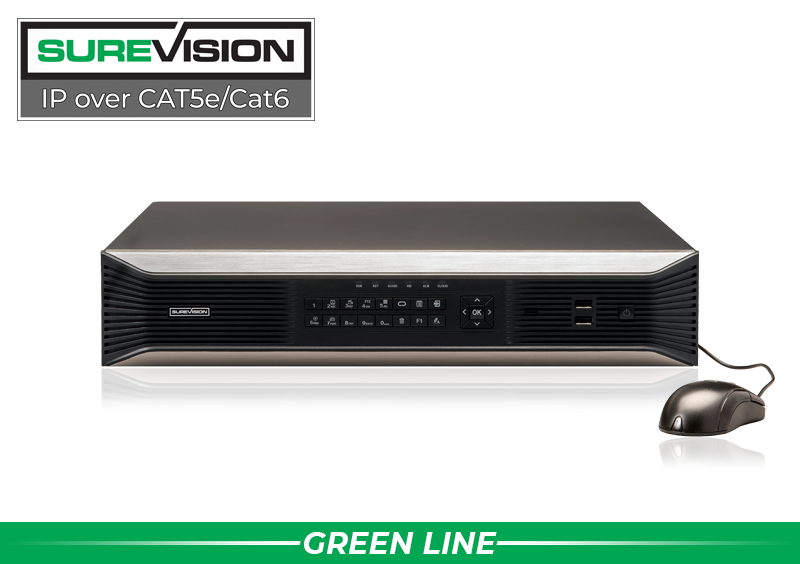

About our SUREVISION IP Camera Network Video Recorder:

Network Video Recorders are the most important part of any high quality IP surveillance system. Take advantage of our high-end, commercial-grade SUREVISION IP Camera NVRs at CCTV Security Pros to enjoy HD video quality live over the internet. Our full-featured and affordable IP camera recorders now offer up to 4K video resolution with multiple hard drive options that can be expanded for a flexible solution that fits your surveillance recording needs.  Our SUREVISION IP NVR line is ONVIF compatible.  SUREVISION is our latest and greatest line of IP Cameras.  Order a SUREVISION IP NVR and treat yourself to a crystal clear, user friendly video recorder.  View your cameras over the Internet, tablets, and cell phones as easy as 1-2-3.

SUREVISION "Green Line" Video Surveillance Recorder Highlights:

  • Remote Viewing on PC, Cell Phone, and Tablet
  • Industry Latest and Greatest
  • Up to 4K Recording and Playback
  • Motion 24/7 or on Motion Detection Mode
  • Quick Start Guide Included for Easy Set Up
  • 3 Year Warranty
  • ONVIF Compliant
  • Free Unlimited USA Support



Technical Specification
Video/Audio Input
IP Video Input 16-ch 32-ch 64-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 384Mbps
Outgoing Bandwidth 384Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI1/HDMI2(HDMI audio output is not supported):
4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32
Decoding
Decoding format Ultra 265, H.265, H.264
Live view/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
Hard Disk
SATA 8 SATA interfaces
Capacity up to 10TB for each HDD
eSATA 1 eSATA interface
Disk Array
Array Type RAID 0, 1, 5, 6, 10
External Interface
Network Interface 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
Serial Interface 1 x RS232, 1 x RS485
USB Interface Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0
Alarm In 16-ch
Alarm Out 4-ch
General
Power Supply 100~240 VAC
Power Consumption: ≤ 25 W (without HDD)
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 442mm ×426mm× 89mm (17.4" × 16.8"× 3.5")
Weight (without HDD) ≤ 5.7Kg (12.57lb)
NVR FEATURES
  • 4K Ultra High Definition
  • External POE Switch (Up to 64 Cameras)
  • Remote Viewing – No Monthly Fees
  • H.265 High Video Compression
  • 384 Mbps Incoming Bandwidth
  • HDMI and VGA Display Output
  • 8 Hard Drive Bays
CAMERA FEATURES
  • 8 Megapixel IP Camera (3840×2160)
  • 2.8mm Lens (110° Wide Angle View)
  • Up to 164ft Infrared Night Vision
  • Starlight - low light performance
  • Built-in Microphone
  • H.265 Video Compression
  • Weatherproof - Indoor/Outdoor (IP67)
  • Wide Dynamic Range - WDR (120dB)
  • Power Over Ethernet - PoE
  • Measurement: 7.5" L x 2.9" W x 2.8"
Approximate Distances:
Identify (Up to 27ft)
Recognize (Up to 55ft)
Detect (Up to 275ft)
